What is the maximum memory capacity supported by this motherboard?

The motherboard supports up to 128GB of DDR4 ECC UDIMM memory across 4 DIMM slots.

What type of processors are supported by the SUPERMICRO MBD-X11SCH-LN4F-O motherboard?

The SUPERMICRO MBD-X11SCH-LN4F-O motherboard supports 8th Generation Intel Core i3, Pentium, Celeron processors, as well as Intel Xeon Processor E-2100 series.

Is the CPU included with the motherboard?

No. If you want a motherboard that is a little more current the MBD-X12STH-F-O is nice. Works good with the Intel Xeon E E-2378 Octa-core CPU and a DeepCool AK400 CPU Air Cooler.

Questions & Answers: SUPERMICRO MBD-X11SCH-LN4F-O Micro ATX Server Motherboard

(4)

double click image to zoom in

Shop All Supermicro Products

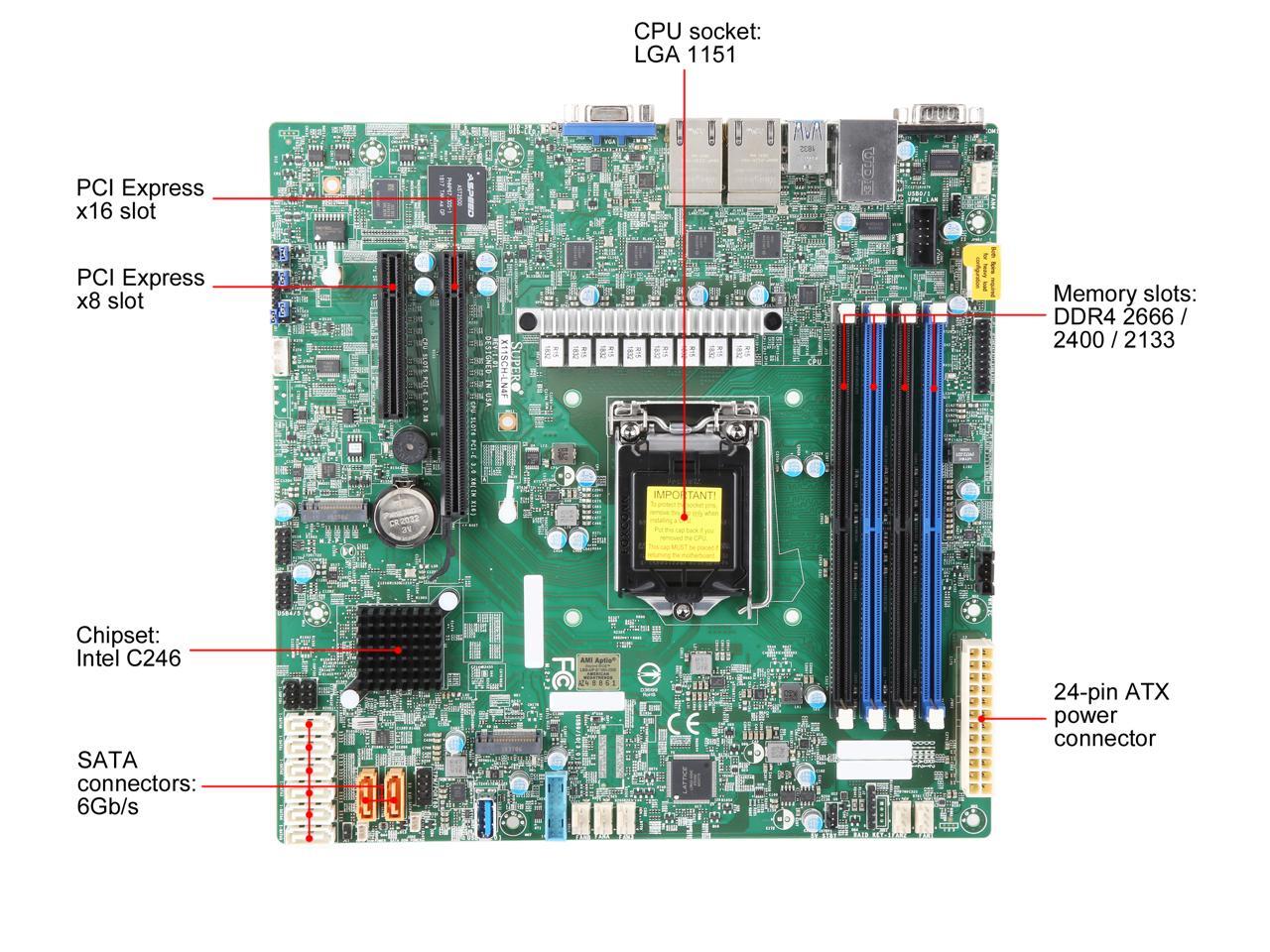

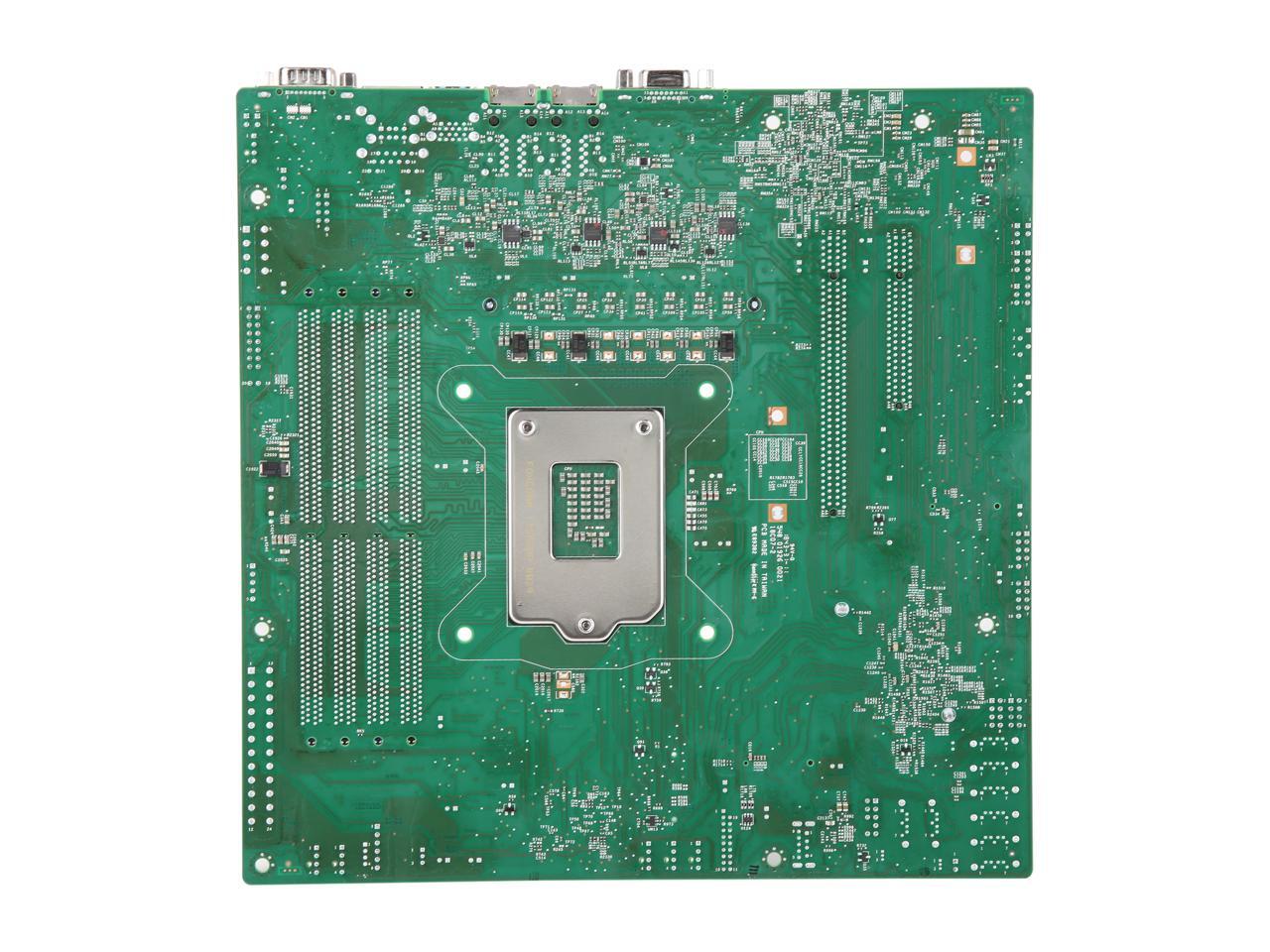

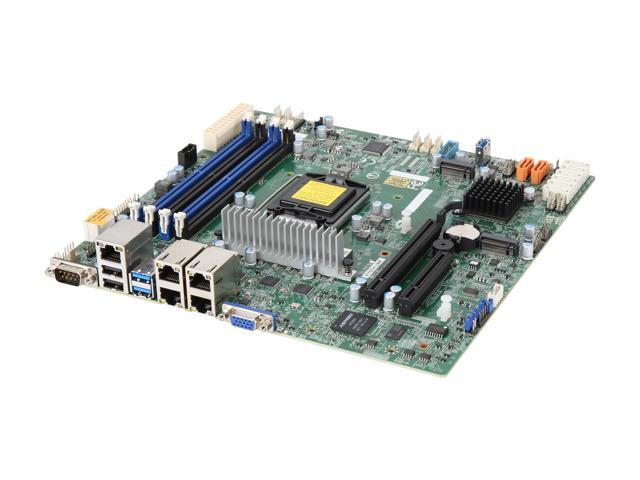

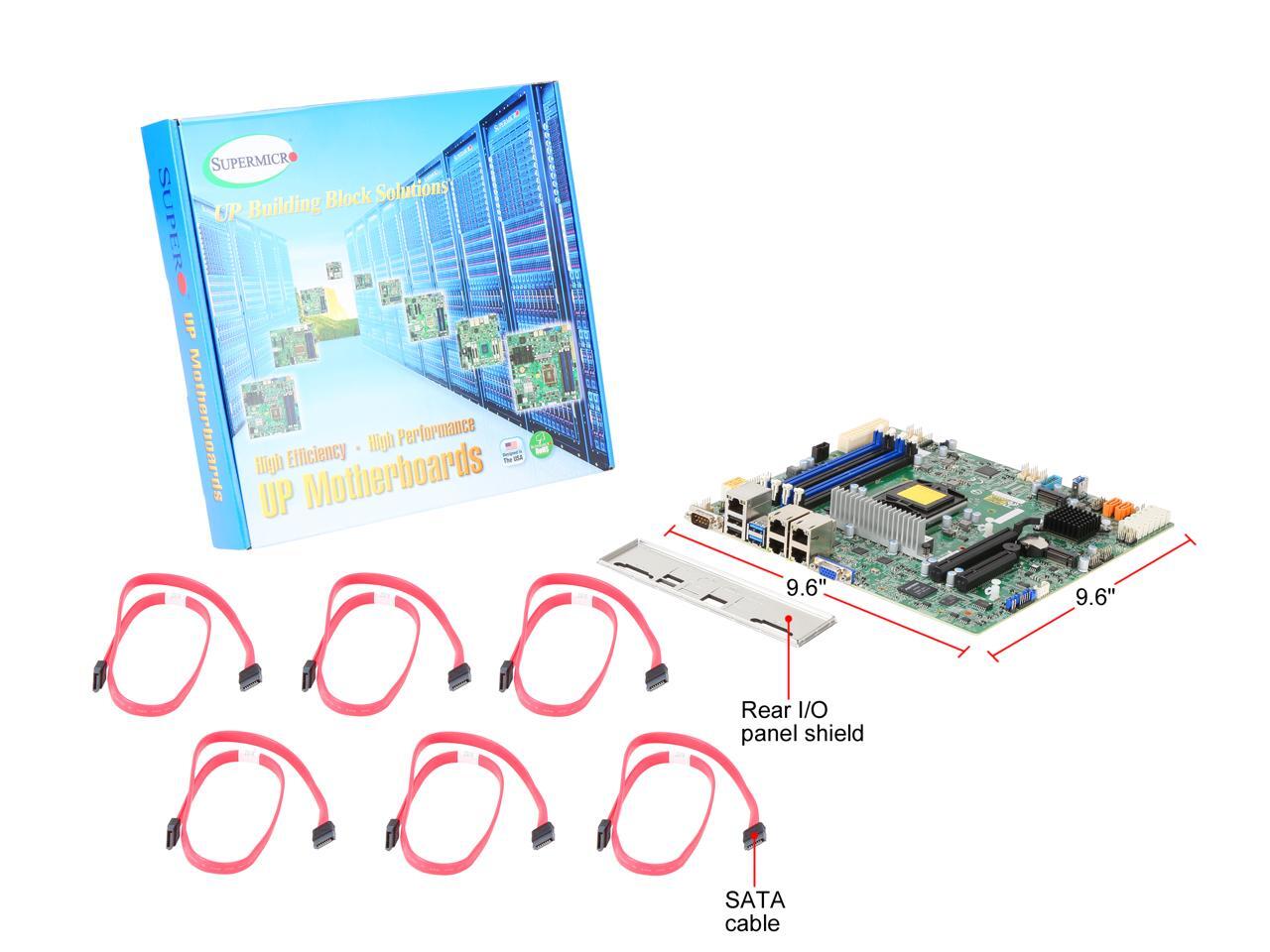

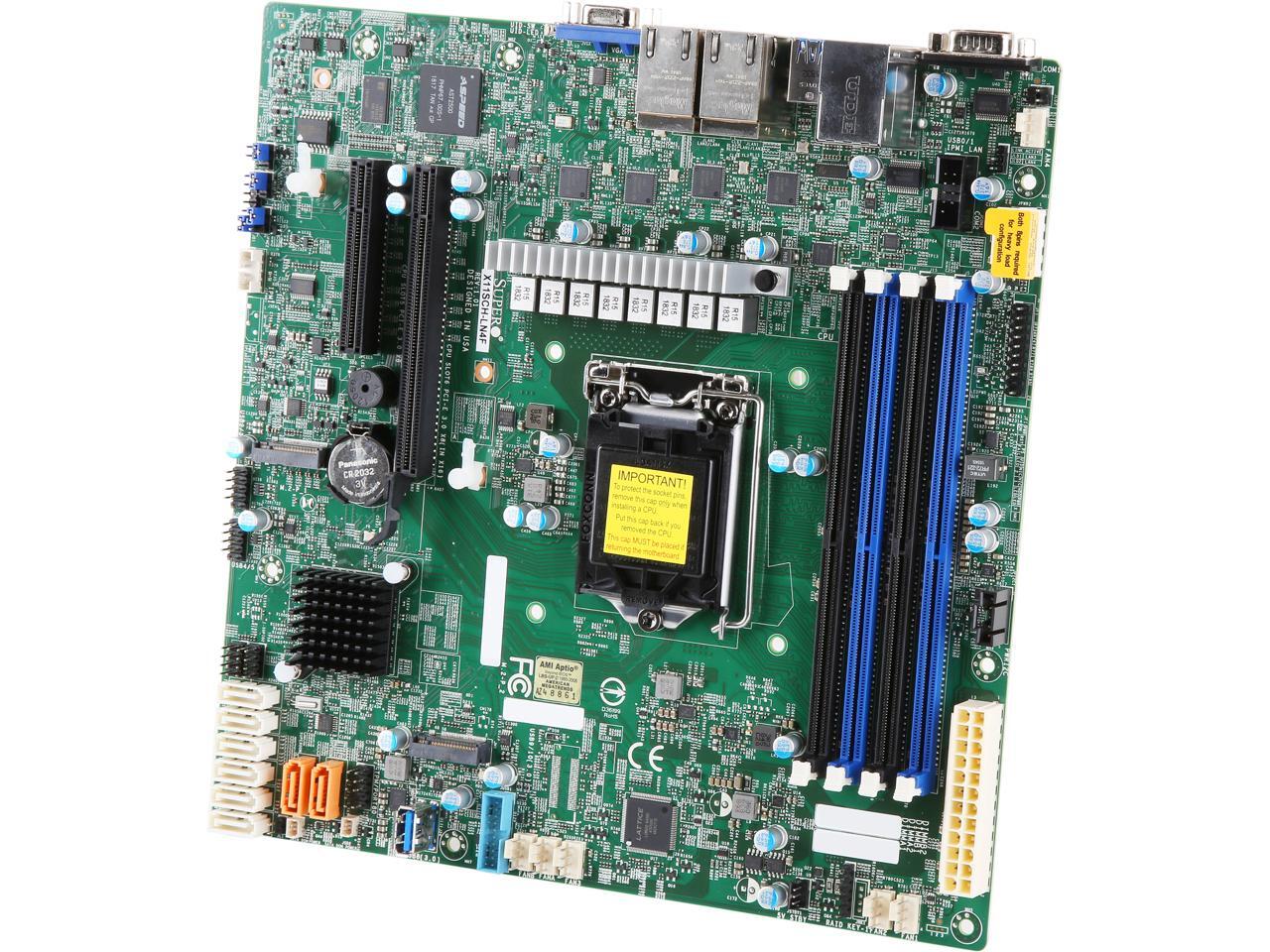

SUPERMICRO MBD-X11SCH-LN4F-O Micro ATX Server Motherboard LGA 1151 Intel C246

8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
Intel® C246 chipset
Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots
Expansion slots: 1 PCIe 3.0 x8 (in x16) and 1 PCIe 3.0 x8 slots
2x M.2 NGFF connectors
M.2 Interface: PCIe 3.0 x4
Form Factor: 2280, 22110
Key: M-Key
8 SATA3 (6Gbps) via C246; RAID 0, 1, 5, 10
2 USB 3.1 Gen 2 (rear); 3 USB 3.1 Gen 1 (1 Type A, 2 via header(s)); 6 USB 2.0 (2 rear, 4 via header(s))
Quad GbE LAN ports via Intel® i210
2 SuperDOM with built-in power

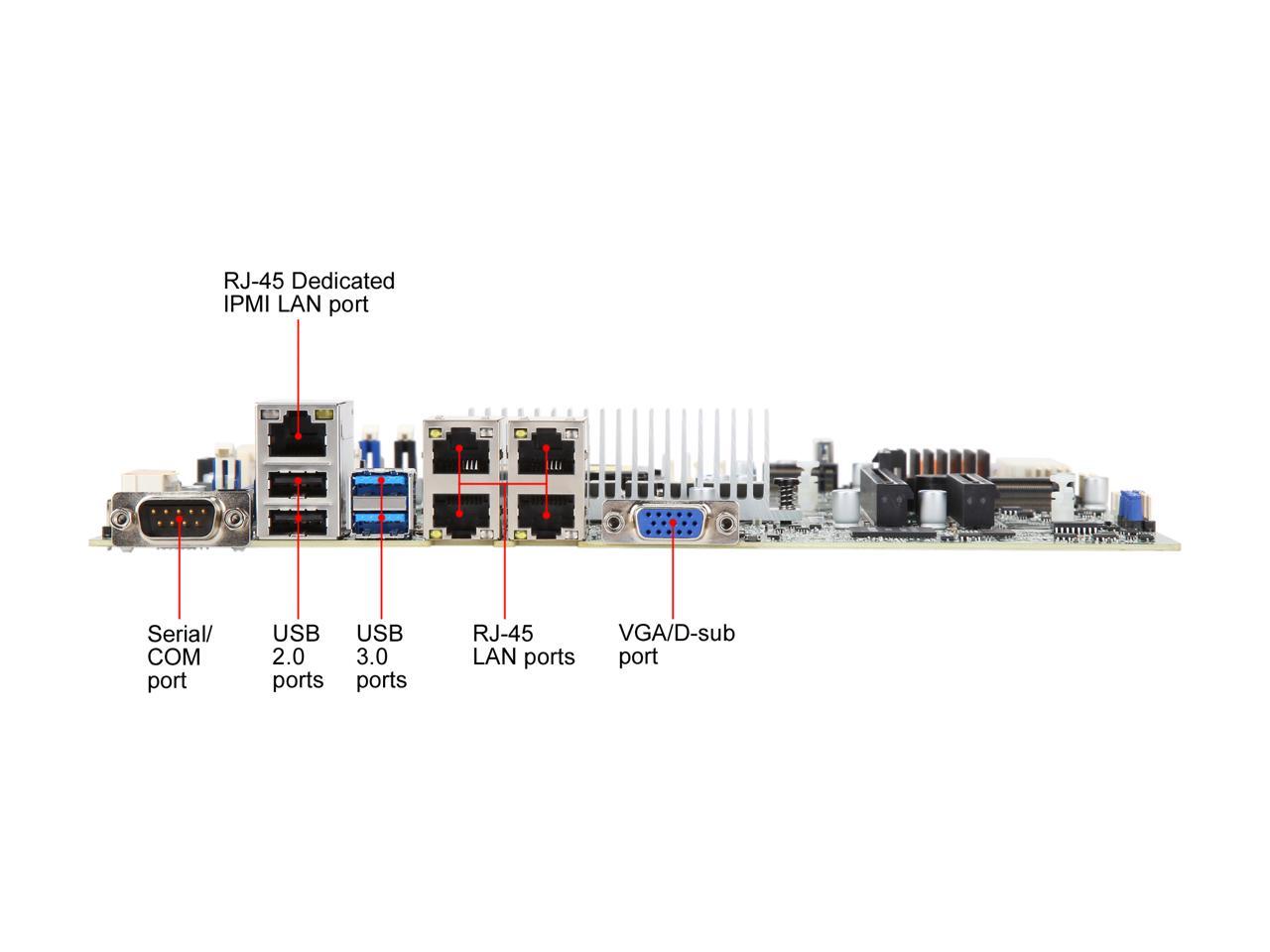

I/O: 1 VGA, 2 COM, 1 TPM header

$346^.00 –
