    SUPERMICRO MBD-X11SCL-IF-O Mini ITX Server Motherboard LGA 1151 Intel C242

    (2) Write a Review
    • LGA 1151
    • Intel C242
    +
    +
    Specs
    Reviews (2)

    Learn more about the Supermicro MBD-X11SCL-IF-O

    Best Seller Ranking #28 in Server Motherboards
    Model
    Brand SUPERMICRO
    Model MBD-X11SCL-IF-O
    Supported CPU
    CPU Socket Type LGA 1151
    CPU Type Supports:
    Intel Xeon E-2100 Processor
    Intel Xeon E-2200 Processor
    8th/9th Generation Intel Core i3 / Pentium / Celeron Processor
    Chipsets
    North Bridge Intel C242
    Memory
    DDR4 Standard DDR4 2667 / 2400 / 2133 MHz ECC SDRAM 72-bit
    Maximum Memory Supported Up to 64GB Unbuffered ECC UDIMM, DDR4-2666 MHz, in 2 DIMM slots
    Expansion Slots
    PCI Express 3.0 x16 1 x PCI-E 3.0 x16 (in x16 slot)
    Storage Devices
    SATA 4 x SATA 6.0Gb/s
    SATA RAID 0/1/5/10
    Onboard Video
    Onboard Video Chipset Aspeed AST2500 BMC
    Onboard LAN
    LAN Chipset Intel I210
    LAN Speed 10/100/1000Mbps
    Second LAN Chipset Intel I210
    Second LAN Speed 10/100/1000Mbps
    Max LAN Speed 2 x 1Gbps

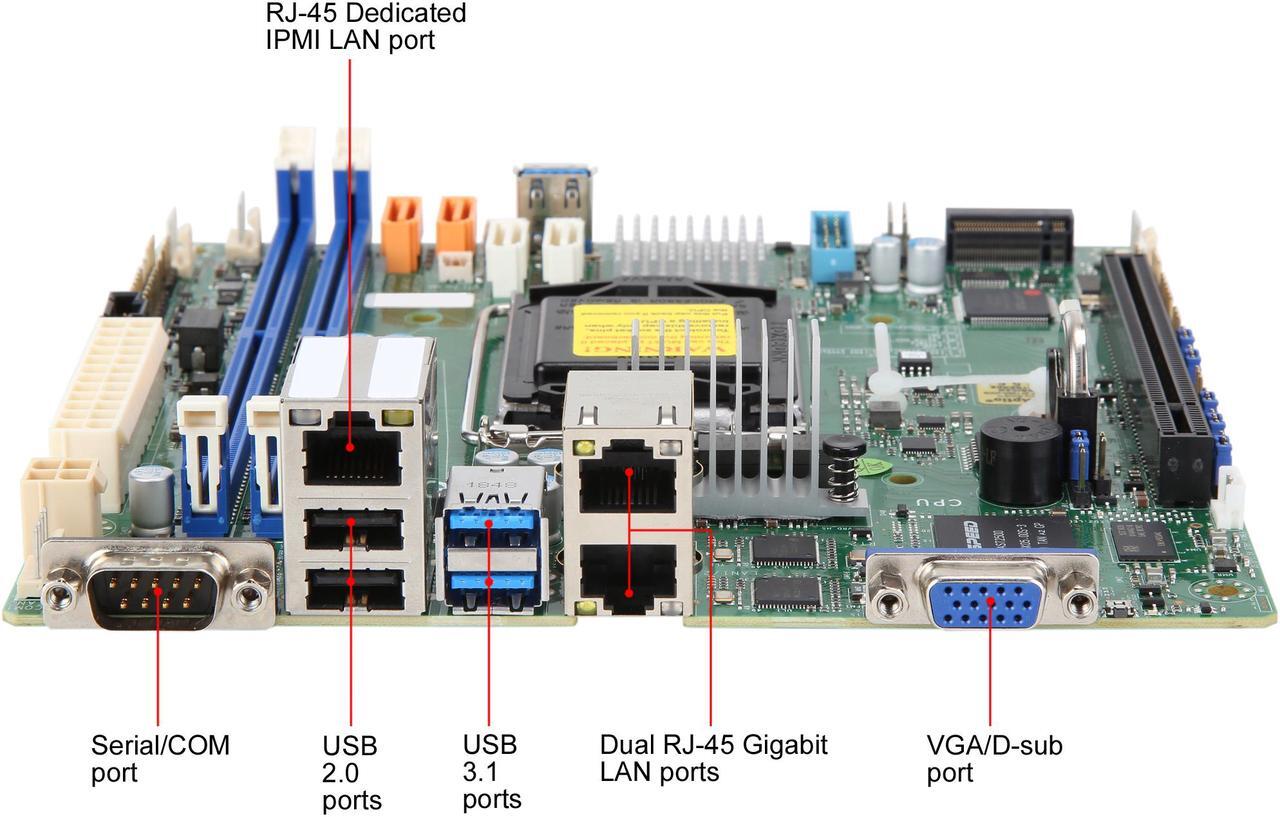

    Rear Panel Ports
    COM 1
    RJ45 2 x RJ45
    1 x IPMI
    USB 1.1/2.0 2 x USB 2.0
    USB 3.1 2 x USB 3.1
    Features

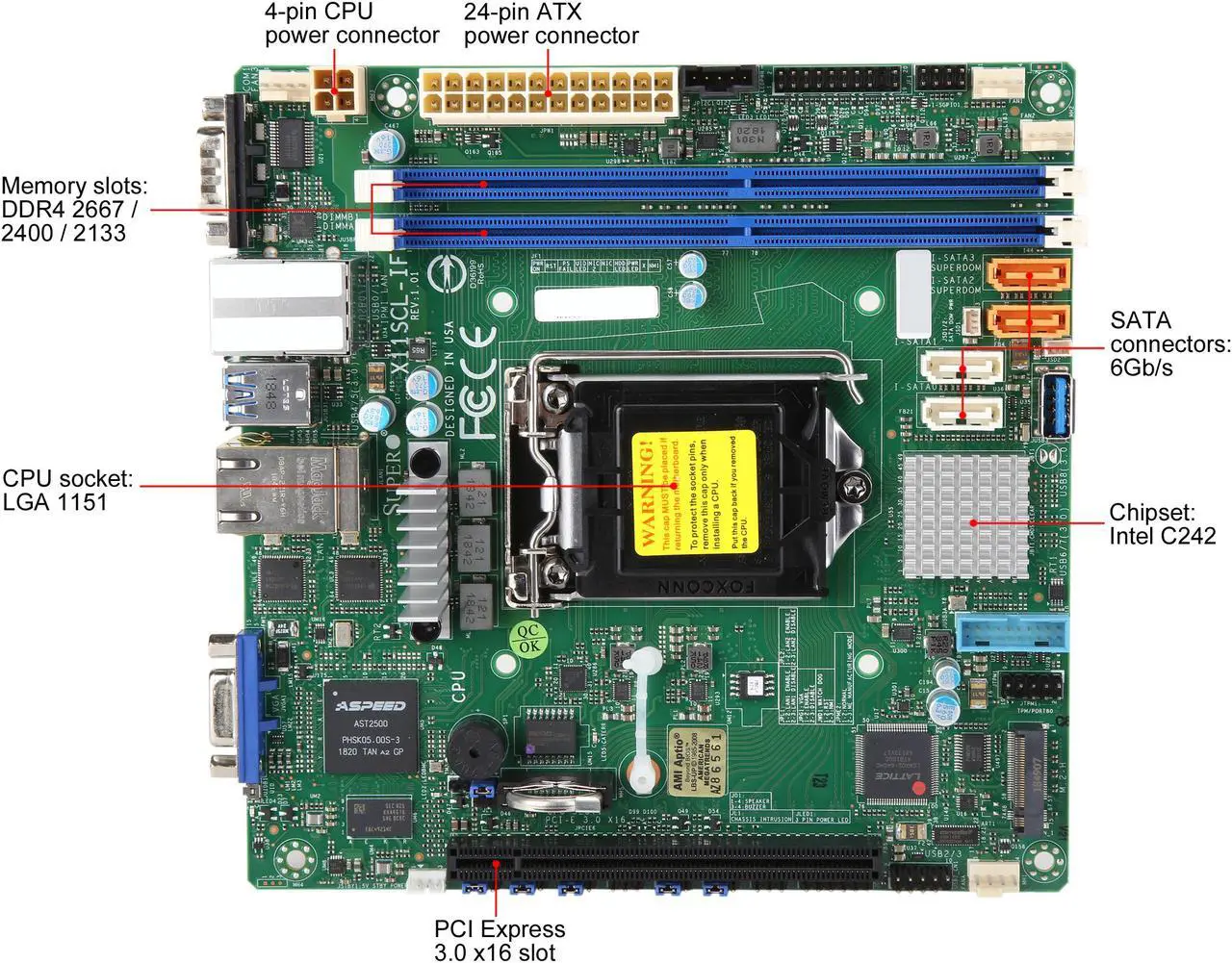

    Features Single socket H4 (LGA 1151) supports Intel Xeon processor E-2100, Intel 8th Gen. Core i3 series, Intel Celeron and Intel Pentium

    Intel C242 chipset

    Up to 64GB DDR4 2666 MHz ECC UDIMM; 2 x DIMM slots

    Dual GbE LAN with Intel i210-AT

    4 x SATA3 (6 Gbps); RAID 0, 1, 5, 10

    M.2 NGFF connector

    M.2 Interface: 1 x PCI-E 3.0 x4
    Form Factor: 2280
    Key: M-Key
    Double Height Connector
    Dimensions
    Form Factor Mini ITX

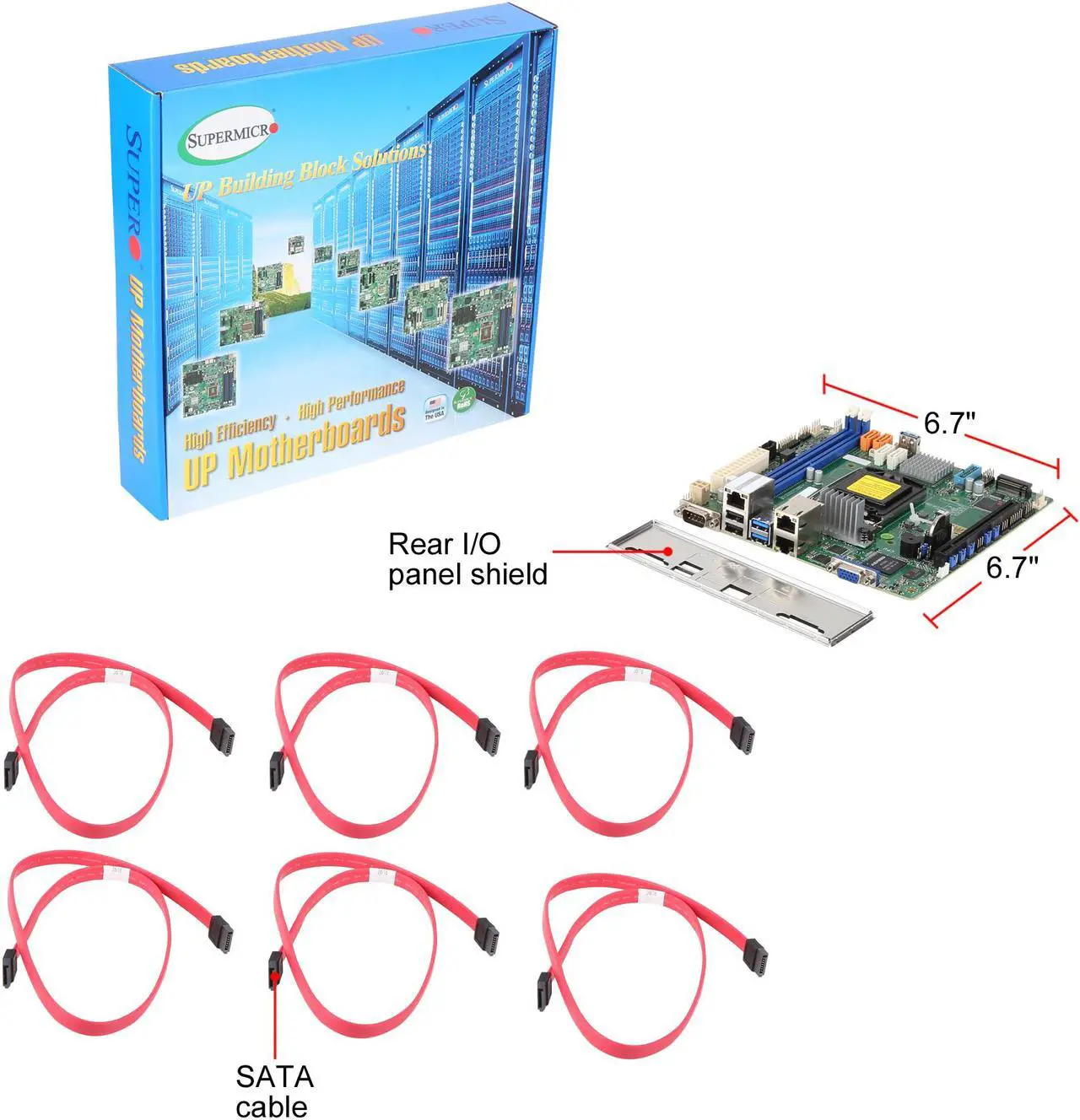

    Dimensions (W x L) 6.7" x 6.7"
    Additional Information
    Date First Available February 19, 2019

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 1 year
    • Limited Warranty period (labor): 3 years
