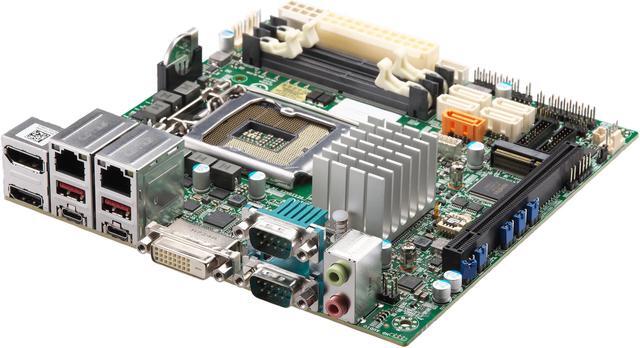

Main image of Supermicro MB MBD-X11SCV-Q-O Ci7 i5 i3 Q370 LGA1151 32GB DDR4 PCIE Mini-ITX

Alt view image 2 of 2 - Supermicro MB MBD-X11SCV-Q-O Ci7 i5 i3 Q370 LGA1151 32GB DDR4 PCIE Mini-ITX

Shop All Supermicro Products

Supermicro MB MBD-X11SCV-Q-O Ci7 i5 i3 Q370 LGA1151 32GB DDR4 PCIE Mini-ITX

Be the first to review this product...

LGA 1151
Intel Q370

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Supermicro MB MBD-X11SCV-Q-O Ci7 i5 i3 Q370 LGA1151 32GB DDR4 PCIE Mini-ITX

Model
Brand	SUPERMICRO
Model	MBD-X11SCV-Q-O

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	8th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron Processor Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 65W TDP 8th Gen Intel Core desktop processors are supported with Intel 300 Series chipset motherboards only

Chipsets
North Bridge	Intel Q370

Memory
Maximum Memory Supported	Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2666 MHz, in 2 DIMM slots

Expansion Slots
PCI Express 3.0 x16	1

Storage Devices
SATA	5 x SATA 6.0Gb/s
SATA RAID	0/1/5/10

Onboard LAN
Number of LAN	Single LAN with Intel Ethernet Controller I210-AT Single LAN with Intel PHY I219LM LAN controller

Rear Panel Ports
RJ45	2 x RJ45 Gigabit Ethernet LAN ports
USB 3.1	2 Type A + 2 Type C USB 3.1 ports

Features
Features	8th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron Processor, Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 65W TDP Intel Q370 Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2666 MHz, in 2 DIMM slots 1 x PCI-E 3.0 x16, 1 x M.2 M-Key PCI-E 3.0 x4, 2242 / 2280, 1 x M.2 E-Key CNVi / PCI-E 3.0 x1, 2230 1 x DVI - D port, 1 x HDMI port, 1 x DP (DisplayPort) port, 1 x eDP (Embedded DisplayPort) port, 3 x Independent Displays, HDMI 2.0 Intel Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10, X11SCV-Q: Q370 controller for 5 SATA3 ports; RAID 0, 1, 5, 10 Single LAN with Intel Ethernet Controller I210-AT, Single LAN with Intel PHY I219LM LAN controller

Dimensions
Form Factor	Mini ITX
Dimensions (W x L)	6.7" x 6.7"

Additional Information
First Listed on Newegg	November 21, 2018

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-408-503-8000
Support Website
