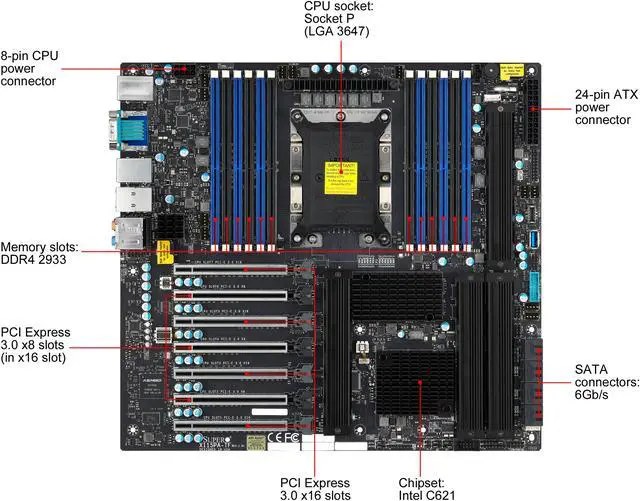

SUPERMICRO MBD-X11SPA-TF-O Extended ATX Server Motherboard LGA 3647 Intel C621
- Intel C621

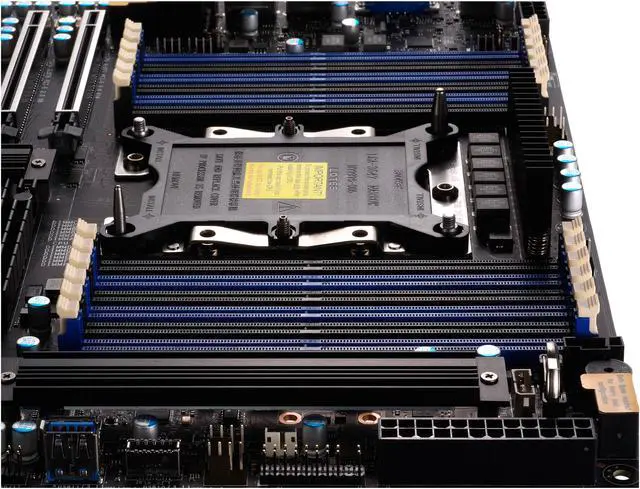

- Socket P (LGA 3647), 1st and 2nd Generation Xeon Scalable Processor (Cascade Lake-SP) Ready

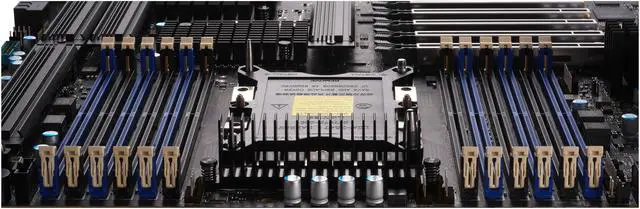

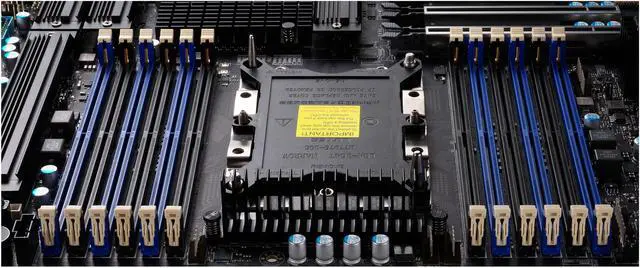

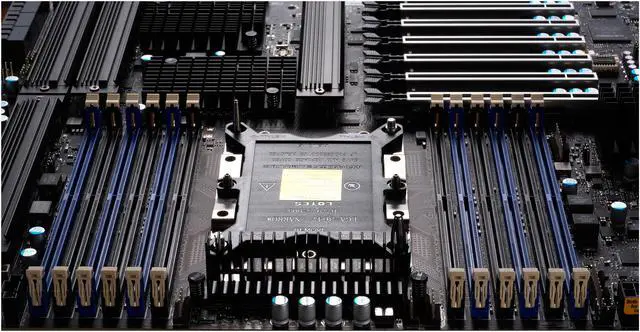

- Up to 3TB ECC RDIMM / LRIMM DDR4 2933MHz in 12 DIMM slots
- 7 PCI-Express 3.0 x16 slots for maximized expandability
- 4 M.2 + 8 SATA both with RAID 0, 1, 5, and 10 options
- Aquantia AQC107 10 GbE LAN and Intel i210AT GbE LAN
- 2 rear USB 3.1 Gen2 + 1 Type A and 1 Type C Front Panel header
- AI optimized, deep learning, simulation, and content creation
+
+
Specs
Reviews (1)
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Learn more about the Supermicro MBD-X11SPA-TF-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11SPA-TF-O |
| CPU Socket Type | LGA 3647 |
|---|---|
| CPU Type | Supports 1st / 2nd Gen Intel Xeon Scalable Processors |
| North Bridge | Intel C621 |
|---|
| Number of DDR4 Slots | 12 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2933 |
| Maximum Memory Supported | Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz Up to 3TB Intel Optane Persistent Memory, DDR4-2666MHz |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 3.0 x16 | 4 |
|---|---|
| PCI Express x8 | 3 PCI-E 3.0 x8 (in x16 slot) * PCI-Ex16 Slot#1 shares with M.2, Slot#2 shares with Slot#3(NA/16,8/8), Slot#4 shares with Slot#5(NA/16,8/8), Slot#6 shares with Slot#7(NA/16,8/8) |
| SATA | 8 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/10/5 |
| M.2 | M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1 Form Factor: 2242/2260/2280/22110 Key: M-Key M.2 support RAID 0,1 (up to RAID 5, 10), VROC key is required for Raid. |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| Audio Chipset | ALC 888S HD Audio |
|---|
| LAN Chipset | AQUANTIA AQC107 |
|---|---|
| LAN Speed | 10Gbps |
| Second LAN Chipset | Single LAN with Intel Ethernet Controller I210-AT Single LAN with Realtek RTL8211E PHY (dedicated IPMI) |
| Max LAN Speed | 10Gbps + 2 x 1Gbps |

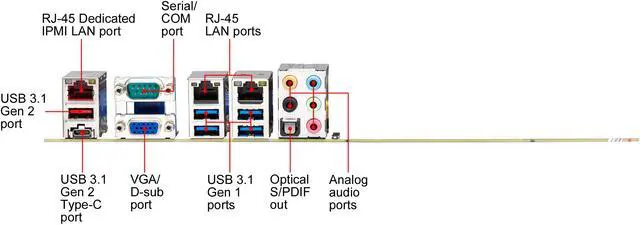

| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 1 x Optical S/PDIF Out / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 3 x LAN (RJ45) / 4 x USB 3.1 Gen 1 Type-A / 5 x Audio Jacks |
|---|
| Onboard USB | One front accessible USB 2.0 header with two (2) USB connections One front accessible USB 3.1 Gen1 header with two (2) USB connections Two front accessible USB 3.1 Gen2 headers (1 x Type A, 1 x Type C) |
|---|
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 13.0" |
| First Listed on Newegg | May 02, 2019 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-408-503-8000
- Support Website
- View other products from Supermicro
LOADING...
LOADING...
The SUPERMICRO MBD-X11SPA-TF-O is an E-ATX workstation and server motherboard for 1st- and 2nd-generation Intel Xeon Scalable processors, suited to deep learning, simulation, and content-creation builds that need up to 3TB of ECC memory and multiple expansion slots.
Recommended For
- Workstation builders running a supported Xeon Scalable processor who need ECC registered memory for sustained compute, rendering, simulation, or other professional workloads.
- GPU-compute or expansion-heavy workstation builders who need multiple PCIe cards, with the understanding that some slots share bandwidth or become unavailable depending on configuration.
- Memory-capacity-focused server or workstation builders who need a single-socket platform with ECC RDIMM/LRDIMM support and room to scale memory substantially.
- Homelab or small-server builders who want IPMI remote management, onboard 10GbE, and room for multiple M.2 or SATA drives in a full-size system.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Xeon Scalable server builds requiring large-capacity ECC memory, PCIe expansion, and multiple storage options |
| Processor And Platform | Intel C621 chipset with an LGA 3647 socket, supporting 1st- and 2nd-generation Intel Xeon Scalable processors |
| Memory Configuration | 12 DDR4 DIMM slots; supports up to 3TB of 3DS ECC registered RDIMM or LRDIMM memory at DDR4-2933, plus up to 3TB of Intel Optane Persistent Memory at DDR4-2666 |
| PCIe Expansion | Four PCIe 3.0 x16 slots and three PCIe 3.0 x8 connections in x16 slots; slot availability is shared between paired slots, and slot 1 shares with M.2 |
| Storage And RAID | Eight SATA 6Gb/s ports and four M.2 PCIe 3.0 x4 connections; supports SATA RAID 0, 1, 5, and 10, and M.2 RAID 0 and 1, with RAID 5/10 requiring a VROC key |
| Networking | Aquantia AQC107 10GbE, Intel I210-AT 1GbE, and a Realtek RTL8211E PHY for dedicated IPMI; up to 10Gbps plus two 1Gbps connections |
| Rear I/O And USB | Rear I/O includes serial, D-Sub, optical S/PDIF, one USB 3.1 Gen 2 Type-A, one USB 3.1 Gen 2 Type-C, four USB 3.1 Gen 1 Type-A, three RJ-45 LAN, and five audio jacks. Front headers provide two USB 2.0 connections, two USB 3.1 Gen 1 connections, and USB 3.1 Gen 2 Type-A and Type-C |
| Onboard Audio And Video | Realtek ALC 888S HD Audio and an ASPEED AST2500 onboard video chipset |
| Form Factor And Dimensions | Extended ATX, measuring 12.0 × 13.0 inches |
| Model Identifiers | SUPERMICRO MBD-X11SPA-TF-O |
