Images from RETAIL item, box contents may vary.

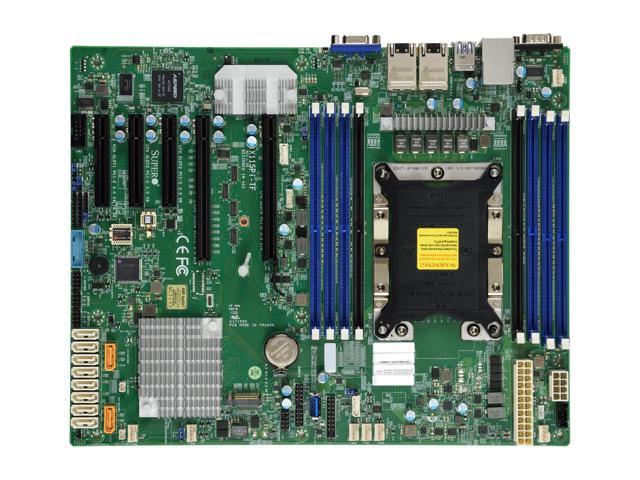

X11SPI-TF XEON MAX-1TB DDR4 ATX
OPEN BOX Product Type
- Intel Xeon Scalable Processors, Single Socket P (LGA 3647)
- 10 x SATA3 (6 Gbps) via C622
- 8 x 288-pin DDR4 DIMM slots
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro MBD-X11SPI-TF-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11SPI-TF-O |
| CPU Socket Type | LGA 3647 |
|---|---|
| CPU Type | Supports 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors |
| North Bridge | Intel C622 |
|---|
| Number of DDR4 Slots | 8 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2666 / 2400 / 2133 / 1866 / 1600 MHz ECC |
| Maximum Memory Supported | Up to 1TB ECC 3DS LRDIMM Up to 512GB ECC LRDIMM Up to 256GB ECC RDIMM |
| ECC Supported | Yes |
| PCI Express 3.0 x16 | 1 x PCI-E 3.0 x16 1 x PCI-E 3.0 x16 (x16 or x8 ) |
|---|---|
| PCI Express x8 | 1 x PCI-E 3.0 x8 (x0 or x8 ) 1 x PCI-E 3.0 x8 |
| PCI Express x4 | 1 x PCI-E 3.0 x4 (in x8 slot) |
| Other Slots | M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2280, 22110 |
| SATA | 10 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | Aspeed AST2500 BMC |
|---|
| LAN Chipset | Intel X722 |
|---|---|
| LAN Speed | 10Gbps |
| Second LAN Chipset | Intel X557 |
| Second LAN Speed | 10Gbps |
| Max LAN Speed | 2 x 10Gbps |
| COM | 1 |
|---|---|
| Video Ports | 1 x VGA |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 | 2 x USB 3.0 |
| Features | Intel Xeon Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 205W Intel C622 chipset Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666 MHz; 8 x DIMM slots Expansion slots: 1 x PCI-E 3.0 x16, 1 x PCI-E 3.0 x16 (x16 // x8), 1 x PCI-E 3.0 x8 (x0 // x8), 1 x PCI-E 3.0 x8, 1 x PCI-E 3.0 x4 (in x8) 2 x 10 GbE LAN ports 10 x SATA3 (6 Gbps) via C622 I/O: 1 x VGA, 2 x COM, TPM header 2 x SuperDOM with built-in power 5 x USB 3.0 (2 x rear, 1 x Type-A, 2 x via header), 6 x USB 2.0 (2 x rear, 4 x via headers) M.2 NGFF connector M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2280, 22110 Key: M-Key Double Height Connector |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| First Listed on Newegg | December 22, 2018 |
|---|
