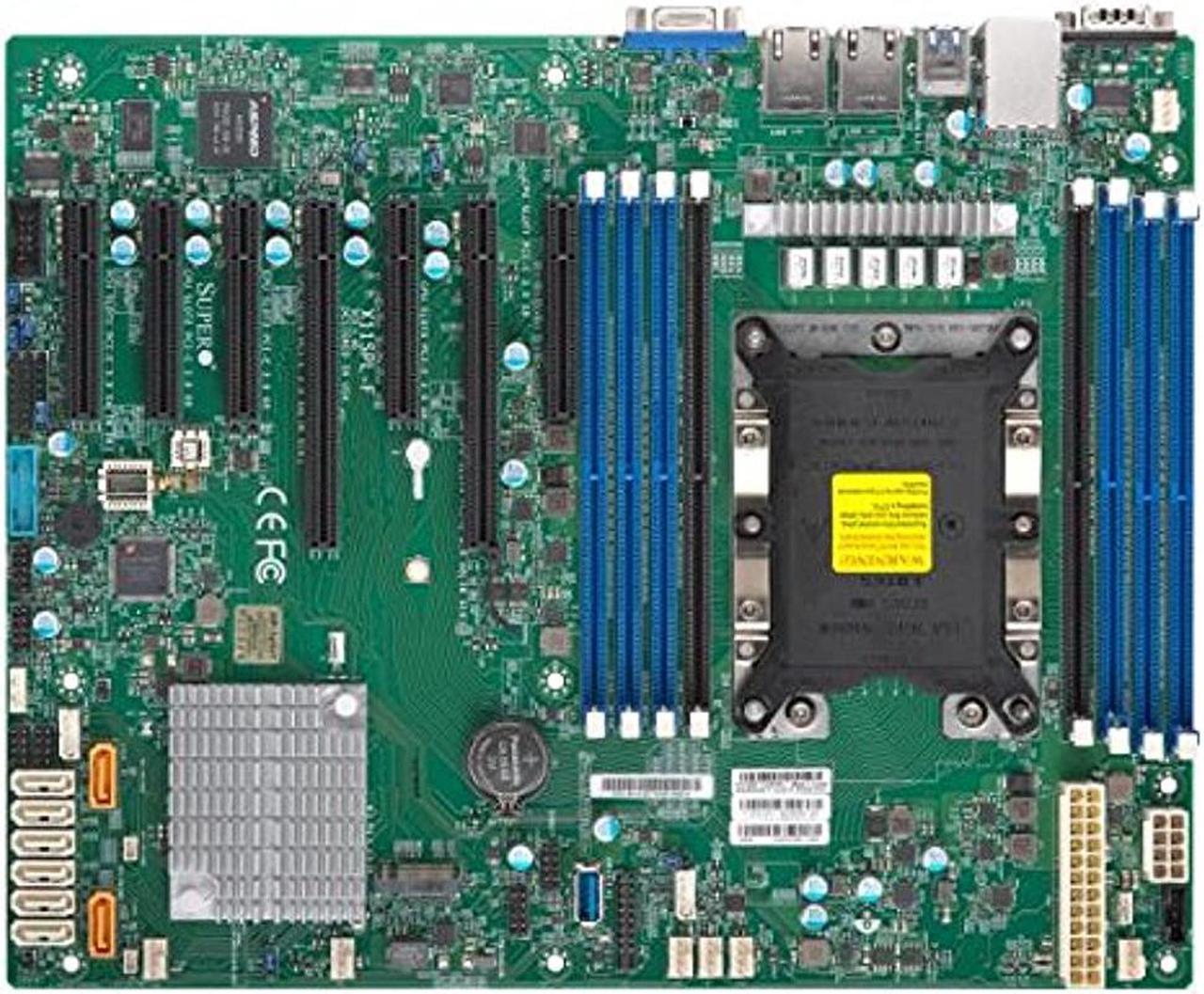

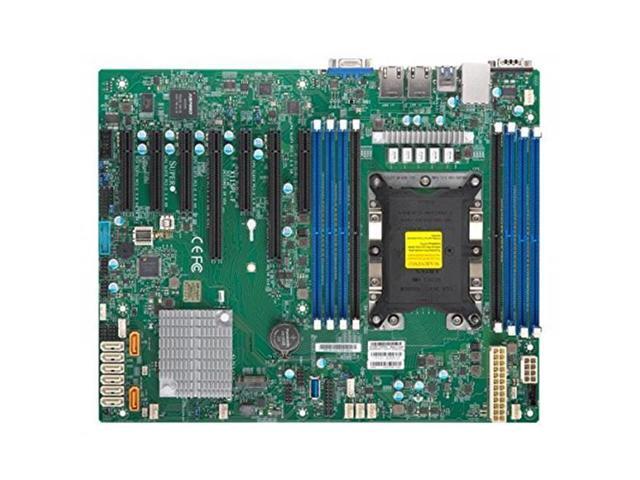

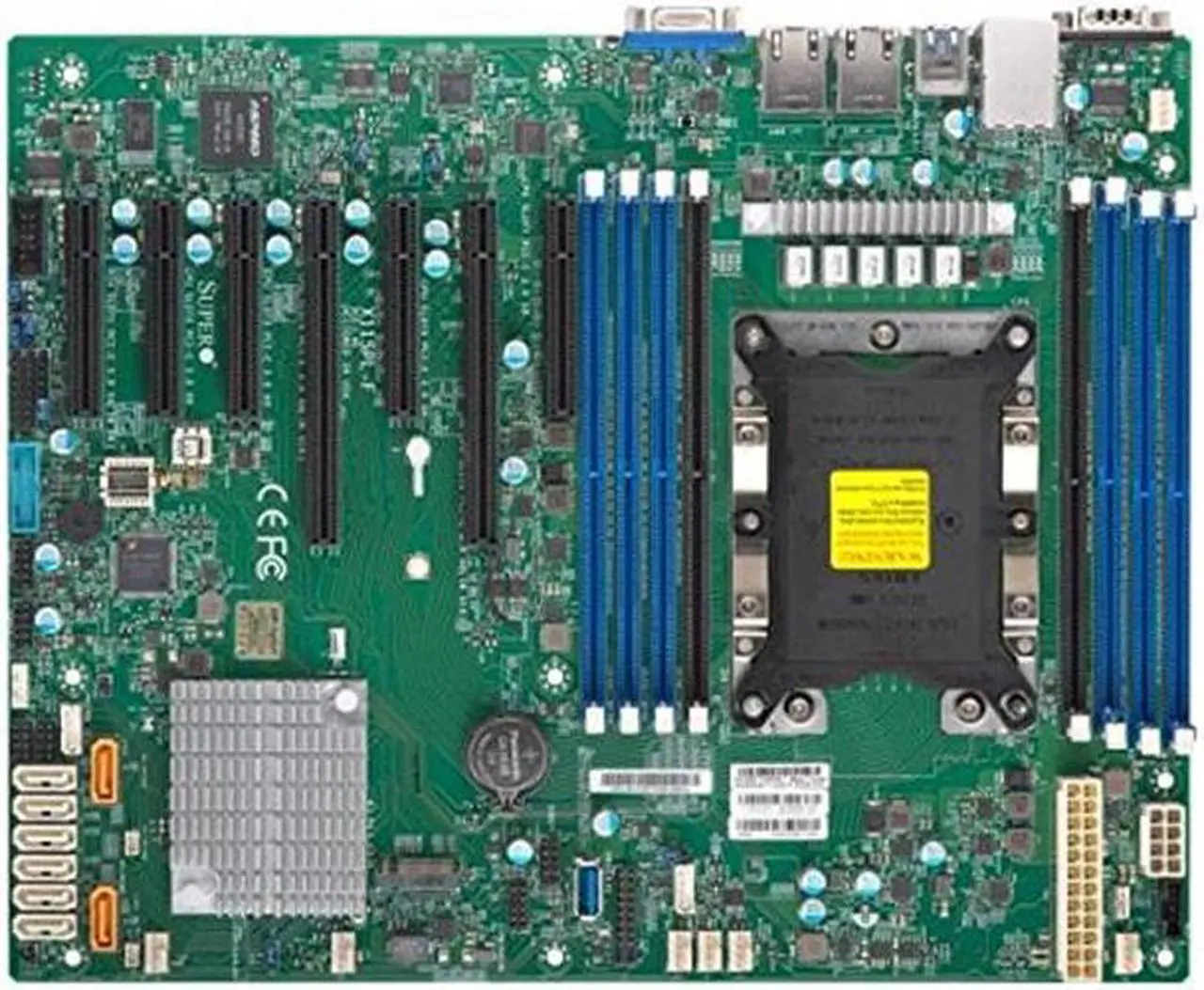

Learn more about the Supermicro MBD-X11SPL-F-O
Model| Brand | SUPERMICRO |
|---|
| Model | MBD-X11SPL-F-O |
|---|
Supported CPU| CPU Socket Type | LGA 3647 |
|---|
| CPU Type | Supports 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors |
|---|
Chipsets| North Bridge | Intel C621 |
|---|
Memory| DDR4 Standard | DDR4 2666 MHz |
|---|
| Maximum Memory Supported | Up to 256GB RDIMM, 512GB LRDIMM, 1TB LRDIMM 3DS. Support APE |
|---|
| ECC Supported | Yes |
|---|
Expansion Slots| PCI Express 3.0 x16 | 7 x PCIe 3.0 slots: 4 x8, 2 x8 (in x16), 1 x4 (in x8) |
|---|
| Other Slots | 1 x M.2 in 2280, 22110 (PCIe 3.0 x4 & SATA3) |
|---|
Storage Devices| SATA | 8 x SATA 6.0Gb/s |
|---|
| SATA RAID | 0/1/10/5 |
|---|
Onboard LAN| LAN Chipset | Intel I210 |
|---|
| LAN Speed | 10/100/1000Mbps |
|---|
| Second LAN Chipset | Intel I210 |
|---|
| Second LAN Speed | 10/100/1000Mbps |
|---|
| Max LAN Speed | 2 x 1Gbps |
|---|
Rear Panel Ports| COM | 1 |
|---|
| USB 1.1/2.0 | 2 x USB 3.0 + 2 x USB 2.0 |
|---|
| USB 3.0 | 2 x USB 3.0 |
|---|
Dimensions| Form Factor | ATX |
|---|
| Dimensions (W x L) | 12.0" x 9.6" |
|---|
Additional Information| Date First Available | December 08, 2020 |
|---|
