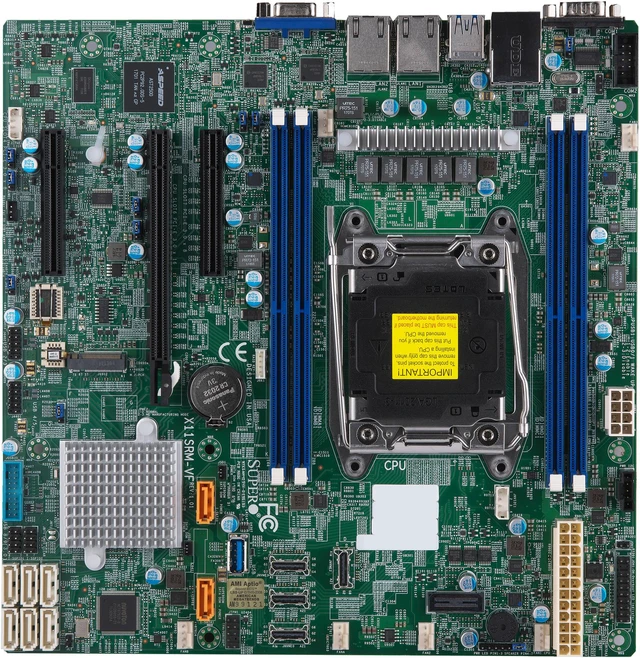

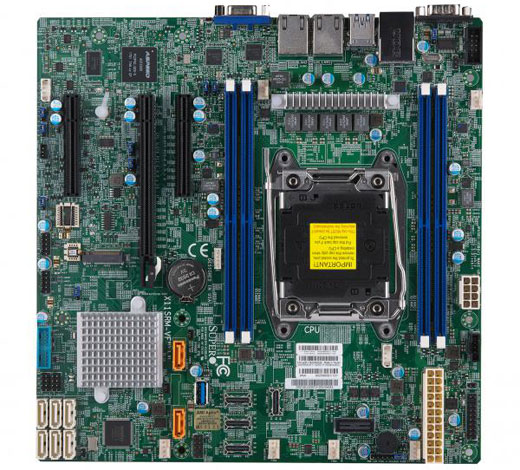

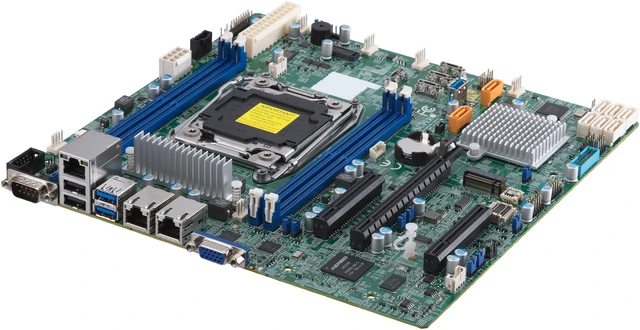

Supermicro MBD-X11SRM-VF-O Server Motherboard
Powered by Intel C422 chipset, this server board works flawlessly with Intel Xeon W family processors in LGA 2066 packaging. Although coming in a micro ATX form factor, this board features quad DIMM slots, three PCI-E slots, an M.2 slot and numerous SATA ports, offering all essentials you need to build a compact workstation or a home/SOHO server. Four PCI-E 3.0 x4 NVMe internal ports are ideal for SSDs, and also serve as OCuLink connectors for Intel Virtual RAID on Chip (VROC). This model also has two GbE ports, two powered SATA connectors (colored in orange) with DOM support, and an internal USB port that facilitates plugging in a USB license dongle.
1. Intel Xeon Processor W Family, Single Socket R4 (LGA 2066) supported, CPU TDP support Up to 140W TDP
2. Intel C422
3. Up to 128GB DDR4 ECC RDIMM, DDR4-2666MHz; Up to 256GB ECC LRDIMM, DDR4-2666MHz, in four DIMM slots
4. One PCI-E 3.0 x16, two PCI-E 3.0 x8
M.2 Interface: one PCI-E 3.0 x4
M.2 Form Factor: 2280
M.2 Key: M-Key
Double Height Connector,
Four PCI-E 3.0 NVMe x4 Internal Port(s)
5. Dual LAN with Intel i210 Gigabit Ethernet Controller
6. Intel VROC
Specifications
| Product SKUs | ||
|---|---|---|
| MBD-X11SRM-VF | X11SRM-VF | |
| Physical Stats | ||
| Form Factor | microATX | |
| Dimensions | 9.6" x 9.6" (24.38cm x 24.38cm) | |
| Processor/Cache | ||
| CPU |
|
|
| Cores / Cache | 18 cores, 36 threads | |
| System Memory | ||
| Memory Capacity | Up to 128GB DDR4 ECC RDIMM, DDR4-2666MHz; Up to 256GB ECC LRDIMM, DDR4-2666MHz, in 4 DIMM slots | |
| Memory Type | 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM | |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C422 | |
| SATA | Intel® C422 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| IPMI | ASPEED AST2500 | |
| Network Controllers | Dual LAN with Intel® i210 Gigabit Ethernet Controller | |
| Graphics | Aspeed AST2500 BMC | |
| Input / Output | ||
| SATA | 8 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| USB |
|
|
| Video Output | 1 VGA port | |
| Serial Port / Header | 2 COM Ports (1 rear, 1 header) | |
| TPM | TPM Header | |
| Expansion Slots | ||
|---|---|---|
| PCI-E |
|
|
| M.2 |
|
|
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| BIOS Features |
|
|
| Management | ||
| Software | IPMI2.0, KVM with dedicated LAN, SUM, SuperDoctor® 5, Watchdog | |
| Power Configurations |
|
|
| PC Health Monitoring | ||
| Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 -fan status, Chassis intrusion header, HT, Monitors CPU voltages, System temperature, VBAT | |
| FAN | 6x 4-pin fan headers (up to 6 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control | |
| Temperature | PECI, CPU thermal trip support, Thermal Control for 6 Fan Connectors | |
| LED | CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED | |
| Other Features | ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, RoHS, UID | |
| Operating Environment | ||
| Operating Temperature Range | 0°C ~ 50°C (32°F ~ 122°F) | |
| Non-Operating Temperature Range | -20°C ~ 60°C (-4°F ~ 140°F) | |
| Operating Relative Humidity Range | 10% ~ 85% (non-condensing) | |
| Non-Operating Relative Humidity Range | 10% ~ 95% (non-condensing) | |
