Is this board compatible with Windows Server 2008 and EXSi or VSphere?

for this motherboard, Supermicro currently lists download sections for Windows 10, Windows Server 2012 R2, and Windows Server 2016. However, I was completely successful installing Windows Server 2019 and all drivers. See my review here for more on that.

Can one use 2666 MHz ram with this motherboard?

The motherboard advertises support for 2400 MHz / 2133 MHz / 1866 MHz / 1600 MHz. If the base speed of your RAM matches one of these and only increased to 2666 MHz when using an XMP profile then it might work. Otherwise I'd suggest running with the advertised supported speeds.

Does anyone know if this motherboard is compatible with VMware?

I am using it with ESXi 6.5, no issues.

Will this fit in a 1U chassis with the stock heatsink and fan for a xeon e3-1200 v5 CPU???

No, you can't fit a stock HSF in a 1U chassis, and this motherboard will not work with Xeon chips. At presently, only the Coffee Lake 1151v2 chips are supported, and there are no Xeon chips that support that pinout.

Will this board work with Non-ecc memory? Will this board work with an 1151 I7 intel cpu

Yes, it works fine with non-ECC memory and it should work fine with LGA1151 i7 processors as well.

Out of stock

$299^.99

Free 83-day Returns
$3.99 Shipping ()

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List(Found on 7 wish lists)

Get Educated

Make informed decisions with expert advice. Learn More

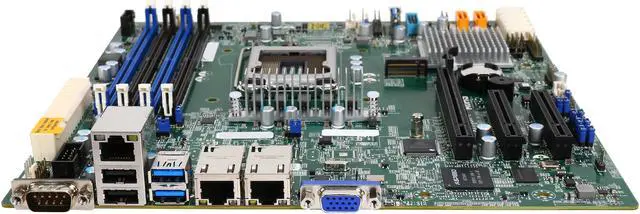

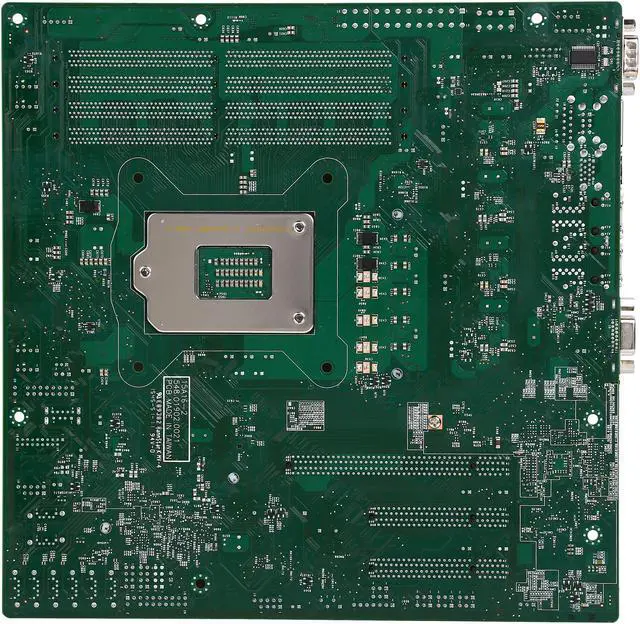

Main image of SUPERMICRO MBD-X11SSH-F-O Micro ATX Server Motherboard LGA 1151 Intel C236

Alt view image 2 of 5 - SUPERMICRO MBD-X11SSH-F-O Micro ATX Server Motherboard LGA 1151 Intel C236

Alt view image 3 of 5 - SUPERMICRO MBD-X11SSH-F-O Micro ATX Server Motherboard LGA 1151 Intel C236

Alt view image 4 of 5 - SUPERMICRO MBD-X11SSH-F-O Micro ATX Server Motherboard LGA 1151 Intel C236

Alt view image 5 of 5 - SUPERMICRO MBD-X11SSH-F-O Micro ATX Server Motherboard LGA 1151 Intel C236

Shop All Supermicro Products

SUPERMICRO MBD-X11SSH-F-O Micro ATX Server Motherboard LGA 1151 Intel C236

(7) Write a Review

Intel Xeon processor E3-1200 v6 / v5, Intel 7th / 6th Gen. Core i3 series, Intel Celeron and Intel Pentium
Intel C236 chipset
Up to 64GB Unbuffered ECC UDIMM DDR4 2400 MHz
8 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10

Overview

Specs

Reviews (7)

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

SUPERMICRO MBD-X11SSH-F-O Micro ATX Server Motherboard

Features

Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
Intel® C236 chipset
Up to 64GB Unbuffered ECC UDIMM, DDR4 2400MHz; in 4 DIMM slots
Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
Dual GbE LAN with Intel® i210-AT
8x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
I/O: 1x VGA, 2x COM, TPM 1.2 header
2x SuperDOM with built-in power
5x USB 3.0 (2 rear + 2 via header + 1 Type A), 6x USB 2.0 (2 rear + 4 via headers)
M.2 NGFF connector
Support Intel VHD with selected CPU

Specifications

Product SKUs
MBD-X11SSH-F -B	X11SSH-F (Bulk Pack)
Physical Stats
Form Factor	microATX
Dimensions	9.6" x 9.6", (24.4cm x 24.4cm)
Processor/Cache
CPU	Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors CPU TDP up to 80W
System Memory
Memory Capacity	4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 ECC UDIMM
Memory Type	/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	16GB, 8GB, 4GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C236 chipset
SATA	SATA3 (6Gbps) via C236 controller RAID 0, 1, 5, 10 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Dual Intel® I210-AT Gigabit Ethernet LAN ports Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	ASPEED AST2400 BMC
Input / Output
SATA	8x SATA3 (6Gbps) ports
LAN	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	5x USB 3.0 ports (2 rear + 2 via header + 1 Type A) 6x USB 2.0 ports (2 rear + 4 via header)
Video	1x VGA port
Serial Port / Header	2x COM ports (1 rear, 1 header)
SuperDOM	2x SuperDOM (Disk on Module) ports with built-in power
TPM	1x TPM 1.2 20-pin Header
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.7.1 UEFI 2.3.1 RTC (Real Time Clock) Wakeup

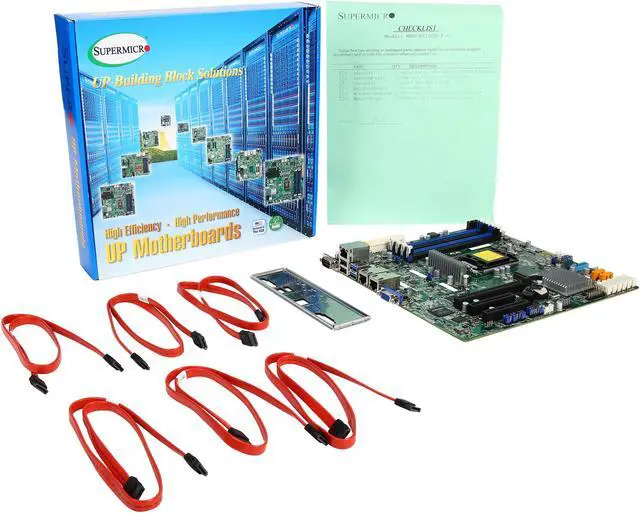

Whats in the Box

MAIN OVERVIEW FEATURES: Chipset Manufacturer: IntelTotal Processor Supported: 1Processor Socket: Socket H4 LGA-1151Processor Supported: Core i3,Celeron,Pentium,XeonNumber of Memory Slots: 4Memory Form Factor: DIMM,UDIMMMaximum Memory: 64 GBMemory Speed Supported: 2.13 GHz,1.87 GHz,1.60 GHzMemory Technology: DDR4 SDRAMController Type: Serial ATA/600RAID Supported: YesRAID Levels: 0,1,5,10Onboard Video: On-board Video ChipsetGraphics Controller Manufacturer: ASPEEDGraphics Controller Model: AST2400Gigabit Ethernet: YesNumber of Total Expansion Slots: 3Total Number of PCI Express Slots: 3Number of PCI Express x8 Slots: 2Number of PCI Express x16 Slots: 1Total Number of USB Ports: 4Number of USB 3.0 Ports: 2VGA: YesNumber of SATA Interfaces: 8Total Number of Onboard USB Ports: 7Number of Onboard USB 3.0 Ports: 3Form Factor: Micro ATXWidth: 9.6"Depth: 9.6"Compatibility: Supermicro SuperChassis1U Chassis: SC813MFTQC-505CB SC113MFAC2-341CB SC113MFAC2-R606CB SC813MFTQ-R400CB SC512F-350B SC813MTQ-350CB SC813MFTQC-350CB 2U Chassis: SC213LT-600LPB SC825TQ-R720LPB SC823TQ-653LPB 3U Chassis: SC833T-653B Mid/Mini Tower Chassis: SC732I-500B SC731i-300B 4U / Tower Chassis: SC842TQ-665B SC842i-500B

Model
Brand	SUPERMICRO
Model	MBD-X11SSH-F-O

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Intel 7th / 6th Generation Core i3 series, Intel Celeron, Intel Pentium, Intel Xeon processor E3-1200 v6 / v5 Socket H4 (LGA 1151) supported, CPU TDP support 80W

Chipsets
North Bridge	Intel C236

Memory
Number of DDR4 Slots	4 x 288-pin
DDR4 Standard	DDR4 2400 / 2133 / 1866 / 1600 MHz ECC SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
Maximum Memory Supported	64GB
ECC Supported	Yes

Expansion Slots
PCI Express x8	1 x PCI-E 3.0 x8 (in x16 slot) 1 x PCI-E 3.0 x8
PCI Express x4	1 x PCI-E 3.0 x4 (in x8 slot)
Other Slots	M.2 Interface: PCI-E 3.0 x2 Form Factor: 2280 Key: M-Key Double Height Connector

Storage Devices
SATA	8 x SATA 6.0Gb/s
SATA RAID	0/1/5/10

Onboard Video
Onboard Video Chipset	Aspeed AST2400 BMC

Onboard LAN
LAN Chipset	Intel I210-AT
LAN Speed	10/100/1000Mbps
Second LAN Chipset	Intel I210-AT
Second LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

Rear Panel Ports
COM	1
Video Ports	1 x VGA
USB 1.1/2.0	2 x USB 2.0
USB 3.0	2 x USB 3.0

Features
Features	Single socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v6 / v5, Intel 7th / 6th Gen. Core i3 series, Intel Celeron and Intel Pentium Intel C236 chipset Up to 64GB Unbuffered ECC UDIMM DDR4 2400 MHz; 4 x DIMM slots Expansion slots:1 x PCI-E 3.0 x8 (in x16), 1 x PCI-E 3.0 x8, 1 x PCI-E 3.0 x4 (in x8) Dual GbE LAN with Intel i210-AT 8 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10 I/O: 1 x VGA, 2 x COM, TPM 1.2 header Support Intel VHD with selected CPU 5 x USB 3.0 (2 x rear, 2 x via header, 1 x Type A), 6 x USB 2.0 (2 x rear, 4 x via header) M.2 NGFF connector M.2 Interface: PCI-E 3.0 x2 Form Factor: 2280 Key: M-Key Double Height Connector

Dimensions
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"

Additional Information
First Listed on Newegg	December 23, 2015

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 3 years
Read full details

Return Policies

We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

Return for refund until: January 31, 2027
Return for replacement until: January 31, 2027
This item is covered by Newegg.com's Extended Holiday Return Policy.
Read full return policy for details.

Manufacturer Contact Info

The SUPERMICRO MBD-X11SSH-F-O is a Micro ATX server motherboard for Intel Xeon E3-1200 v5/v6 and select 6th/7th Gen Core i3, Celeron, and Pentium processors, suited to compact server builds needing ECC memory, dual Gigabit Ethernet, and remote-management hardware.

Recommended For

Home-server and homelab builders who want ECC memory, IPMI remote management, and a compact Micro-ATX base for services such as virtualization, home automation, or self-hosted applications.
DIY NAS and file-server builders who need up to eight onboard SATA drives, ECC UDIMM support, and remote administration for a system housed in a Micro-ATX case.
Small-business or home-office server operators who need dual 1GbE ports, ECC memory, and out-of-band IPMI management for a modest, stationary server.
Linux and self-hosting enthusiasts who are comfortable building around an older Xeon E3 or compatible 6th/7th-generation Intel CPU and want server-oriented management and storage features.

Spec Summary

Attribute	Value
Best For	Server builds using compatible LGA 1151 Xeon E3 v5/v6, 6th/7th Gen Core i3, Celeron, or Pentium processors, with ECC UDIMM memory support
Processor And Chipset	LGA 1151 socket with Intel C236 chipset; supports Intel Xeon E3-1200 v5/v6, 6th/7th Gen Core i3, Celeron, and Pentium processors, with CPU TDP support up to 80W
Memory Configuration	Four 288-pin UDIMM slots support up to 64GB of DDR4 ECC SDRAM at 1600, 1866, 2133, or 2400 MHz
Storage And Expansion	Eight SATA 6Gb/s ports support RAID 0, 1, 5, and 10; expansion includes three PCIe 3.0 slots (x8 in an x16 slot, x8, and x4 in an x8 slot) plus an M.2 PCIe 3.0 x2 connector for 2280 M-Key drives
Networking	Two Intel I210-AT Gigabit Ethernet ports, each supporting 10/100/1000Mbps
Ports And Connectivity	Five USB 3.0 ports (two rear, two via header, and one Type-A) and six USB 2.0 ports (two rear and four via header); also includes one VGA output
Board Format And Power	Micro ATX board measuring 9.6 × 9.6 inches, with an ATX main power connector
Model Identifiers	SUPERMICRO MBD-X11SSH-F-O (also identified as X11SSH-F-O)
