SUPERMICRO MBD-X11SSH-LN4F-O Micro ATX Server Motherboard LGA 1151 Intel C236

(10) Write a Review
  • Intel Xeon processor E3-1200 v6 / v5, Intel 7th / 6th Gen. Core i3 series, Intel Celeron and Intel Pentium
  • Intel C236 chipset
  • Up to 64GB Unbuffered ECC UDIMM DDR4 2400 MHz
  • 8 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10
  • Quad GbE LAN with Intel i210-AT
+
+
Overview
Specs
Reviews (10)
See all Q & A

Any questions? Ask CelesteSM will help you find out quickly.

Try me now
MBD-X11SSH-LN4F-O

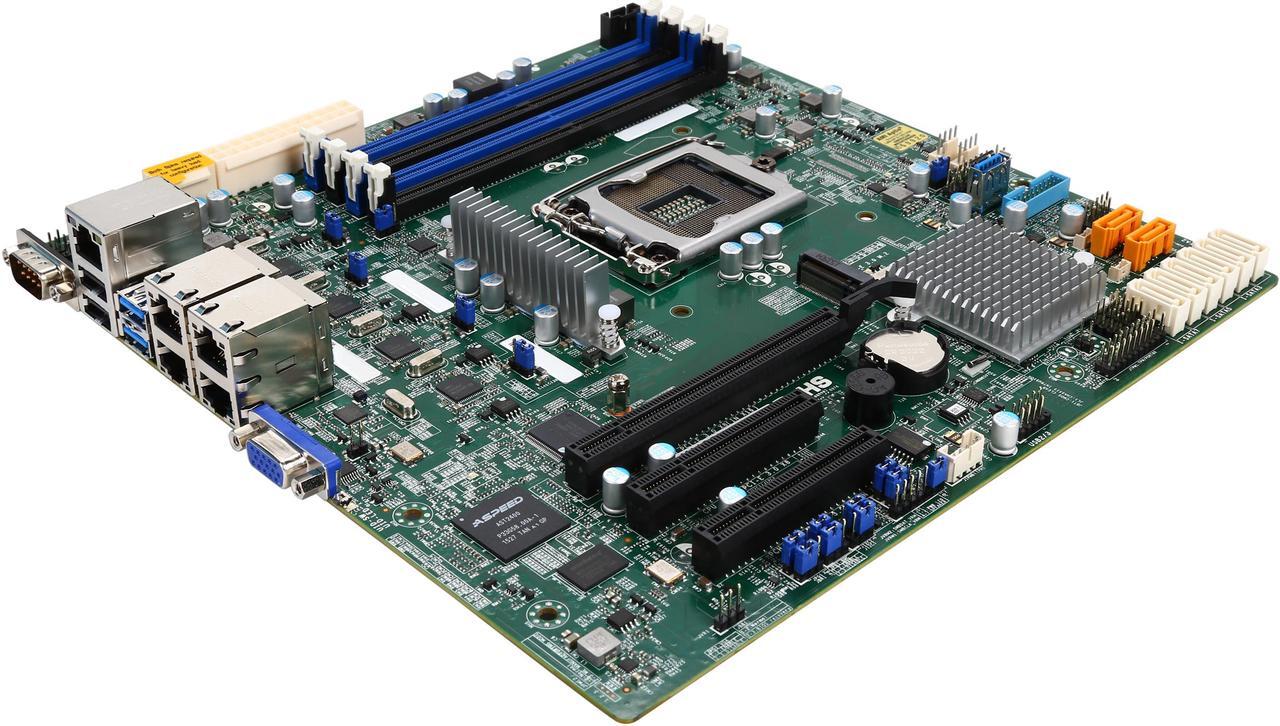

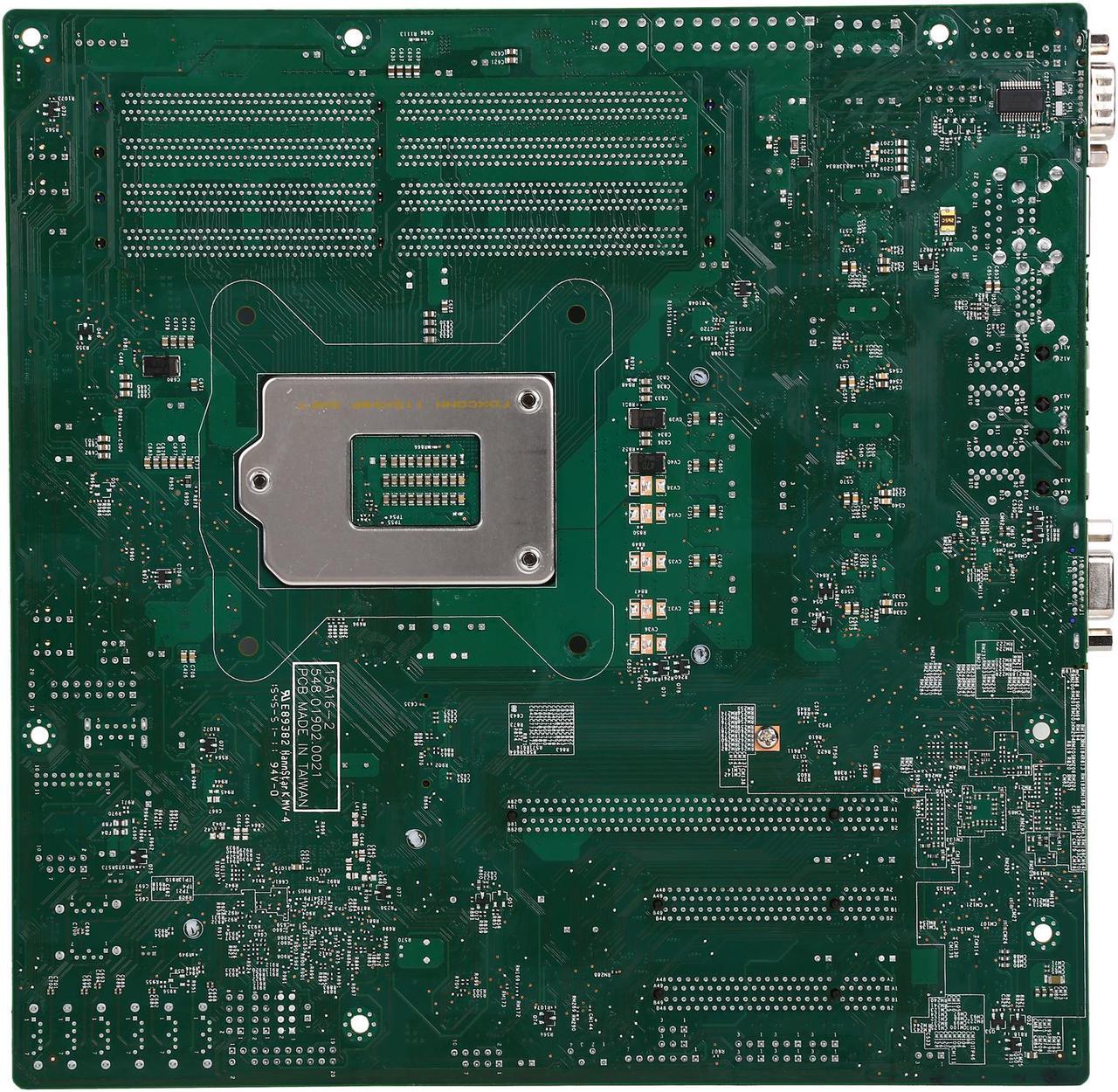

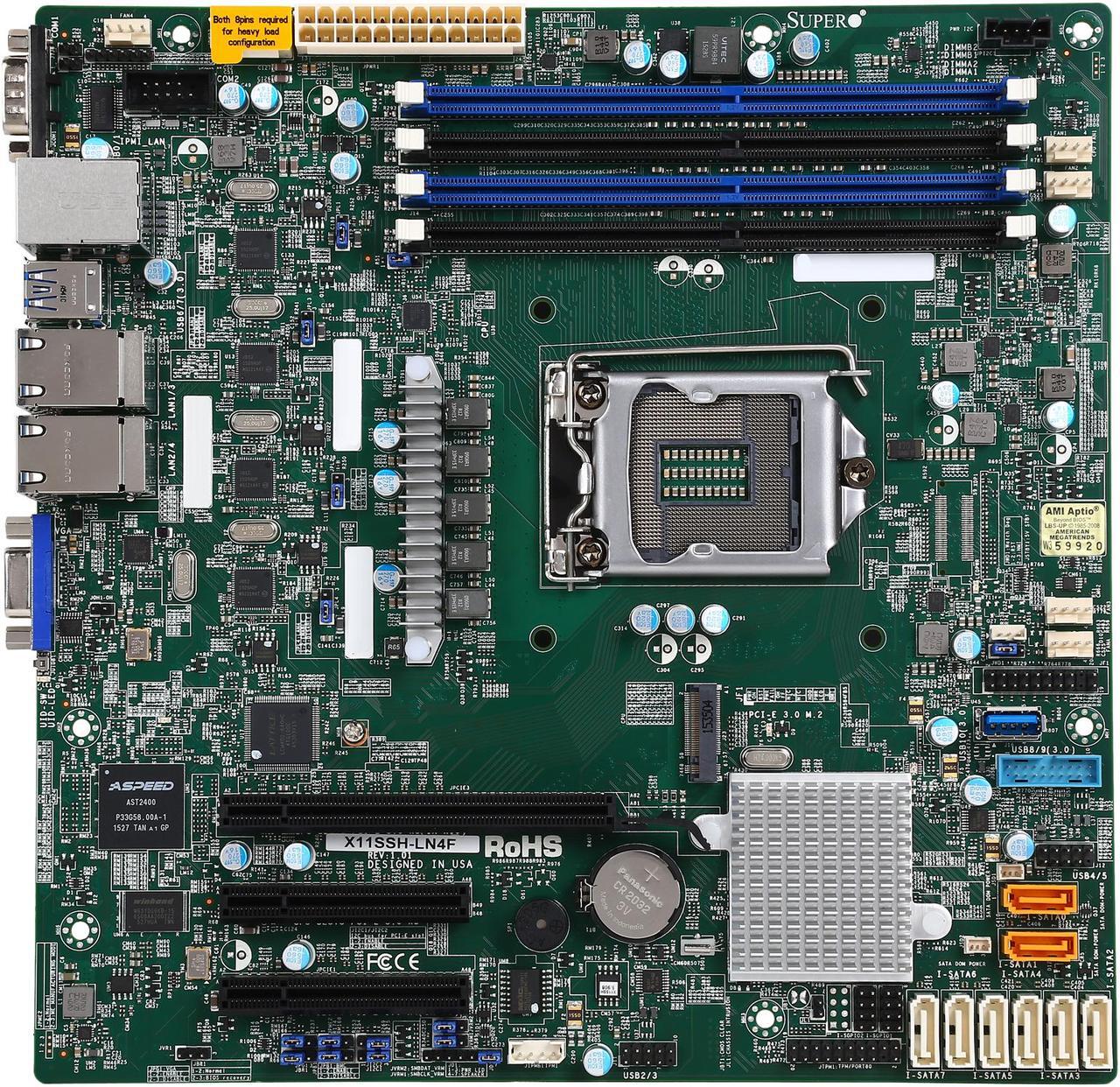

SUPERMICRO MBD-X11SSH-LN4F-O Micro ATX Server Motherboard

Features

MBD-X11SSH-LN4F-O
  • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
  • Intel® C236 chipset
  • Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots
  • Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • Quad GbE LAN with Intel® i210-AT
  • 8x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
  • I/O: 1x VGA, 2x COM, TPM 1.2 header
  • 2x SuperDOM with built-in power
  • 5x USB 3.0 (2 rear + 2 via header + 1 Type A), 6x USB 2.0 (2 rear + 4 via headers)
  • M.2 NGFF connector
  • Support Intel VHD with selected CPU

Specifications

Product SKUs
MBD-X11SSH-LN4F -B X11SSH-LN4F (Bulk Pack)
Physical Stats
Form Factor micro ATX
Dimensions 9.6" x 9.6", (24.4cm x 24.4cm)
Processor/Cache
CPU
  • Single Socket H4 (LGA 1151) supports:
  • Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors
  • CPU TDP up to 80W
System Memory
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Up to 64GB DDR4 ECC UDIMM
Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes 16GB, 8GB, 4GB
Memory Voltage 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C236 chipset
SATA
  • SATA3 (6Gbps) via C236 controller
  • RAID 0, 1, 5, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Quad Intel® I210-AT Gigabit Ethernet LAN ports
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics ASPEED AST2400 BMC

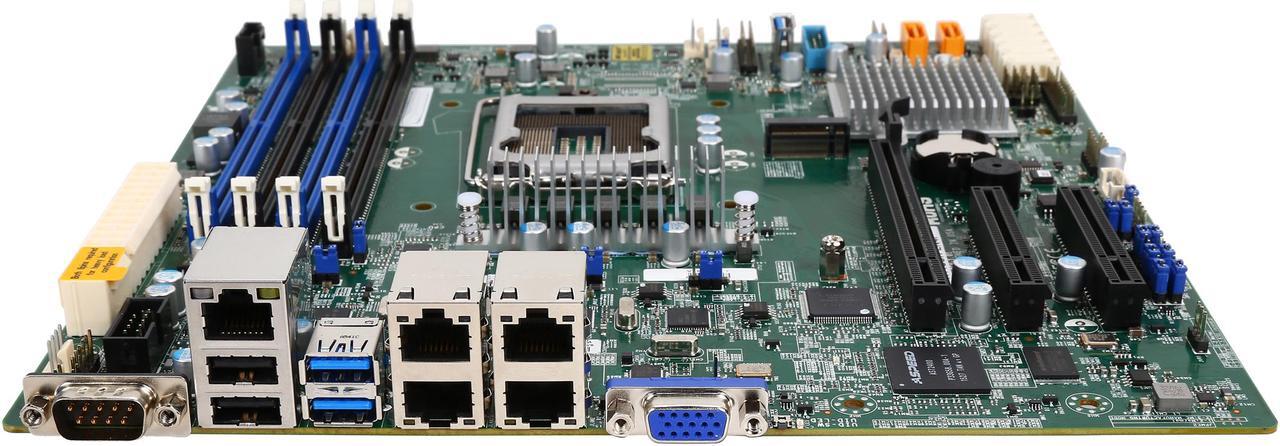

Input / Output
SATA 8x SATA3 (6Gbps) ports
LAN
  • 4x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 5x USB 3.0 ports (2 rear + 2 via header + 1 Type A)
  • 6x USB 2.0 ports (2 rear + 4 via header)
Video 1x VGA port
Serial Port / Header 2x COM ports (1 rear, 1 header)
SuperDOM 2x SuperDOM (Disk on Module) ports with built-in power
TPM 1x TPM 1.2 20-pin Header
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup

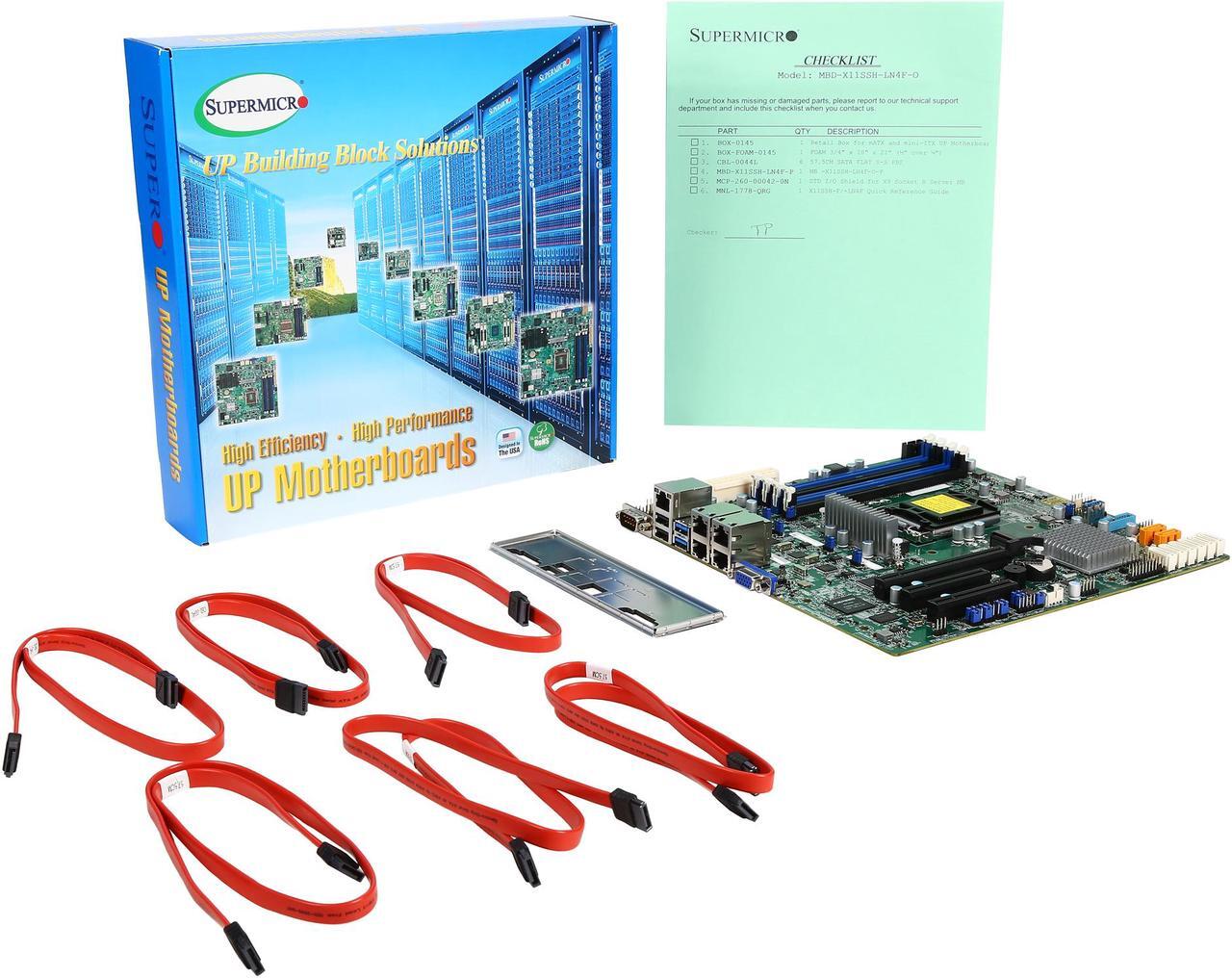

Whats in the Box

MBD-X11SSH-LN4F-O

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

    We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

  • Return for refund until: January 31, 2027
  • Return for replacement until: January 31, 2027
  • This item is covered by Newegg.com's Extended Holiday Return Policy.
  • Read full return policy for details.

Manufacturer Contact Info

LOADING...
LOADING...

The SUPERMICRO MBD-X11SSH-LN4F-O is a Micro ATX server motherboard for compatible LGA 1151 Intel Xeon E3-1200 v5/v6 and 6th/7th Gen Core i3, Celeron, or Pentium processors, suited to compact server builds needing ECC memory, IPMI management, and four Gigabit Ethernet ports.

Recommended For

  • Home NAS builders running TrueNAS or a similar storage system with several SATA drives, who want ECC memory, remote management, and room for a boot or app drive.
  • Home-lab operators building a compact, always-on virtualization or storage server who value ECC support, IPMI remote management, and multiple onboard Ethernet ports over desktop-focused features.
  • Network-lab and self-hosting builders who need several separate 1GbE connections for services, testing, or network segmentation without installing a multiport NIC.
  • Builders reusing compatible LGA 1151 Xeon E3 v5/v6 or listed 6th/7th-generation processor parts who want a Micro-ATX server board with ECC and IPMI rather than a new platform.

Real-World Use Scenarios

  • When building a home or small-office storage server, users can connect several SATA drives for shared files or backups; the board’s eight SATA ports provide room for a multi-drive setup, while the operating system manages the storage pool.
  • For a home lab, users can run a hypervisor and experiment with virtual machines or containers; community builds show the board used in virtualized lab setups, with the exact number of workloads depending on the installed CPU and memory.
  • When assembling a network lab or multi-interface server, users can assign the four onboard Gigabit Ethernet ports to separate network roles; this can simplify testing segmented networks, provided the chosen operating system and network configuration support it.
  • For a server that runs without a monitor or is kept in a rack or utility room, administrators can use the dedicated management interface to check or manage the system remotely, reducing the need to connect a keyboard and display for routine administration.
  • For a compact self-hosting server, users can combine file storage with services such as DNS filtering or media-server software; real-world builds show this mixed role, though the experience depends on the selected processor, memory, drives, and software.

Spec Summary

AttributeValue
Best ForServer motherboard builds using supported Intel Xeon E3, Core i3, Celeron, or Pentium processors, with ECC memory support
Processor And PlatformSingle LGA 1151 socket supports Intel Xeon E3-1200 v6/v5, 7th/6th Gen Core i3, Celeron, and Pentium processors; Intel C236 chipset
Memory Configuration4 DDR4 DIMM slots support up to 64GB of unbuffered ECC UDIMM memory at 2133, 1866, or 1600 MHz
Expansion And StorageThree PCIe 3.0 slots: x8 (in x16), x8, and x4 (in x8); one M.2 2280 connector with PCIe 3.0 x2 interface; 8 SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support
NetworkingFour Gigabit Ethernet ports powered by Intel I210-AT controllers, plus a dedicated IPMI LAN port
Rear And Internal I/OVGA video output, 5 USB 3.0 ports, 6 USB 2.0 ports, and 2 COM ports; includes a TPM 1.2 header and 2 SuperDOM connectors with built-in power
Power And Audio Connectors24-pin main power connector and optical S/PDIF connector
Form Factor And DimensionsMicro ATX form factor, measuring 9.6 × 9.6 inches
Model IdentifiersSupermicro MBD-X11SSH-LN4F-O
