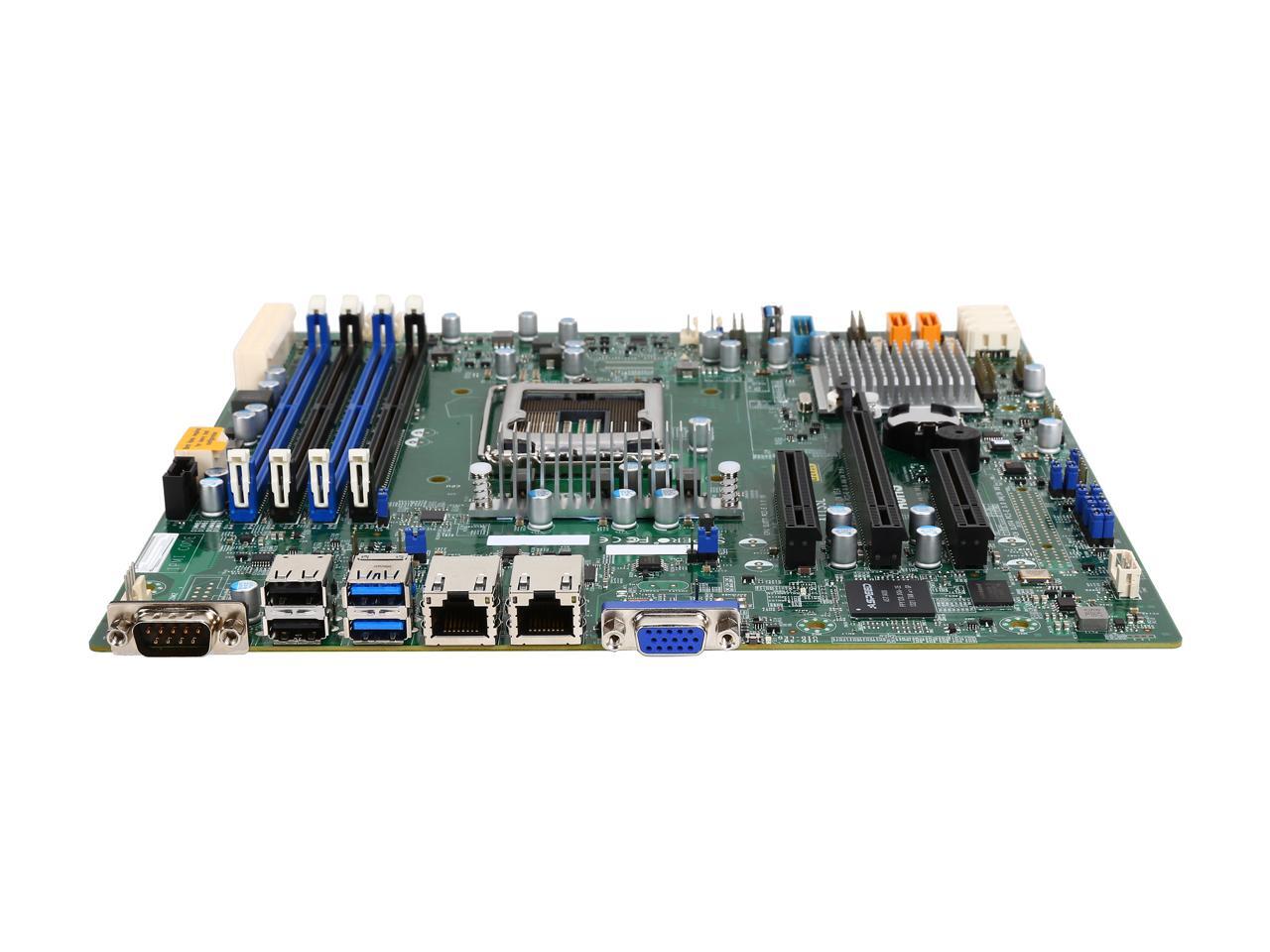

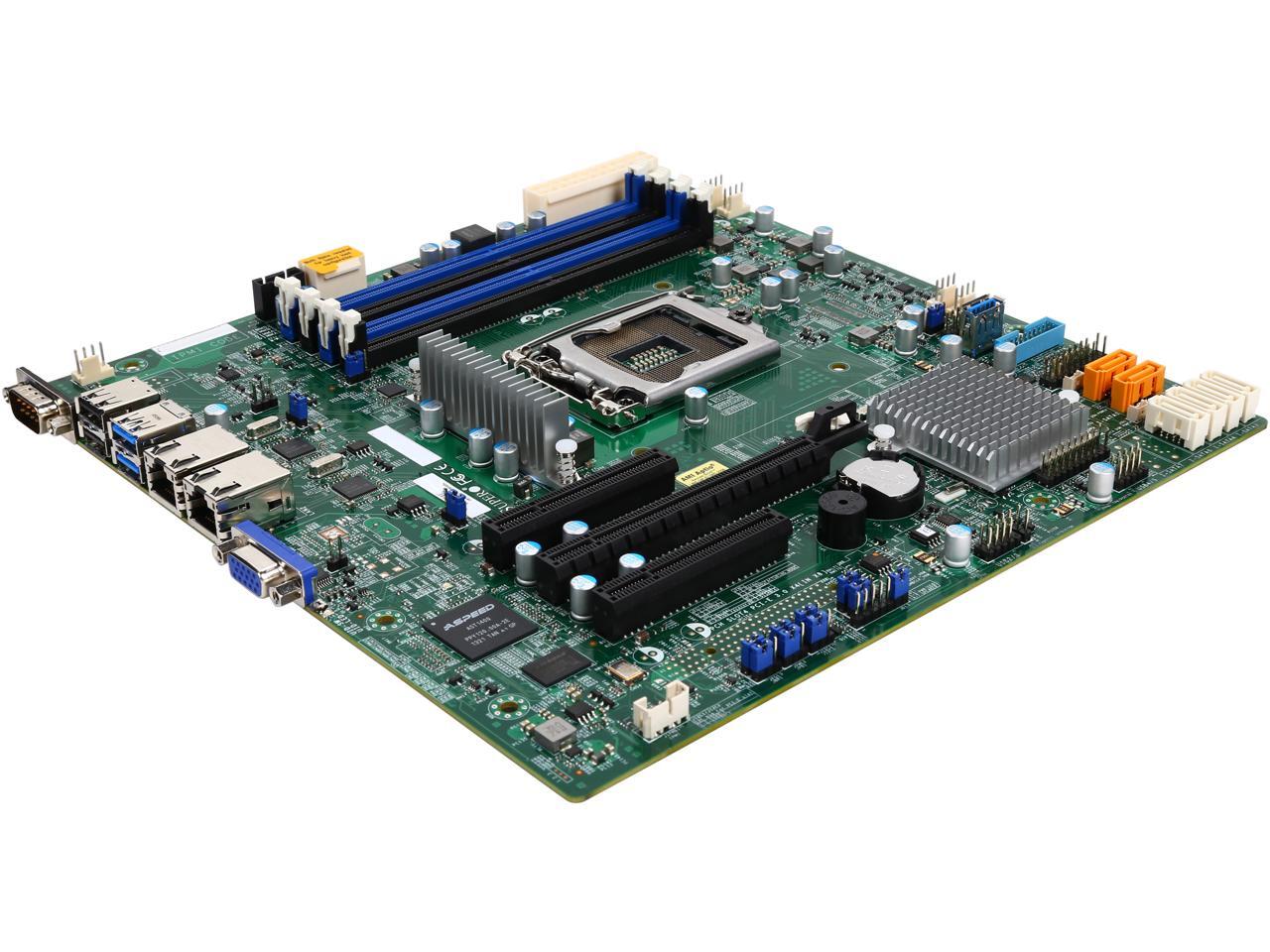

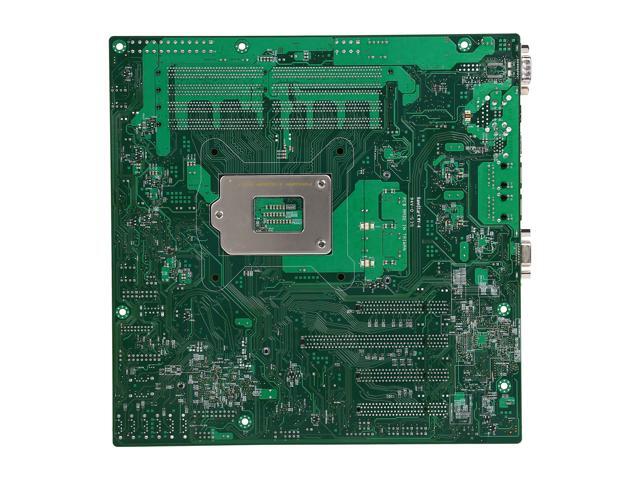

SUPERMICRO MBD-X11SSL-O Micro ATX Server Motherboard

Features

Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
Intel® C232 chipset
Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots
Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
Dual GbE LAN with Intel® i210-AT
6x SATA3 (6Gbps) via C232; RAID 0, 1, 5, 10
I/O: 1x VGA, 1x COM, TPM header
2x SuperDOM with built-in power
5x USB 3.0 (2 rear + 2 via header + 1 Type A), 6x USB 2.0 (2 rear + 4 via headers)

Specifications

Product SKUs
MBD-X11SSL -B	X11SSL (Bulk Pack)
Physical Stats
Form Factor	microATX
Dimensions	9.6" x 9.6", (24.4cm x 24.4cm)
Processor/Cache
CPU	Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors CPU TDP up to 80W
System Memory
Memory Capacity	4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 ECC UDIMM
Memory Type	2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	16GB, 8GB, 4GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C232 chipset
SATA	SATA3 (6Gbps) via C232 controller RAID 0, 1, 5, 10 support
Network Controllers	Dual Intel® I210-AT Gigabit Ethernet LAN ports Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	ASPEED AST1400 BMC
Input / Output
SATA	6x SATA3 (6Gbps) ports
LAN	2x RJ45 Gigabit Ethernet LAN ports
USB	5x USB 3.0 ports (2 rear + 2 via header + 1 Type A) 6x USB 2.0 ports (2 rear + 4 via headers)
Video	1x VGA port
Serial Port / Header	1x COM ports (1 rear)
SuperDOM	2x SuperDOM (Disk on Module) ports with built-in power
TPM	1x TPM 20-pin Header
Expansion Slots
PCI-Express	1x PCI-E 3.0 x8 (in x16) slot 1x PCI-E 3.0 x8 slot 1x PCI-E 3.0 x4 (in x8) slot
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.7.1 UEFI 2.3.1 RTC (Real Time Clock) Wakeup
Management
Software	NMI SSM SuperDoctor® 5 Watch Dog
Power Configurations	ACPI Power Management Power-on mode for AC power recovery
PC Health Monitoring
Voltage	Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN	Total of 5 fan headers supporting up to 5 fans 5 fans with tachometer status monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED UID/Remote UID
Other Features	Chassis intrusion detection Chassis intrusion header RoHS
