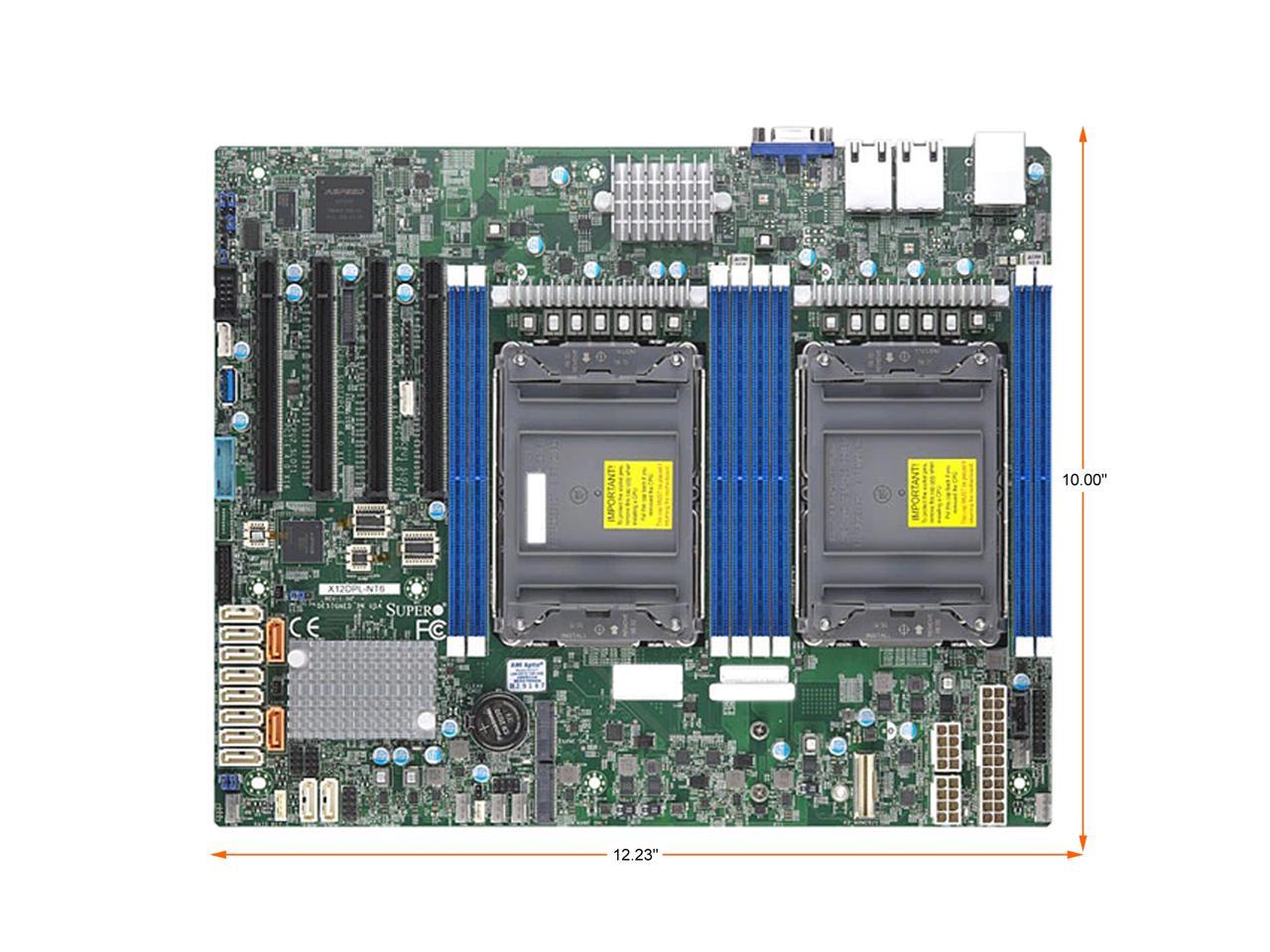

SUPERMICRO MBD-X12DPL-NT6 ATX Server Motherboard Dual Socket LGA-4189 (Socket P+) supported Intel C621A

  • 3rd Gen Intel Xeon Scalable processors
  • Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, 2 UPI up to 11.2 GT/s
  • Intel C621A
  • Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz, in 8 DIMM slots
  • 1 VGA port
  • Intel C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Dual LAN with Intel X550 10GBase-T Ethernet Controller
+
+
Specs
Reviews
See all Q & A

Any questions? Ask CelesteSM will help you find out quickly.

Learn more about the Supermicro MBD-X12DPL-NT6

Model
Brand SUPERMICRO
Model MBD-X12DPL-NT6
Supported CPU
CPU Socket Type Dual Socket LGA-4189 (Socket P+) supported
CPU Type Supports 3rd Gen Intel Xeon Scalable processors
Chipsets
North Bridge Intel C621A
Memory
Number of DDR4 Slots 8 x 288-pin
DDR4 Standard DDR4 3200
Maximum Memory Supported Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz, in 8 DIMM slots
ECC Supported Yes
Expansion Slots
PCI Express 4.0 x16 4
Other Slots 1 PCI-E 4.0 NVMe x8 Internal Port(s)
Storage Devices
SATA Intel C621A controller for 12 SATA3 (6 Gbps) ports
SATA RAID 0/1/5/10
M.2 M.2 Interface: 2 PCI-E 4.0 x4
Form Factor: 2280/22110, 2280
Key: M-Key
Onboard Video
Onboard Video Chipset ASPEED AST2600 BMC
Onboard LAN
LAN Chipset Intel X550
LAN Speed 10Gbps
Max LAN Speed 10Gbps
Rear Panel Ports
Back I/O Ports 2 x RJ45 10 Gigabit Ethernet LAN ports
3 x USB 3.2 Gen1 ports (2 rear + 1 Type A)
1 x VGA port
Onboard Ports
Onboard USB 2 x USB 3.0
Other Connectors 1 x COM Port (1 header)
1 x TPM Header
Features
Features BIOS Type: AMI UEFI
Software : Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
System Management Software:
IPMICFG
SMCIPMITool
IPMIView for Linux/Windows
Power Configurations: ACPI Power Management
Voltage: +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility
Temperature: CPU thermal trip support, PECI
LED: BMC/IPMI Heartbeat LED, UID/Remote UID
Other Features:
ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, NCSI header, Node Manager Support, RoT, UID
Dimensions
Form Factor ATX
Dimensions (W x L) 12.23" x 10.00"
Packaging
Package Contents 1 x Motherboard (X12DPL-NT6 Motherboard)
6 x I/O Cables (57.5CM SATA FLAT S-S PBF)
2 x CPU carrier (CPU carrier for 3rd Gen Intel Xeon Scalable Processors)
1 x I/O Shield ( I/O Shield for X12DPL-i6/NT6 with EMI Gasket)
Additional Information
First Listed on Newegg September 08, 2021

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

    We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

  • Return for refund until: January 31, 2027
  • Return for replacement until: January 31, 2027
  • This item is covered by Newegg.com's Extended Holiday Return Policy.
  • Read full return policy for details.
LOADING...
LOADING...

The SUPERMICRO MBD-X12DPL-NT6 is an ATX server motherboard for dual 3rd Gen Intel Xeon Scalable processors, suited to server and workstation builders who need a dual-socket platform with up to 2TB of ECC memory.

Recommended For

  • IT teams building virtualization or multi-VM hosts that benefit from two 3rd Gen Intel Xeon Scalable processors, ECC memory, and remote BMC management.
  • Organizations running enterprise applications, big-data workloads, or CPU-based compute that need a dual-socket server platform with ECC memory and PCIe expansion.
  • Home-lab and small-server builders who want a stationary system with remote management and built-in dual 10GbE networking.
  • Storage-server builders who want to connect multiple SATA drives alongside NVMe storage for file-serving or data-heavy workloads.

Spec Summary

AttributeValue
Best ForServer builds using 3rd Gen Intel Xeon Scalable processors, ECC DDR4 memory, multiple SATA drives and dual 10GbE networking
Processor And SocketSupports 3rd Gen Intel Xeon Scalable processors on dual LGA-4189 (Socket P+) sockets
Chipset And MemoryIntel C621A chipset with 8 x 288-pin DDR4 slots, support for DDR4-3200 and up to 2TB of ECC RDIMM or 3DS ECC LRDIMM memory
Expansion And StorageFour PCIe 4.0 x16 slots, one internal PCIe 4.0 NVMe x8 port, two PCIe 4.0 x4 M.2 interfaces for 2280/22110 and 2280 drives, plus 12 SATA3 6 Gbps ports with RAID 0, 1, 5 and 10
Networking And I/OIntel X550 dual 10GbE LAN with two rear RJ45 ports; rear I/O includes three USB 3.2 Gen1 ports and one VGA port, with two onboard USB 3.0 ports, one COM header and one TPM header
Management And MonitoringASPEED AST2600 BMC with AMI UEFI BIOS, IPMI 2.0, KVM over dedicated LAN, and system management utilities; includes CPU thermal-trip support, voltage monitoring, fan status, chassis intrusion detection and UID indicators
Form Factor And DimensionsATX motherboard measuring 12.23 x 10.00 inches
Model IdentifierSUPERMICRO MBD-X12DPL-NT6
