What is the maximum memory capacity supported by the SUPERMICRO MBD-X12SAE motherboard?

The SUPERMICRO MBD-X12SAE motherboard supports up to 128GB of Unbuffered (UDIMM) ECC/non-ECC memory with speeds of up to 2933MHz.

What types of processors are supported by the SUPERMICRO MBD-X12SAE motherboard?

The SUPERMICRO MBD-X12SAE motherboard supports 10th Generation Intel Core i9, i7, i5, i3, Pentium, Celeron processors, and Intel Xeon W-1200 processors.

Out of stock

$349^.00

$389.00

Free 86-day Returns

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List(Found on 1 wish list)

Get Educated

Make informed decisions with expert advice. Learn More

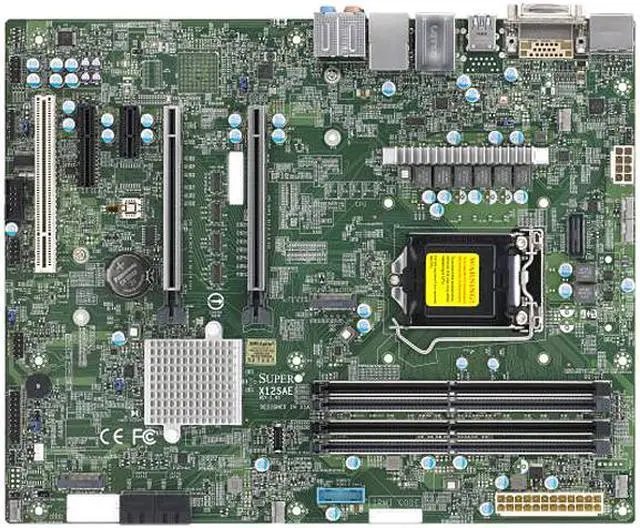

Main image of SUPERMICRO MBD-X12SAE ATX Server Motherboard LGA 1200 Intel W480

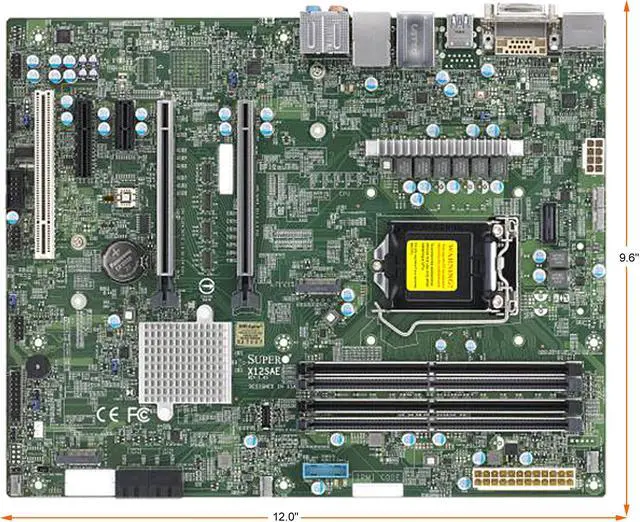

Alt view image 2 of 2 - SUPERMICRO MBD-X12SAE ATX Server Motherboard LGA 1200 Intel W480

Shop All Supermicro Products

SUPERMICRO MBD-X12SAE ATX Server Motherboard LGA 1200 Intel W480

(1) Write a Review

10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor, Intel Xeon W-1200 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Intel W480
128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
1 PCI-E 3.0 x4, 2 PCI-E 3.0 x16 slots (16/NA or 8/8), 1 PCI-E 3.0 x1, 1 - 5V PCI 32bit
M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port
Intel W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Single LAN with Intel PHY I219LM LAN controller for AMT/vPro
Single LAN with Intel Ethernet i225V

Specs

Reviews (1)

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Learn more about the Supermicro MBD-X12SAE

Model
Brand	SUPERMICRO
Model	MBD-X12SAE

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor, Intel Xeon W-1200 Processors

Chipsets
North Bridge	Intel W480

Memory
Number of DDR4 Slots	4 x 288-pin
DDR4 Standard	DDR4 2933
Maximum Memory Supported	Up to 128GB of Unbuffered (UDIMM) ECC/non-ECC memory, with speeds of up to 2933MHz (2DPC)
ECC Supported	Yes

Expansion Slots
PCI Express 3.0 x16	2 x PCI Express 3.0 x16 (16/NA or 8/8)
PCI Express x4	1 x PCI Express 3.0 x4
PCI Express x1	1 x PCI Express 3.0 x1

Storage Devices
SATA	4 x SATA 6.0Gb/s
SATA RAID	0/1/5/10
M.2	M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 Form Factor: 2280/22110 Key: M-Key

Onboard Audio
Audio Chipset	Realtek ALC888S

Onboard LAN
LAN Chipset	Intel I225-V
LAN Speed	2.5Gbps
Second LAN Chipset	Intel I219-LM
Second LAN Speed	10/100/1000Mbps

Rear Panel Ports
Back I/O Ports	1 x RJ45 Gigabit Ethernet LAN ports 1 x RJ45 2.5 Gigabit Ethernet LAN port 2 x USB 2.0 ports (2 via headers) 3 x USB 3.2 Gen1 ports (1 via header + 2 Type A) 5 x USB 3.2 Gen2 ports (3 Rear Type A + 1 Rear Type C, 1 via header) 1 x DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port 1 x COM Port (1 header) 1 x TPM Header

Dimensions
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"

Additional Information
First Listed on Newegg	November 03, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 3 years
Read full details

Return Policies

We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

Return for refund until: January 31, 2027
Return for replacement until: January 31, 2027
This item is covered by Newegg.com's Extended Holiday Return Policy.
Read full return policy for details.

Manufacturer Contact Info

The SUPERMICRO MBD-X12SAE is an ATX Intel W480 workstation motherboard for builders using a 10th Gen Intel Core or Xeon W-1200 processor who need support for up to 128GB of DDR4-2933 ECC or non-ECC memory.

Recommended For

Workstation builders using a compatible 10th Gen Intel Core or Xeon W-1200 processor who need ECC-capable UDIMM support, up to 128GB of memory, and two M.2 slots.
Professional desktop builders who need two full-length PCIe slots for a graphics card and another expansion card, such as a capture or add-in card, in a standard ATX system.
Organizations deploying compatible workstations that can benefit from Intel AMT/vPro management through the board’s I219LM network controller.
Workstation or industrial-PC builders who need to reuse a legacy 32-bit PCI card alongside newer PCIe and M.2 devices.

Spec Summary

Attribute	Value
Best For	LGA 1200 PC builds using supported Intel Core, Pentium, Celeron, or Xeon W-1200 processors, with up to 128GB of DDR4 memory and PCIe or M.2 expansion
Processor And Chipset	Single LGA 1200 socket for supported 10th Gen Intel Core, Pentium, Celeron, and Xeon W-1200 processors; Intel W480 chipset
Memory Configuration	Four 288-pin DDR4 slots; supports up to 128GB of unbuffered ECC or non-ECC UDIMM memory at speeds up to 2933MHz
Expansion And Storage	Two PCIe 3.0 x16 slots (x16 or x8/x8), one PCIe 3.0 x4 slot, and one PCIe 3.0 x1 slot; two M.2 PCIe 3.0 x4 slots with RAID 0/1, plus four SATA 6Gb/s ports with RAID 0/1/5/10
Networking	Two Ethernet ports: Intel I225-V at 2.5Gbps and Intel I219-LM at 10/100/1000Mbps
Rear I/O And Audio	USB connectivity includes two USB 2.0 ports via headers, three USB 3.2 Gen 1 ports, and five USB 3.2 Gen 2 ports, including a rear Type-C port; DisplayPort, HDMI, DVI-D, and COM header; Realtek ALC888S audio with optical S/PDIF
Form Factor And Dimensions	ATX motherboard measuring 12.0 × 9.6 inches; listed item weight is 2.2 pounds
Model Identifiers	SUPERMICRO MBD-X12SAE
