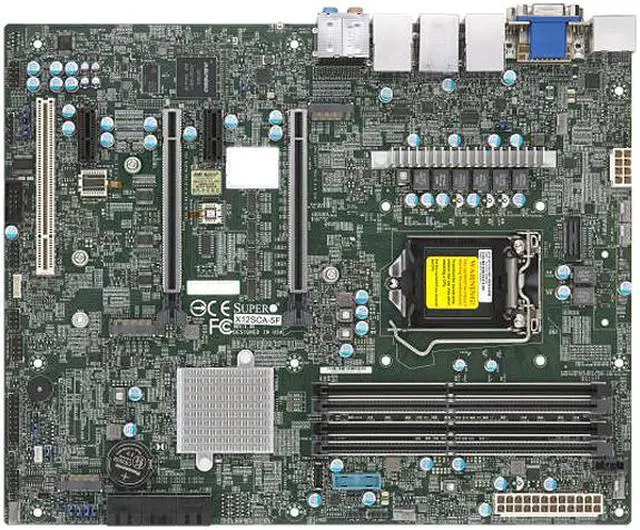

    SUPERMICRO MBD-X12SCA-5F-O ATX Workstation Motherboard LGA 1200 Intel W580

    (1) Write a Review
    • 11th Generation Intel Core i5/i7/i9 Processors, Intel Xeon W-1300 Processors
    • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
    • Intel W580
    • 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
    • 2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1
    • 1 - 5V PCI 32bit
    • M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4, RAID 0 & 1
    • M.2 Form Factor: 2280/22110
    • M.2 Key: M-Key
    • RAID 5 only applied for INTEL Storage Device
    • 1 DP 1.4a port, 1 HDMI 2.0b port, 1 DVI - D port, 1 VGA port
    • Intel W580 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Single LAN with Intel Ethernet i225LM
    • Single LAN with Intel PHY I219LM LAN controller
    • for AMT/vPro
    • Single LAN with
    • Dedicated LAN for IPMI
    +
    +
    Specs
    Reviews (1)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the Supermicro MBD-X12SCA-5F-O

    Model
    Brand SUPERMICRO
    Model MBD-X12SCA-5F-O
    Supported CPU
    CPU Socket Type LGA 1200
    CPU Type Supports:
    11th Generation Intel Core i5/i7/i9 Processors
    Intel Xeon W-1200 Processors
    Intel Xeon W-1300 Processors
    10th Generation Intel Core i9/Core i7/Core i5/Core i3 Processor
    Chipsets
    North Bridge Intel W580
    Memory
    Number of DDR4 Slots 4 x 288-pin
    DDR4 Standard DDR4 3200
    Maximum Memory Supported 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
    ECC Supported Yes
    Expansion Slots
    PCI Express 4.0 x16 2
    PCI Express 3.0 x16 2 x PCI Express 4.0 x16 (16/NA or 8/8)
    PCI Express x1 2 x PCI Express 3.0 x1
    Storage Devices
    SATA 4 x SATA 6.0Gb/s
    SATA RAID 0/1/5/10
    M.2 M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4, RAID 0 & 1
    Form Factor: 2280/22110
    Key: M-Key
    RAID 5 only applied for INTEL Storage Device
    Onboard Video
    Onboard Video Chipset Aspeed AST2500
    Onboard Audio
    Audio Chipset Realtek ALC888S
    Onboard LAN
    LAN Chipset Intel I219-LM
    LAN Speed 10/100/1000Mbps
    Second LAN Chipset Intel i225LM
    Second LAN Speed 10/100/1000Mbps
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 1 x RJ45 2.5 Gigabit Ethernet LAN port
    1 x RJ45 Gigabit Ethernet LAN ports
    1 x RJ45 Dedicated IPMI LAN port
    2 x USB 2.0 ports (2 rear)
    2 x USB 3.2 Gen1 ports (2 via headers)
    4 x USB 3.2 Gen2 ports (4 Rear Type A
    2 x USB 3.2 Gen2x2 ports (1 Type C)
    1 x DP 1.4a port, 1 HDMI 2.0b port, 1 DVI - D port, 1 VGA port
    1 x COM Port (1 header)
    1 x TPM Header
    Dimensions
    Form Factor ATX

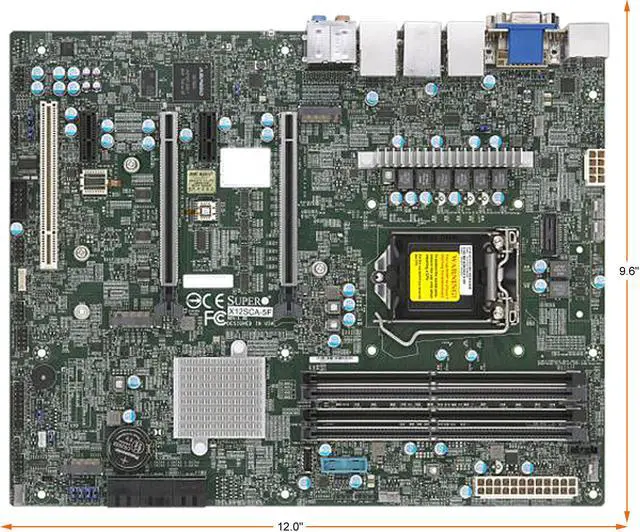

    Dimensions (W x L) 12.0" x 9.6"
    Additional Information
    Date First Available February 03, 2025
