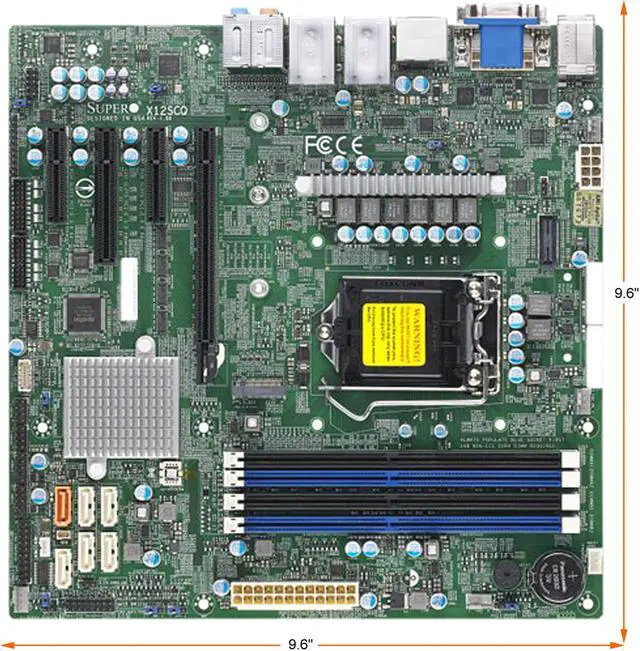

SUPERMICRO MBD-X12SCQ-O Micro ATX Server Motherboard LGA 1200 Intel Q470E

Be the first to review this product...
  • 10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
  • Intel Q470E
  • Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
  • 1 PCI-E 3.0 x16 (in x16 slot), 1 PCI-E 3.0 x8, 2 PCI-E 3.0 x4
  • M.2 Interface: 1 PCI-E 3.0 x4, RAID 0 & 1
  • M.2 Form Factor: 2242/2280
  • M.2 Key: M-Key
  • 1 VGA port, 1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port
  • Intel Q470 controller for 6 RAID 0,1,5,10
  • Single LAN with Intel PHY I219LM LAN controller
  • Single LAN with Intel Ethernet Controller I210-AT
+
+
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro MBD-X12SCQ-O

Model
Brand SUPERMICRO
Model MBD-X12SCQ-O
Supported CPU
CPU Socket Type LGA 1200
CPU Type Supports 10th Generation Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron Processor
Chipsets
North Bridge Intel Q470E
Memory
Number of DDR4 Slots 4 x 288-pin
DDR4 Standard DDR4 2933
Maximum Memory Supported Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
ECC Supported Non-ECC
Expansion Slots
PCI Express 3.0 x16 1
PCI Express x8 1 x PCI Express 3.0 x8
PCI Express x4 2 x PCI Express 3.0 x4
Storage Devices
SATA 6 x SATA 6.0Gb/s
SATA RAID 0/1/5/10
M.2 M.2 Interface: 1 PCI-E 3.0 x4, RAID 0 & 1
Form Factor: 2242/2280
Key: M-Key
Onboard Video
Onboard Video Chipset Intel HD Graphics
Onboard LAN
LAN Chipset Intel I210-AT
LAN Speed 10/100/1000Mbps
Second LAN Chipset Intel I219-LM
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 2 x RJ45 Gigabit Ethernet LAN ports
6 x USB 2.0 ports (2 rear + 4 via headers)
6 x USB 3.1 Gen2 ports (2 Rears Type A + 2 Rears Type C, 2 via headers)
1 x VGA port, 1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port
4 x COM Ports (4 headers)
1 x TPM Header & Chip both
Dimensions
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Additional Information
First Listed on Newegg October 05, 2021
