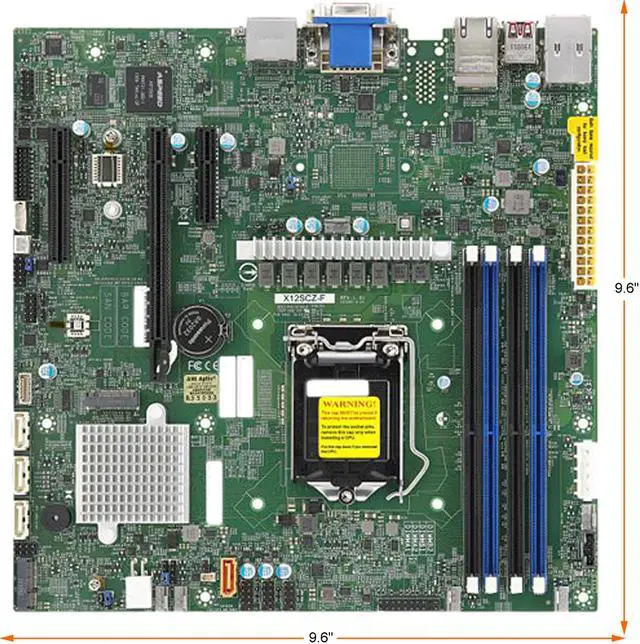

    SUPERMICRO MBD-X12SCZ-F ATX Server Motherboard 10th Generation Intel Core i9/Core i7/Core i5/Core i3 Processor, Intel Xeon W-1200 Processors

    Be the first to review this product...
    • 10th Generation Intel Core i9/Core i7/Core i5/Core i3 Processor, Intel Xeon W-1200 Processors
    • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
    • Single LAN with Intel PHY I219LM LAN controller
    • Single LAN with Intel Ethernet Controller I210-AT
    • Intel W480E
    • Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
    • 1 PCI-E 3.0 x16,
    • 1 PCI-E 3.0 x4 (in x8 slot),
    • 1 PCI-E 3.0 x4
    • 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
    • 1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230
    • Intel W480E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port
    +
    +
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the Supermicro MBD-X12SCZ-F--O

    Model
    Brand SUPERMICRO
    Model MBD-X12SCZ-F--O
    Supported CPU
    CPU Socket Type LGA 1200
    CPU Type Supports 10th Generation Intel Core i9/Core i7/Corei5/Corei3/Pentium/Celeron Processor, Intel Xeon W-1200 Processors
    Chipsets
    North Bridge Intel W480
    Memory
    Number of DDR4 Slots 4 x 288-pin
    DDR4 Standard DDR4 2933
    Maximum Memory Supported Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
    Expansion Slots
    PCI Express 3.0 x16 1
    PCI Express x4 1 x PCI Express 3.0 x4 (in x8 slot), 1 x PCI Express 3.0 x4
    Storage Devices
    SATA 4 x SATA 6.0Gb/s
    SATA RAID 0/1/5/10
    M.2 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
    1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230
    Onboard Video
    Onboard Video Chipset Aspeed AST2500
    Onboard LAN
    LAN Chipset Intel I219-LM
    LAN Speed 10/100/1000Mbps
    Second LAN Chipset Intel I210-AT
    Second LAN Speed 10/100/1000Mbps
    Rear Panel Ports
    Back I/O Ports 2 x RJ45 Gigabit Ethernet LAN ports
    6 x USB 2.0 ports (6 via headers)
    6 x USB 3.2 Gen2 ports (4 Rear Type A, 2 via headers)
    1 x VGA D-Sub Connector port, 2 x DP++(Dual-Mode DisplayPort) ports, 1 x DVI - D port
    2 x COM Port (1 header)
    1 x TPM Header & Chip both
    Dimensions
    Form Factor Micro ATX
    Dimensions (W x L) 9.6" x 9.6"
    Additional Information
    Date First Available February 03, 2025
