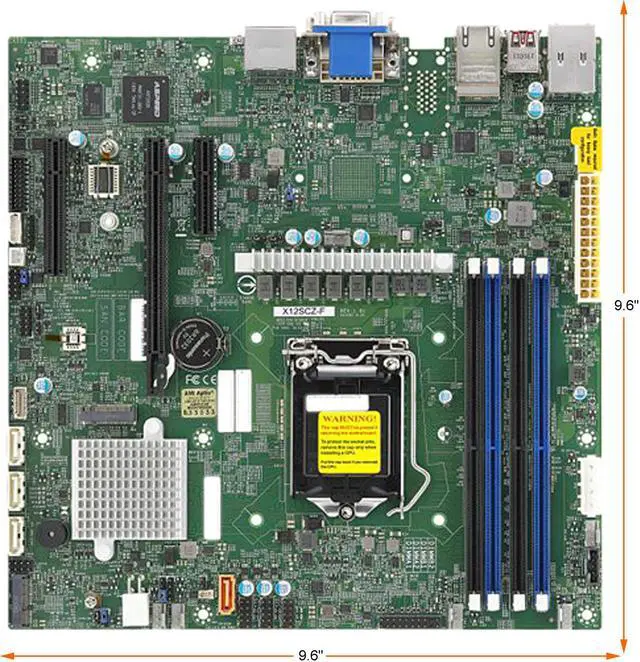

SUPERMICRO MBD-X12SCZ-QF-O Micro ATX Server Motherboard LGA 1200 Intel Q470
- 10th Generation Intel Core i9/Core i7/Corei5/Corei3/Pentium/Celeron Processor
- Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP
- Intel Q470
- Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
- 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4 (in x8 slot), 1 PCI-E 3.0 x4
- 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
- 1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230
- 1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port
- Intel Q470 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Single LAN with Intel PHY I219LM LAN controller
- Single LAN with Intel Ethernet Controller I210-AT
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro MBD-X12SCZ-QF-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X12SCZ-QF-O |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 10th Generation Intel Core i9/Core i7/Corei5/Corei3/Pentium/Celeron Processor |
| North Bridge | Intel Q470 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2933 |
| Maximum Memory Supported | Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots |
| PCI Express 3.0 x16 | 1 |
|---|---|
| PCI Express x4 | 1 x PCI Express 3.0 x4 (in x8 slot), 1 x PCI Express 3.0 x4 |
| SATA | 4 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| M.2 | 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110 1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230 |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel I210-AT |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel I219-LM |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 4 x SATA3 (6Gbps) ports 2 x RJ45 Gigabit Ethernet LAN ports 6 x USB 2.0 ports (6 via headers) 6 x USB 3.1 Gen2 ports (4 Rears Type A, 2 via headers) 6 x USB 3.2 Gen2 ports (4 Rear Type A, 2 via headers) 1 x VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port 2 x COM Ports (1 header) 1 x TPM Header & Chip both |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| First Listed on Newegg | September 08, 2021 |
|---|
