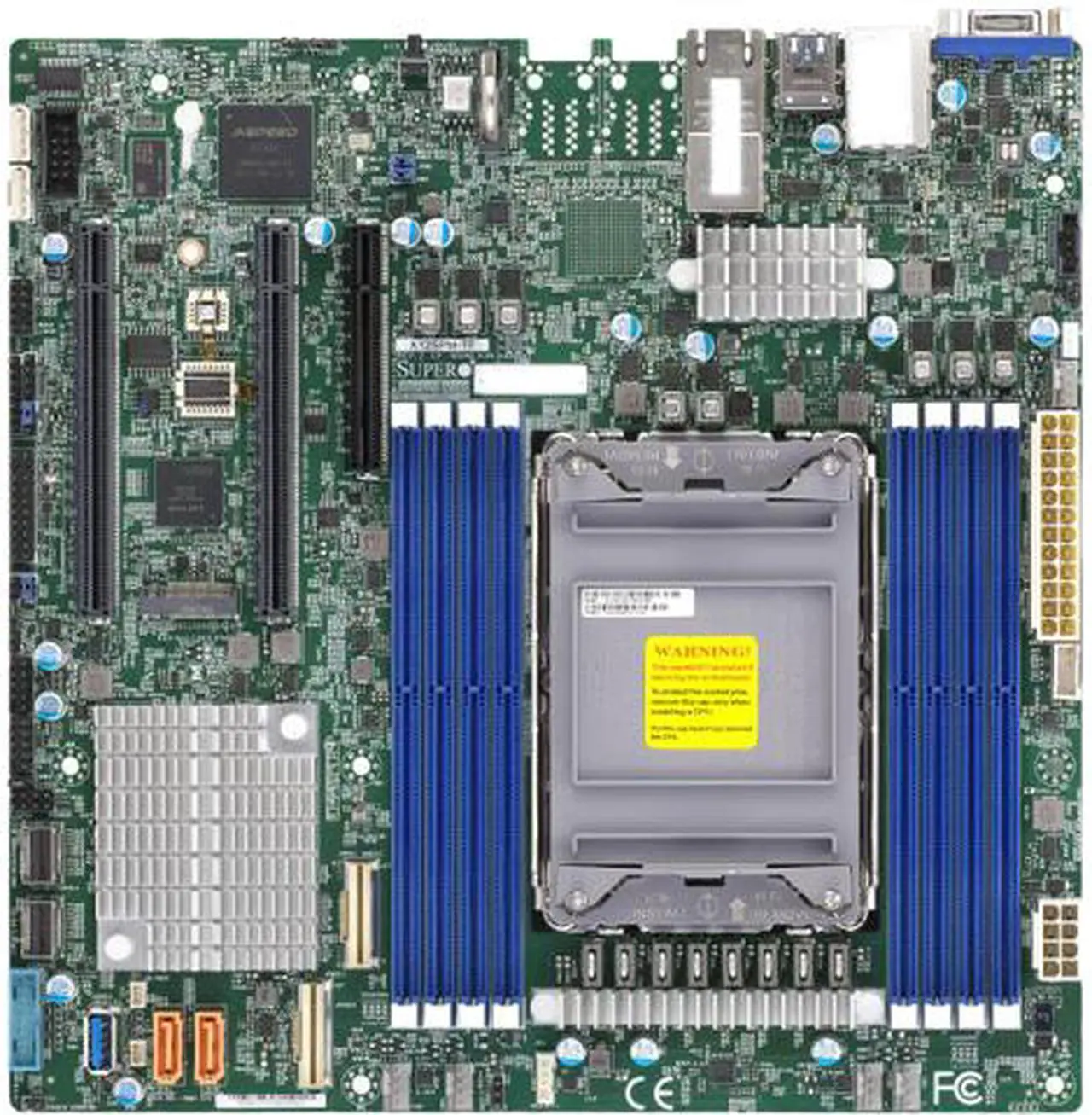

SUPERMICRO MBD-X12SPM-TF-O Micro ATX Server Motherboard LGA 4189 Intel C621A

Be the first to review this product...
See more "c621a motherboard"
In stock.
Ships from United States.
  • Key Features
  • 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  • Intel® C621A
  • Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
  • Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
  • 1 PCI-E 4.0 x8,
  • 2 PCI-E 4.0 x16,
  • 4 PCI-E 4.0 NVMe x4 Internal Port(s)
  • M.2 Interface: 1 SATA/PCI-E 3.0 x4
  • M.2 Form Factor: 2280, 22110
  • M.2 Key: M-Key
  • 4x NVMe port PCI-E 4.0 x4 via SlimSAS connector
  • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Dual LAN with 10GBase-T with Intel® X550
  • Supports 12V DC power input
  • 5 USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
Specs
Reviews

Learn more about the Supermicro MBD-X12SPM-TF-O

Model
Brand SUPERMICRO
Model MBD-X12SPM-TF-O
Supported CPU
CPU Socket Type LGA 4189
CPU Type Supports 3rd Gen Intel Xeon Scalable processors
Chipsets
North Bridge Intel C621A
Memory
Number of DDR4 Slots 8 x 288-pin
DDR4 Standard DDR4 3200
Maximum Memory Supported 2TB
ECC Supported Yes
Expansion Slots
PCI Express 4.0 x16 2
PCI Express x8 1 x PCI Express 4.0 x8
Storage Devices
SATA 10 x SATA 6.0Gb/s
SATA RAID 0/1/5/10
M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2280, 22110
Key: M-Key
Onboard Video
Onboard Video Chipset Aspeed AST2600
Onboard LAN
LAN Chipset Intel X550
LAN Speed 10Gbps
Second LAN Chipset Intel X550
Second LAN Speed 10Gbps
Max LAN Speed Dual 10Gbps
Rear Panel Ports
USB 1.1/2.0 2 x USB 2.0
USB 3.0 3 x USB 3.2 Gen1 (2 rear + 1 Type A)
Onboard Ports
Onboard USB 2 x USB 2.0 (via headers)
2 x USB 3.2 Gen 1 (via headers)
Dimensions
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Additional Information
Date First Available May 20, 2021

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
