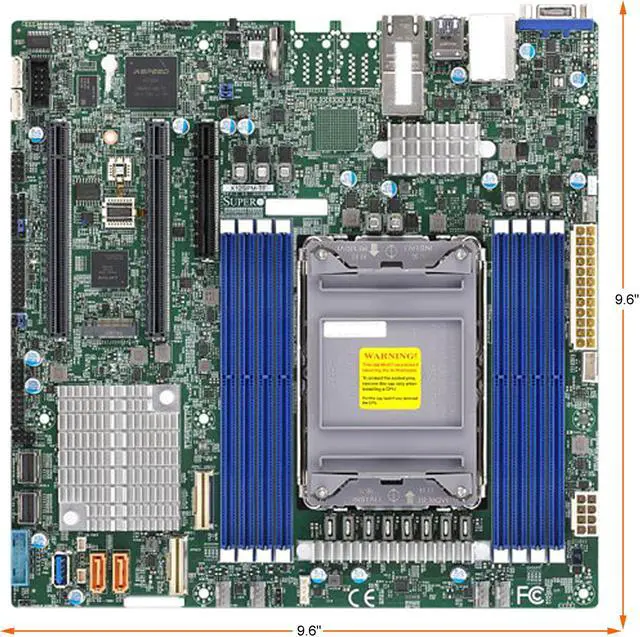

SUPERMICRO MBD-X12SPM-TF Micro ATX Server Motherboard Socket P+ Intel C621A
- 3rd Gen Intel Xeon Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
- Intel C621A
- Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
- Up to 2TB Intel Optane Persistent Memory 200 Series, in 8 DIMM slots
- 1 PCI-E 4.0 x8, 2 PCI-E 4.0 x16, 4 PCI-E 4.0 NVMe x4 Internal Port(s)
- M.2 Interface: 1 SATA/PCI-E 3.0 x4
- M.2 Form Factor: 2280, 22110
- M.2 Key: M-Key
- Dual LAN with 10GBase-T with Intel X550
- Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Supports 12V DC power input
- 4x NVMe port PCI-E 4.0 x4 via SlimSAS connector
- 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro MBD-X12SPM-TF
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X12SPM-TF |
| CPU Socket Type | Socket P+ |
|---|---|
| CPU Type | Supports 3rd Gen Intel Xeon Scalable processors |
| North Bridge | Intel C621A |
|---|
| Number of DDR4 Slots | 8 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| Maximum Memory Supported | Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel Optane Persistent Memory 200 Series, in 8 DIMM slots |
| ECC Supported | Yes |
| PCI Express 4.0 x16 | 2 |
|---|---|
| PCI Express x8 | 1 x PCI Express 4.0 x8 |
| SATA | 10 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| M.2 | M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2280, 22110 Key: M-Key |
| Onboard Video Chipset | Aspeed AST2600 |
|---|
| LAN Chipset | Intel X550 |
|---|---|
| LAN Speed | 10Gbps |
| Back I/O Ports | 2 x RJ45 10GBase-T ports 6 x USB 2.0 ports (2 rear + 4 via headers) 5 x USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A) 1 x VGA port 1 x COM Port (1 header) TPM Header |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| First Listed on Newegg | October 26, 2021 |
|---|
