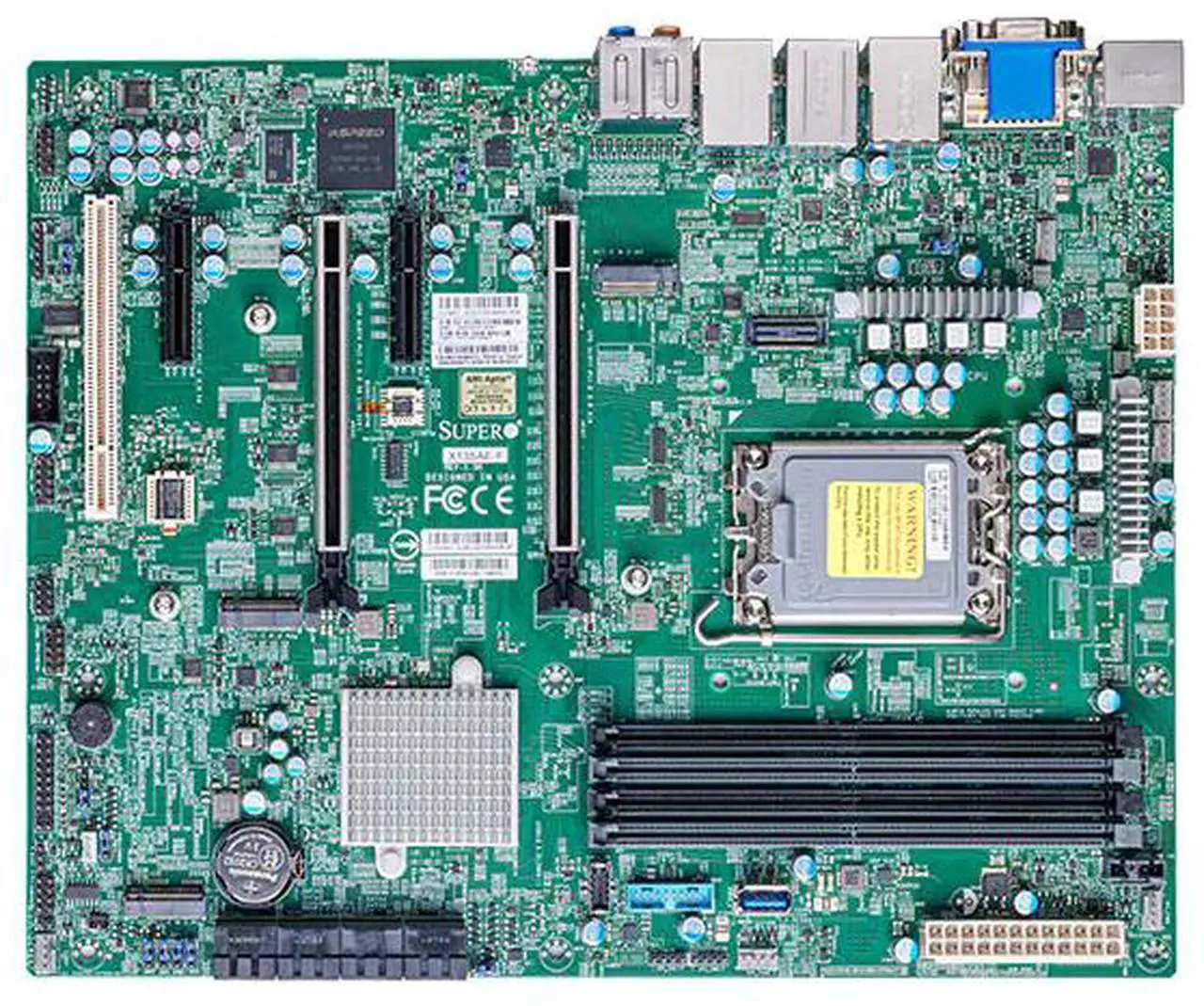

SUPERMICRO MBD-X13SAE-F-O ATX Server Motherboard LGA 1700 Intel W680

(7)(5) Write a Review
  • 12th Generation Intel Core i3/i5/i7/i9 Processors, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP
  • Single LAN with Intel Ethernet i225V
  • Single LAN with Intel PHY I219LM LAN controller for AMT/vPro
  • Intel W680
  • 2 PCI-E 5.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x4
  • 1 - 5V PCI 32bit
  • M.2 Interface: 3 PCI-E 4.0 x4, RAID 0,1,5
  • M.2 Form Factor: 2280
  • M.2 Key: M-Key
  • 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots
  • Intel W680 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • 1 DP 1.4a port, 1 HDMI 2.1 port, 1 DVI - D port
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews (7)

Learn more about the Supermicro MBD-X13SAE-F-O

Best Seller Ranking #26 in Server Motherboards
Model
Brand SUPERMICRO
Model MBD-X13SAE-F-O
Supported CPU
CPU Socket Type LGA 1700
CPU Type Supports 12th Generation Intel Core i3/i5/i7/i9 Processors
Chipsets
North Bridge Intel W680
Memory
Memory Slots 4 x DDR5 288-pin
Memory Standard DDR5 4400
Maximum Memory Supported 128GB
Expansion Slots
PCI Express 5.0 x16 2 PCI-E 5.0 x16 slots (16/NA or 8/8)
PCI Express x4 2 PCI-E 3.0 x4
Storage Devices
SATA 8 x SATA 6.0Gb/s
SATA RAID 0/1/5/10
M.2 M.2 Interface: 3 PCI-E 4.0 x4, RAID 0, 1, 5
Form Factor: 2280
Key: M-Key
Onboard Video
Onboard Video Chipset Aspeed AST2600
Onboard Audio
Audio Chipset ALC 888S HD Audio
Onboard LAN
LAN Chipset Single LAN with Intel PHY I219LM LAN controller, for AMT/vPro
Second LAN Chipset Single LAN with Intel Ethernet i225LM
Third LAN Chipset Single LAN with Realtek RTL8211F PHY (dedicated IPMI), Dedicated LAN for IPMI
Max LAN Speed 2.5Gbps
Rear Panel Ports
Back I/O Ports 1 RJ45 Dedicated IPMI LAN port
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 2.5 Gigabit Ethernet LAN port
4 USB 2 port(s) (2 via header; 2 rear)
4 USB 3.2 Gen2 port(s) (4 rear type A)
3 USB 3.2 Gen1 port(s) (2 via header; 1 Vertical)
2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header)
1 VGA port(s)
1 DVI - D port(s)
1 DP 1.4a port(s)
1 HDMI 2.1 port(s)
Dimensions
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Additional Information
First Listed on Newegg July 01, 2022
