What is the maximum memory supported by this motherboard?

The maximum memory supported by the Supermicro MBD-X13SCL-IF-O motherboard is 64GB of ECC Unbuffered DIMM DDR5-4800MHz in 2 DIMM slots.

What types of processors are supported by the Supermicro MBD-X13SCL-IF-O motherboard?

The Supermicro MBD-X13SCL-IF-O motherboard supports Intel Xeon 6300-series, E-2400 Series, and Pentium processors with a single socket LGA-1700.

Out of stock

$499^.99

Free 83-day Returns

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

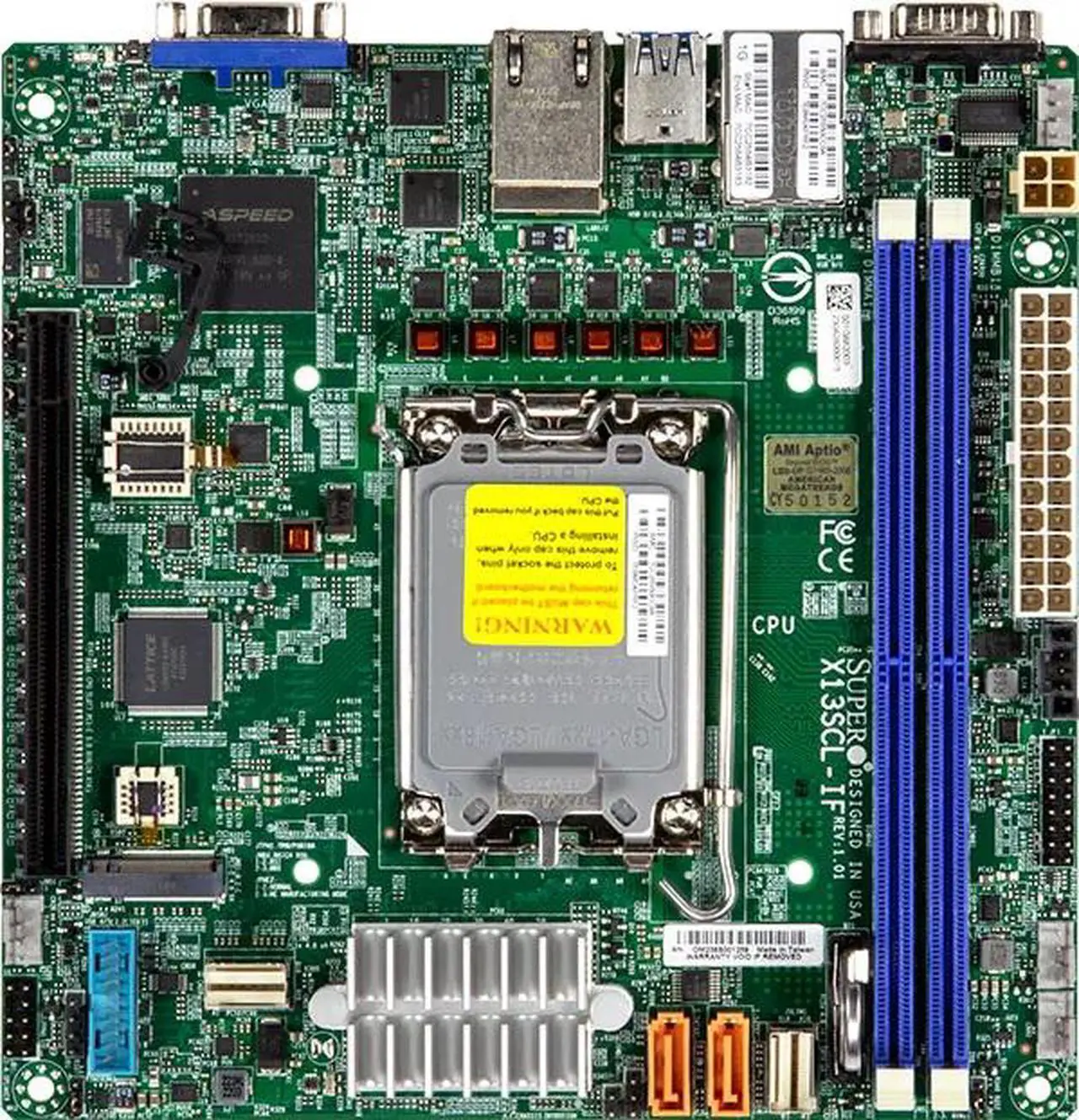

Main image of Supermicro MBD-X13SCL-IF-O Intel LGA-1700 Single Socket Mini-ITX Server Motherboard

Shop All Supermicro Products

Supermicro MBD-X13SCL-IF-O Intel LGA-1700 Single Socket Mini-ITX Server Motherboard

(1) Write a Review

Intel Xeon 6300-series/E-2400 Series Processor, Pentium Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP
Intel® C262 controller for 6 SATA3 (6 Gbps) ports ; RAID 0,1,5,10
Up to 64GB ECC Unbuffered DIMM, DDR5-4800MHz, in 2 DIMM slots
1 PCIe 5.0 x16
2 SlimSAS (2 PCIe 4.0x4 or 1 PCIe 4.0x4 & 4 SATA)
Dual LAN with Intel® i210 Gigabit Ethernet Controller
M.2 Interface: 1 PCIe 4.0 x4
M.2 Form Factor: 2280
M.2 Key: M-Key
4 USB 3.2 Gen1 ports (2 rear + 2 via header)
2 USB 2.0 ports (2 rear)

View User Manual Details

Specs

Reviews (1)

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Learn more about the Supermicro MBD-X13SCL-IF-O

Model
Brand	SUPERMICRO
Model	MBD-X13SCL-IF-O

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Intel Xeon 6300-series/ E-2400/Pretium Processor
Number of Processor Support	1
CPU Features	Up to 95W TDP

Chipsets
North Bridge	Intel C262

Memory
Memory Slots	2 x DDR5 288-pin
Memory Standard	DDR5 4800
Maximum Memory Supported	64GB
ECC Supported	Yes

Expansion Slots
PCI Express 5.0 x16	1 x PCIe 5.0 x16
PCI Express x4	1 x PCIe 4.0 x4 SlimSAS, 2 PCIe 4.0x4 or 1 PCIe 4.0x4 & 4 SATA

Storage Devices
SATA	6 x SATA 6.0Gb/s
SATA RAID	0/1/5/10
M.2	M.2 Interface: 1 PCIe 4.0 x4 Form Factor: 2280 Key: M-Key

Onboard Video
Onboard Video Chipset	Aspeed AST2600

Onboard LAN
LAN Chipset	Intel I210
LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

Rear Panel Ports
Back I/O Ports	1 x COM (Serial Port) / 1 x D-Sub / 2 x LAN (RJ45) / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 Type-A

Features
BIOS Feature	AMI 32MB AMI UEFI ACPI 6.4 SMBIOS 3.5 UEFI 2.8 Plug and Play (PnP) PCI FW 3.3

Dimensions
Form Factor	Mini ITX
Dimensions (W x L)	6.7" x 6.7"

Additional Information
First Listed on Newegg	March 26, 2025

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 3 years
Read full details

Return Policies

We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

Return for refund until: January 31, 2027
Return for replacement until: January 31, 2027
This item is covered by Newegg.com's Extended Holiday Return Policy.
Read full return policy for details.

Manufacturer Contact Info

The Supermicro MBD-X13SCL-IF-O is a Mini-ITX server motherboard for compact systems using one compatible Intel Xeon 6300-series, Xeon E-2400-series, or Pentium processor. It supports up to 64GB of DDR5-4800 ECC memory, making it suitable for space-conscious server builds that need error-correcting memory.

Recommended For

Homelab or small-server builders who want a Mini-ITX system with ECC memory and onboard BMC/IPMI for remote administration.
Small NAS builders who need six onboard SATA ports, RAID options, and SlimSAS connectivity for additional storage configurations.
Small-office or edge-server integrators building a compact, single-socket system around a supported Xeon E-2400, Xeon 6300-series, or Pentium processor.
Server builders who need a PCIe 5.0 x16 slot and an M.2 PCIe 4.0 x4 connection in a 6.7-inch Mini-ITX board.

Spec Summary

Attribute	Value
Best For	Single-processor server builds using supported Intel Xeon 6300-series, E-2400, or Pentium processors, with ECC DDR5 memory and onboard Gigabit Ethernet
Processor And Socket	Supports one Intel Xeon 6300-series, E-2400, or Pentium processor in an LGA 1700 socket, with CPU TDP up to 95W
Memory Configuration	Two DDR5 288-pin DIMM slots support up to 64GB of DDR5-4800 ECC memory
Expansion And Storage	One PCIe 5.0 x16 slot, plus PCIe 4.0 x4 SlimSAS connectivity with PCIe or SATA lane options; six SATA 6Gb/s ports support RAID 0, 1, 5, and 10. Includes one PCIe 4.0 x4 M.2 interface for an M-Key 2280 drive
Networking	Two Intel I210 Gigabit Ethernet ports with 10/100/1000Mbps support
Rear I/O And Graphics	Rear connections include two USB 2.0/1.1 ports, two USB 3.2 Gen 1 Type-A ports, two RJ45 LAN ports, one serial port, and one D-Sub video output; onboard graphics use the Aspeed AST2600 chipset
Firmware And Management Standards	AMI 32MB UEFI BIOS with ACPI 6.4, SMBIOS 3.5, UEFI 2.8, Plug and Play, and PCI firmware 3.3 support
Form Factor And Dimensions	Mini-ITX motherboard measuring 6.7 × 6.7 inches
Model Identifiers	Supermicro MBD-X13SCL-IF-O

Item#: N82E16813183842
