How many PCIe slots does the Supermicro X14SBM-TF motherboard have?

The motherboard has 4 PCIe 5.0 slots, which include 2 x16 and 1 x8 slots along with 1 MCIO connector for 4 x8.

What is the maximum memory supported by the Supermicro X14SBM-TF server motherboard?

The maximum memory supported is 1TB.

Questions & Answers: Supermicro X14SBM-TF Server Motherboard, Intel® Xeon® 6700E-series processors, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP

(2)

double click image to zoom in

Shop All Supermicro Products

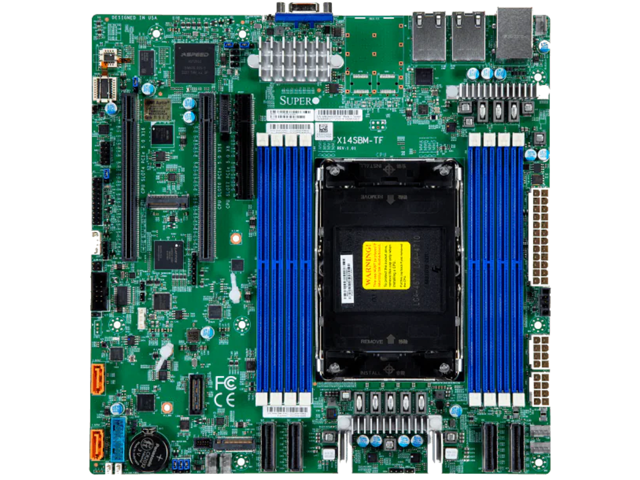

Supermicro X14SBM-TF Server Motherboard, Intel® Xeon® 6700E-series processors, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP

Intel® Xeon® 6700E-series processors, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP
Up to 1TB ECC RDIMM DDR5-6400MT/s in 8 DIMM slots
4 PCIe 5.0 X8 via MCIO connectors
1 PCIe 5.0 x8,
2 PCIe 5.0 x16,
M.2 Interface: 2 PCIe 5.0 x2
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key
Dual LAN with 10GBase-T with Intel® X710-AT2
Onboard TPM2.0
4 USB 3.2 Gen1 (2 rear, 2 via header), 2 SATA3 ports

$709^.00 –
