• $455.00
  • Final Sale: Non-Refundable
  • Make an offer
    Price alert
    Sold by Newegg

    Shipped by Newegg

    Shop it at NeweggBusiness.

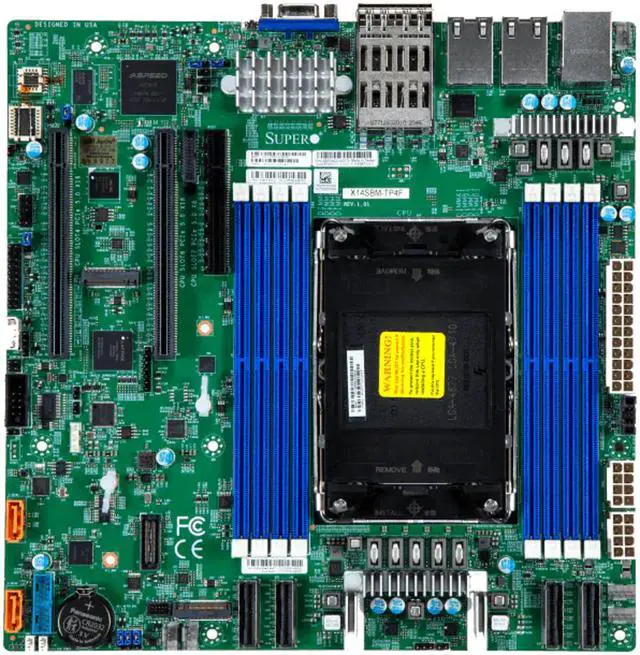

    Supermicro X14SBM-TP4F Server Motherboard, Intel® Xeon® 6700E-series processors, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP

    OPEN BOX Product Type
    • Intel® Xeon® 6700E-series processors, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP
    • Up to 1TB ECC RDIMM DDR5-6400MT/s in 8 DIMM slots
    • 4 PCIe 5.0 X8 via MCIO connectors
    • 1 PCIe 5.0 x8,
    • 2 PCIe 5.0 x16,
    • M.2 Interface: 2 PCIe 5.0 x2
    • M.2 Form Factor: 2280, 22110
    • M.2 Key: M-Key
    • Quad LAN with 2x 10GBase-T and 2x 10G SFP+ with Intel® X710-TM4
    • 4 USB 3.2 Gen1 (2 rear, 2 via header), 2 SATA3 ports
    The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Learn more about the Supermicro MBD-X14SBM-TP4F-O

    Model
    Brand SUPERMICRO
    Model MBD-X14SBM-TP4F-O
    Supported CPU
    CPU Socket Type LGA 4710
    CPU Type Intel Xeon
    Number of Processor Support 1
    CPU Features CPU TDP supports Up to 350W TDP
    Up to 144 (E) cores
    Memory
    Memory Slots 8 x DDR5 288-pin
    Memory Standard DDR5 6400
    Maximum Memory Supported 1TB
    ECC Supported Yes
    Registered Yes
    Expansion Slots
    PCI Express 5.0 x16 2
    PCI Express x8 1 PCIe 5.0 x8
    4 PCIe 5.0 x8 MCIO connector
    Storage Devices
    SATA 2 x SATA 6.0Gb/s
    M.2 M.2 Interface: 2 PCIe 5.0 x2
    Form Factor: 2280/22110
    Key: M-Key
    Onboard LAN
    LAN Chipset Quad LAN with 10GBase-T and 10G SFP+ with Intel X710-TM4
    LAN Speed 10Gbps
    Max LAN Speed 4 x 10Gbps
    Rear Panel Ports
    Back I/O Ports SATA: 2 SATA3 port(s)
    LAN
    - 2 RJ45 10 Gigabit Ethernet LAN ports
    - 1 RJ45 Dedicated IPMI LAN port
    - 2 10G SFP+ LAN ports
    USB: 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
    Video Output: 1 VGA D-Sub Connector port(s)
    Serial Port: 1 COM Port(s) (1 header)
    TPM
    - 1 TPM Header
    - 1 TPM TPM 2.0 onboard
    Dimensions
    Form Factor Micro ATX
    Dimensions (W x L) 9.6" x 9.6"
    Additional Information
    First Listed on Newegg June 21, 2025

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Return Policies

    • Return for refund within: This item is Final Sale
    • Return for replacement within: This item is Final Sale
    • This item is covered by Newegg.com's Final Sale Return Policy. Read full return policy for details.

    Open Box Product Disclaimer
