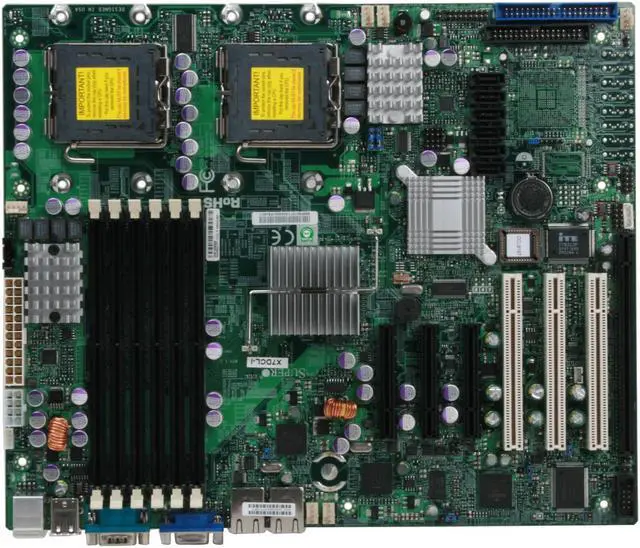

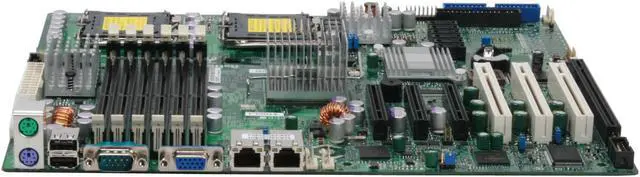

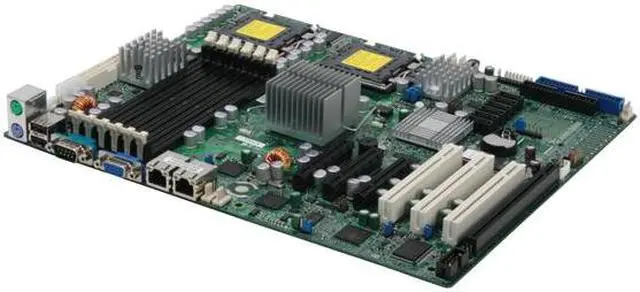

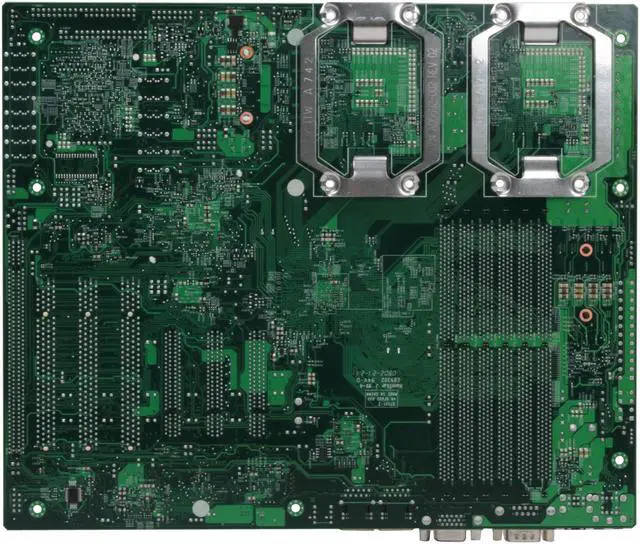

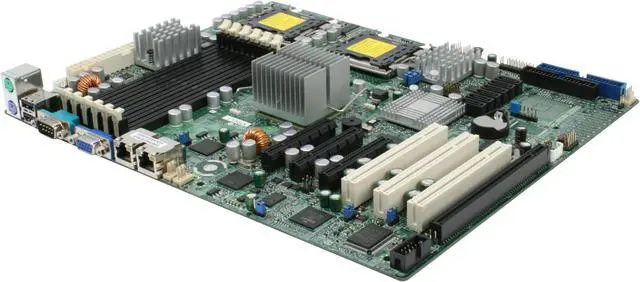

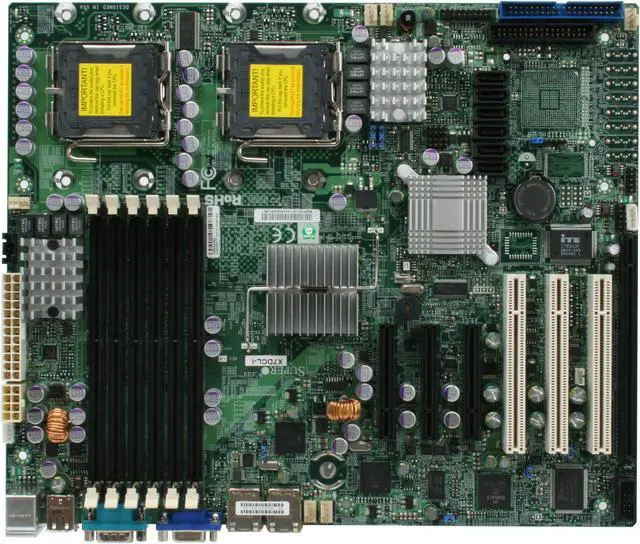

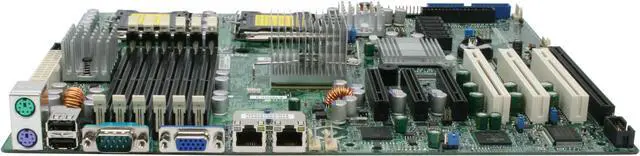

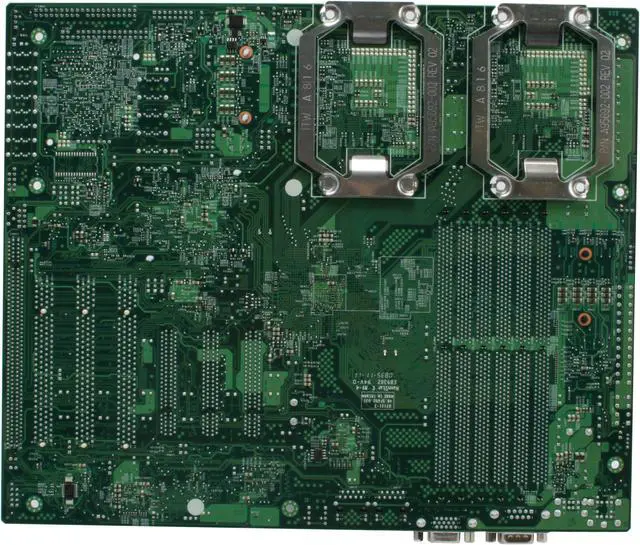

SUPERMICRO MBD-X7DCL-I ATX Server Motherboard Dual LGA 771 Intel 5100 DDR2 667
- Dual LGA 771
- Intel 5100
- 6 x 240Pin
Specs
Reviews (6)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro MBD-X7DCL-I
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X7DCL-I |
| CPU Socket Type | Dual LGA 771 |
|---|---|
| CPU Type | Dual Intel Xeon |
| System Bus | 1333/1066 MHz |
| North Bridge | Intel 5100 |
|---|---|
| South Bridge | Intel ICH9R |
| Number of DDR2 Slots | 6 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 667 |
| Maximum Memory Supported | 48GB |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express x8 | 2 x PCI Express x8 |
|---|---|
| PCI Express x4 | 1 (x4) PCI-e (using x8) slot |
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 6 x SATA 3.0Gb/s |
| SATA RAID | RAID 0, 1, 5, 10 support (Windows only) RAID 0, 1, 10 support (Linux) |
| Onboard Video Chipset | XGI Z9s |
|---|
| LAN Chipset | Intel 82573V |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82573L |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | 3x USB internal header |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.05" x 10.0" |
| First Listed on Newegg | February 13, 2008 |
|---|
