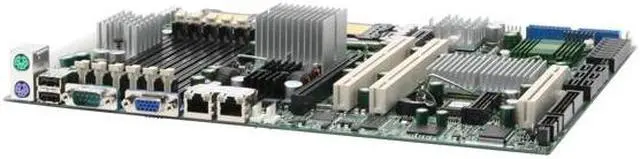

SUPERMICRO MBD-X7DVL-3-O ATX Server Motherboard With SAS Dual LGA 771 Intel 5000V DDR2 667

Name: SUPERMICRO MBD-X7DVL-3-O ATX Server Motherboard With SAS
Brand: Supermicro
SKU: N82E16813182102
Rating: 5 (1 reviews)

(1) Write a Review

Dual LGA 771
Intel 5000V
6 x 240Pin

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro MBD-X7DVL-3-O

Model
Brand	SUPERMICRO
Model	MBD-X7DVL-3-O

Supported CPU
CPU Socket Type	Dual LGA 771
CPU Type	Dual Intel Xeon
System Bus	1333/1066 MHz

Chipsets
North Bridge	Intel 5000V
South Bridge	Intel ESB2

Memory
Number of DDR2 Slots	6 x 240Pin
DDR2 Standard	DDR2 667
Maximum Memory Supported	24GB
Channel Supported	Dual Channel
ECC Supported	Yes
Registered	FBDIMM

Expansion Slots
PCI Express x8	1x (x8) PCI-e slot OR 1x 64-bit 133MHz PCI-X Slot
PCI-X Slots (64-bit 133MHz)	1
PCI Slots	1 x PCI Slot

Storage Devices
PATA	1 x ATA 100 2 Dev. Max
SATA	6 x SATA 3.0Gb/s
SATA RAID	0/1/5/10

Onboard Video
Onboard Video Chipset	XGI Volari Z7

Onboard LAN
LAN Chipset	Intel 82563EB
LAN Speed	10/100/1000Mbps
Second LAN Chipset	Intel 82563EB
Second LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

Rear Panel Ports
PS/2	2
COM	1
Video Ports	D-Sub
USB 1.1/2.0	2 x USB 2.0

Onboard Ports
Onboard USB	2 x USB internal headers for up to 4-ports

Features
Features	SAS: LSI 1068E PCI-E SAS Controller 8 SAS Ports supporting up to 8 SAS HDD RAID 0, 1, 10 support

Dimensions
Form Factor	ATX
Dimensions (W x L)	12.0" x 10.0"

Packaging

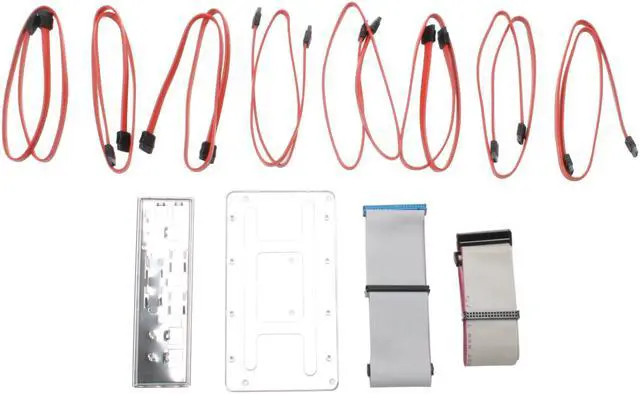

Package Contents	MBD-X7DVL-3-O User Manual Driver Disk CPU Clip 8 x SATA Cable IDE/PATA Cable FDD Cable Rear I/O Panel Shield

Additional Information
First Listed on Newegg	April 26, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
