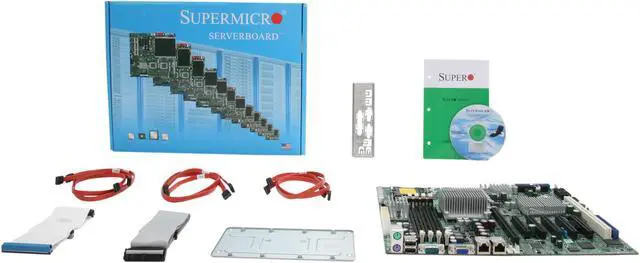

Main image of SUPERMICRO MBD-X7DWE-O ATX Server Motherboard Dual LGA 771 Intel 5400 DDR2 800

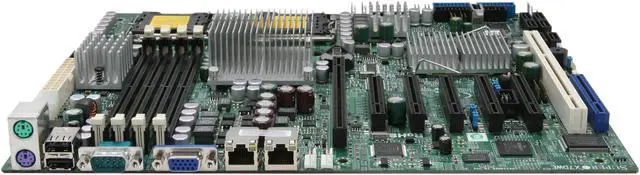

Alt view image 2 of 5 - SUPERMICRO MBD-X7DWE-O ATX Server Motherboard Dual LGA 771 Intel 5400 DDR2 800

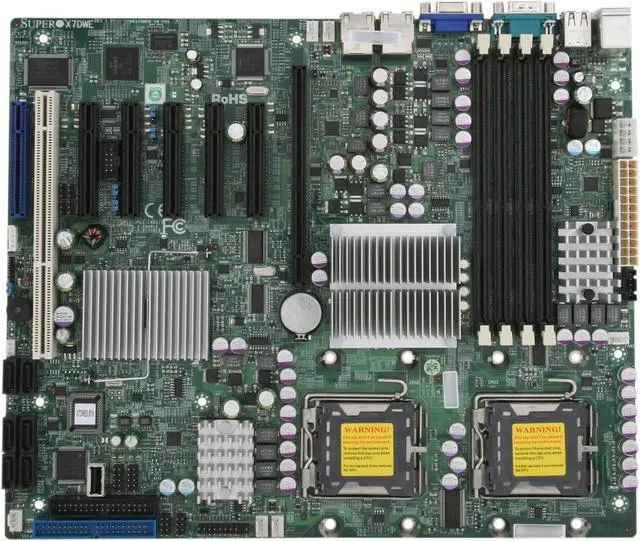

Alt view image 3 of 5 - SUPERMICRO MBD-X7DWE-O ATX Server Motherboard Dual LGA 771 Intel 5400 DDR2 800

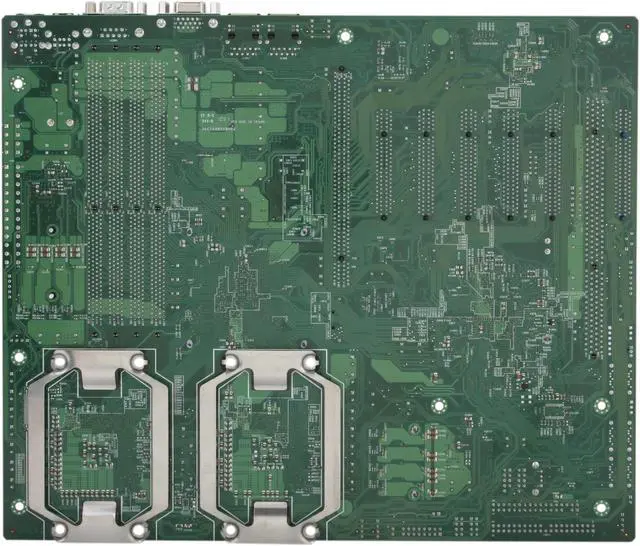

Alt view image 4 of 5 - SUPERMICRO MBD-X7DWE-O ATX Server Motherboard Dual LGA 771 Intel 5400 DDR2 800

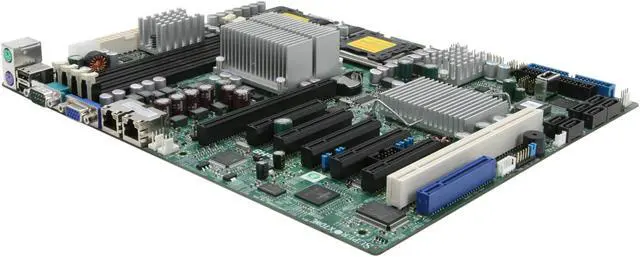

Alt view image 5 of 5 - SUPERMICRO MBD-X7DWE-O ATX Server Motherboard Dual LGA 771 Intel 5400 DDR2 800

Shop All Supermicro Products

SUPERMICRO MBD-X7DWE-O ATX Server Motherboard Dual LGA 771 Intel 5400 DDR2 800

(8) Write a Review

Dual LGA 771
Intel 5400
4 x 240Pin

Overview

Specs

Reviews (8)

Any questions? Our AI mode will help you find out quickly.

Try me now

X7DWE Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

Model
Brand	SUPERMICRO
Model	MBD-X7DWE-O

Supported CPU
CPU Socket Type	Dual LGA 771
CPU Type	Dual Intel Xeon
System Bus	1600/1333/1066 MHz

Chipsets
North Bridge	Intel 5400
South Bridge	MCH + ESB2

Memory
Number of DDR2 Slots	4 x 240Pin
DDR2 Standard	DDR2 800
Maximum Memory Supported	32GB
ECC Supported	Yes
Registered	FBDIMM

Expansion Slots
PCI Express x8	4 (x8) PCI-Express (Gen 2.0)
PCI Express x4	1 (x4) PCI-Express (Using x8 slot)
PCI-X Slots (64-bit 133MHz)	1
Other Slots	1x UIO slots

Storage Devices
PATA	1 x ATA 100 2 Dev. Max
SATA	6 x SATA 3.0Gb/s
SATA RAID	RAID 0, 1, 5, 10 support (Windows only) RAID 0, 1, 10 support (Linux)

Onboard Video
Onboard Video Chipset	XGI Z9S controller with 32 MB memory

Onboard LAN
LAN Chipset	Intel 82563EB
LAN Speed	10/100/1000Mbps
Second LAN Chipset	Intel 82563EB
Second LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

Rear Panel Ports
PS/2	2
COM	1
Video Ports	D-Sub
USB 1.1/2.0	2 x USB 2.0

Features
Features	CPU: Supports up to Dual Intel 64-bit Xeon processor(s) of the same type below: Quad-Core Intel Xeon Processor 5400/5300LV sequence (Harpertown/Clovertown processor) up to 3.20 GHz Dual-Core Intel Xeon Processor 5200/5100LV sequence (Wolfdale/Woodcrest processor) up to 3.40 GHz. NOTE: Support processors with Max TDP < 100W Super I/O: Winbond 83627HF chip

Dimensions
Form Factor	ATX
Dimensions (W x L)	12.05" x 10.0"

Additional Information
First Listed on Newegg	June 03, 2008
