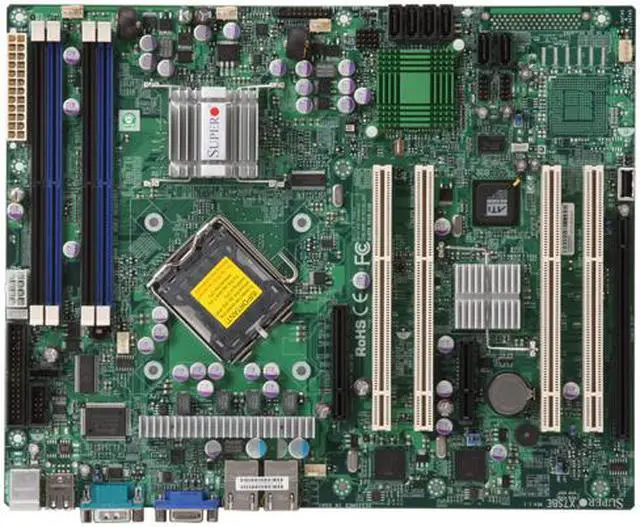

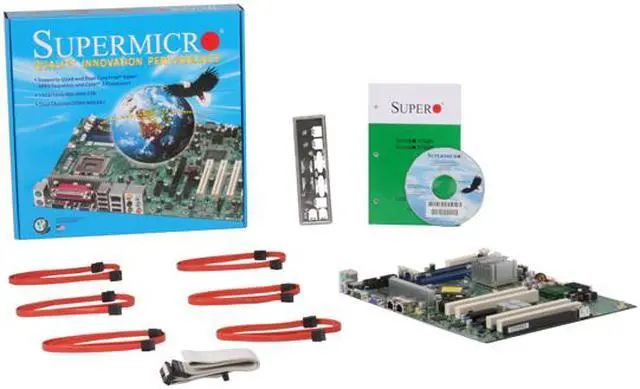

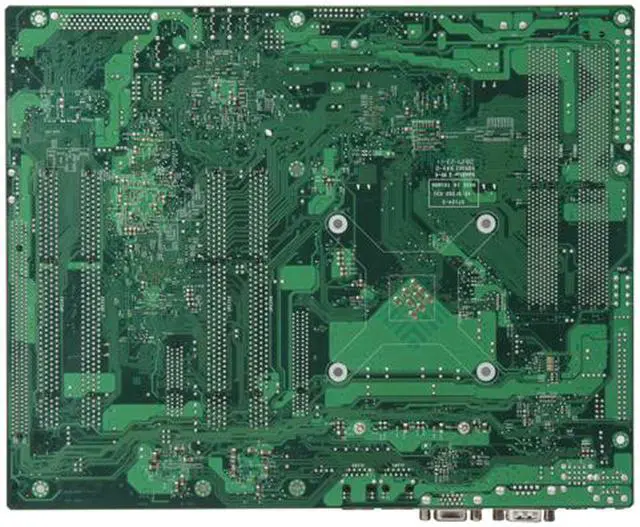

SUPERMICRO MBD-X7SBE LGA 775 Intel 3210 ATX Intel Xeon/Core 2/Pentium/Celeron Server Motherboard

OUT OF STOCK.
  • LGA 775
  • Intel 3210
  • 4 x 240Pin
Specs
Reviews

Learn more about the Supermicro MBD-X7SBE

Model
Brand SUPERMICRO
Model MBD-X7SBE
Supported CPU
CPU Socket Type LGA 775
CPU Type Intel Xeon/Core2/Pentium/Celeron
System Bus 1333/1066/800 MHz
Chipsets
North Bridge Intel 3210
South Bridge Intel ICH9R
Memory
Number of DDR2 Slots 4 x 240Pin
DDR2 Standard DDR2 800/667
Maximum Memory Supported 8GB
Channel Supported Dual Channel
ECC Supported Yes
Expansion Slots
PCI Express x8 1 x PCI Express x8
PCI Express x4 1 x PCI Express x4
PCI-X Slots (64-bit 133MHz) 2
PCI-X Slots (64-bit 100MHz) 2
Storage Devices
SATA 6 x SATA 3.0Gb/s
SATA RAID RAID 0, 1, 5, 10 support (Windows Only)
RAID 0, 1, 10 support (Linux)
Onboard Video
Onboard Video Chipset ATI ES1000 (32MB)
Onboard LAN
LAN Chipset Intel 82573V
LAN Speed 10/100/1000Mbps
Second LAN Chipset Intel 82573L
Second LAN Speed 10/100/1000Mbps
Max LAN Speed Dual 10/100/1000Mbps
Rear Panel Ports
PS/2 YES
COM 1
Video Ports D-Sub
USB 1.1/2.0 2 x USB 2.0
Onboard Ports
Onboard USB 2 internal heades for 4 USB 2.0/1.1 ports + 1 on-board
Features
Features CPU:
Supports Quad-Core Intel Xeon X3300/X3200 series
Supports Dual-Core Intel Xeon E3100/3000 series
Supports Intel Xeon processor L3360 and L3110 series
Supports Intel Core2 Quad Q9000/Q8000/Q6000 series
Supports Intel Core2 Duo E8000/E7000/E6000/E4000 series
Supports Intel Pentium E5000/E2000 series
Supports Intel Celeron E1000 and 400 series
*NOTE: Intel Xeon processor L3014 requires an LGA771 socket and is not supported.

Memory Type: DDR2 800/667MHz unbuffered ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs

Super I/O: Winbond W83627HG-AW chip
Dimensions
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Additional Information
Date First Available February 06, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
