SUPERMICRO MBD-X7SPA-HF-O Mini ITX Server Motherboard DDR2 667
- 2 x 200Pin SO-DIMM
Overview
Specs
Reviews (22)
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now

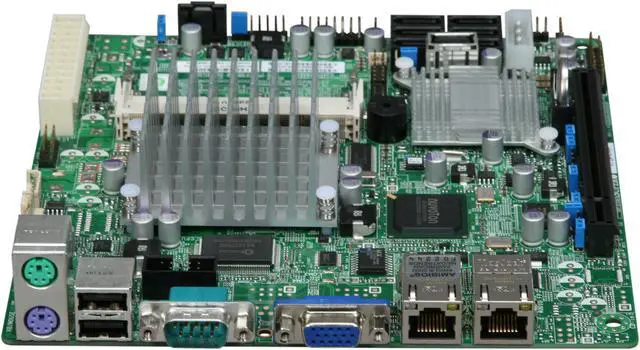

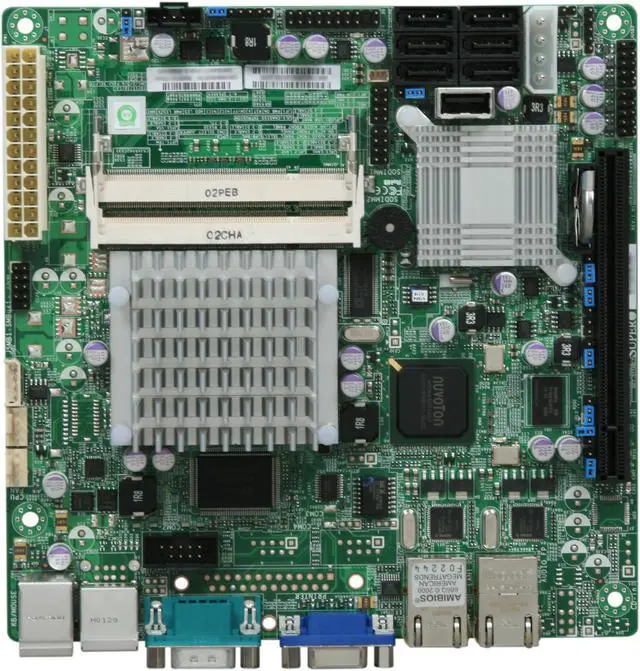

SUPERMICRO MBD-X7SPA-HF-O Mini ITX Server Motherboard
Features
- Intel® Atom™ D510 (Pineview-D) (DMI)
- Intel® ICH9R Chipset
- Up to 4GB single channel unbuffered, non-ECC DDR2 667MHz SO-DIMM
- 2x Intel 82574L Gigabit LAN
- 6x SATA (3.0Gbps) Ports RAID 0, 1, 5, 10 (Windows Only)
- 1 (x4) PCI-E (in x16 slot)
- 2 rear USB ports + 3 headers (5 ports) + 1 Type A connector
- Integrated Matrox G200eW Video
- Integrated IPMI 2.0
Specifications
| Product SKUs | |
| MBD-X7SPA-HF-O | X7SPA-HF (Standard Retail Pack) |
| MBD-X7SPA-HF-B | X7SPA-HF (Bulk Pack) |
| Physical Stats | |
| Form Factor | Mini-ITX |
| Dimensions | 6.7" x 6.7" (17.02cm x 17.02cm) |
| Processor/Cache | |
| CPU | Intel® Atom™ D510 processor |
| System Bus | DMI |
| System Memory | |
| Memory Capacity |
|
| Memory Type | DDR2 667MHz unbuffered, non-ECC SO-DIMM |
| DIMM Sizes | 256 MB, 512 MB, 1 GB, 2GB |
| Memory Voltage | 1.8V only |
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| IPMI |
|
| Network Controllers |
|
| Graphics | Onboard Matrox G200eW video |
| Super I/O | Winbond 83627DHG chip |
| Input / Output | |
| Serial ATA | 6 Serial ATA ports ( 3Gbps ) |
| LAN | 2x RJ45 LAN port |
| USB |
|
| VGA | D-Sub 15 |
| Keyboard / Mouse | PS/2 keyboard and mouse ports |
| Serial Port / Header |
|
| System BIOS | |
| BIOS Type | 8Mb Flash EEPROM with AMI BIOS |
| BIOS Features |
|

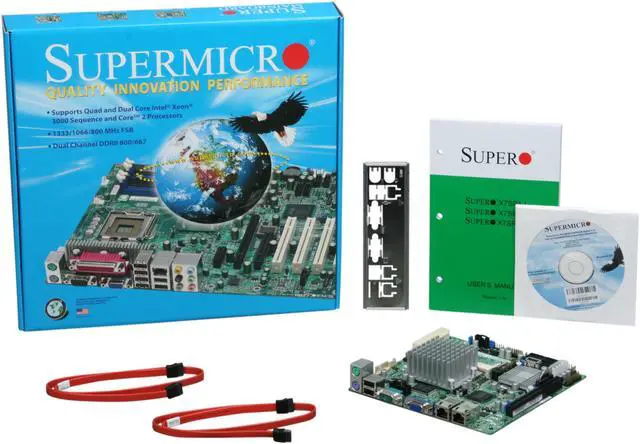

Whats in the Box
Supermicro gives you the best entry level server solution with the MBD-X7SPA-HF-O server board. This mini-ITX board integrates Intel Atom D510 (Pineview-D) dual-core processor with comprehensive performance and low power consumption. With two 200-pin SO-DIMM slots, it can support up to 4GB unbuffered, non-ECC DDR2 667MHz memory to meet a small server’s computing need.
The server motherboard integrates 6 SATA 3.0Gb/s ports which have built-in RAID support for better data protection. Two independent controllers guarantee the maximum data throughout of its dual-port Gigabit Ethernet. This motherboard really benefits home or small sized workstations with easy management and data protection.
The server motherboard integrates 6 SATA 3.0Gb/s ports which have built-in RAID support for better data protection. Two independent controllers guarantee the maximum data throughout of its dual-port Gigabit Ethernet. This motherboard really benefits home or small sized workstations with easy management and data protection.
Integrated Intel Atom D510 ProcessorIntegrating an Intel Atom dual-core processor D510, one of the Intel's smallest and lowest power processors, the Supermicro MBD-X7SPA-HF-O delivers the power and performance you need, perfect for building a smart, small server.
SATA II with RAID SupportThe second generation SATA interface delivers up to 300MB/sec transfer speed, doubling that of the first generation Serial ATA. The on-board six SATA II ports with built-in RAID 0, 1, 5 and 10 support provide flexible, scalable storage and enhanced data security.
Dual Gigabit LANThe SuperMicro MBD-X7SPA-HF-O features dual Intel 82574L Gigabit Ethernet LAN controllers to optimize server performance and improve network communication efficiency to meet the networking demands.
Super Doctor III Server Management SoftwareThe bundled Super Doctor III software offers a complete server management solution that maintains server health, maximizes system uptime, reduces the total cost of ownership and provides powerful tools for monitoring and controlling your SuperServers from anywhere with ease.
Integrated ManageabilityThe integrated Baseboard Management Controller (BMC) with IPMI (Intelligent Platform Management Interface) v2.0 support enables out-of-band capabilities for monitoring hardware and software status regardless of the OS or power state. Optional KVM support provides a complete remote management upgrade solution.
Integrated Intel Atom D510 ProcessorIntegrating an Intel Atom dual-core processor D510, one of the Intel's smallest and lowest power processors, the Supermicro MBD-X7SPA-HF-O delivers the power and performance you need, perfect for building a smart, small server.
SATA II with RAID SupportThe second generation SATA interface delivers up to 300MB/sec transfer speed, doubling that of the first generation Serial ATA. The on-board six SATA II ports with built-in RAID 0, 1, 5 and 10 support provide flexible, scalable storage and enhanced data security.
Dual Gigabit LANThe SuperMicro MBD-X7SPA-HF-O features dual Intel 82574L Gigabit Ethernet LAN controllers to optimize server performance and improve network communication efficiency to meet the networking demands.
Super Doctor III Server Management SoftwareThe bundled Super Doctor III software offers a complete server management solution that maintains server health, maximizes system uptime, reduces the total cost of ownership and provides powerful tools for monitoring and controlling your SuperServers from anywhere with ease.
Integrated ManageabilityThe integrated Baseboard Management Controller (BMC) with IPMI (Intelligent Platform Management Interface) v2.0 support enables out-of-band capabilities for monitoring hardware and software status regardless of the OS or power state. Optional KVM support provides a complete remote management upgrade solution.Warranty & Returns
