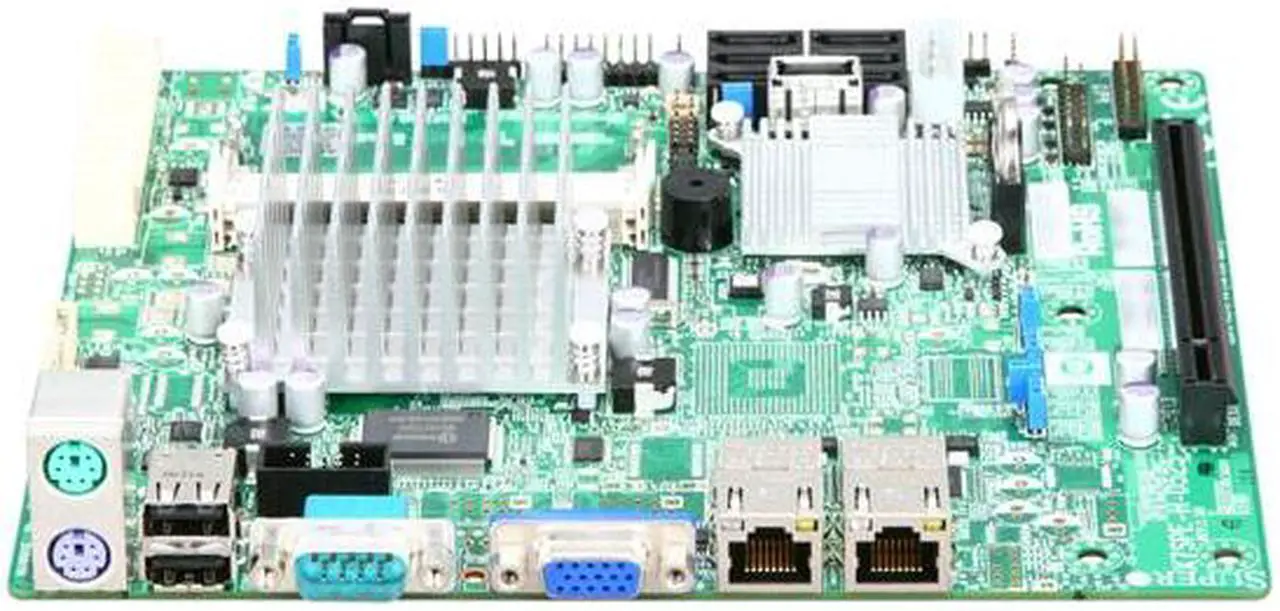

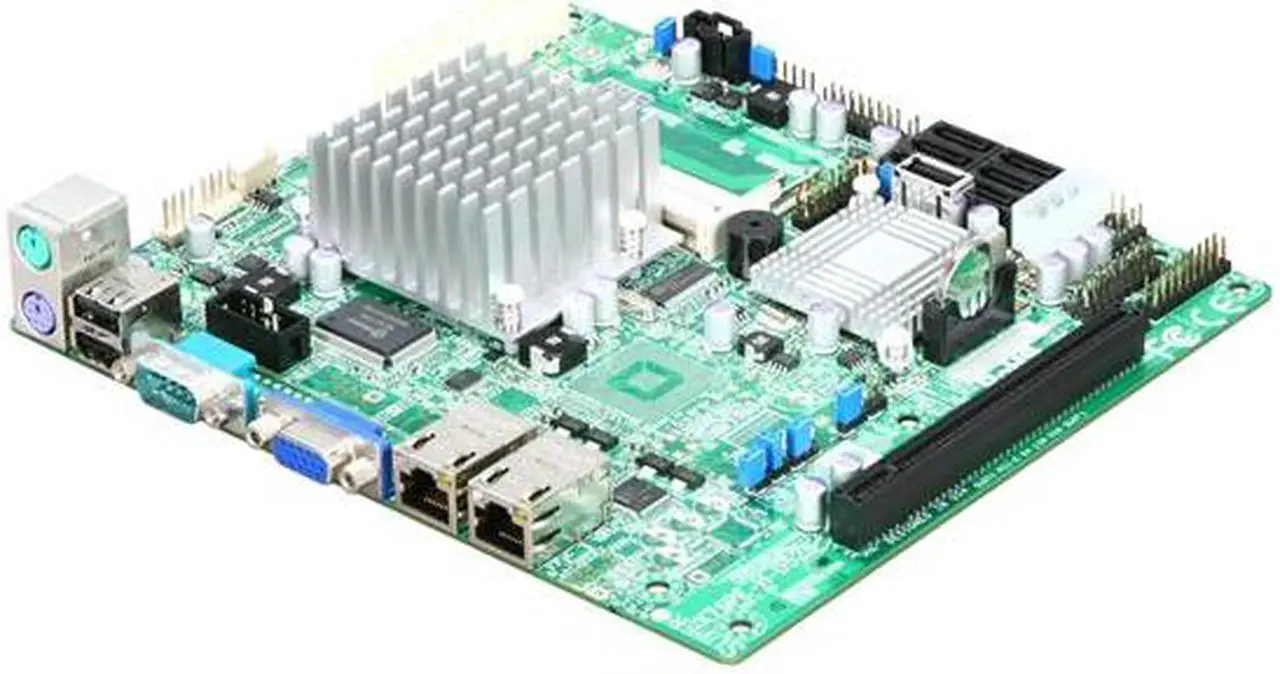

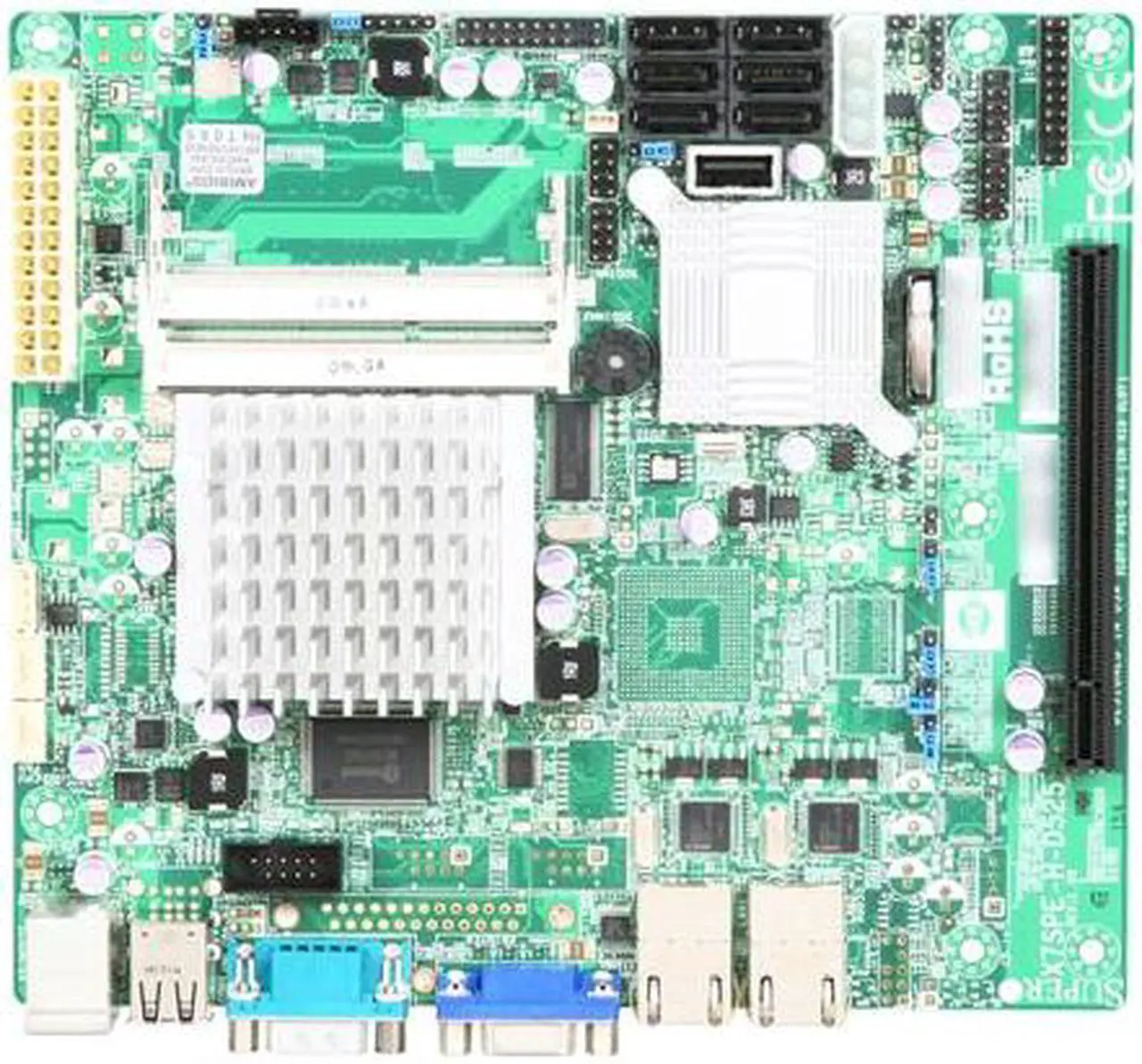

Supermicro gives you the best entry level server solution with the MBD-X7SPE-H-D525-O server board. This mini-ITX board integrates Intel Atom D525 (Pineview) processor with comprehensive performance and low power consumption. With two 204-pin SO-DIMM slots, it can support up to 4GB unbuffered, non-ECC DDR3 800MHz memory to meet a small server’s computing need. Dual Gigabit Ethernet ports and on-die Intel GMA 3150 video makes this motherboard really benefits home or small sized workstations with easy management and data protection.
Supermicro gives you the best entry level server solution with the MBD-X7SPE-H-D525-O server board. This mini-ITX board integrates Intel Atom D525 (Pineview) processor with comprehensive performance and low power consumption. With two 204-pin SO-DIMM slots, it can support up to 4GB unbuffered, non-ECC DDR3 800MHz memory to meet a small server’s computing need. Dual Gigabit Ethernet ports and on-die Intel GMA 3150 video makes this motherboard really benefits home or small sized workstations with easy management and data protection.
Integrated Intel Atom D525 ProcessorIntegrating an Intel Atom dual-core processor D525, one of the Intel's smallest and lowest power processors, the Supermicro MBD-X7SPE-H-D525-O delivers the power and performance you need, perfect for building a smart, small server.
Integrated Intel GMA 3150 Graphics CoreThe Intel Graphics Media Accelerator 3150 (GMA 3150) graphics core is an intelligent and responsive graphics engine built into the Atom processor die for lower heat dissipation and simple motherboard layout. This integration provides adequate visual quality, faster graphics performance and flexible display options without the need for a separate graphics card.
DDR3 RAM SupportThe SuperMicro MBD-X7SPE-H-D525-O comes equipped with two 204-pin SO-DIMM slots to accommodate up to 4GB DDR3 RAM for faster system response.
SATA II with RAID SupportThe second generation SATA interface delivers up to 300MB/sec transfer speed, doubling that of the first generation Serial ATA. The on-board six SATA II ports with built-in RAID 0, 1, 5 and 10 support provide flexible, scalable storage and enhanced data security.
Dual Gigabit LANThe SuperMicro MBD-X7SPE-H-D525-O features dual Intel 82574L Gigabit Ethernet LAN controllers to optimize server performance and improve network communication efficiency to meet the networking demands.
Learn more about the Supermicro MBD-X7SPE-H-D525-O
Model
Brand
SUPERMICRO
Model
MBD-X7SPE-H-D525-O
Supported CPU
CPU Socket Type
FCBGA559
CPU Type
Intel Atom D525
System Bus
DMI
Chipsets
South Bridge
Intel ICH9R
Memory
Number of DDR3 Slots
2 x 204-pin SO-DIMM
DDR3 Standard
DDR3 800
Maximum Memory Supported
4GB
Expansion Slots
PCI Express x4
1 (x4) PCI-Express (in x16 slot)
Storage Devices
SATA
6 x SATA 3.0Gb/s
SATA RAID
RAID 0, 1, 5, 10 support (Windows Only)
Onboard Video
Onboard Video Chipset
Intel GMA 3150
Onboard LAN
LAN Chipset
Intel 82574L
LAN Speed
10/100/1000Mbps
Second LAN Chipset
Intel 82574L
Second LAN Speed
10/100/1000Mbps
Max LAN Speed
2 x 1Gbps
Rear Panel Ports
PS/2
2
COM
1
Video Ports
D-Sub
USB 1.1/2.0
2 x USB 2.0
Onboard Ports
Onboard USB
5 via headers + 1 Type A connector
Features
Features
TPM header ready
DOM Power connector
Dimensions
Form Factor
Flex ATX
Dimensions (W x L)
7.5" x 6.75"
Additional Information
Date First Available
November 09, 2010
