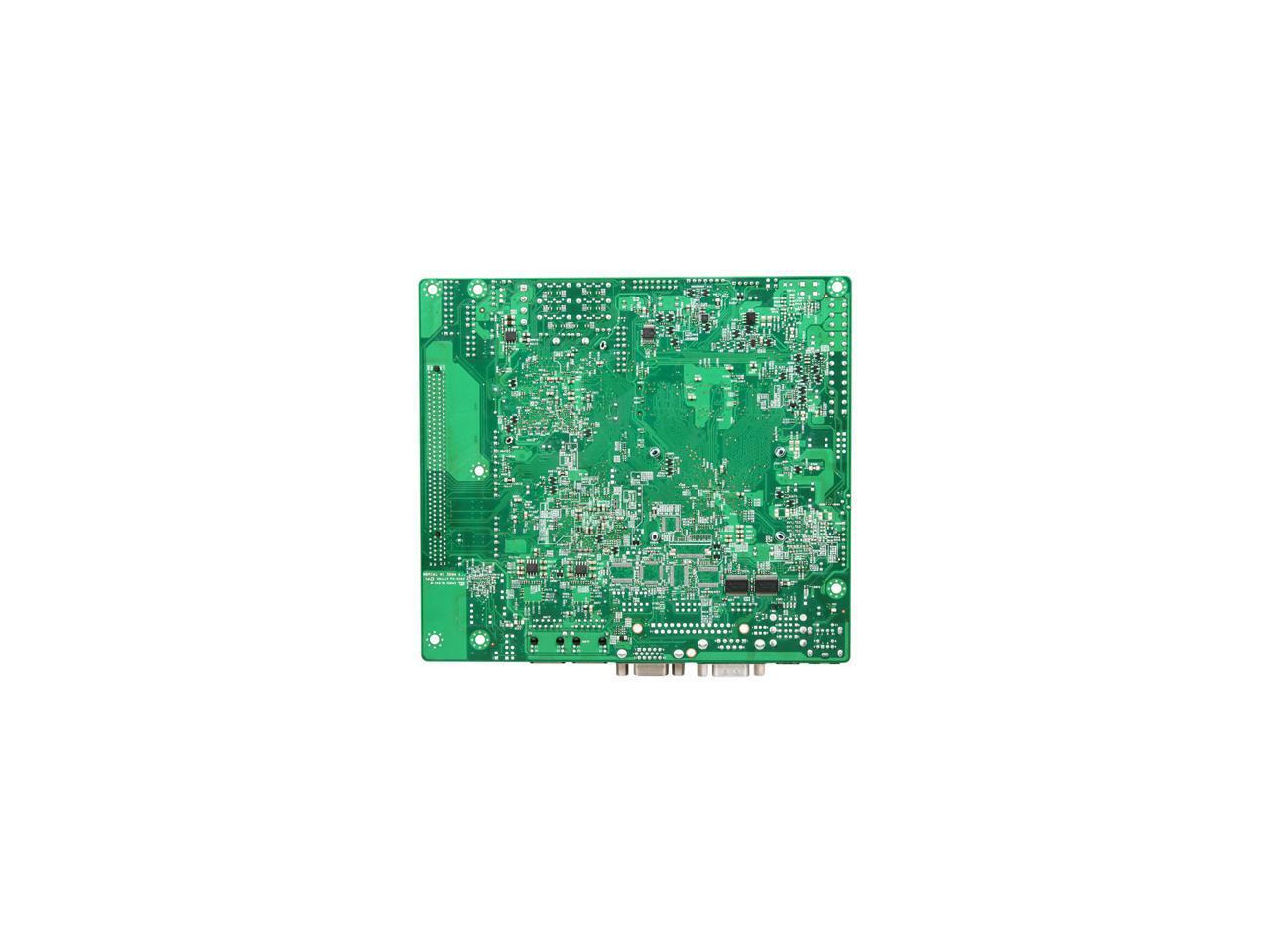

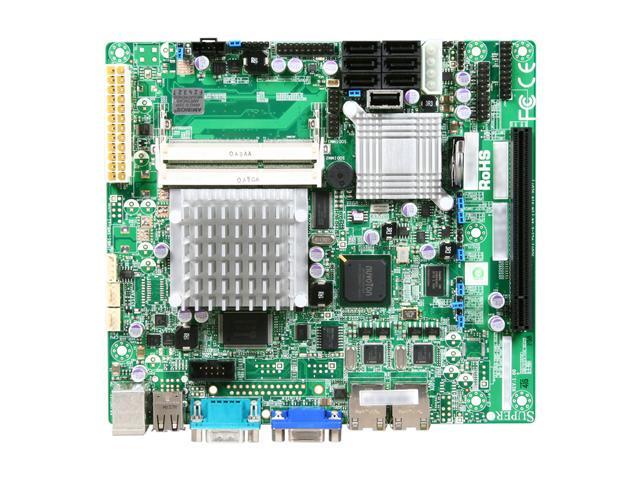

SUPERMICRO MBD-X7SPE-HF-D525-O Proprietary Server Motherboard

Features

Intel® Atom™ D525 (Pineview-D) (DMI)
Intel® ICH9R Chipset
Up to 4GB single channel unbuffered, non-ECC DDR3 800MHz SO-DIMM
2x Intel 82574L Gigabit LAN
6x SATA (3.0Gbps) Ports RAID 0, 1, 5, 10 (Windows Only)
1 (x4) PCI-E (in x16 slot)
2 rear USB ports + 3 headers (5 ports) + 1 Type A connector
Integrated Matrox G200eW Video
Integrated IPMI 2.0
TPM header ready
DOM Power connector

Specifications

Product SKUs
MBD-X7SPE-HF-D525 -O	X7SPE-HF-D525 (Standard Retail Pack)
MBD-X7SPE-HF-D525 -B	X7SPE-HF-D525 (Bulk Pack)
Physical Stats
Form Factor	FlexATX
Dimensions	7.5" x 6.75" (19.05cm x 17.15cm)
Processor/Cache
CPU	Intel® Atom™ D525 processor
System Bus	DMI
System Memory
Memory Capacity	Two 204-pin SO-DIMM slots Supports up to 4 GB of unbuffered, non-ECC DDR3 800MHz SO-DIMM (Single Channel) Some 1066MHz and 1333MHz memory can be used, but will operate at 800MHz Note: Supports 1-Gb and 2-Gb devices only - Intel D525 Memory Requirements
Memory Type	DDR3 800MHz unbuffered, non-ECC SO-DIMM
DIMM Sizes	256 MB, 512 MB, 1 GB, 2GB
Memory Voltage	1.5V only
On-Board Devices
Chipset	Intel ICH9R Intel 82574L
SATA	Intel ICH9R SATA 3.0Gbps Controller RAID 0, 1, 5, 10 support (Windows Only)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Winbond® WPCM450 BMC
Network Controllers	2x Intel 82574L Gigabit Ethernet Supports 10BASE-T, 100/1000BASE-TX, RJ45 output
Graphics	Onboard Matrox G200eW video
Super I/O	Winbond 83627DHG chip

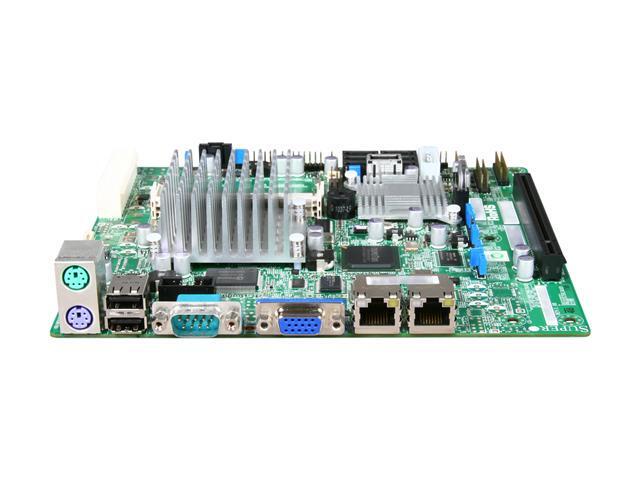

Input / Output
Serial ATA	6 Serial ATA ports ( 3Gb/s )
LAN	2x RJ45 LAN port
USB	8x USB 2.0 / 1.1 compatible 2 rear + 3 headers (5 ports) + 1 Type A connector
VGA	D-Sub 15
Keyboard / Mouse	PS/2 keyboard and mouse ports
Serial Ports	1x Fast UART 16550 serial port 1x Serial Header
System BIOS
BIOS Type	8Mb Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 1.0 / 2.0 / 3.0 USB Keyboard support SMBIOS 2.3
