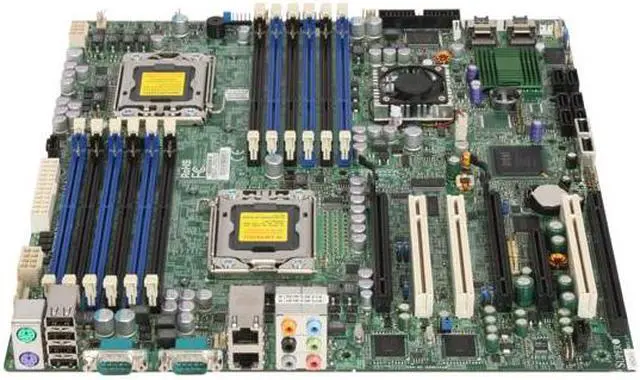

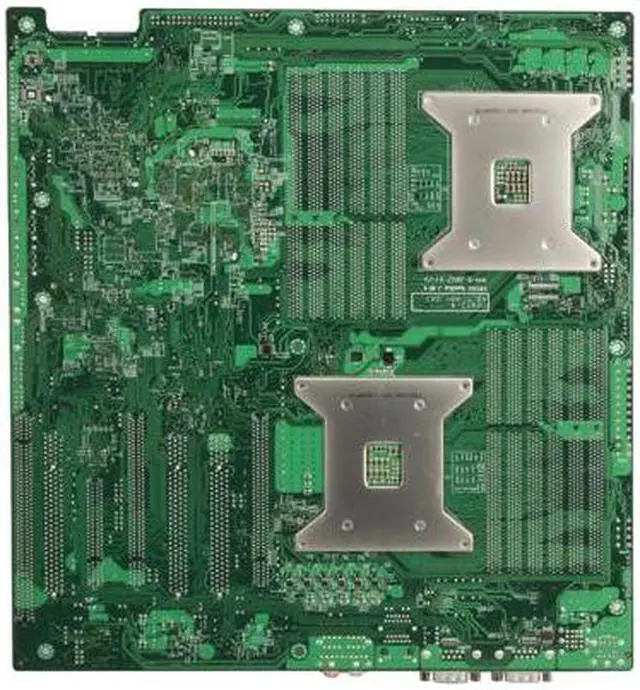

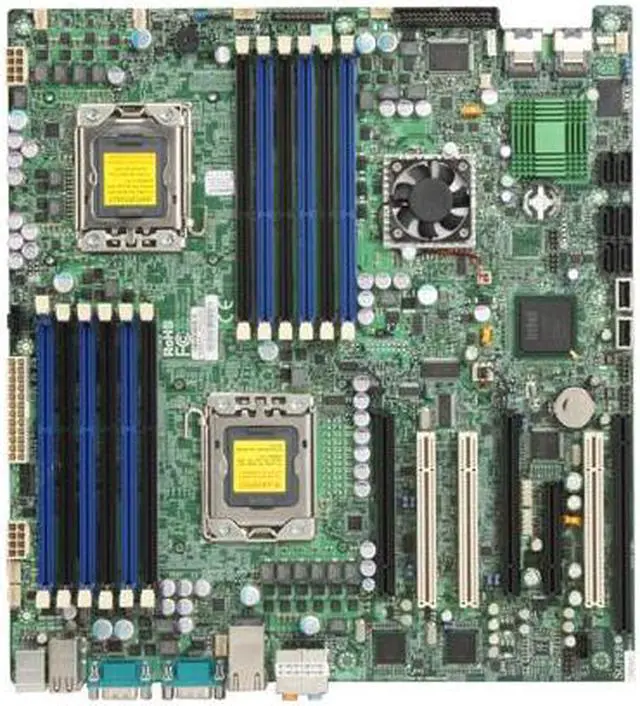

SUPERMICRO MBD-X8DA3-O Dual LGA 1366 Intel 5520 Extended ATX Dual Intel Xeon 5600/5500 series processor

OPEN BOX Product Type
  • Dual LGA 1366
  • Intel 5520
  • 12 x 240pin
Please note that this product is non-returnable and non-refundable.
Specs
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the Supermicro MBD-X8DA3-O

Model
Brand SUPERMICRO
Model MBD-X8DA3-O
Supported CPU
CPU Socket Type Dual LGA 1366
CPU Type Dual Intel Xeon 5500/5600 Series
QPI Up to 6.4 GT/s
Chipsets
North Bridge Intel 5520
South Bridge ICH10R + IOH-36D
Memory
Number of DDR3 Slots 12 x 240pin
DDR3 Standard DDR3 1333/1066/800
Maximum Memory Supported 192GB
ECC Supported Yes
Registered Yes
Expansion Slots
PCI Express 2.0 x16 2 (x16) PCI-E 2.0 slots
PCI Express x4 1 (x4) PCI-E (in x8 slot)
PCI Slots 3x 33MHz PCI slots
Storage Devices
SATA 6 x SATA 3.0Gb/s
SATA RAID RAID 0, 1, 5, 10 support (Windows)
RAID 0, 1, 10 support (Linux)
SAS 8 SAS / SATA ports

LSI SAS1068E
SAS RAID RAID 0/1/10
Onboard Audio
Audio Chipset Realtek ALC883
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Intel 82573V
LAN Speed 10/100/1000Mbps
Second LAN Chipset Intel 82573L
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 2
COM 2
USB 1.1/2.0 4 x USB 2.0
Onboard Ports
Onboard USB 2x USB on-board
4x USB internal headers
Onboard 1394 2x IEEE 1394a headers
Features
Features CPU: Supports up to two Intel 64-bit Xeon processor(s) of the same type below:
Intel Xeon Processor 5600 Series (Westmere)
Intel Xeon Processor 5500 Series (Nehalem-EP)

Super I/O: Winbond 83627HF chip

IPMI 2.0 (SIMLC) Slot
Dimensions
Form Factor Extended ATX
Dimensions (W x L) 12.0" x 13.0"
Additional Information
First Listed on Newegg May 05, 2009
