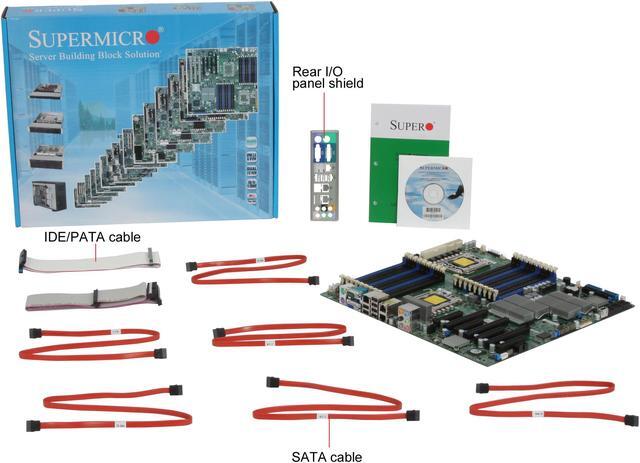

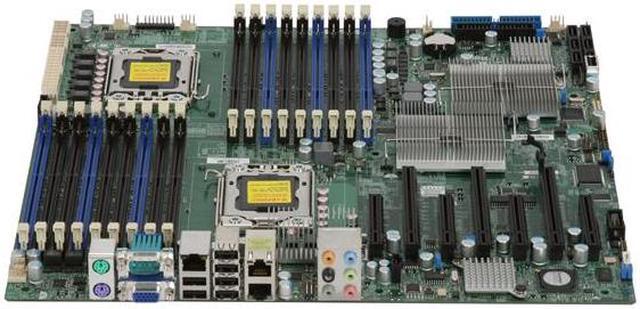

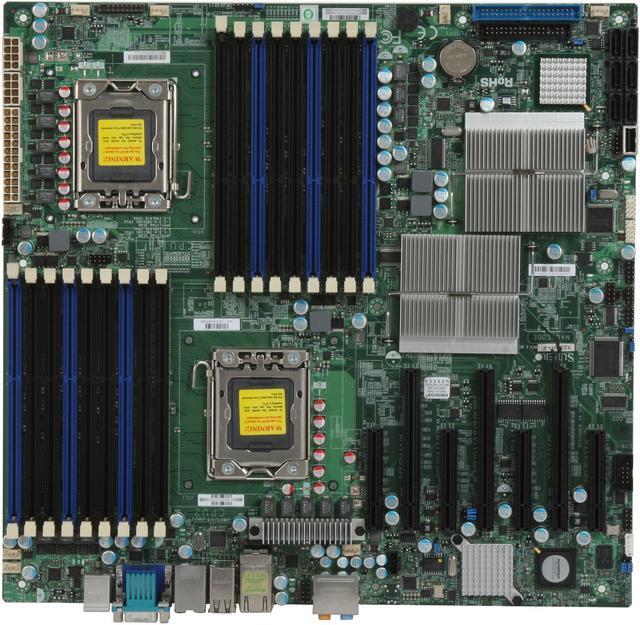

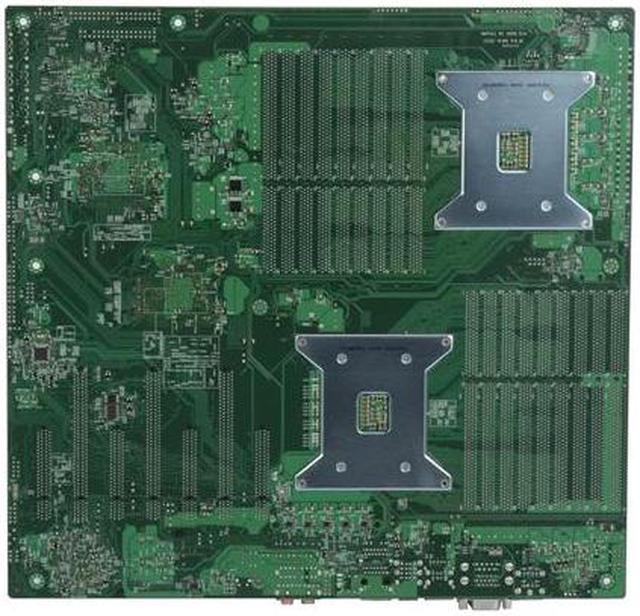

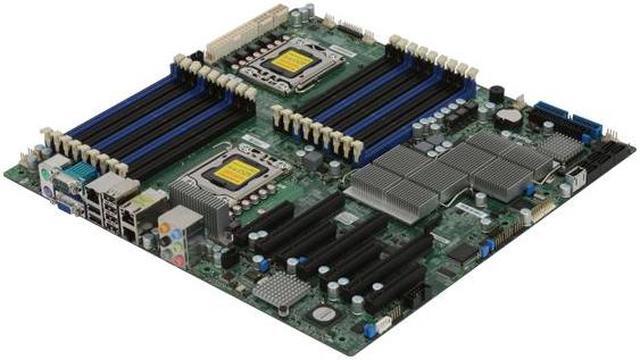

SUPERMICRO MBD-X8DAH+-F-O Dual LGA 1366 Intel 5520 Enhanced Extended ATX Dual Intel Xeon 5500 and 5600 Series Server Motherboard
- Dual LGA 1366
- Intel 5520
- 18 x 240pin
Specs
Reviews (17)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro MBD-X8DAH+-F-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X8DAH+-F-O |
| CPU Socket Type | Dual LGA 1366 |
|---|---|
| CPU Type | Supports up to two Intel 64-bit Xeon processor(s) of the same type below: Intel Xeon Processor 5600 Series (Westmere) Intel Xeon Processor 5500 Series (Nehalem-EP) |
| QPI | Up to 6.4 GT/s |
| North Bridge | Intel 5520 |
|---|---|
| South Bridge | Intel ICH10R |
| Other Chipset | 2x IOH-36D |
| Number of DDR3 Slots | 18 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1333 |
| Maximum Memory Supported | Supports up to 288GB* 1333 / 1066 / 800MHz DDR3 ECC Registered memory Supports up to 48GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory *16GB LRDIMM is required. |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 2.0 x16 | 2 |
|---|---|
| PCI Express x8 | 4 (x8) PCI-E 2.0 slots (1 in x16 slot) |
| PCI Express x4 | 1 x PCI Express x4 |
| SATA | 6 x SATA 3.0Gb/s |
|---|---|
| SATA RAID | RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux) |
| Onboard Video Chipset | Matrox G200eW |
|---|
| Audio Chipset | Realtek ALC888 7.1 HD audio |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Intel 82576 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 2 x IEEE 1394a |
| Features | Integrated IPMI 2.0 with Dedicated LAN |
|---|
| Form Factor | Enhanced Extended ATX |
|---|---|
| Dimensions (W x L) | 13.68" x 13" (34.7cm x 33cm) |
| Date First Available | June 02, 2009 |
|---|
