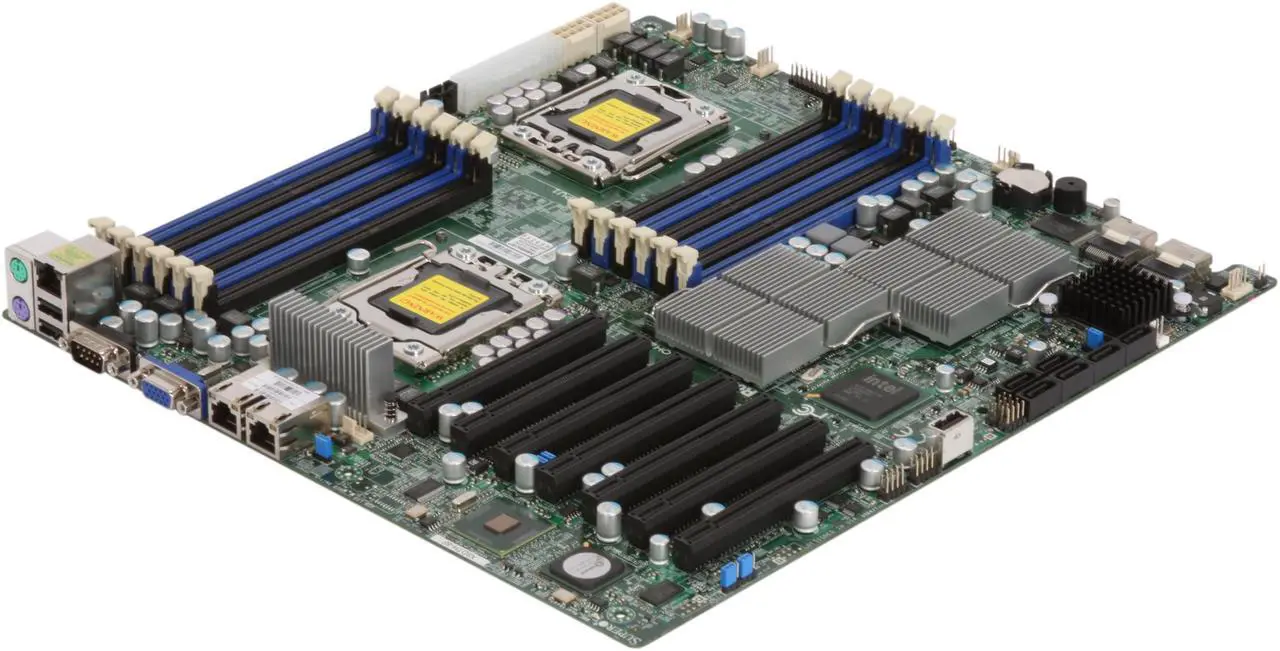

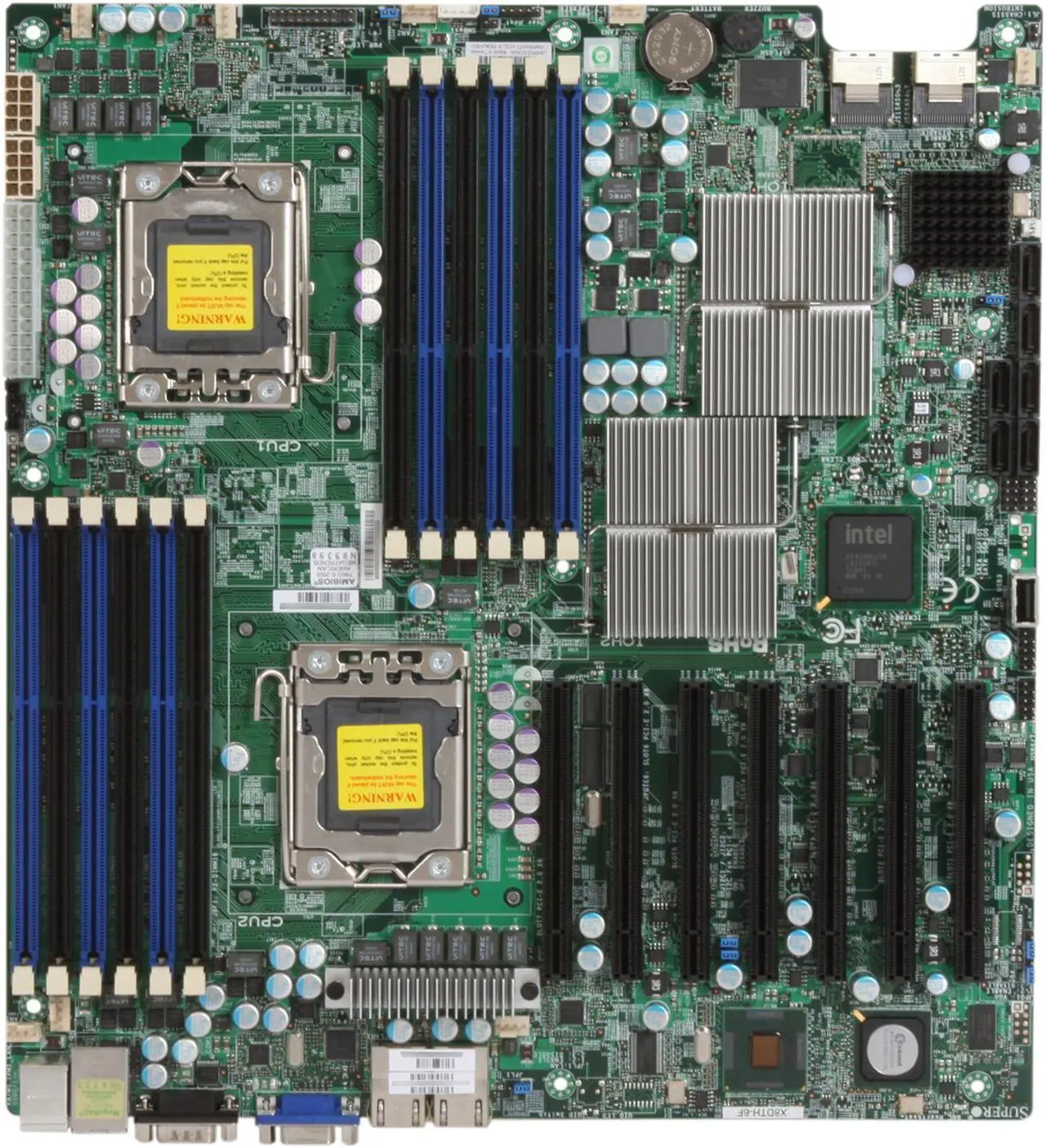

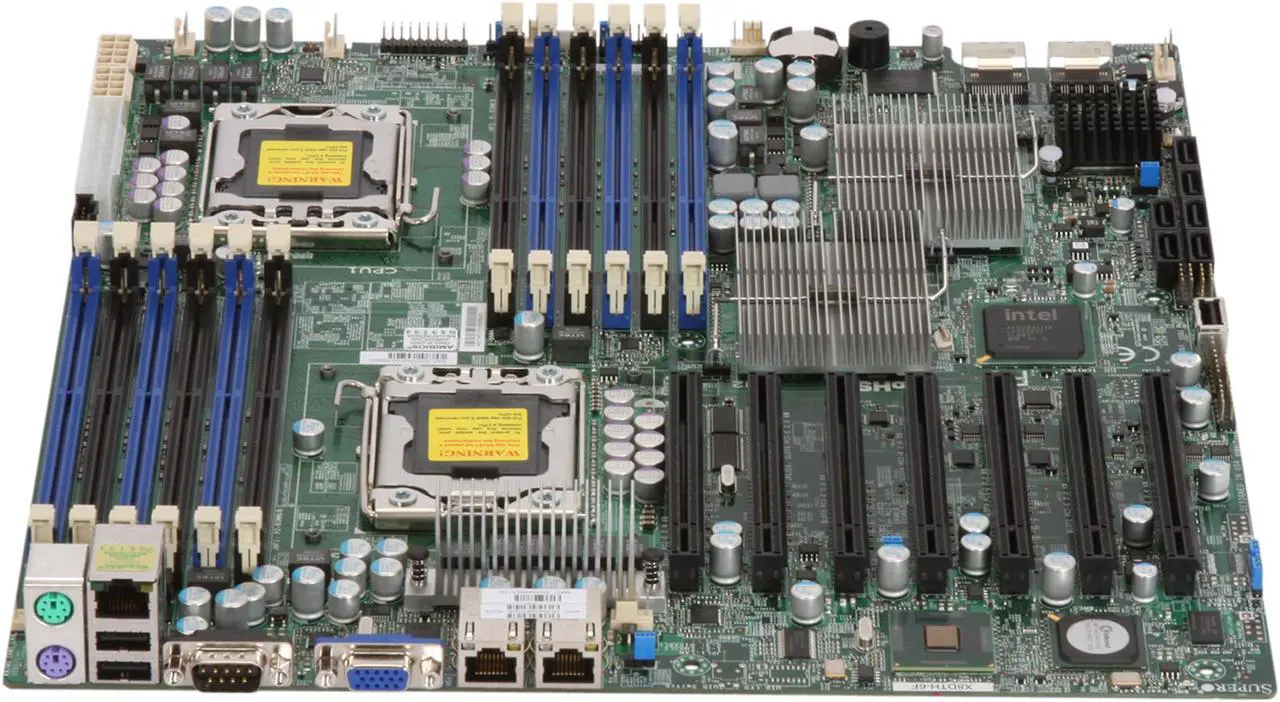

SUPERMICRO MBD-X8DTH-6F-O Dual LGA 1366 Intel 5520 Extended ATX Dual Intel Xeon Server Motherboard
- Dual LGA 1366
- Intel 5520
- 12 × 240pin DDR3 1333
Specs
Reviews (5)
Learn more about the Supermicro MBD-X8DTH-6F-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X8DTH-6F-O |
| CPU Socket Type | Dual LGA 1366 |
|---|---|
| CPU Type | Supports up to two Intel 64-bit Xeon processor(s) of the same type below: Intel Xeon Processor 5600 Series (Westmere) Intel Xeon Processor 5500 Series (Nehalem-EP) |
| QPI | Up to 6.4 GT/s |
| North Bridge | Intel 5520 |
|---|---|
| South Bridge | Intel ICH10R |
| Other Chipset | 2 x IOH-36D |
| Number of DDR3 Slots | 12 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1333/1066/800 |
| Maximum Memory Supported | Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express x8 | 7 (x8) PCI-E 2.0 ( in x16 slot) |
|---|
| SATA | 6 x SATA 3.0Gb/s |
|---|---|
| SATA RAID | RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux) |
| SAS | LSI 2008 8-Port 6Gbps SAS Controller |
| SAS RAID | RAID 0/1/10 |
| Onboard Video Chipset | Matrox G200eW |
|---|
| LAN Chipset | Intel 82576 Dual-Port Gigabit Ethernet Controller |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | 2 x USB 2.0 |
|---|
| Features | Integrated IPMI 2.0 with Dedicated LAN Super I/O: Winbond 83827HF chip 4 x USB internal headers 2 x RJ45 LAN ports 1 x RJ45 Dedicated IPMI LAN port |
|---|
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 13.0" |
| Date First Available | May 21, 2009 |
|---|
