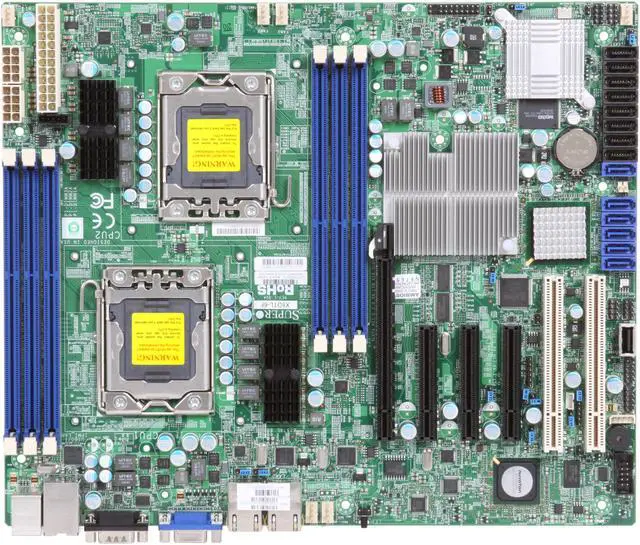

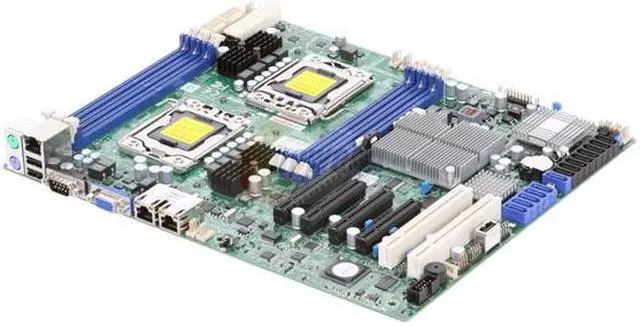

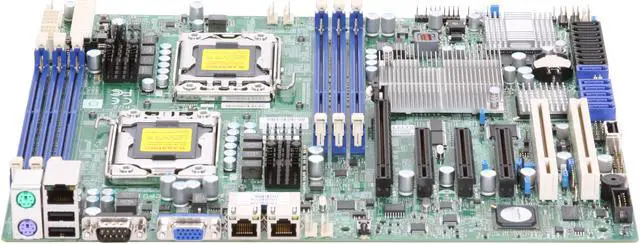

SUPERMICRO MBD-X8DTL-6F-O ATX Server Motherboard Dual LGA 1366 Intel 5500 DDR3 1333
- Dual LGA 1366
- Intel 5500
- 6 x 240pin
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro MBD-X8DTL-6F-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X8DTL-6F-O |
| CPU Socket Type | Dual LGA 1366 |
|---|---|
| CPU Type | Dual Intel Xeon 5500 sequence (Nehalem-EP processor) |
| QPI | up to 6.4 GT/s |
| North Bridge | Intel 5500 |
|---|---|
| South Bridge | Intel ICH10R |
| Number of DDR3 Slots | 6 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1333 |
| Maximum Memory Supported | Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory Supports up to 12 GB 1333 / 1066 / 800MHz DDR3 ECC Unbuffered memory |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express x8 | 1 (x8) PCI-E 2.0 (1 in x16 slot) |
|---|---|
| PCI Express x4 | 2 (x4) PCI-E 2.0 (in x8 slot) 1 (x4) PCI-E (in x8 slot) |
| PCI Slots | 2 x PCI Slots |
| SATA | 6 x SATA 3.0Gb/s |
|---|---|
| SATA RAID | RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux) |
| Onboard Video Chipset | Matrox G200eW |
|---|
| LAN Chipset | Intel 82574L |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82574L |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Features | 8x 6Gbps SAS / SATA ports : LSI 6Gbps SAS 2008 RAID 0, 1, 10 support Integrated IPMI 2.0 with Dedicated LAN NOTE: Support processors with Max TDP < 100W |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 10.0" |
| First Listed on Newegg | October 14, 2009 |
|---|
