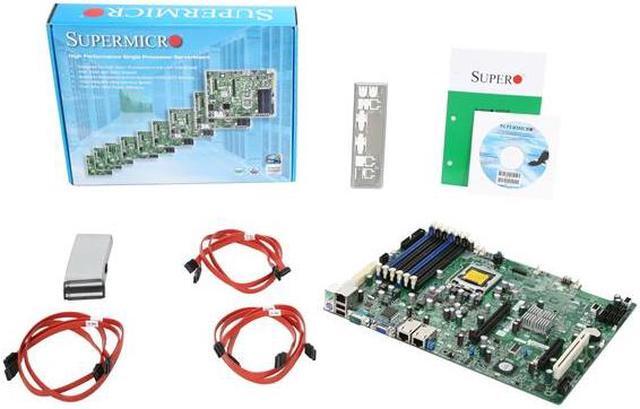

Main image of SUPERMICRO MBD-X8SIE-F-O ATX Server Motherboard LGA 1156 Intel 3420 DDR3 1333

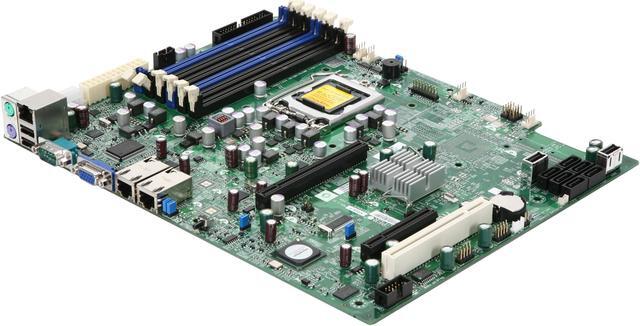

Alt view image 2 of 5 - SUPERMICRO MBD-X8SIE-F-O ATX Server Motherboard LGA 1156 Intel 3420 DDR3 1333

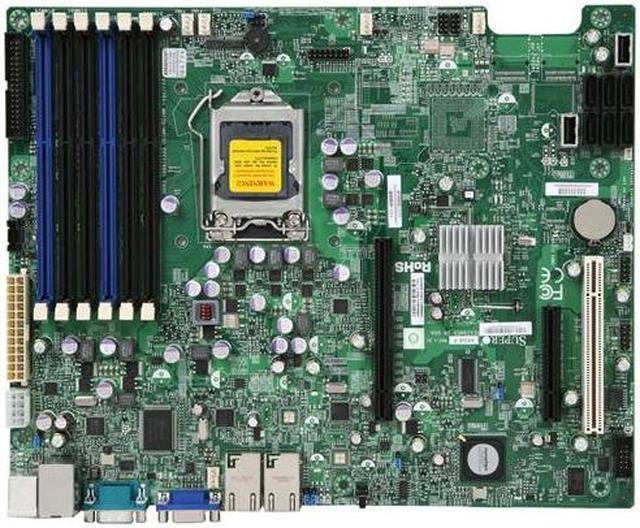

Alt view image 3 of 5 - SUPERMICRO MBD-X8SIE-F-O ATX Server Motherboard LGA 1156 Intel 3420 DDR3 1333

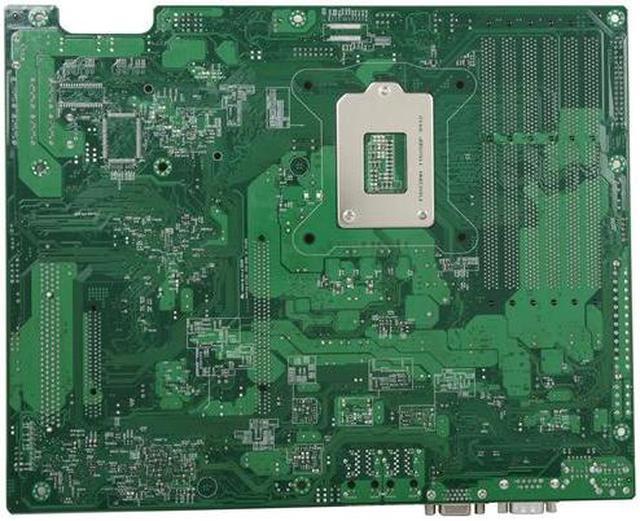

Alt view image 4 of 5 - SUPERMICRO MBD-X8SIE-F-O ATX Server Motherboard LGA 1156 Intel 3420 DDR3 1333

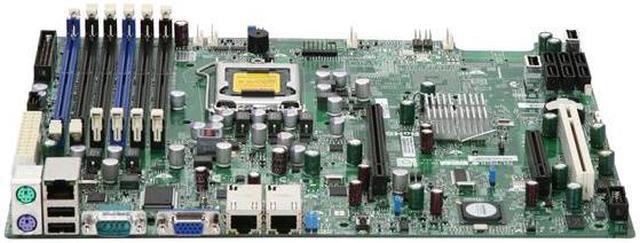

Alt view image 5 of 5 - SUPERMICRO MBD-X8SIE-F-O ATX Server Motherboard LGA 1156 Intel 3420 DDR3 1333

Shop All Supermicro Products

SUPERMICRO MBD-X8SIE-F-O ATX Server Motherboard LGA 1156 Intel 3420 DDR3 1333

Name: SUPERMICRO MBD-X8SIE-F-O ATX Server Motherboard
Brand: Supermicro
SKU: N82E16813182209
Rating: 3 (7 reviews)

(7) Write a Review

LGA 1156
Intel 3420
6 x 240pin

Specs

Reviews (7)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro MBD-X8SIE-F-O

Model
Brand	SUPERMICRO
Model	MBD-X8SIE-F-O

Supported CPU
CPU Socket Type	LGA 1156
CPU Type	Intel Xeon X3400/L3400 series, Core i3, Pentium G6950, Celeron G1101

Chipsets
North Bridge	Intel 3420

Memory
Number of DDR3 Slots	6 x 240pin
DDR3 Standard	DDR3 1333
Maximum Memory Supported	32GB
ECC Supported	Yes
Registered	Yes

Expansion Slots
PCI Express 2.0 x16	1
PCI Express x4	1 (x4) PCI-E (using x8 slot)
PCI Slots	1 32-bit PCI slot

Storage Devices
SATA	6 x SATA 3.0Gb/s
SATA RAID	RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux)

Onboard Video
Onboard Video Chipset	Matrox G200eW 16MB DDR2

Onboard LAN
LAN Chipset	Intel 82574L
LAN Speed	10/100/1000Mbps
Second LAN Chipset	Intel 82574L
Second LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

Rear Panel Ports
PS/2	2
COM	1
Video Ports	D-Sub
USB 1.1/2.0	2 x USB 2.0

Onboard Ports
Onboard USB	2x USB on-board 2x USB internal header (4 ports)

Features
Features	Super I/O: Nuvoton W83627DHG UBE Integrated IPMI 2.0 with KVM and Dedicated LAN

Dimensions
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"

Additional Information
First Listed on Newegg	November 03, 2009
