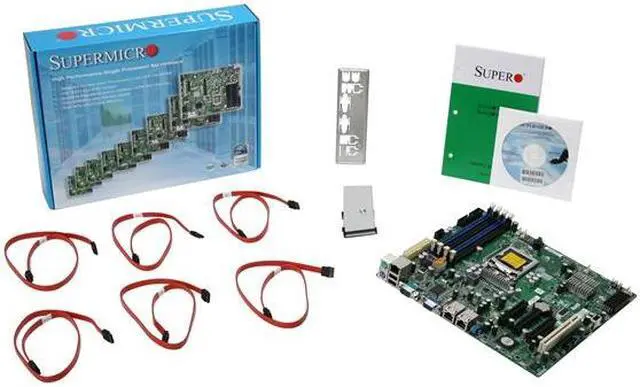

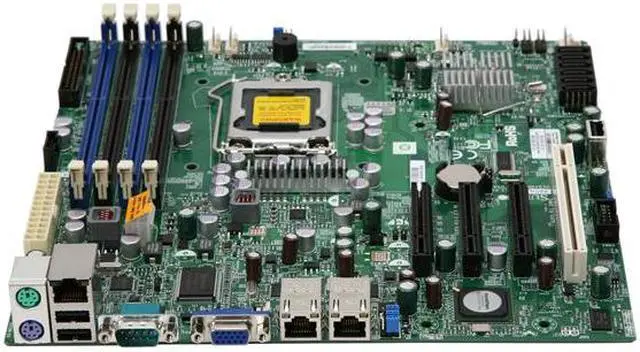

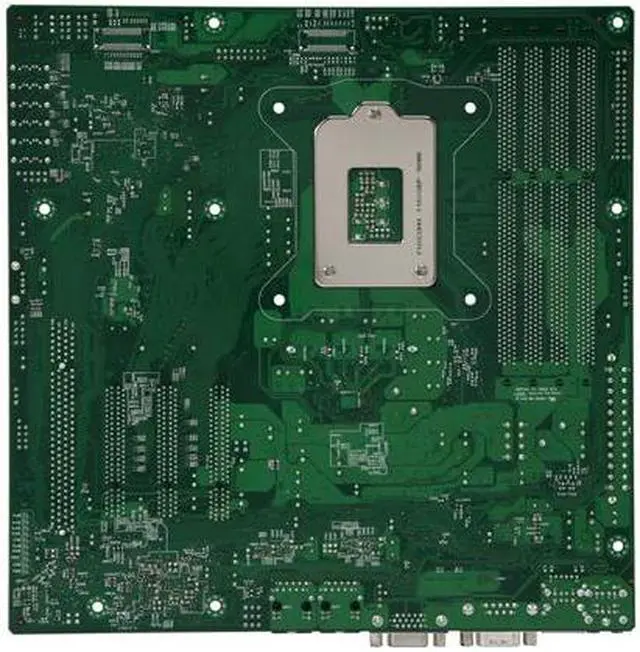

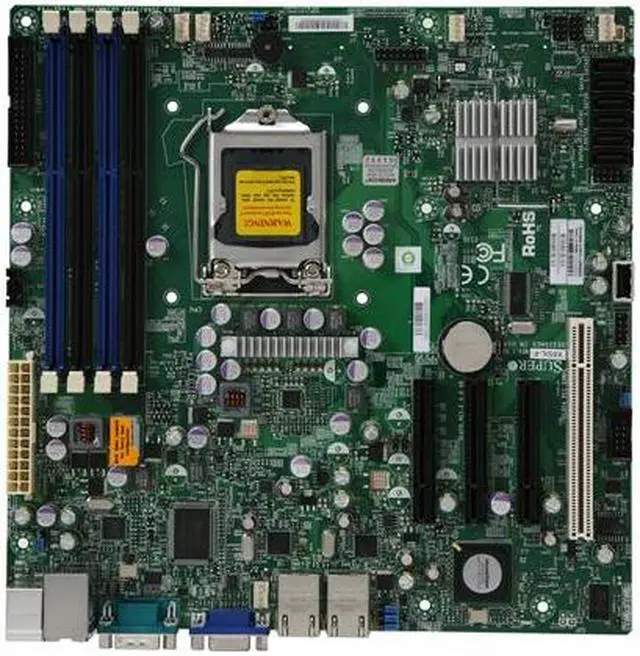

SUPERMICRO MBD-X8SIL-F-O Xeon X3400 / L3400 / Core i3 series Dual LAN Micro ATX Server Board w/ Remote Management

OUT OF STOCK.
  • LGA 1156
  • Intel 3420
  • 4 x 240pin
Specs
Reviews

Learn more about the Supermicro MBD-X8SIL-F-O

Model
Brand SUPERMICRO
Model MBD-X8SIL-F-O
Supported CPU
CPU Socket Type LGA 1156
CPU Type Intel Xeon X3400 series / Xeon L3400 series / Core i3 / Pentium G6950 / CeleronG1101
Chipsets
North Bridge Intel 3420
Memory
Number of DDR3 Slots 4 x 240pin
DDR3 Standard DDR3 1333 / 1066 / 800 MHz ECC Registered / ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Maximum Memory Supported Supports up to 32 GB DDR3 ECC Registered memory (RDIMM)
Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM)
ECC Supported Dual Core processors of Core i3 and Pentium: support ECC UDIMM only
Registered Yes
Expansion Slots
PCI Express x8 2 (x8) PCI-E 2.0 slot
PCI Express x4 1 (x4) PCI-E (using x8 slot)
PCI Slots 1 x PCI Slot
Storage Devices
SATA 6 x SATA 3.0Gb/s
SATA RAID RAID 0, 1, 5, 10 support (Windows)
RAID 0, 1, 10 support (Linux)
Onboard Video
Onboard Video Chipset Matrox G200eW
Onboard LAN
LAN Chipset Intel 82574L
LAN Speed 10/100/1000Mbps
Second LAN Chipset Intel 82574L
Second LAN Speed 10/100/1000Mbps
Max LAN Speed Dual 10/100/1000Mbps
Rear Panel Ports
PS/2 2
COM 1
Video Ports D-Sub
USB 1.1/2.0 2 x USB 2.0
Features
Features Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Nuvoton WPCM450 BMC
Dimensions
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Additional Information
Date First Available October 15, 2009
