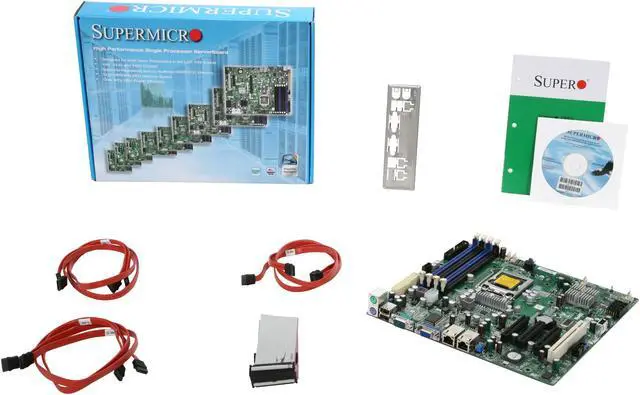

Does this board come with the cables shown in the picture? Asking because I know Newegg is pretty trustworthy, but im not too sure about AscendTech (the seller as of 3/3/19).

Hello, Thank you for contacting us in regards to your question. Yes, this will come with cables shown. Thank you, Newegg Support

Will this work with an i7-860?

This board is not compatible with the processor you're inquiring about. Please see the follow link for a description for supported processors. https://www.supermicro.com/products/motherboard/Xeon3000/3400/X8SIL.cfm?IPMI=N

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

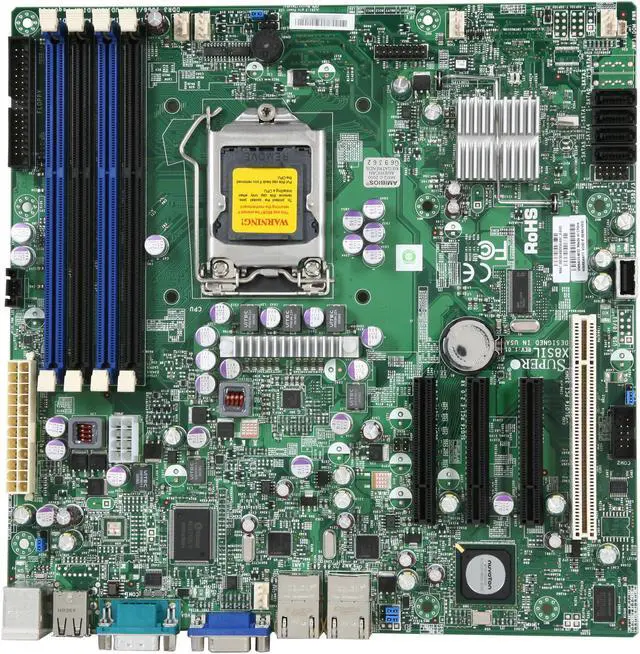

Main image of SUPERMICRO MBD-X8SIL-O Micro ATX Server Motherboard LGA 1156 Intel 3400 DDR3 1333/1066/800

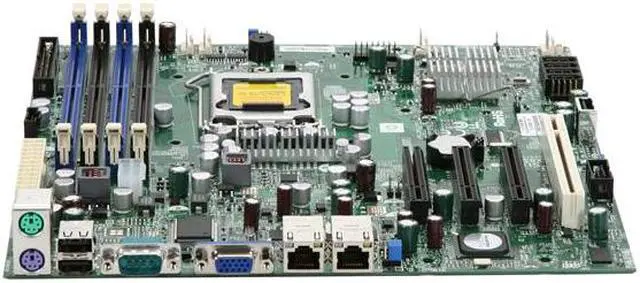

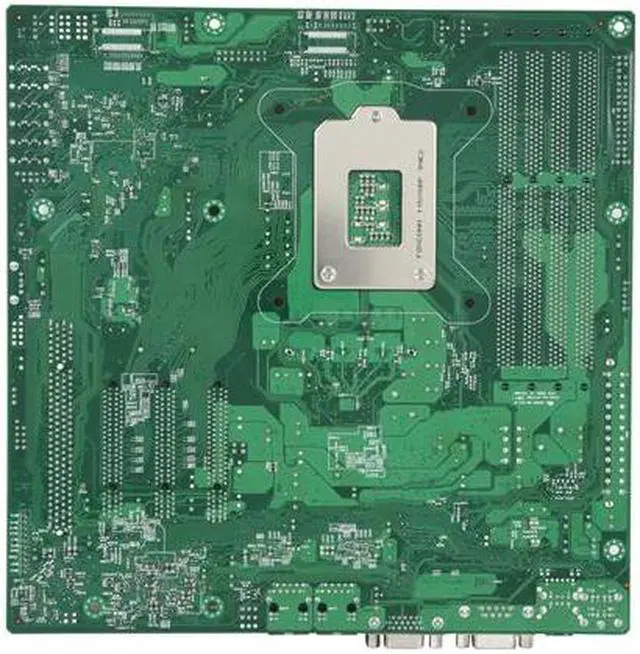

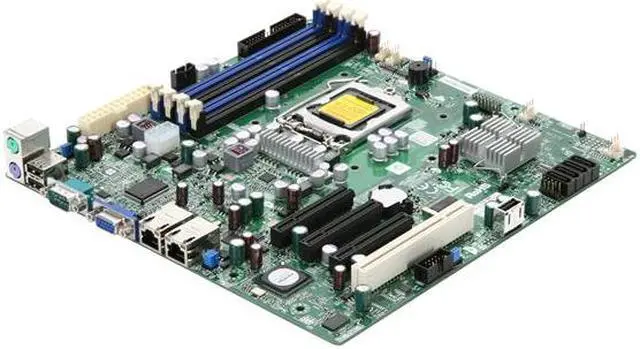

Alt view image 2 of 5 - SUPERMICRO MBD-X8SIL-O Micro ATX Server Motherboard LGA 1156 Intel 3400 DDR3 1333/1066/800

Alt view image 3 of 5 - SUPERMICRO MBD-X8SIL-O Micro ATX Server Motherboard LGA 1156 Intel 3400 DDR3 1333/1066/800

Alt view image 4 of 5 - SUPERMICRO MBD-X8SIL-O Micro ATX Server Motherboard LGA 1156 Intel 3400 DDR3 1333/1066/800

Alt view image 5 of 5 - SUPERMICRO MBD-X8SIL-O Micro ATX Server Motherboard LGA 1156 Intel 3400 DDR3 1333/1066/800

Shop All Supermicro Products

SUPERMICRO MBD-X8SIL-O Micro ATX Server Motherboard LGA 1156 Intel 3400 DDR3 1333/1066/800

(10) Write a Review

LGA 1156
Intel 3400
4 x 240pin

Specs

Reviews (10)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro MBD-X8SIL-O

Model
Brand	SUPERMICRO
Model	MBD-X8SIL-O

Supported CPU
CPU Socket Type	LGA 1156
CPU Type	Intel Xeon X3400/L3400, Core i3, Pentium, Celeron series

Chipsets
North Bridge	Intel 3400

Memory
Number of DDR3 Slots	4 x 240pin
DDR3 Standard	DDR3 1333/1066/800
Maximum Memory Supported	32GB
ECC Supported	Yes
Registered	Yes

Expansion Slots
PCI Express x8	2 (x8) PCI-E 2.0 slot
PCI Express x4	1 (x4) PCI-E (using x8 slot)
PCI Slots	1 32-bit PCI slot

Storage Devices
SATA	4 x SATA 3.0Gb/s

Onboard Video
Onboard Video Chipset	Matrox G200eW w/ 16MB DDR2

Onboard LAN
LAN Chipset	Intel 82574L
LAN Speed	10/100/1000Mbps
Second LAN Chipset	Intel 82574L
Second LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

Rear Panel Ports
PS/2	2
COM	1
Video Ports	D-Sub
USB 1.1/2.0	2 x USB 2.0

Features
Features	CPU: Intel Xeon X3400 series Intel Xeon L3400 series Intel Core i3 Intel Pentium G6950 Intel Celeron G1101 Memory Capacity: Supports up to 32 GB DDR3 ECC Registered memory (RDIMM) Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM) Super I/O: Winbond 83627DHG-P

Dimensions
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"

Additional Information
First Listed on Newegg	November 03, 2009
