Can someone briefly explain to me the difference betweenX9DA and X9DR series? I'm planning to get a pair of E5-2665s and not sure which series of these motherboards to use.

There really isnt a specific difference between X9da and X9dr. There are differences between each model of motherboard as far as what slots they have. When i was researching these boards for our CAD station it seemed that the X9da's were more workstation oriented and the X9dr's were server oriented. But that was just a general feeling I had comparing all of the models.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List(Found on 1 wish list)

Get Educated

Make informed decisions with expert advice. Learn More

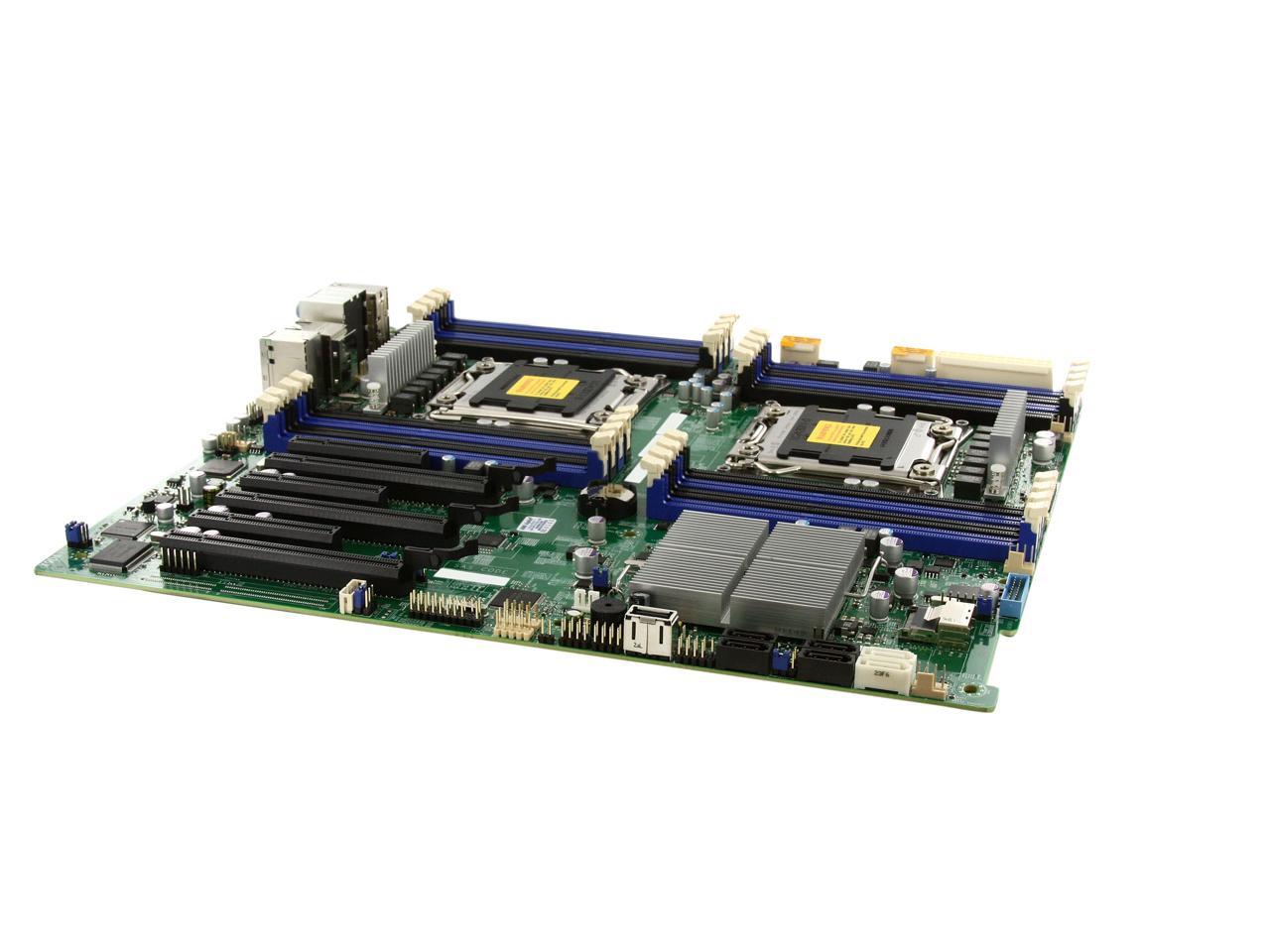

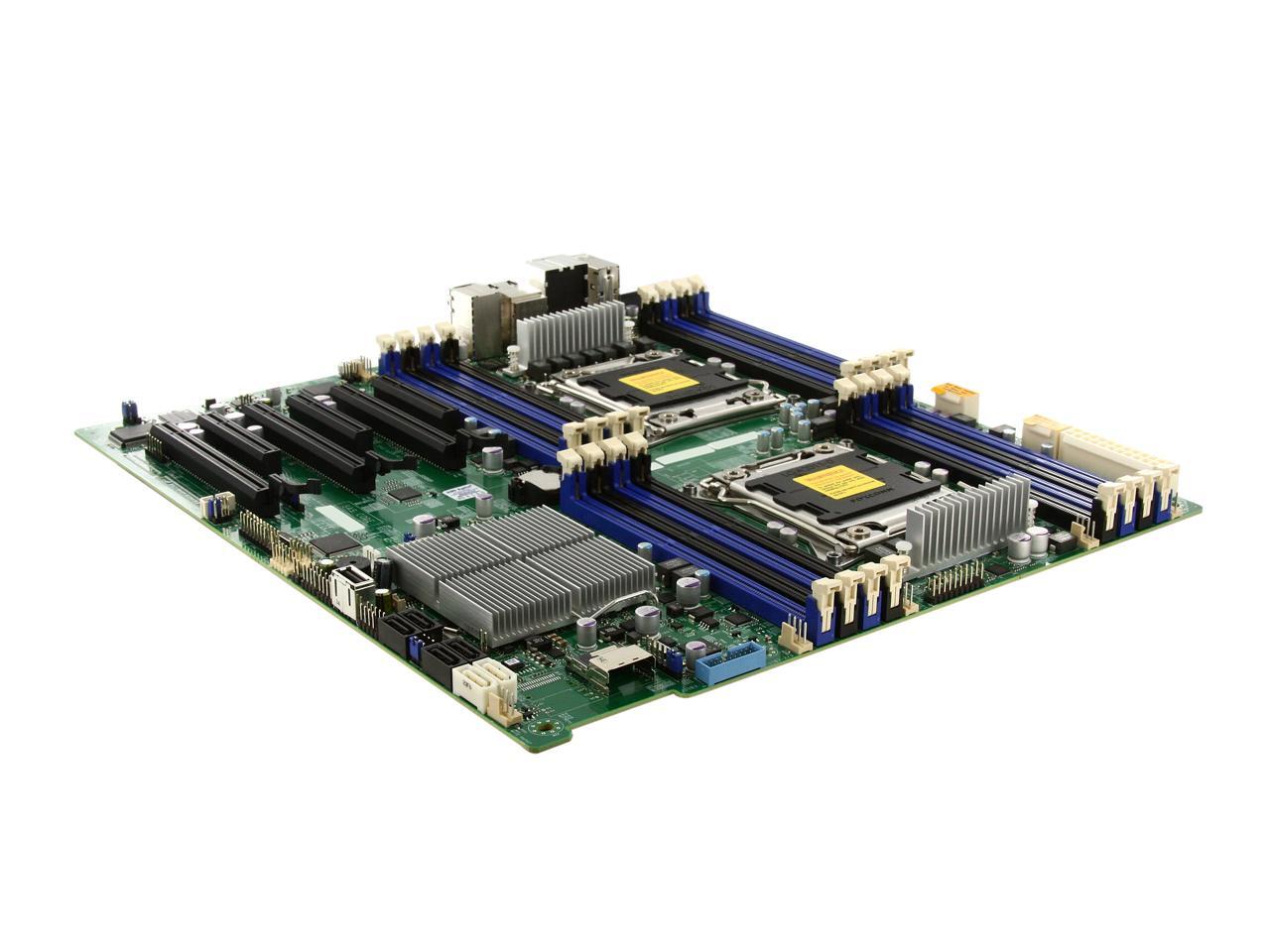

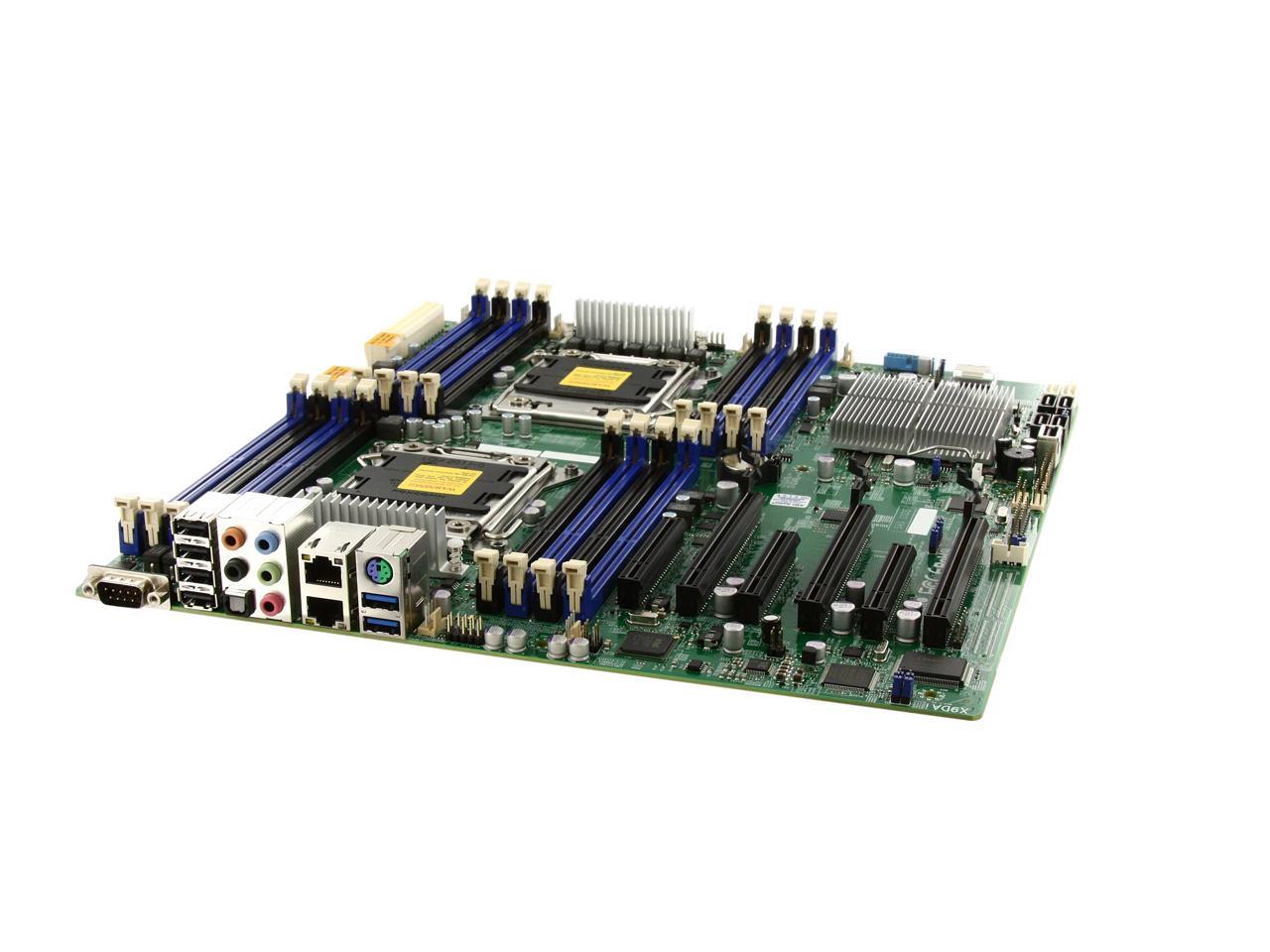

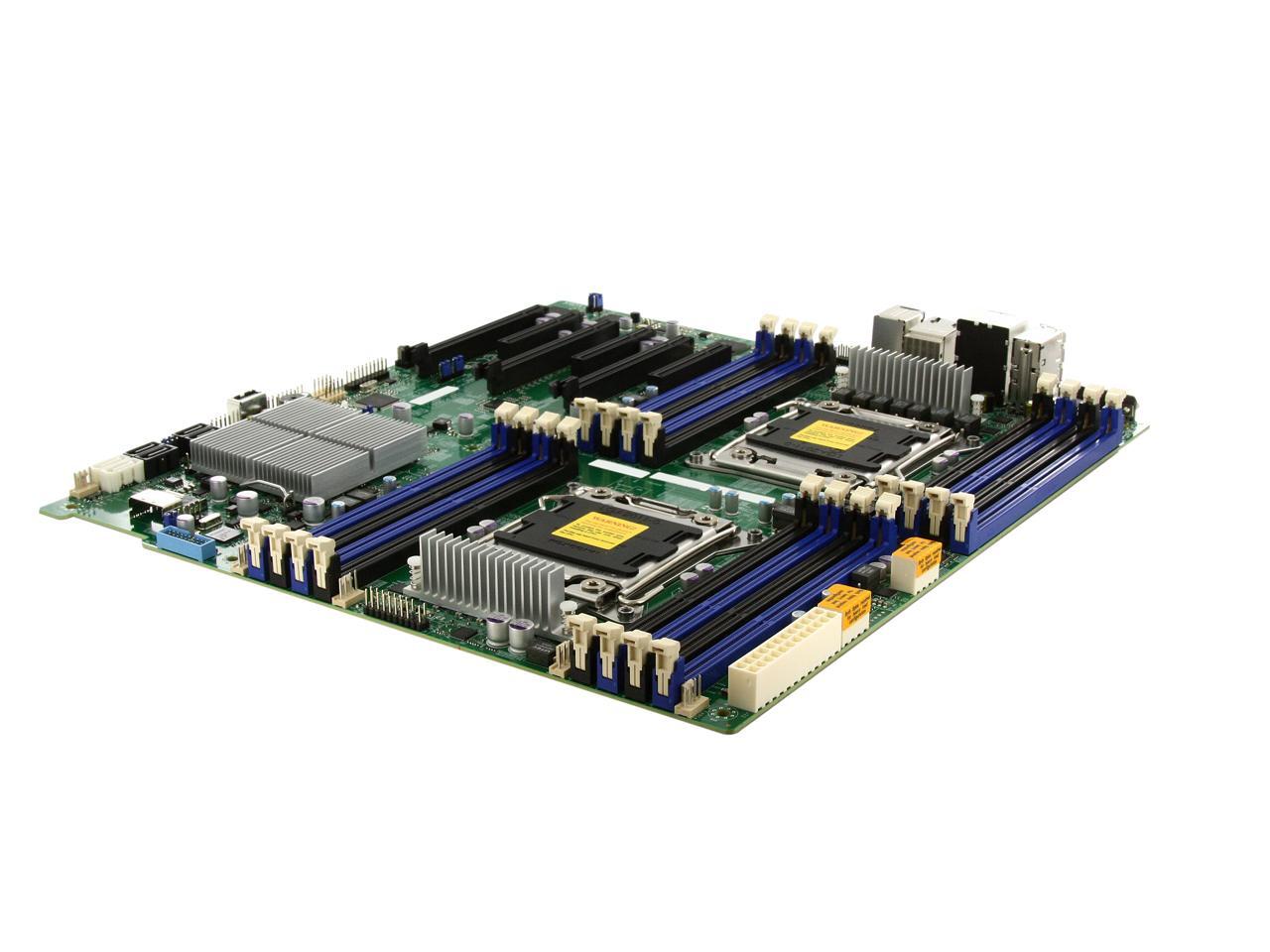

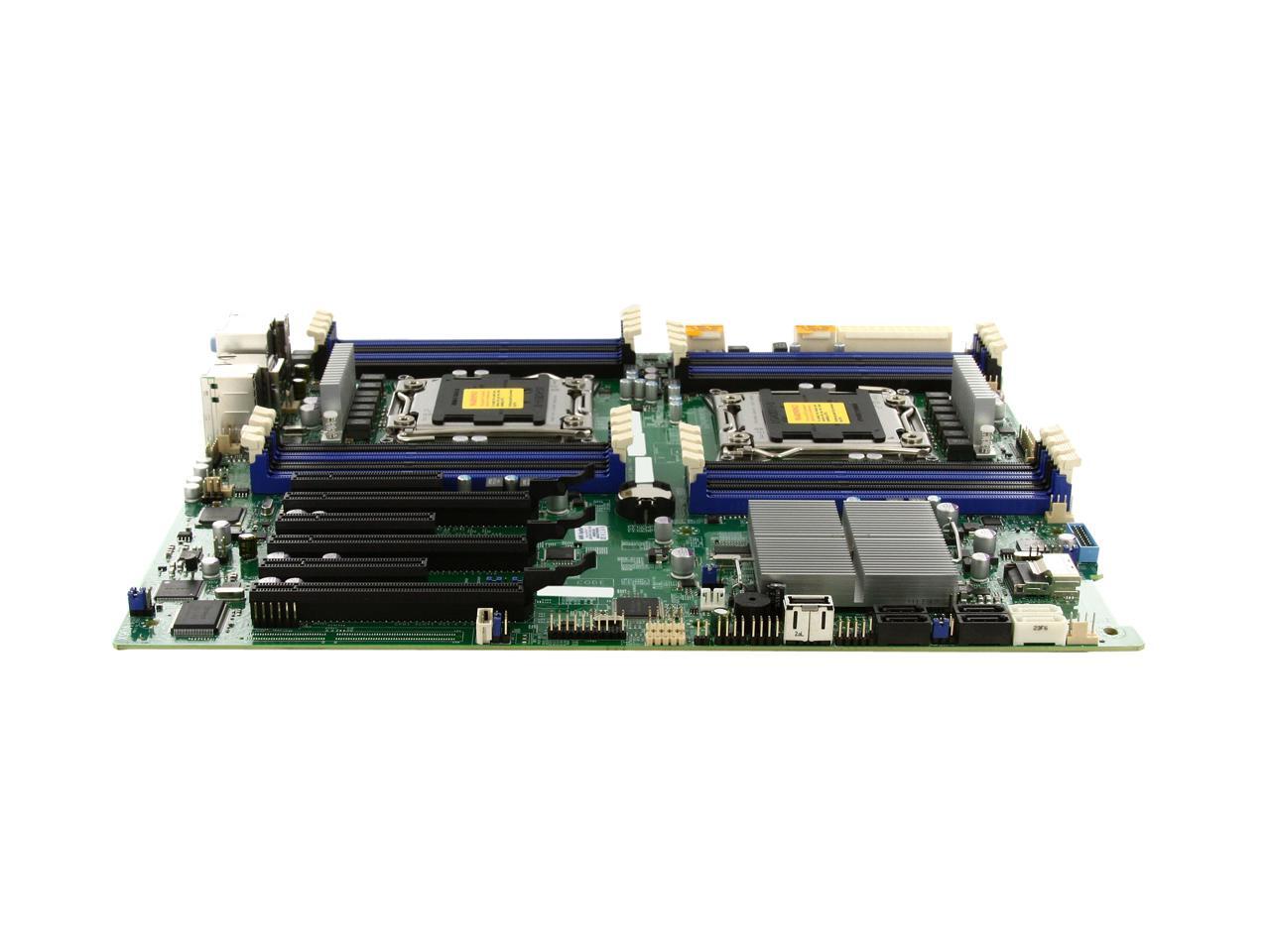

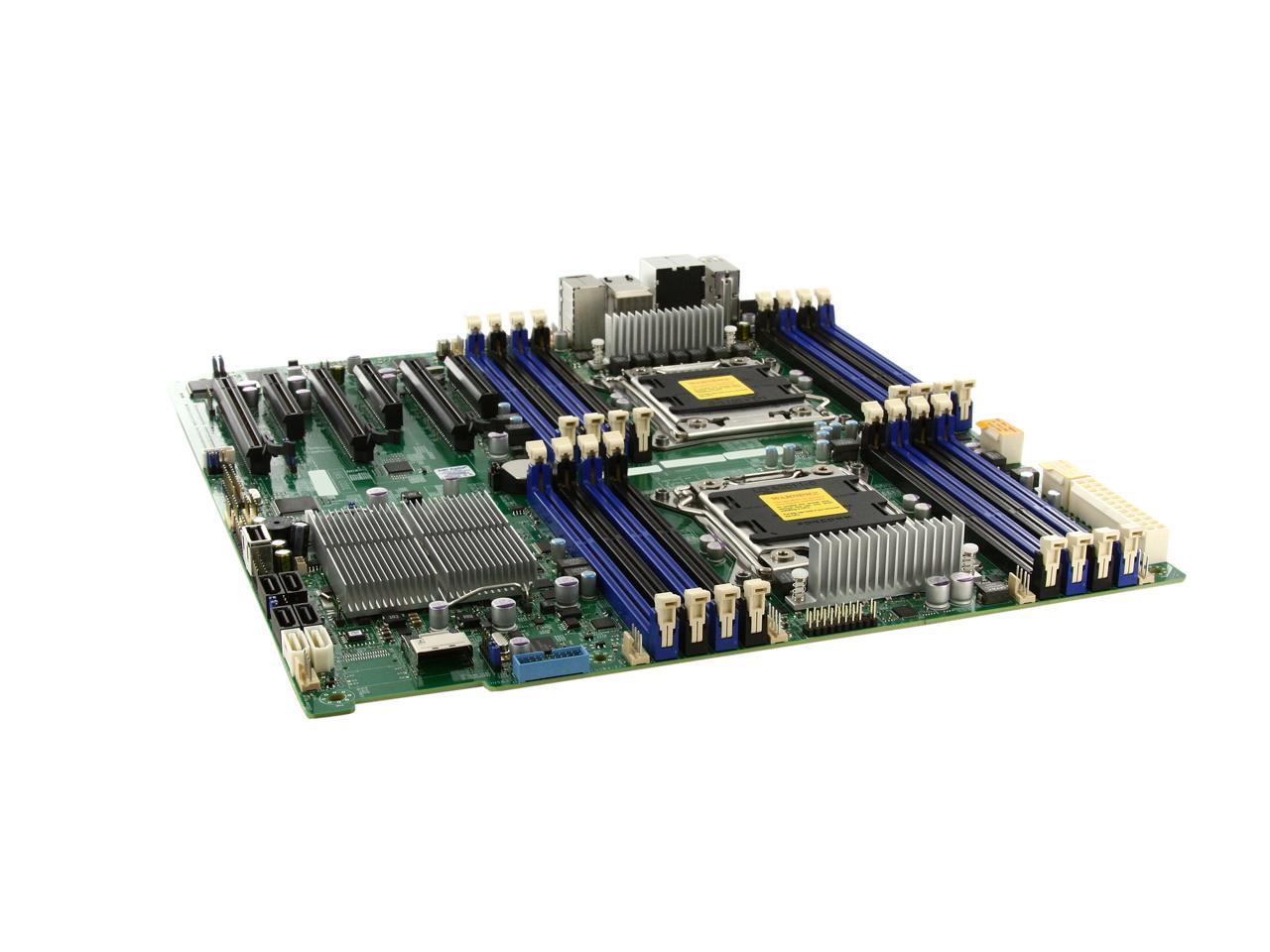

Main image of SUPERMICRO MBD-X9DAi-O Extended ATX Server Motherboard Dual LGA 2011 DDR3 1866/1600/1333/1066/800

100%

Alt view image 2 of 5 - SUPERMICRO MBD-X9DAi-O Extended ATX Server Motherboard Dual LGA 2011 DDR3 1866/1600/1333/1066/800

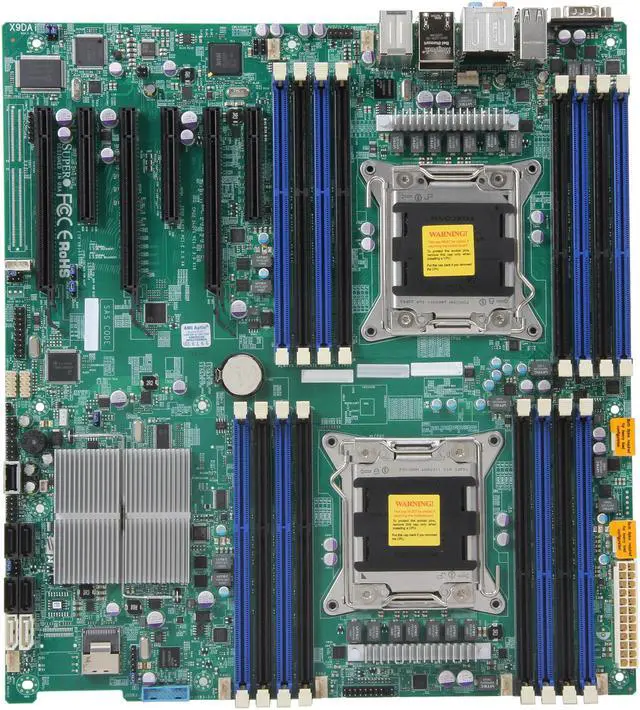

Alt view image 3 of 5 - SUPERMICRO MBD-X9DAi-O Extended ATX Server Motherboard Dual LGA 2011 DDR3 1866/1600/1333/1066/800

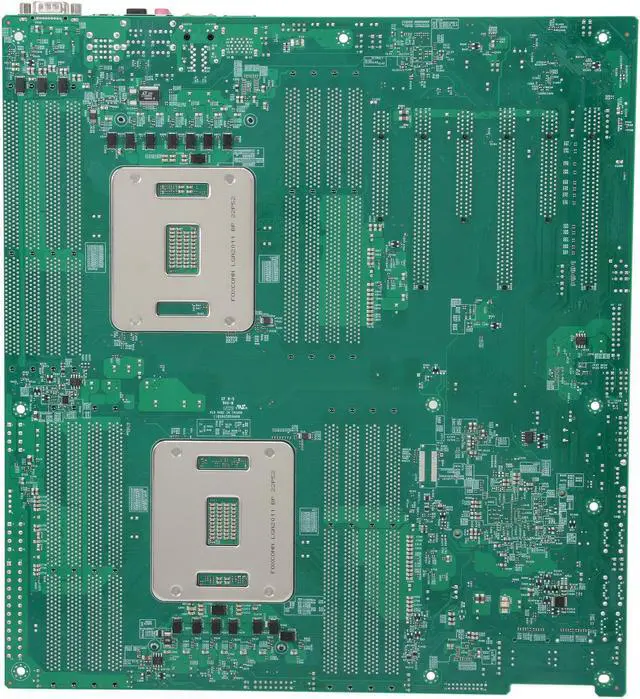

Alt view image 4 of 5 - SUPERMICRO MBD-X9DAi-O Extended ATX Server Motherboard Dual LGA 2011 DDR3 1866/1600/1333/1066/800

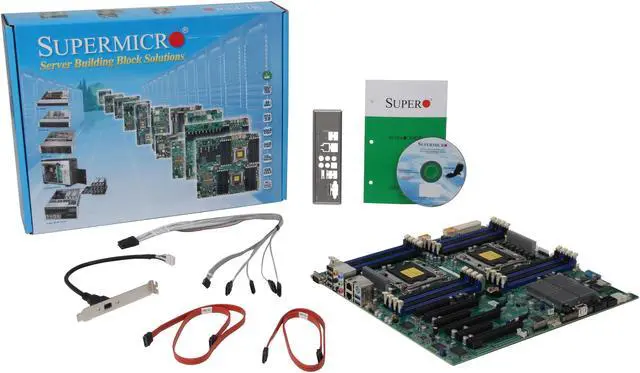

Alt view image 5 of 5 - SUPERMICRO MBD-X9DAi-O Extended ATX Server Motherboard Dual LGA 2011 DDR3 1866/1600/1333/1066/800

360^°

Shop All Supermicro Products

SUPERMICRO MBD-X9DAi-O Extended ATX Server Motherboard Dual LGA 2011 DDR3 1866/1600/1333/1066/800

(11) Write a Review

Dual LGA 2011
Intel C602 Chipset
16 x 240pin

Overview

Specs

Reviews (11)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

SUPERMICRO MBD-X9DAi-O Extended ATX Server Motherboard

Features

Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
Intel® C602 chipset; QPI up to 8.0GT/s
Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM slots
Expansion slots: 3x PCI-E 3.0 x16, 2x PCI-E 3.0 x8 & 1x PCI-E 3.0 x4 (in x8)
Intel® i350 Dual port GbE LAN
8x SATA2 and 2x SATA3 ports
4x USB 3.0 and 7x USB 2.0 ports

Specifications

Product SKUs
MBD-X9DAi -O	X9DAi (Standard Retail Pack)
MBD-X9DAi -B	X9DAi (Bulk Pack)
Physical Stats
Form Factor	E-ATX
Dimensions	12" x 13" (30.5cm x 33.2cm)
Processor/Cache
CPU	Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 150W TDP **) Dual Socket R (LGA 2011)
Cache	Up to 30MB
System Bus	QPI up to 8 GT/s
Note	† BIOS version 3.0 or above is required
Note	** Motherboard supports this maximum TDP. Please verify your system can thermally support
System Memory
Memory Capacity	16x 240-pin DDR3 DIMM slots Up to 1TB DDR3 ECC LRDIMM Up to 512GB DDR3 ECC RDIMM Up to 128GB DDR3 ECC/non-ECC UDIMM
Memory Type	1866/1600/1333/1066/800MHz* ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs Support ECC and non-ECC UDIMMs * Maximum memory speed may be capped by CPU. Please verify that the chosen CPU can support desired memory speed.
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB, 64GB LRDIMM
Memory Voltage	1.5 V, 1.35 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C602 chipset
AHCI SATA	SATA 2.0 3Gbps with RAID 0, 1, 5, 10 SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SCU SATA	SATA 2.0 3Gbps with RAID 0, 1, 5, 10
Network Controllers	Intel® i350 Dual Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	RealTek ALC889 7.1 High Definition Audio with S/PDIF header
Input / Output
AHCI SATA	2x SATA 3.0 ports (6Gbps) 4x SATA 2.0 ports (3Gbps)
SCU SATA	4x SATA 2.0 ports (3Gbps)
LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	4 USB 3.0 ports (Renesas uPD720200A; 2 rear + 2 via header) 7 USB 2.0 ports (4 rear + 2 via header + 1 Type A)
Audio	7.1 HD Audio with optical S/PDIF
Keyboard/Mouse	PS/2 Keyboard Combo port
Serial Port / Header	1 Fast UART 16550 port
IEEE 1394a	2 Headers
DOM	1 DOM (Disk on Module) power connector
TPM	1 TPM 1.2 20-pin Header
Expansion Slots
PCI-Express	3x PCI-E 3.0 x16 slots 2x PCI-E 3.0 x8 slots 1x PCI-E 3.0 x4 (in x8) slot (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.)
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1
Management
Software	SuperDoctor® III Watch Dog NMI
Power Configurations	ACPI / ACPM Power Management Main Switch Override Mechanism CPU Fan auto-off in sleep mode Power-on mode for AC power recovery Suspend to RAM (STR)
PC Health Monitoring
Voltage	Monitors for CPU Cores, +1.1V, +1.5V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. 6+1 Phase-switching voltage regulator
FAN	8x 4-pin fan headers (up to 8 fans) 8x fans with tachometer monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED
Other Features	Chassis intrusion detection Chassis intrusion header SDDC Support RoHS

Whats in the Box

Pivoting Tope Module for Precision Air Delivery, Full Product Oscillation for Great Air Coverage, All-Season Comfort, 3 Quiet Speeds, Carry Handle, Fully Assembled, ETL Listed (Includes a Patented Fused Safety Plug)

CPU Socket Type	Dual LGA 2011
CPU Type	2 x Intel Xeon E5-2600 Series (up to 150W TDP)
QPI	Up to 8 GT/s

Number of DDR3 Slots	16 x 240pin
DDR3 Standard	DDR3 1866/1600/1333/1066/800
Maximum Memory Supported	512GB(RDIMM), 128GB(UDIMM)
ECC Supported	Yes
Registered	Yes

SATA	4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s
SATA RAID	0/1/5/10
Additional SATA	4 x SATA 3.0Gb/s
Additional SATA RAID	0/1/5/10

Audio Chipset	Realtek ALC889
Audio Channels	7.1 High Definition Audio with S/PDIF header

LAN Chipset	Intel I350-AM2
LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

SUPERMICRO MBD-X9DAi-O Extended ATX Server Motherboard Dual LGA 2011 DDR3 1866/1600/1333/1066/800

SUPERMICRO MBD-X9DAi-O Extended ATX Server Motherboard

Features

Specifications

Whats in the Box

Learn more about the Supermicro MBD-X9DAi-O

Customer Reviews of the Supermicro MBD-X9DAi-O

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

PCI Express 3.0 x16	3x PCI-E 3.0 x16 slots
PCI Express x8	2x PCI-E 3.0 x8 slots
PCI Express x4	1x PCI-E 3.0 x4 (in x8) slot

PS/2	1 x PS/2 keyboard/mouse port
COM	1
USB 1.1/2.0	2 x USB 3.0 + 4 x USB 2.0

Onboard USB	USB 2.0: 2 via header + 1 Type A USB 3.0: 2 via header
Onboard 1394	2 x IEEE 1394a Header

Model
Brand	SUPERMICRO
Model	MBD-X9DAi-O

Dimensions
Form Factor	Extended ATX
Dimensions (W x L)	12.0" x 13.0"
