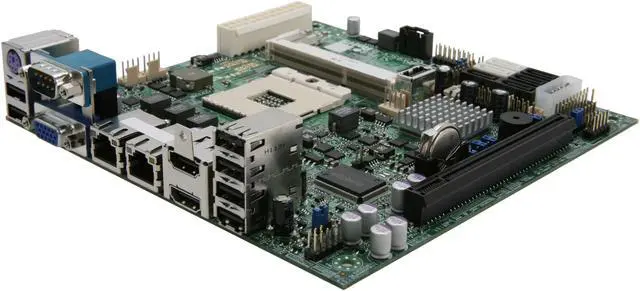

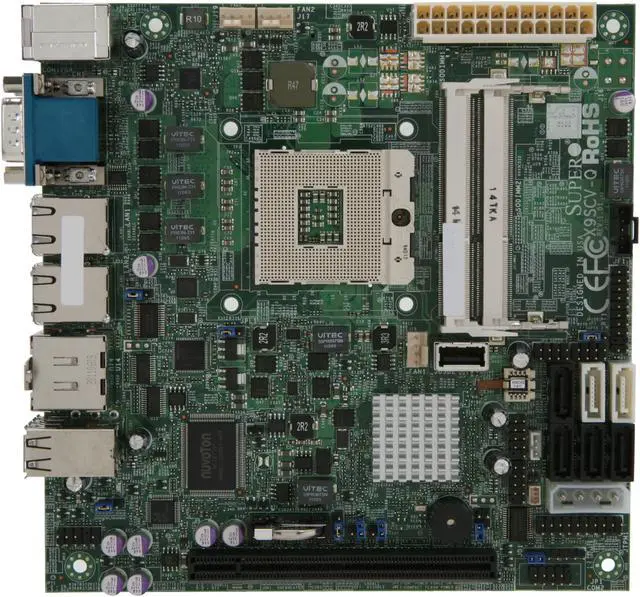

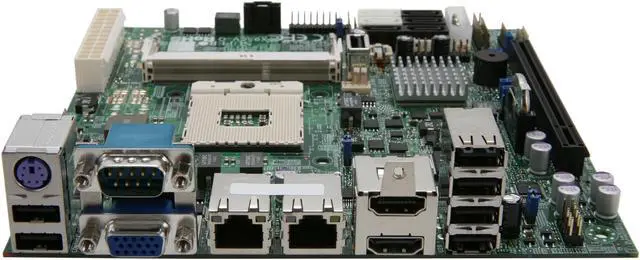

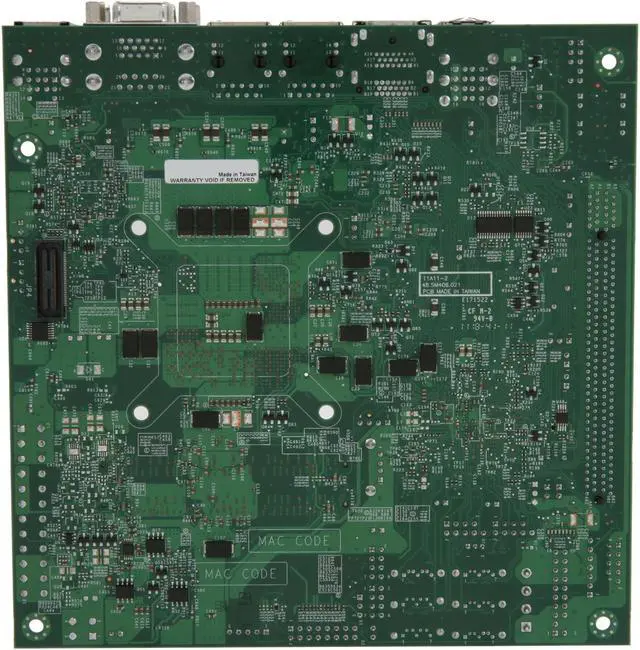

SUPERMICRO MBD-X9SCV-Q-O Mini ITX Server Motherboard Socket G2 Intel QM67 DDR3 1333 SODIMM
- Socket G2
- Intel QM67
- 2 x 204pin
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro MBD-X9SCV-Q-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X9SCV-Q-O |
| CPU Socket Type | Socket G2 |
|---|---|
| CPU Type | Intel 2nd Generation Core i7/i5/i3, Celeron B800 series Mobile processor supported |
| North Bridge | Intel QM67 |
|---|
| Number of DDR3 Slots | 2 x 204pin |
|---|---|
| DDR3 Standard | DDR3 1333 SODIMM |
| Maximum Memory Supported | Supports up to 16 GB DDR3 non-ECC Un-Buffered memory |
| PCI Express 2.0 x16 | 1 |
|---|
| SATA | 4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 4x SATA2 (3Gbps) w/ RAID 0, 1, 5, 10 2x SATA3 (6Gbps) w/ RAID 0, 1 |
| Audio Chipset | Realtek ALC889 |
|---|
| LAN Chipset | Intel 82579LM |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82574L |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 1 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 6 x USB 2.0 |
| Onboard USB | 4 x headers + 1 Type-A |
|---|
| Features | Super I/O: Nuvoton NCT6776F Optional Accessory: Supermicro SNK-C0054A4L Heatsink & Fan (Newegg SKU: 16-101-658) |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | July 15, 2011 |
|---|
