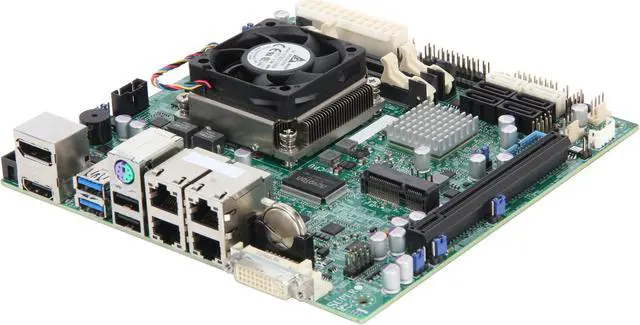

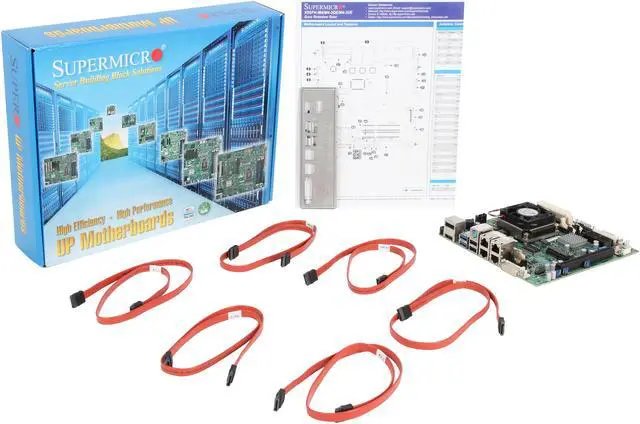

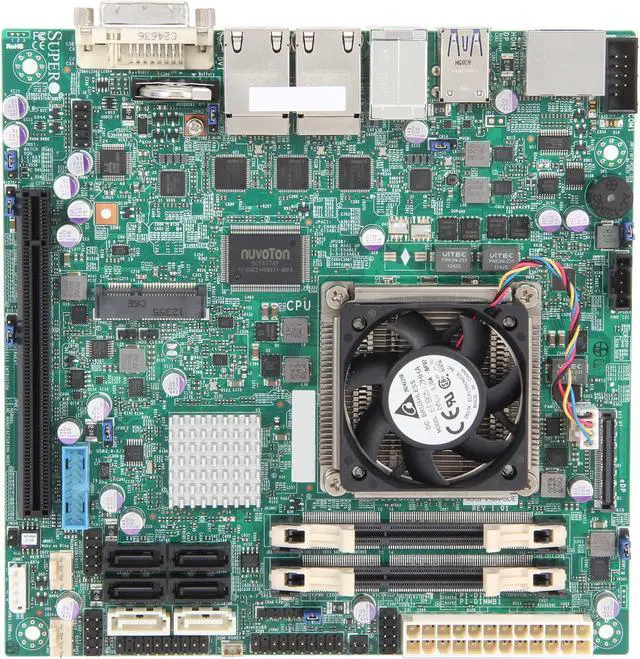

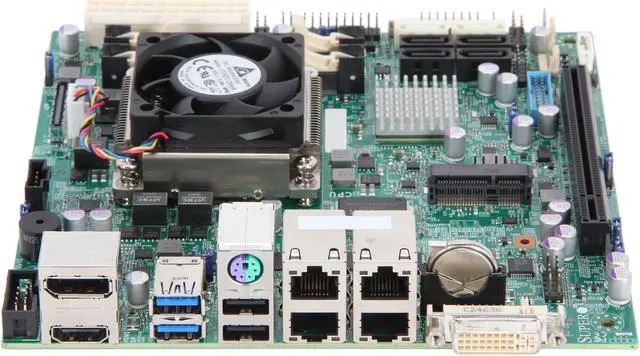

SUPERMICRO MBD-X9SPV-M4-3UE-O Mini ITX Server Motherboard FCBGA1023 Intel QM77 DDR3 1600/1333
- FCBGA1023
- Intel QM77
- 2 x 204pin
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro MBD-X9SPV-M4-3UE-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X9SPV-M4-3UE-O |
| CPU Socket Type | FCBGA1023 |
|---|---|
| CPU Type | Intel Core i7-3517UE 1.7GHz 2C/4T |
| North Bridge | Intel QM77 |
|---|
| Number of DDR3 Slots | 2 x 204pin |
|---|---|
| DDR3 Standard | DDR3 1600/1333 |
| Maximum Memory Supported | 16GB |
| ECC Supported | Yes |
| PCI Express 3.0 x16 | 1 |
|---|---|
| Other Slots | 1 mini-PCI-E with mSATA support |
| SATA | 4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | SATA 2.0 3Gbps with RAID 0, 1, 5, 10 SATA 3.0 6Gbps with RAID 0, 1 |
| Onboard Video Chipset | Intel HD Graphics 4000 |
|---|
| LAN Chipset | Intel 82574L |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82579LM |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 4 x 1Gbps |
| Video Ports | 1 HDMI port, 1 Display Port, 1 eDP and 1 DVI-I port |
|---|---|
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 | 2 x USB 3.0 |
| Features | Embedded 3rd Generation Intel Core i7-3517UE Mobile ECC processor Up to 16GB ECC DDR3 1600/1333MHz on 2x SO-DIMMs 1x (x16) PCI-E 3.0 slot, Mini (x1) PCI-E (mSATA support) Intel 82574L GbE LAN (3 ports), Intel 82579LM GbE LAN; 4 total Intel Integrated Graphics HD 4000 with HDMI/DP/DVI-I/eDP SATA DOM Power connector AMT 8.0, vPro, TPM 1.2 header |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.75" x 6.75" |
| First Listed on Newegg | June 20, 2013 |
|---|
