What does this system actually include? Do we have to buy processors and memory separately?

Yes you do. However, it is actually 8 servers. See my newegg review. (perfect infrastructure server). You will have to acquire memory, processors and disk. I do performance testing so I max out these items when I build servers. This will support the Xeon E3 V2 (I like the 1230V2 myself as a good price/performance break or an I3 (Socket LGA1155). I think the 1230V2 is a better choice for this platform. Don't get the V3 processors as they have an integrated Video processor which A) eats up more power and b) is more expensive for the same processing power. I used Kingston 8GB ECC server ram (you might be able to get away with the desktop memory since the board doesn't appear to support ECC for UDIMM, which will cut your memory cost by $100/node, however I can't verify that this option will work), and 2 SSD drives (1, around 80GB and 1 a TB) at a cost of about $1300 to populate the 2 nodes I am currently using. So for 8 nodes, this comes to $10400 to populate the entire server. Which is about the cost of 2 or 3 similarly equipped Dell or HP servers. Which will eat more power.

Do all 8 nodes have to be populated for operation?

No, you can have just 1 blade running and the rest turned off.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

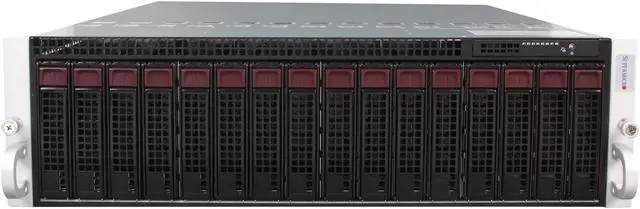

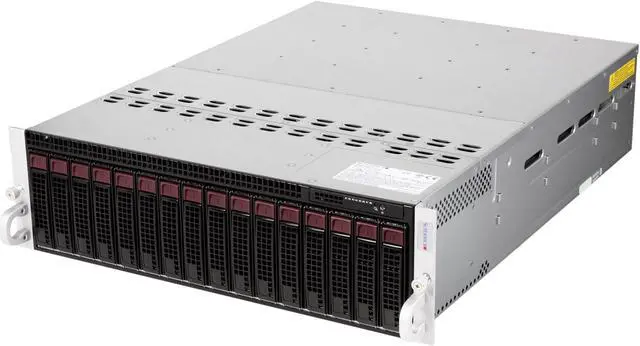

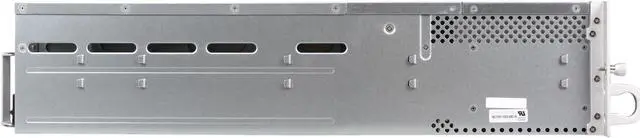

Main image of SUPERMICRO SYS-5037MC-H8TRF 3U Rackmount Server Barebone (Eight Nodes) LGA 1155 (per node) Intel C204 PCH DDR3 1333/1066

Alt view image 2 of 7 - SUPERMICRO SYS-5037MC-H8TRF 3U Rackmount Server Barebone (Eight Nodes) LGA 1155 (per node) Intel C204 PCH DDR3 1333/1066

Alt view image 3 of 7 - SUPERMICRO SYS-5037MC-H8TRF 3U Rackmount Server Barebone (Eight Nodes) LGA 1155 (per node) Intel C204 PCH DDR3 1333/1066

Alt view image 4 of 7 - SUPERMICRO SYS-5037MC-H8TRF 3U Rackmount Server Barebone (Eight Nodes) LGA 1155 (per node) Intel C204 PCH DDR3 1333/1066

Alt view image 5 of 7 - SUPERMICRO SYS-5037MC-H8TRF 3U Rackmount Server Barebone (Eight Nodes) LGA 1155 (per node) Intel C204 PCH DDR3 1333/1066

Alt view image 6 of 7 - SUPERMICRO SYS-5037MC-H8TRF 3U Rackmount Server Barebone (Eight Nodes) LGA 1155 (per node) Intel C204 PCH DDR3 1333/1066

Alt view image 7 of 7 - SUPERMICRO SYS-5037MC-H8TRF 3U Rackmount Server Barebone (Eight Nodes) LGA 1155 (per node) Intel C204 PCH DDR3 1333/1066

Shop All Supermicro Products

SUPERMICRO SYS-5037MC-H8TRF 3U Rackmount Server Barebone (Eight Nodes) LGA 1155 (per node) Intel C204 PCH DDR3 1333/1066

(4) Write a Review

1 x LGA 1155 (per node) Support Intel Xeon / Core i3 / Pentium (per node)
4 x 240Pin (per node) Memory Slots (Max 32GB)
1620W high-efficiency redundant power supply
Support 2 x SATA 600 HDD

Overview

Specs

Reviews (4)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

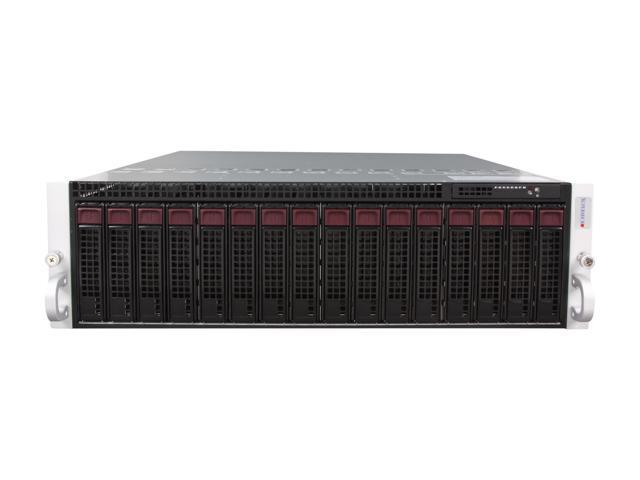

The Supermicro MicroCloud modular server system provides 8 modular server nodes conveniently integrated into a compact 3U chassis that is only 23" deep. These cable-free, hot-pluggable server nodes operate independently. Each node is powered by an Intel Xeon E3-1200 processor and provides up to 32GB of ECC DDR3 1333MHz UDIMM memory, one PCI-E 2.0 x8 expansion slot for low-profile add-on card, and two 3.5" SATA 3.0 hard disk drives.

General
Brand	SUPERMICRO
Model	SYS-5037MC-H8TRF
Form Factor	3U Rackmount

CPU Supported
CPU Type	Intel Xeon / Core i3 / Pentium (per node)
CPU Socket	LGA 1155 (per node)
Installed CPU	No CPU Installed
Max Processors	1

Chipset
North Bridge	Intel C204 PCH

Memory Supported
Memory Slots	4 x 240Pin (per node)
Installed Memory Size	No Memory Installed
Max Memory Supported	32GB
Memory Type Supported	DDR3 1333/1066
ECC Supported	Yes

Storage Supported
Installed HDD	No Storage Installed
Serial ATA	2 x SATA 600 (per node)

Graphics
GPU/VPU	Matrox G200eW
Video Memory	16MB

Expansion Slots
PCI Express	1 (x8) PCI-E 2.0 low-profile slot (per node)

Communications
First LAN	Intel 82580DB (per node)
Max. LAN Speed	Dual 1 Gigabit

Expansion Bays
Hot-Swap Bays	2 x 3.5" (per node)

Panel Ports
COM	1
VGA	1

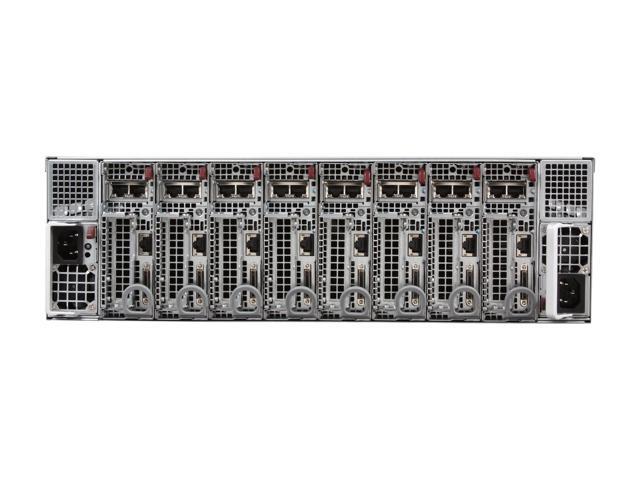

RJ45	Per node: 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port

Power Supply
Max. Power	1620W high-efficiency redundant power supply

Features
Features	Color: Black Super I/O: Nuvoton WPCM450RA0BX 1 x SATA DOM Enterprise SATA HDD only recommended Fans: 4x 8cm Heavy duty fans with optimal cooling zone Headers: 1 USB header & 1 Type A USB Buttons: Power On/Off button LEDs: Power LED Hard drive activity LED Network activity LED System Overheat LED UIO LED CPU Supports: Intel Xeon processor E3-1200 family, Intel 2nd Generation Core i3 & Intel Pentium family processors** Note: For Intel C204 PCH: Intel i5/i7 CPU are not supported. Intel E3-12x5 series processors which have integrated graphics support are not recommended. *Intel Core i3 or Intel Pentium CPU does not support Intel Intelligent Power Node Manager technology.

Dimensions & Weight
Dimensions	23.2" x 17.26" x 5.21"
Weight	62.2 lbs. (28.21 kg)
