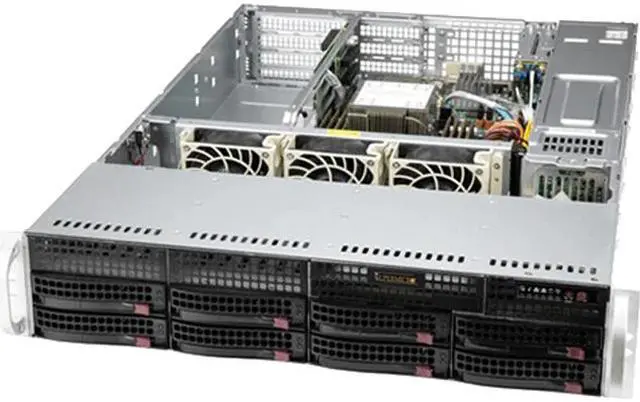

SUPERMICRO SYS-520P-WTR 2U Rackmount Server Barebone LGA 4189 Intel C621A
- LGA 4189
- Intel Xeon
- 8 x 288Pin Memory Slots
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-520P-WTR
| Best Seller Ranking | #66 in Server Barebones |
|---|
| Brand | SUPERMICRO |
|---|---|
| Series | SuperServer |
| Model | SYS-520P-WTR |
| Form Factor | 2U Rackmount |
| CPU Type | Intel Xeon |
|---|---|
| CPU Socket | LGA 4189 |
| Installed CPU | No CPU Installed |
| North Bridge | Intel C621A |
|---|
| Memory Slots | 8 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | UP to 2TB: 8 x 256 GB DRAM UP to 3TB: 4 x 256 GB DRAM and 4 x 512 GB PMem |
| ECC Supported | Yes |
| Serial ATA | 10 x SATA 600 |
|---|---|
| SATA RAID | RAID 0/1/5/10 |
| GPU/VPU | ASPEED AST2600 BMC |
|---|
| PCI Express | Slot 1: PCI-E 4.0 x16 FHFL Slot 2: PCI-E 4.0 x16 FHFL Slot 3: PCI-E 4.0 x16 LP 1 x PCI-E 3.0 x4 and SATA M-key, 2280, 22110 |
|---|
| First LAN | Intel X550 |
|---|---|
| Second LAN | Intel X550 |
| Max. LAN Speed | 10 Gigabit |
| Hot-Swap Bays | 4 x 3.5" NVMe/SATA drive bays (4 x 3.5" NVMe hybrid) |
|---|
| Front USB | 1 x USB 3.2 Gen 1 |
|---|---|
| COM | 2 COM Port(s) (1 header; 1 rear) |
| VGA | 1 |
| Rear USB | 2 x USB 3.2 Gen 1 2 x USB 2.0 |
| RJ45 | 1 RJ45 Dedicated IPMI LAN port 2 RJ45 10GBase-T LAN ports |

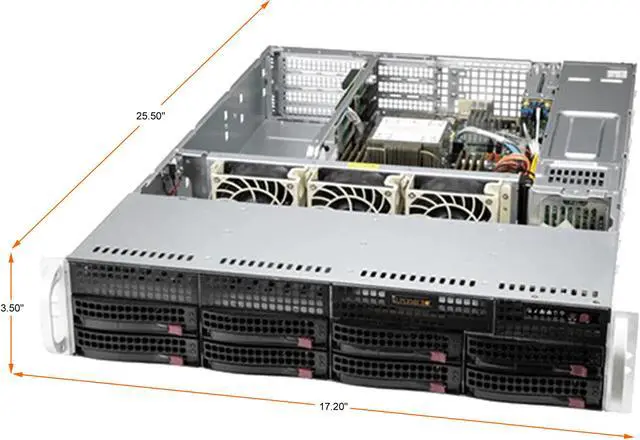

| Dimensions | 1.70" x 17.20" x 25.60" |
|---|---|
| Weight | 24.00 lbs. |
| First Listed on Newegg | January 16, 2024 |
|---|
