SUPERMICRO SYS-6026T-NTR+ 2U Rackmount Server Barebone Intel 5520 Dual LGA 1366 Dual Intel Xeon 5600/5500 Series

(15) Write a Review
  • Dual LGA 1366 Support Dual Intel Xeon 5500/5600 Series
  • 18 x 240-pin DIMM (Max 288GB)
  • Support 6 x SATA 300
  • 720W (1+1) Redundant high-efficiency power supply with PMBus
Overview
Specs
Reviews (15)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
SYS-6026T-NTR+

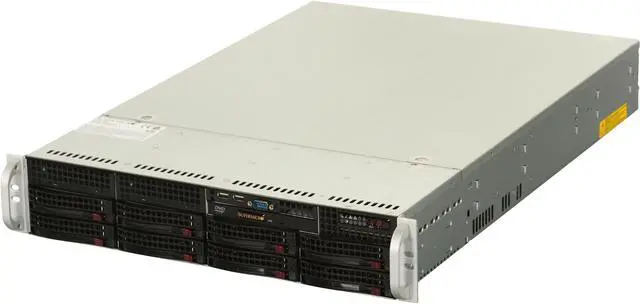

SUPERMICRO SYS-6026T-NTR+ 2U Rackmount Server Barebone



Features

SYS-6026T-NTR+
  • Intel® Xeon® processor 5600/5500 series, with QPI up to 6.4 GT/s
  • 288GB** DDR3 1333/ 1066/ 800MHz ECC Registered DIMM / 48GB Unbuffered DIMM
  • 2 (x8) PCI-E 2.0 (1 in x16 slot), 1 (x4) PCI-E (in x 8 slot), 1x 64-bit 133MHz PCI-X, 2x 64-bit 133/100MHz PCI-X & 1 UIO slot
  • Intel® 82576 Dual-port Gigabit Ethernet Controller
  • 8x 3.5" Hot-swap Drives Trays 6x SATA Hard Drives Supported
  • 720W High-efficiency Gold Level Redundant Power Supply


Specifications

Product SKUs
SYS-6026T-NTR+ SuperServer 6026T-NTR+ (Black)
Motherboard
Motherboard Super X8DTN+
Processor/Cache
CPU
  • Dual 1366-pin LGA Sockets
  • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
  • Intel® Xeon® Processor X5600/E5600/L5600 Series (Westmere) 40W - 130W
  • Intel® Xeon® Processor X5500/E5500/L5500 Series (Nehalem-EP) 38W - 95W
System Memory
Memory Capacity
  • 18x 240-pin DIMM slots
  • Supports up to 288GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
  • Supports up to 48GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
  • Memory Mirroring supported
Memory Type 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes 1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage 1.5 V / 1.35V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
  • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
Note This board does not support LRDIMM memory. Please refer to HERE for list of motherboards with LRDIMM support.
On-Board Devices
SATA
  • Intel ICH10R SATA 3.0Gbps Controller
  • RAID 0, 1, 5, 10 support
Network Controllers
  • Intel® 82576 Dual-Port Gigabit Ethernet Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel® I/OAT 3 support for fast, scaleable, and reliable networking
  • VMDq support for better performance of virtualization
Chipset
  • Intel® 5520 (Tylersburg) chipset
  • ICH10R + IOH-36D
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • 200-pin IPMI slot (SIMLP)
  • (Optional: AOC-SIMLP-B(+))
  • (Optional: AOC-SIMLP-3(+)) with 3rd LAN support
Super I/O Winbond 83627HF chip
Graphics ATI ES1000 controller with 32 MB of video memory
Input / Output
Serial ATA
  • Six Serial ATA ports
  • Six SATA hard drives supported
LAN 2x RJ45 LAN ports
IDE
  • Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card
  • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy 1 Floppy controller; 1.44 MB
VGA 1x VGA Port
USB
  • 2x USB rear ports
  • 2x USB on-board
  • 2x USB internal headers( 3 ports)
  • 7 total USB ports, 2.0 Compliant
Keyboard / Mouse PS/2 keyboard and mouse ports
Serial Port / Header
  • 1 Fast UART 16550 serial port
  • 1 Fast UART 16550 serial header (Option)
System BIOS
BIOS Type 32Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.2
  • ACPI up to 3.0
  • USB Keyboard support

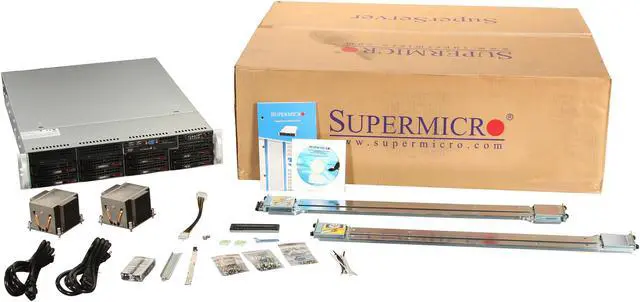

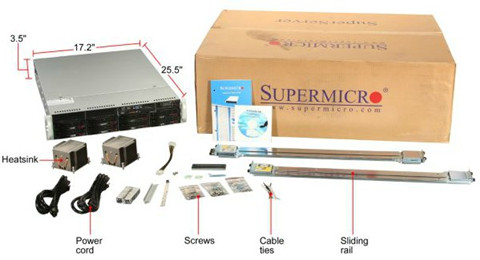

Whats in the Box

SYS-6026T-NTR+

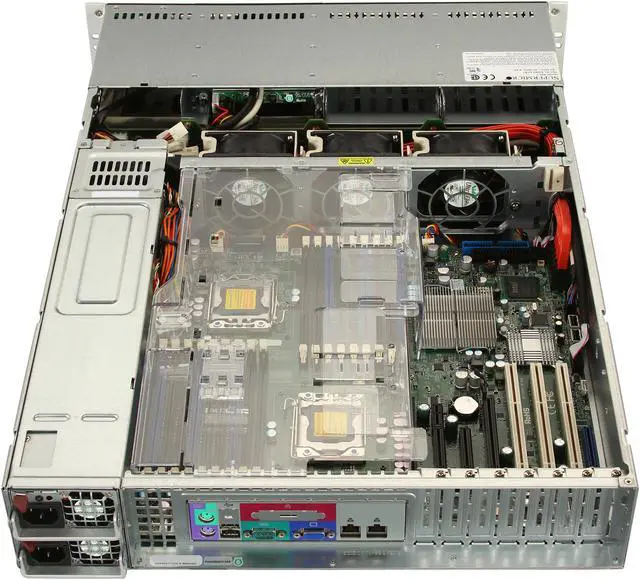

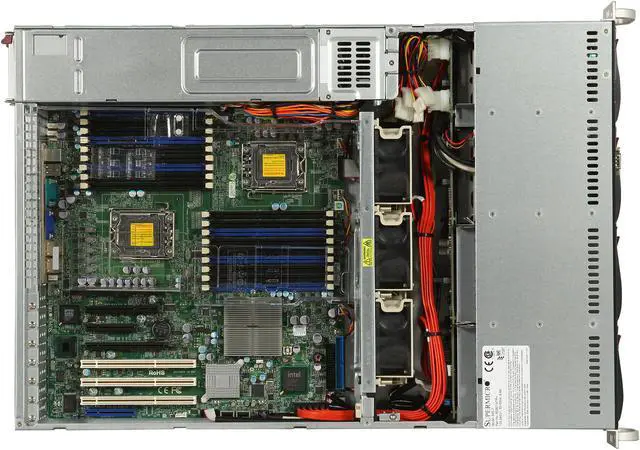

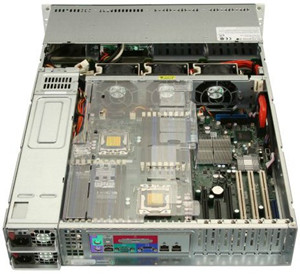

Supermicro lets you take advantage of the increasing capacities of 3.5" form factor drives with the SYS-6026T-NTR+ 2U server barebone system. It is based on the new Super X8DTN+ motherboard and will accept up to 2 Intel Xeon processors with 2 or 4 cores each. To support all the processing power you can install up to 144GB of fully buffered ECC memory.

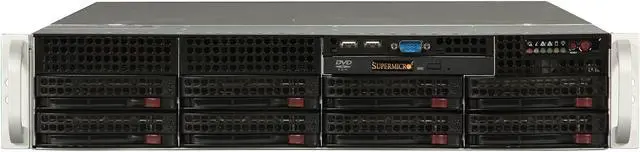

The front of the chassis has 8 hot swappable 3.5" drive bays. The motherboard has 6xSATA ports and supports RAID 0, 1, 5, 10. If you use an optional UIO SAS card the drive bays become hot swappable. An EIDE port lets you plug in 2 other drives.

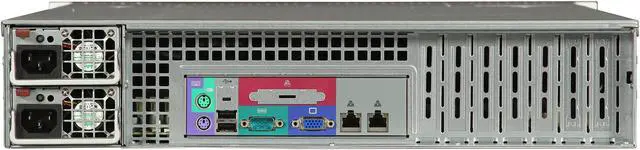

All these fit into a 2U chassis. The whole thing is powered by a 1+1 720W redundant power supply so the system will get all the power that it needs. The back panel has 2x USB 2.0 and 2xGigabit Ethernet ports.
  • neweggSupports Dual Intel Xeon 5500 SeriesWith dual LGA 1366 sockets, the SuperMicro SYS-6026T-NTR+'s Super X8DTN+ server board supports up to two multi-core Intel Xeon 5500 Series processors, providing the computing platform capability necessary for your increasing computing demand.
  • neweggIntegrated ATI ES1000 Graphics CoreThe integrated ATI ES1000 graphics core supports flexible memory options and DVO ports for remote server management and KVM over IP solutions, delivering best-in-class performance, reliability, compatibility and longevity.
  • neweggECC Registered DDR3 Memory SupportEighteen DIMM sockets support ECC registered DDR3 1333, 1066 and 800 SDRAM in capacities of up to 144GB.
  • neweggDual-port Gigabit EthernetDual Gigabit Ethernet LAN ports with the Intel 82576 Dual-port Gigabit Ethernet Controller deliver ultra-fast network connections.
  • neweggHot-swappable SATA Drive BaysThe SuperMicro SYS-6026T-NTR+ features eight 3.5" hot-swappable SATA drive bays for easy installation and replacement.
  • newegg720W Highly-Efficient Redundant Power SupplyThe 720W highly-efficient redundant power supply provides power for all components installed and ensures system reliability.
