  6. Item#: 9SIA5EM3PG6076
FREE SHIPPING
Sold and shipped by: CA Server Pro CA Server Pro
6 Ratings (100% Positive in the last 12 months)
  • $1,139.99
Price Alert
Add To List

Meet Your Sellers

CA Server Pro

Are you an E-Blast Insider?

Visit CA Server Pro Store
FOLLOW

SUPERMICRO SYS-7037A-I Mid-Tower Server Barebone Dual LGA 2011 Intel C602 DDR3 1600/1333/1066/800

(2) Write a Review
See more "barebones server"
Check more best sellers of "Server Barebones"
Check more lowest price of "Server Barebones"
Check more deals of "Server Barebones"
In stock.
Ships from United States.
  • Dual LGA 2011
  • Support Dual Intel Xeon E5-2600 Series
  • 16 x 240Pin Memory Slots (Max 1TB)
  • Support 2 x SATA 600 + 8 x SATA 300 HDD
  • 900W High Efficiency Power Supply, 80PLUS, Gold Level Certified
+
+
Overview
Specs
Reviews
SYS-7037A-I

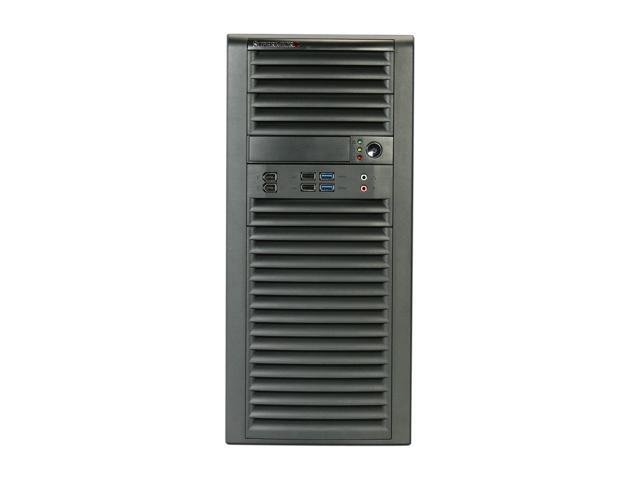

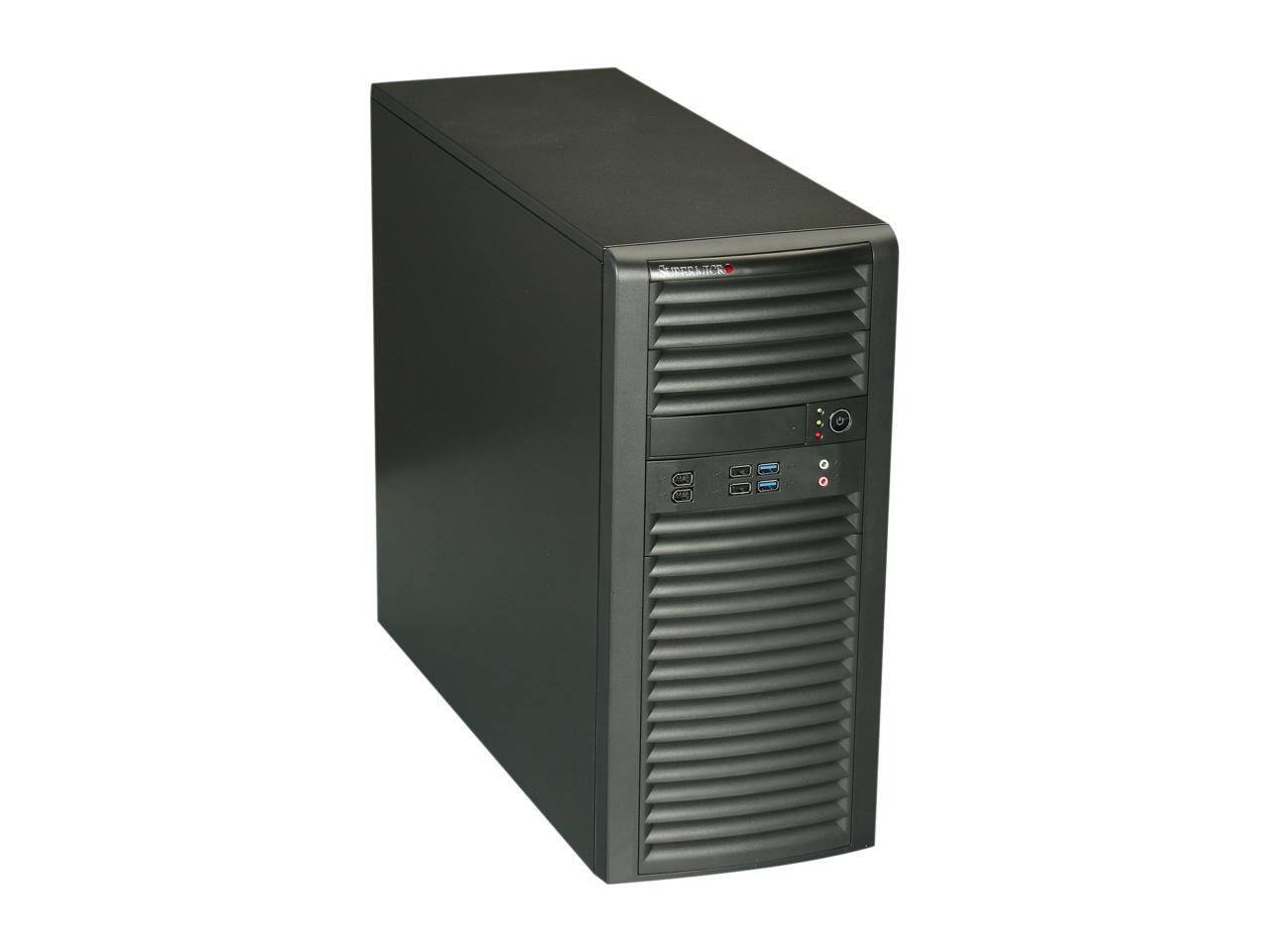

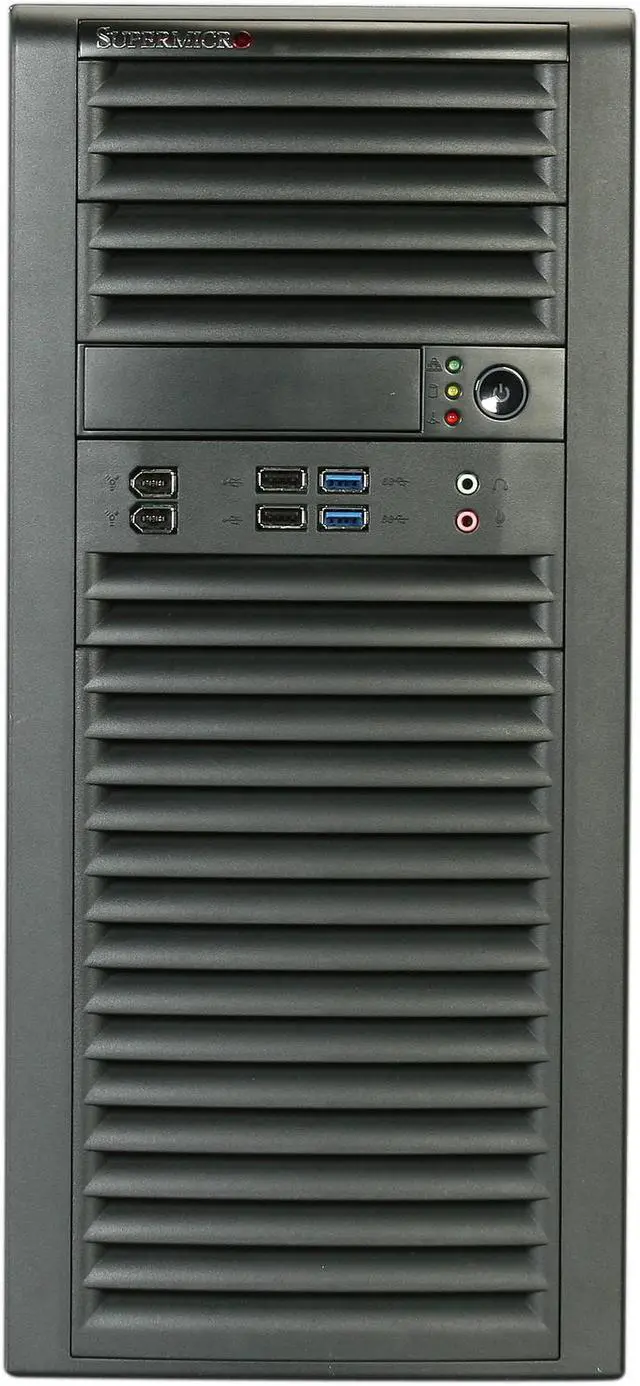

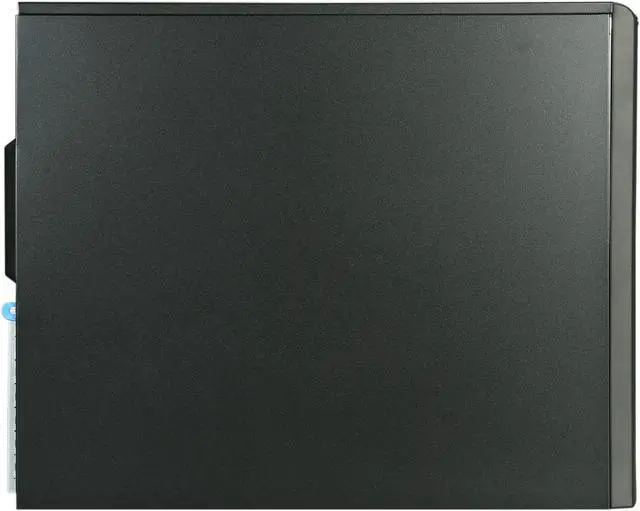

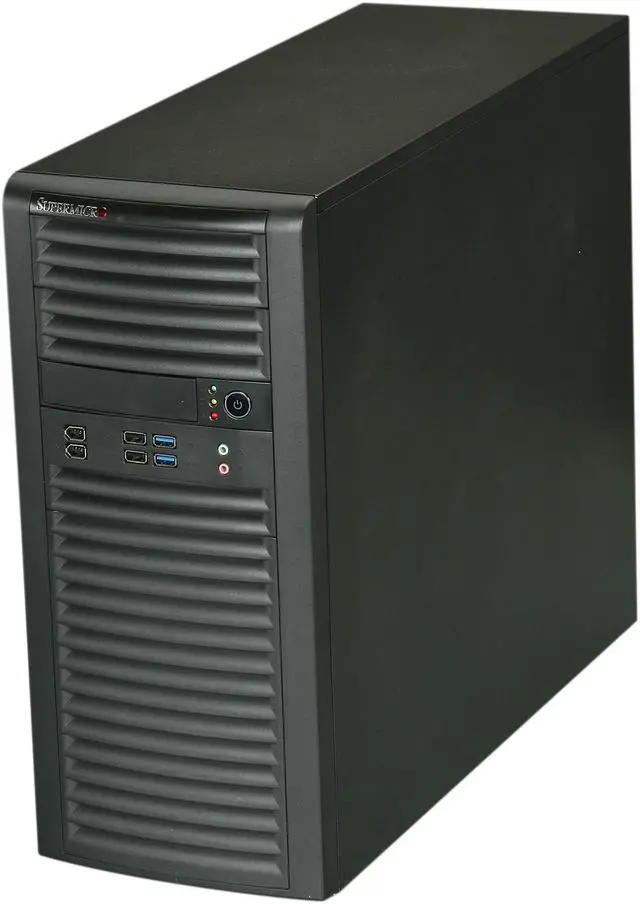

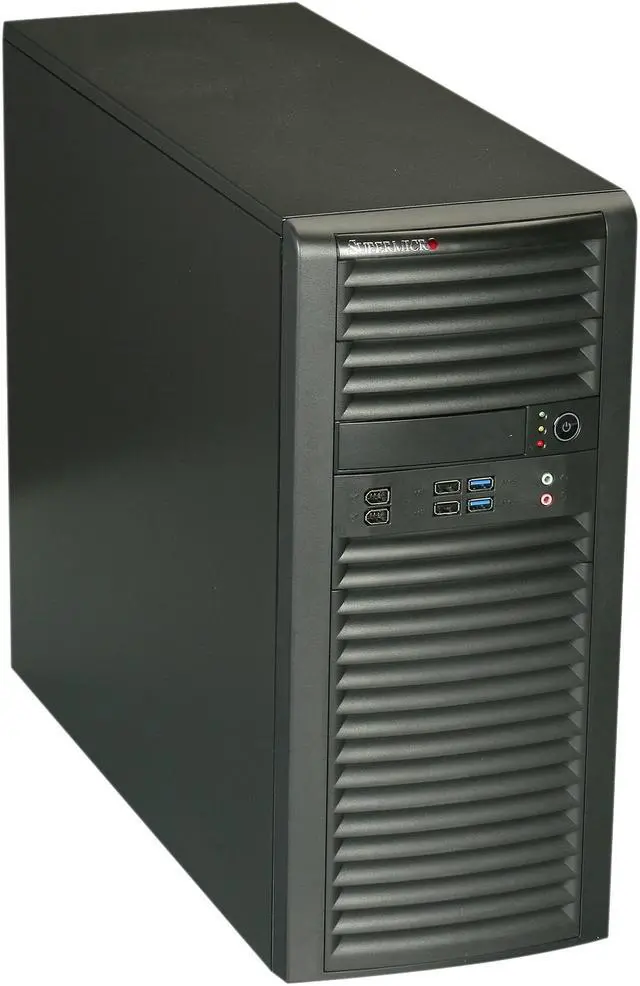

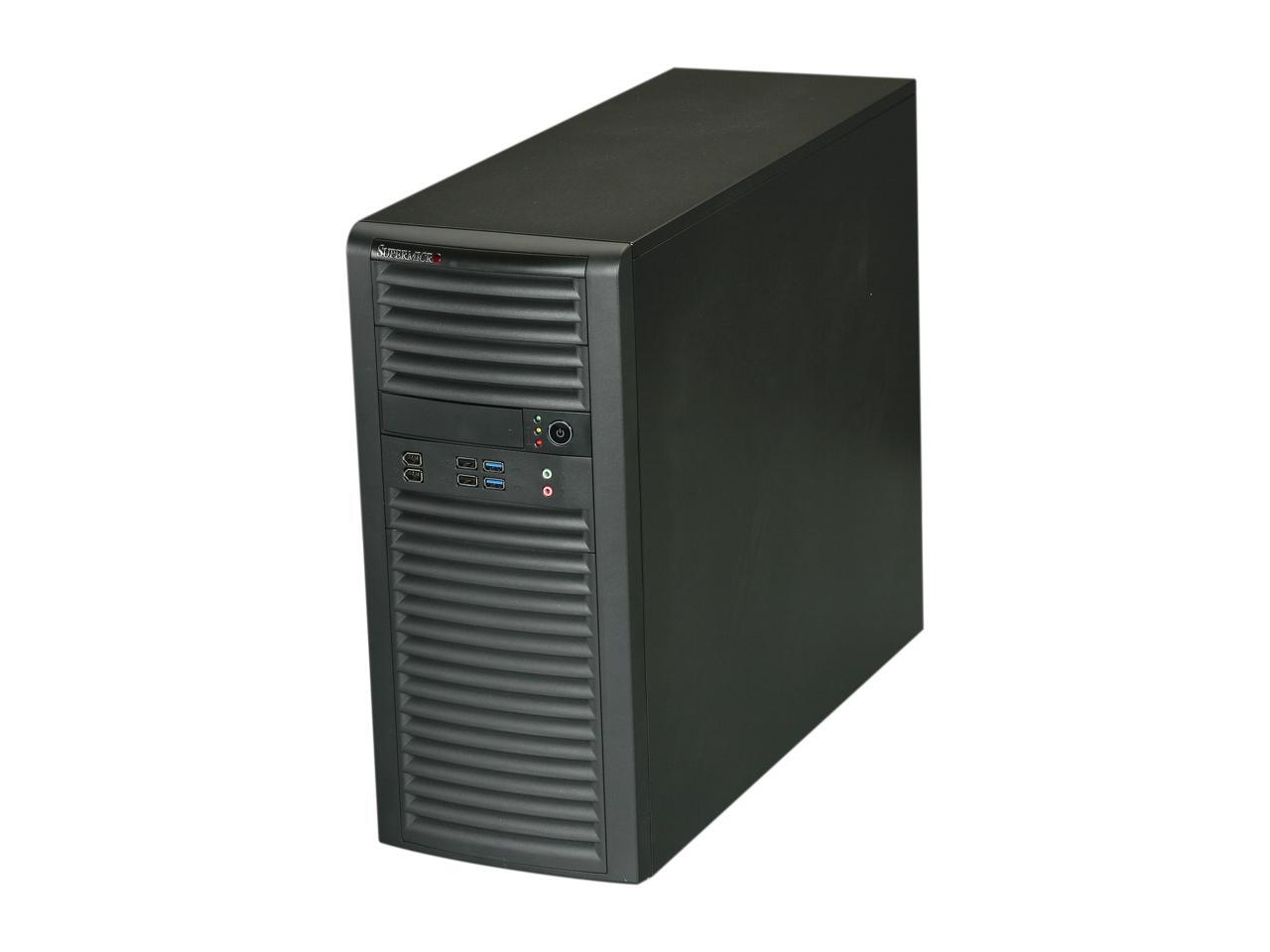

SUPERMICRO SYS-7037A-I Mid-Tower Server Barebone



Features

SYS-7037A-I
  • Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
  • Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM slots
  • Expansion slots: 3 (x16) PCI-E 3.0, 2 (x8) PCI-E 3.0 & 1 (x4) PCI-E 3.0
  • Intel® i350 Dual port Gigabit Ethernet
  • 2x SATA3 and 8x SATA2 ports
  • 4x 3.5" SATA HDD bays, 90° rotating hard drive cage, 4x 2.5" internal HDD/SSD bays (opt.)
  • 900W High Efficiency Power Supply Gold Level Certified


Specifications

Product SKUs
SuperWorkstation SYS-7037A-i (Black)
Motherboard
Motherboard Super X9DAi
Processor/Cache
CPU
  • Dual Socket R (LGA 2011)
  • Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
Note † BIOS version 3.0 or above is required
Cache Up to 30MB
System Bus QPI up to 8 GT/s
System Memory
Memory Capacity
  • 16x 240-pin DDR3 DIMM slots
  • Up to 1TB DDR3 ECC LRDIMM
  • Up to 512GB DDR3 ECC Registered memory (RDIMM)
  • Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C602 Chipset
SATA
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps with RAID 0, 1
Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio RealTek ALC889 7.1 High Definition Audio with S/PDIF header
Super I/O Nuvoton W83627

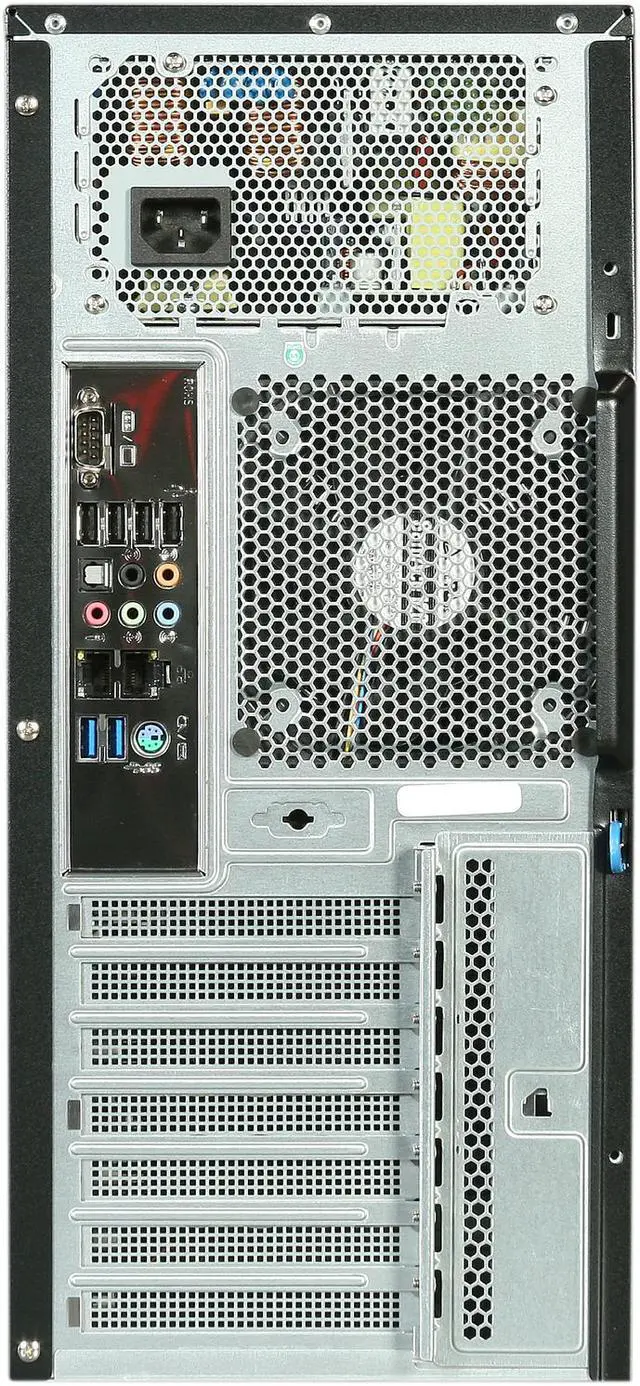

Input / Output
SATA
  • 2x SATA 3.0 ports (6Gbps)
  • 8x SATA 2.0 ports (3Gbps)
LAN 2x RJ45 Gigabit Ethernet LAN ports
USB
  • 4x USB 3.0 ports (2 front + 2 rear)
  • 7x USB 2.0 ports (4 rear + 2 via header + 1 Type A)
Audio Line-in / Line-out / Microphone Ports
Keyboard/Mouse PS/2 Keyboard/Mouse port
Serial Port / Header 1x Fast UART 16550 ports
IEEE 1394a 2x Headers
System BIOS
BIOS Type 64Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

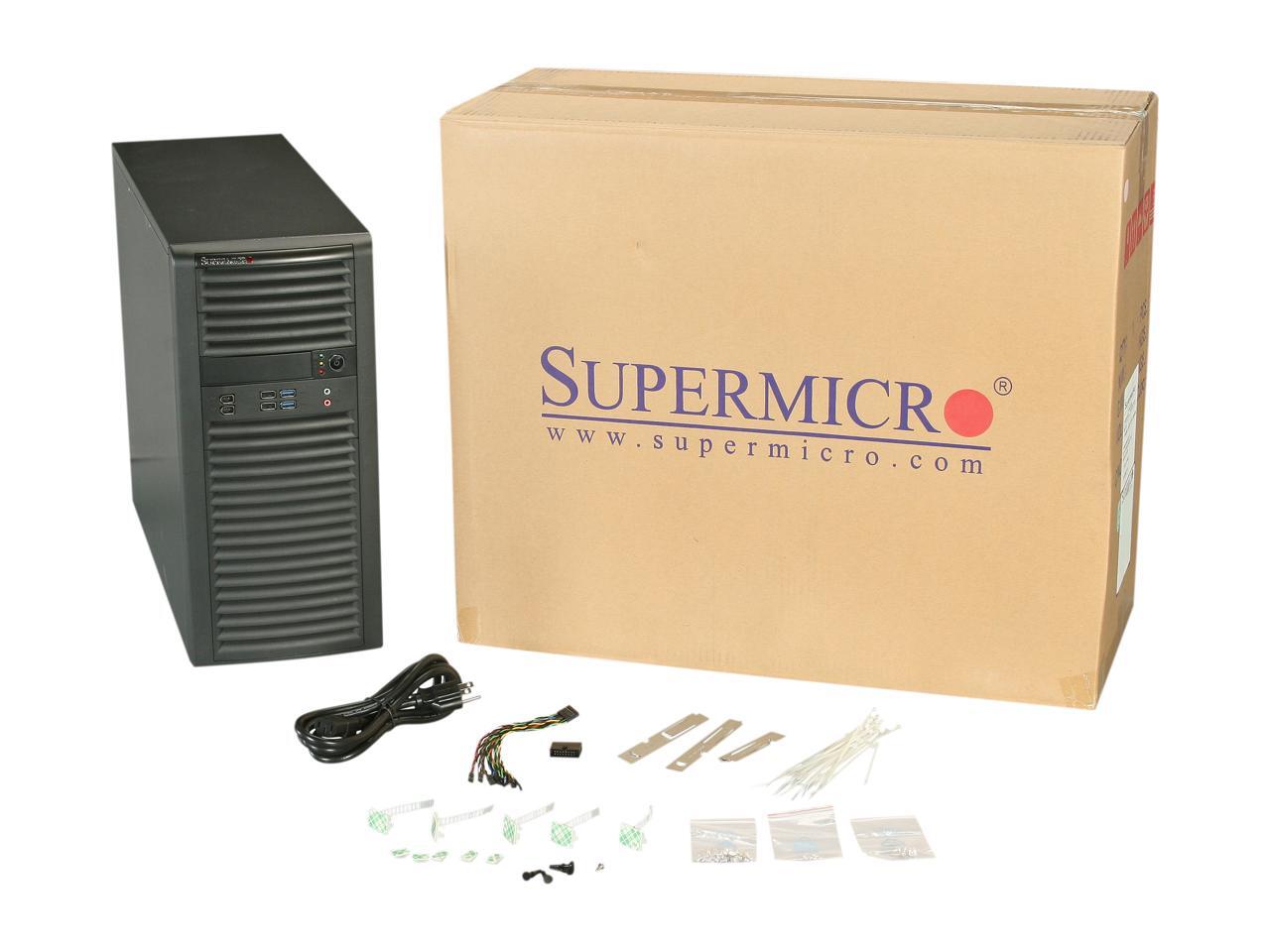

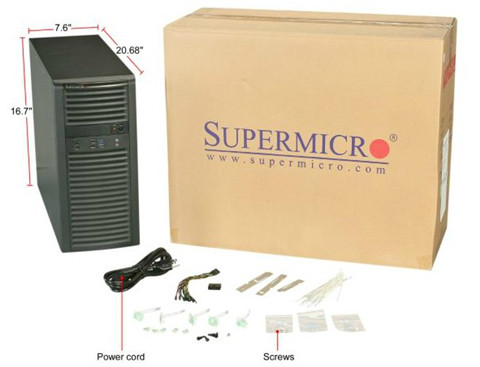

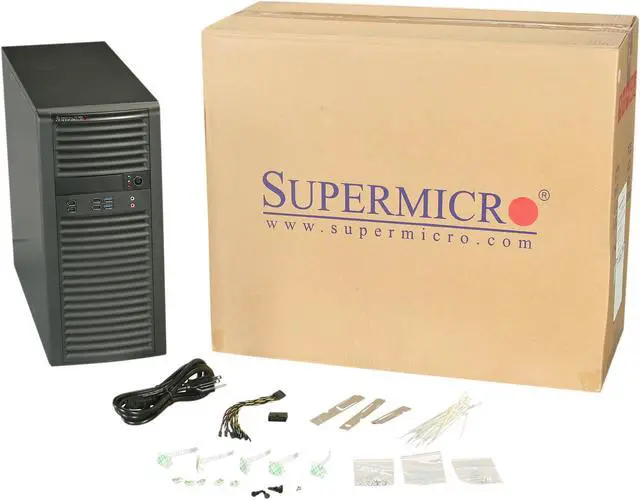

Whats in the Box

SYS-7037A-I

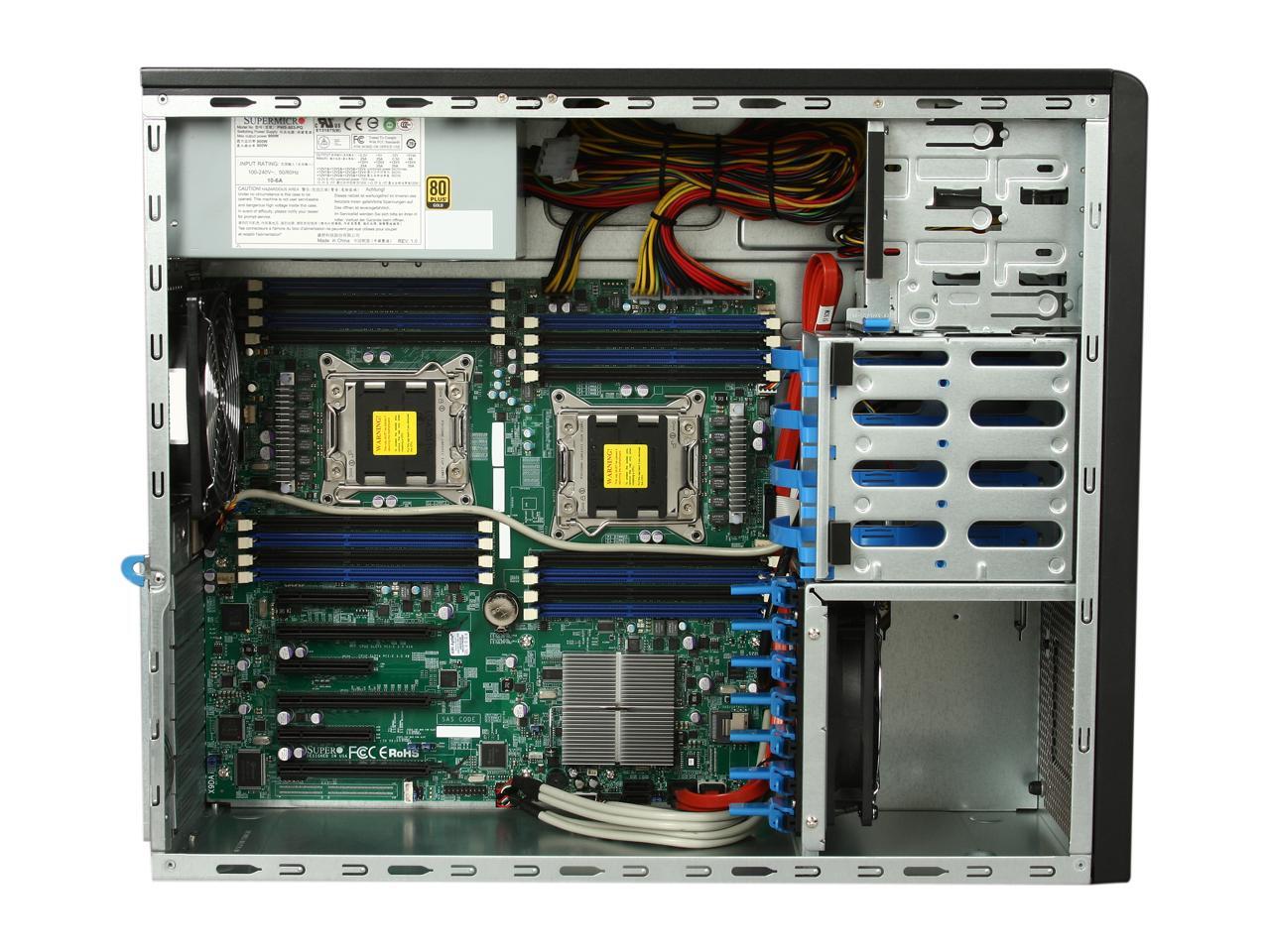

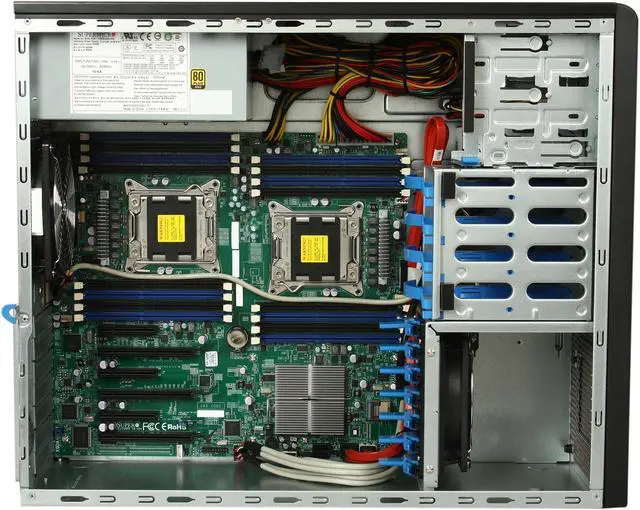

  • neweggDual Intel Xeon E5 CPU SupportAdopting Super X9DAi motherboard equipped with dual LGA2011 sockets and Intel C602 chipset, the SUPERMICRO SYS-7037A-I Barebone server supports up to two Intel Xeon E5-2600 processors to address the demanding needs for high performance and balanced architecture by modern business. The Intel Xeon E5 processor packs more cores, larger cache, greater memory, and new technologies like Intel Turbo Boost Technology 2.0, delivering up to 80% performance boost, reduced I/O network latency and increased energy efficiency.
  • neweggMemoryThe Super X9DAi has sixteen DIMM slots that can support up to 512 GB of registered ECC DDR3-1600/1333/1066/800 DDR3 memory, delivering ample capacity for demanding applications.
  • neweggDual Gigabit LAN PortsIncorporating Intel i350 Dual port GbE controller in the motherboard, the SUPERMICRO SYS-7037A-I Barebone server is outfitted with two Gigabit Ethernet LAN ports to optimize network bandwidth, data throughput and communication efficiency.
  • neweggEasy ExpandabilityThree PCIe 3.0 x16 slots, two PCIe 3.0 x 8 slots and one PCIe 3.0 x4 slot support a range of I/O expansion cards and discrete graphics cards for flexible expansion.

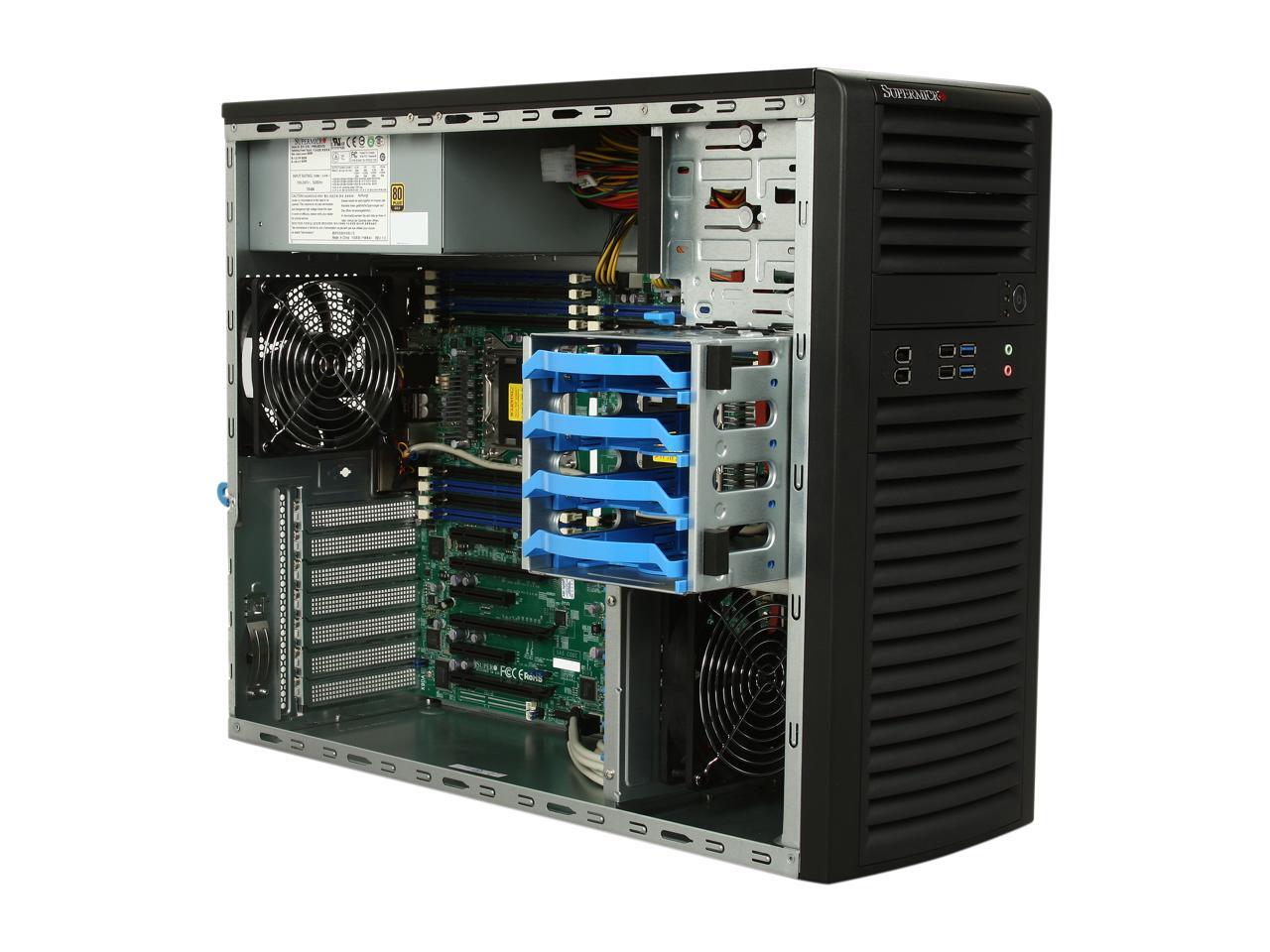

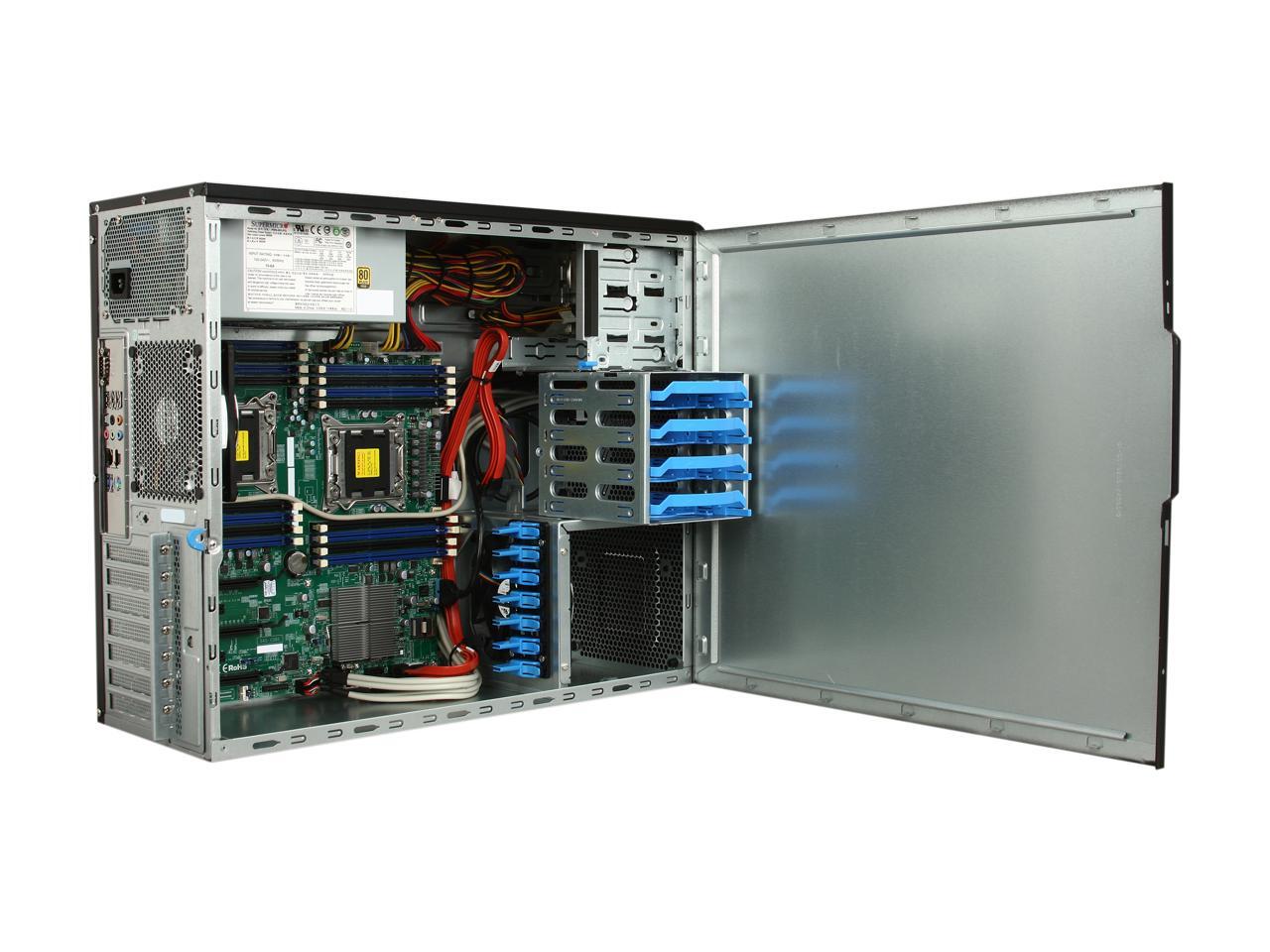

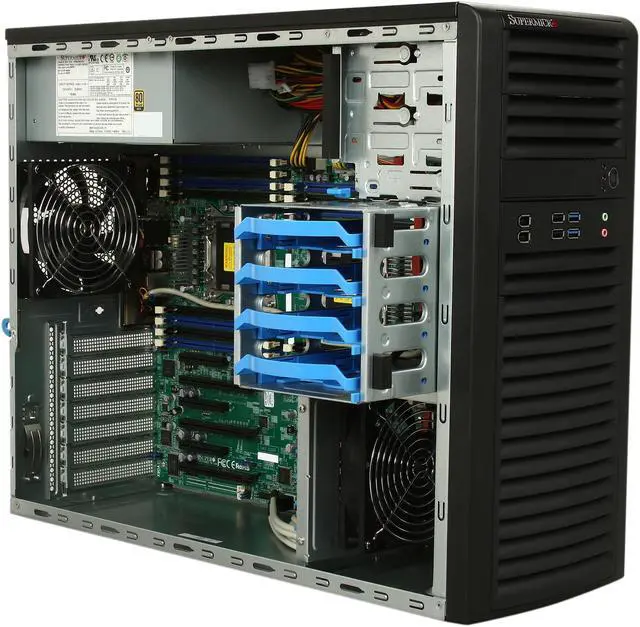

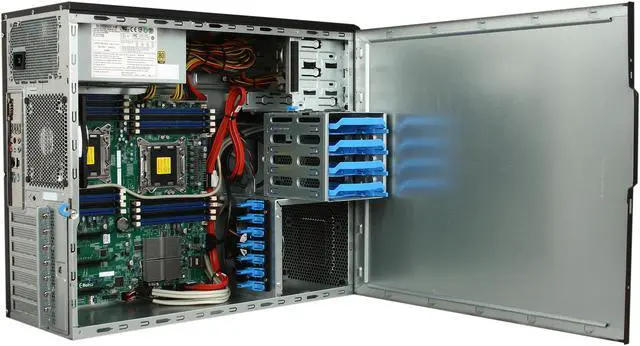

  • neweggHot-swappable 3.5” Drive Bays2x SATA 3.0 ports (6Gbps) with RAID 0, 1 support and 8x SATA 2.0 ports (3Gbps) with RAID 0, 1, 5, 10 support enable flexible storage solution. The SUPERMICRO SYS-7037A-I features four hot-swap 3.5" drive bays for easy installation and replacement of hard drives in a 24/7 computer system.
  • newegg900W Power Supply Unit with 80 PLUS Gold CertificationThe 900W 80 PLUS Gold Certified power supplies provides robust power for all components installed with high power efficiency of at least 87% at any load between 20% and 100%, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
