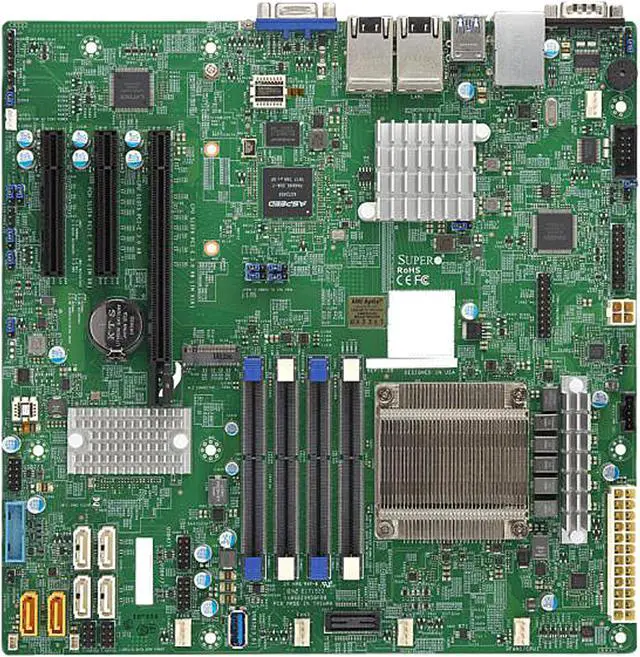

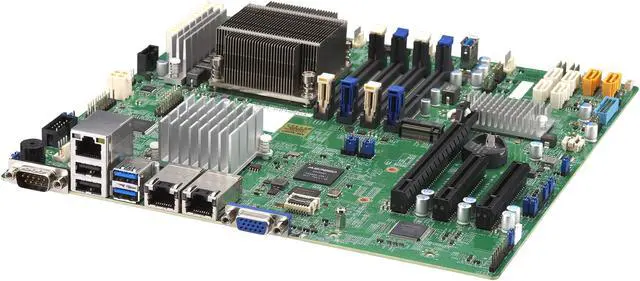

Main image of SuperMicro X11SSH-GTF-1585L Motherboard

Alt view image 2 of 3 - SuperMicro X11SSH-GTF-1585L Motherboard

Alt view image 3 of 3 - SuperMicro X11SSH-GTF-1585L Motherboard

Shop All Supermicro Products

SuperMicro X11SSH-GTF-1585L Motherboard

Be the first to review this product...

FCBGA1440
Intel C236

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

SuperMicro X11SSH-GTF-1585L Motherboard

Model
Brand	SUPERMICRO
Model	X11SSH-GTF-1585L

Supported CPU
CPU Socket Type	FCBGA1440
CPU Type	Intel Xeon processor E3-1585L v5 Socket FCBGA1440 supported, CPU TDP support 45W

Chipsets
North Bridge	Intel C236

Memory
DDR4 Standard	DDR4 2133 / 1866 / 1600 MHz ECC SODIMMs
Maximum Memory Supported	64GB Unbuffered ECC SO-DIMM, DDR4-2133 MHz, in 4 x DIMM slots

Expansion Slots
PCI Express x8	1 x PCI-E 3.0 x8 (in x16 slot) 1 x PCI-E 3.0 x8
PCI Express x4	1 x PCI-E 3.0 x4 (in x8 slot)
Other Slots	M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2242, 2280, 22110 Key: M-Key Double Height Connector

Storage Devices
SATA	6 x SATA 6.0Gb/s
SATA RAID	0/1/5/10

Onboard Video
Onboard Video Chipset	Aspeed AST2400 BMC

Onboard LAN
LAN Chipset	Intel X550
LAN Speed	10Gbps
Second LAN Chipset	Intel X550
Second LAN Speed	10Gbps
Max LAN Speed	2 x 10Gbps

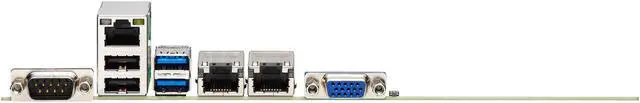

Rear Panel Ports
COM	1
USB 1.1/2.0	2 x USB 2.0
USB 3.0	2 x USB 3.0

Features
Features	Intel Xeon processor E3-1585L v5, Single socket FCBGA 1440, 4-Core, 8 Threads, 45W Intel C236 chipset Up to 64GB ECC Unbuffered SO-DIMM, DDR4 2133 MHz; 4 x DIMM slots Dual 10GBase-T LAN with Intel X550 Support Intel Iris Pro Graphics P580 (GT4e), for VHD and Quick Sync Video Expansion slots: 1 x PCI-E 3.0 x8 (in x16), 1 x PCI-E 3.0 x8, 1 x PCI-E 3.0 x4 (in x8) 6 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10 2 x SuperDOM with built-in power 5 x USB 3.0 (2 x rear, 1 x Type A, 2 x internal) M.2 NGFF connector M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2242, 2280, 22110 Key: M-Key Double Height Connector

Dimensions
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"

Additional Information
First Listed on Newegg	February 11, 2019
