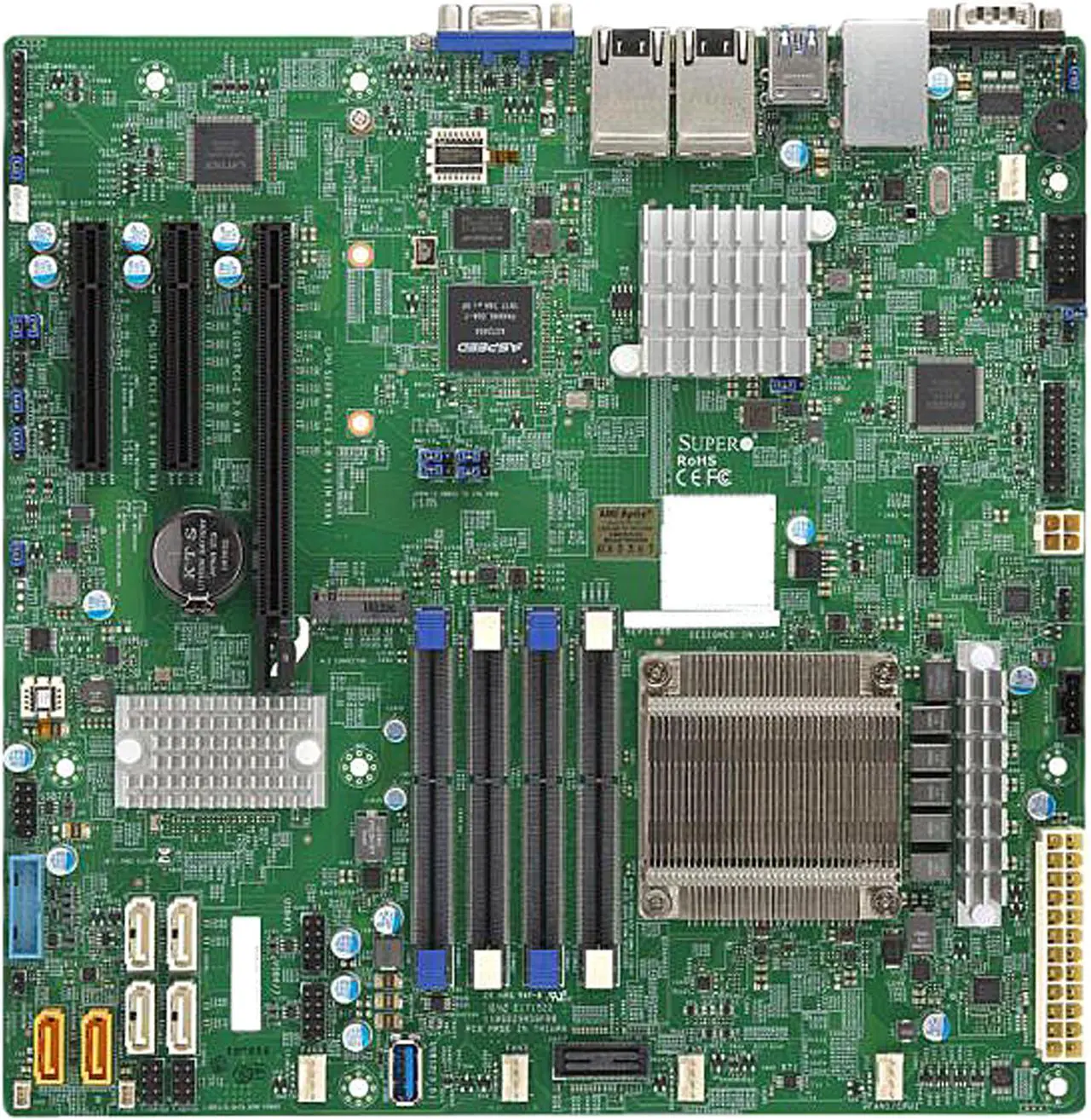

Main image of SuperMicro X11SSH-GTF-1585L Motherboard

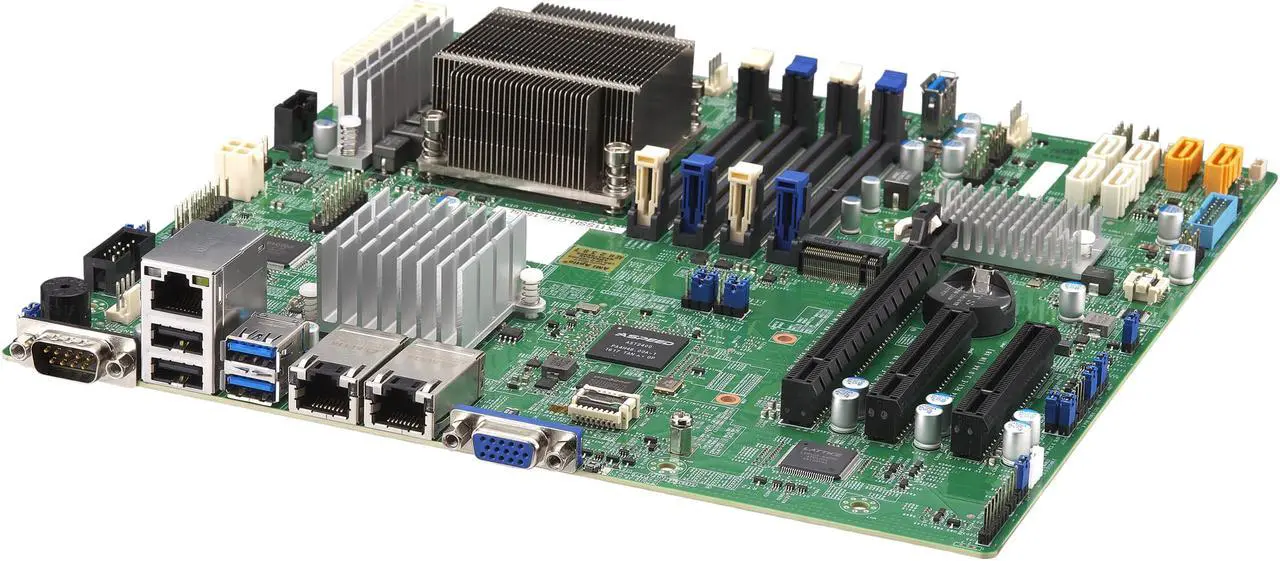

Alt view image 2 of 3 - SuperMicro X11SSH-GTF-1585L Motherboard

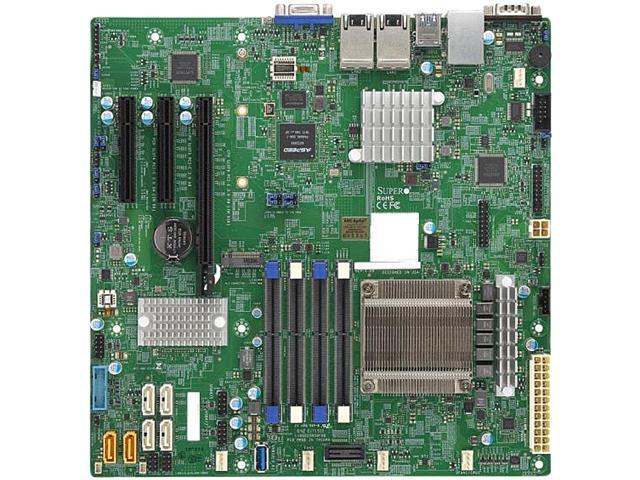

Alt view image 3 of 3 - SuperMicro X11SSH-GTF-1585L Motherboard

Shop All Supermicro Products

SuperMicro X11SSH-GTF-1585L Motherboard

Be the first to review this product...

FCBGA1440
Intel C236

Overview

Specs

Reviews

SuperMicro X11SSH-GTF-1585L Motherboard

Model
Brand	SUPERMICRO
Model	X11SSH-GTF-1585L

Supported CPU
CPU Socket Type	FCBGA1440
CPU Type	Intel Xeon processor E3-1585L v5 Socket FCBGA1440 supported, CPU TDP support 45W

Chipsets
North Bridge	Intel C236

Memory
DDR4 Standard	DDR4 2133 / 1866 / 1600 MHz ECC SODIMMs
Maximum Memory Supported	64GB Unbuffered ECC SO-DIMM, DDR4-2133 MHz, in 4 x DIMM slots

Expansion Slots
PCI Express x8	1 x PCI-E 3.0 x8 (in x16 slot) 1 x PCI-E 3.0 x8
PCI Express x4	1 x PCI-E 3.0 x4 (in x8 slot)
Other Slots	M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2242, 2280, 22110 Key: M-Key Double Height Connector

Storage Devices
SATA	6 x SATA 6.0Gb/s
SATA RAID	0/1/5/10

Onboard Video
Onboard Video Chipset	Aspeed AST2400 BMC

Onboard LAN
LAN Chipset	Intel X550
LAN Speed	10Gbps
Second LAN Chipset	Intel X550
Second LAN Speed	10Gbps
Max LAN Speed	2 x 10Gbps

Rear Panel Ports
COM	1
USB 1.1/2.0	2 x USB 2.0
USB 3.0	2 x USB 3.0

Features
Features	Intel Xeon processor E3-1585L v5, Single socket FCBGA 1440, 4-Core, 8 Threads, 45W Intel C236 chipset Up to 64GB ECC Unbuffered SO-DIMM, DDR4 2133 MHz; 4 x DIMM slots Dual 10GBase-T LAN with Intel X550 Support Intel Iris Pro Graphics P580 (GT4e), for VHD and Quick Sync Video Expansion slots: 1 x PCI-E 3.0 x8 (in x16), 1 x PCI-E 3.0 x8, 1 x PCI-E 3.0 x4 (in x8) 6 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10 2 x SuperDOM with built-in power 5 x USB 3.0 (2 x rear, 1 x Type A, 2 x internal) M.2 NGFF connector M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2242, 2280, 22110 Key: M-Key Double Height Connector

Dimensions
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"

Additional Information
Date First Available	February 11, 2019
