Supermicro X11SSH-TF Server Motherboard
Features
- Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
- Intel® C236 chipset
- Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots
- Expansion slots: 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x2 (in x4)
- Dual 10GBase-T LAN with Intel® X550
- 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10

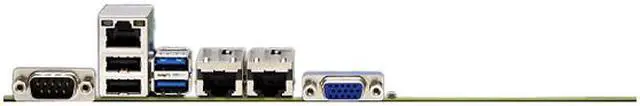

- I/O: 1 VGA, 2 COM, TPM header
- 2 SuperDOM with built-in power
- 5 USB 3.0 (2 rear, 2 via header, 1 Type A), 6 USB 2.0 (2 rear, 4 via headers)
- M.2 NGFF connector
Specifications
| Product SKUs | |
| MBD-X11SSH-TF | X11SSH-TF (Bulk Pack) |
| Physical Stats | |
| Form Factor | Micro-ATX |
| Dimensions | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor/Cache | |
| CPU |
|
| System Memory | |
| Memory Capacity | 64GB Unbuffered ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots |
| Memory Type | 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs |
| DIMM Sizes | 4GB, 8GB, 16GB |
| Memory Voltage | 1.2 V |
| Error Detection |
|
| On-Board Devices | |
| Chipset | Intel® C236 |
| SATA | Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Network Controllers | Dual LAN with Intel® X550 10GBase-T Ethernet Controller |
| Graphics | Aspeed AST2400 BMC |
| Input / Output | |
| USB |
|
| Video Output |
|
| Serial Port / Header | 2 COM Ports (1 rear, 1 header) |
| TPM | Header |
| Expansion Slots | |
| PCI-Express |
|
| System BIOS | |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features |
|
| Management | |
| Software | Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
| Power Configurations |
|
| PC Health Monitoring | |
| Voltage | +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT |
| FAN | 6x 4-pin fan headers (up to 6 fans), Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors |
| Temperature |
|
| LED |
|
| Other Features | Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, Node Manager Support, WOL |
Parts List
| Parts List (Bulk Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-X11SSH-TF | 1 | X11SSH-TF Motherboard |
| I/O Cables | CBL-0044L | 2 | 57.5CM SATA FLAT S-S PBF |
| I/O Shield | MCP-260-00042-0N | 1 | STD I/O Shield for X11SSH-TF with EMI Gasket |
| Parts List (Retail Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-X11SSH-TF | 1 | X11SSH-TF Motherboard |
| QRG | MNL-1783-QRG | 1 | Motherboard Quick Reference Guide |
| I/O Cables | CBL-0044L | 6 | 57.5CM SATA FLAT S-S PBF |
| I/O Shield | MCP-260-00042-0N | 1 | STD I/O Shield for X11SSH-TF with EMI Gasket |
Key Features1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium® 2. Intel® C236 chipset 3. Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots 4.
Expansion slots: 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x2 (in x4) 5. Dual 10GBase-T LAN with Intel® X550 6. 8x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 7.
I/O: 1x VGA, 2x COM, TPM 1.2 header 8. 2x SuperDOM with built-in power 9. 5x USB 3.0 (2 rear + 2 via header + 1 Type A), 6x USB 2.0 (2 rear + 4 via headers) 10. M. 2 NGFF connector
Expansion slots: 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x2 (in x4) 5. Dual 10GBase-T LAN with Intel® X550 6. 8x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 7.
I/O: 1x VGA, 2x COM, TPM 1.2 header 8. 2x SuperDOM with built-in power 9. 5x USB 3.0 (2 rear + 2 via header + 1 Type A), 6x USB 2.0 (2 rear + 4 via headers) 10. M. 2 NGFF connector
