Supermicro X11SSL-CF Motherboard

Be the first to review this product...
  • LGA 1151
  • Intel C232
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
X11SSL-CF

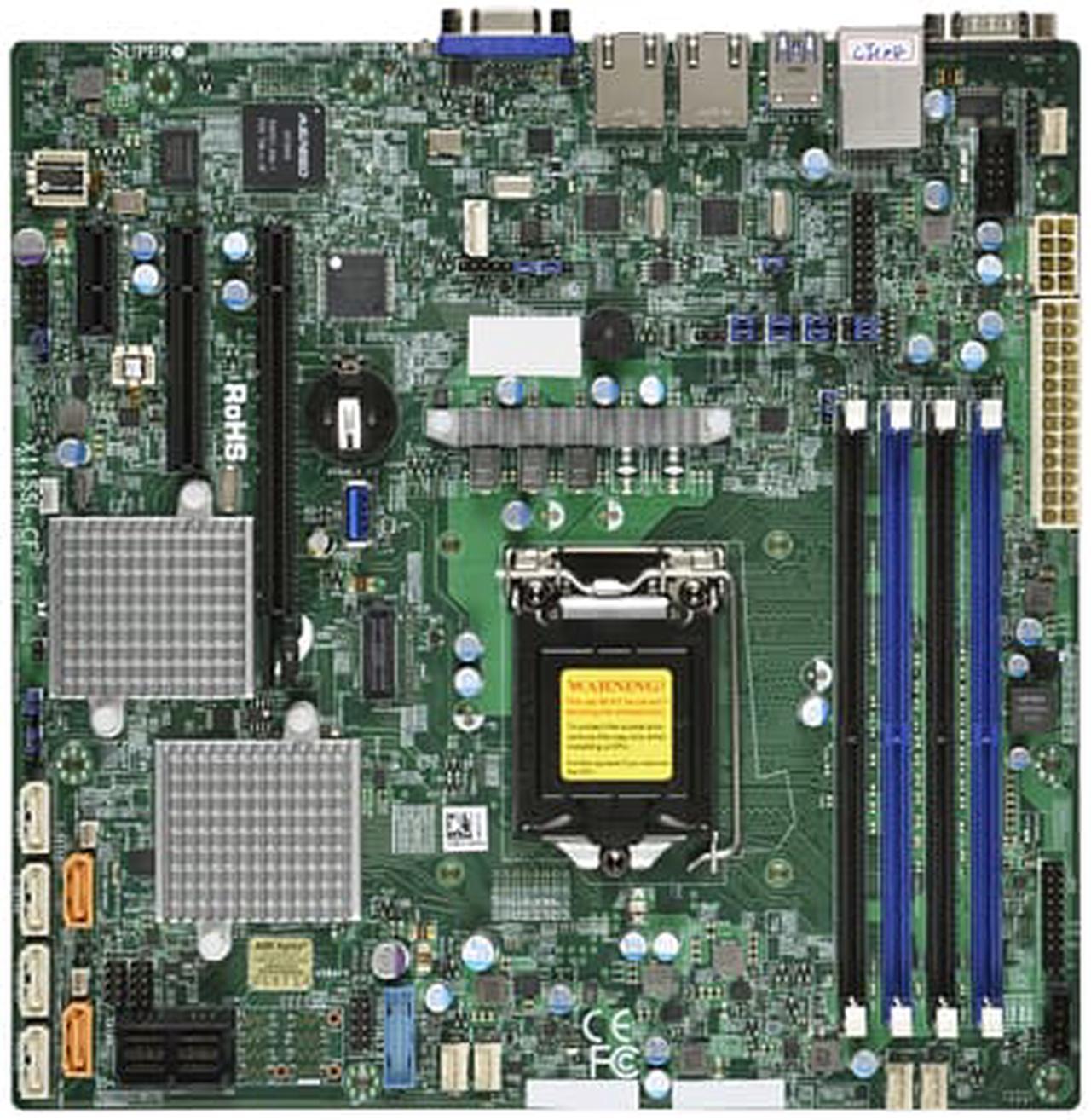

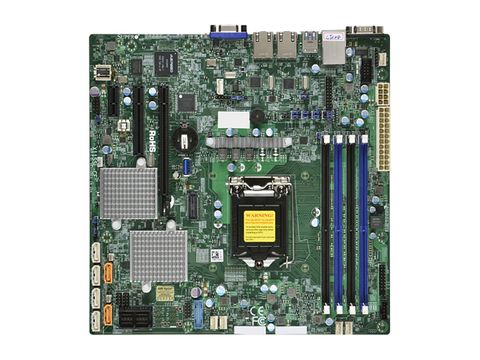

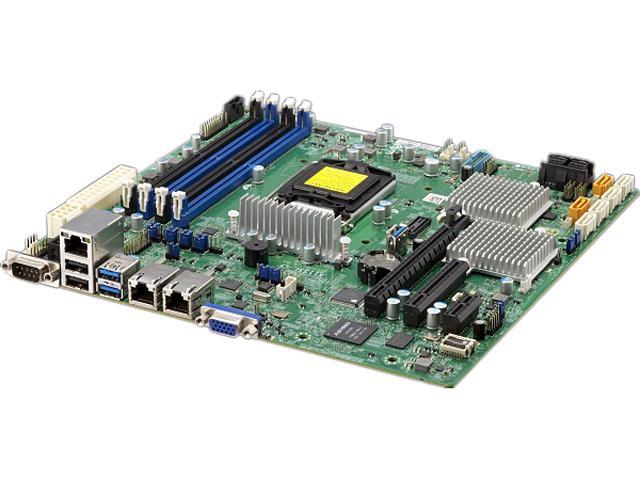

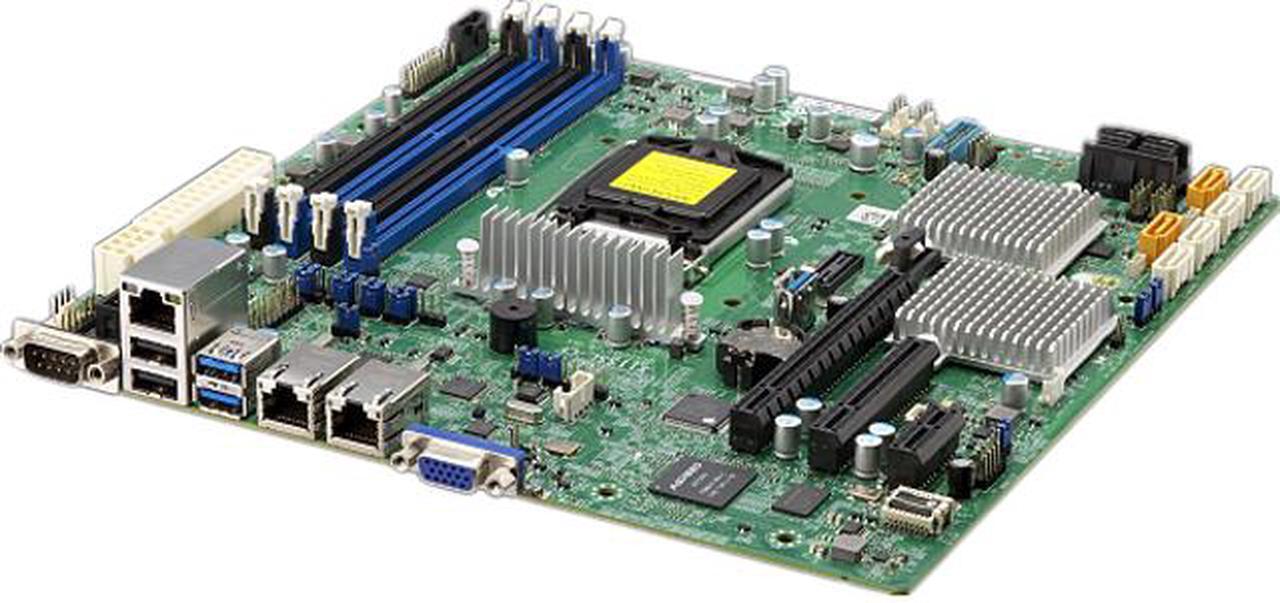

Supermicro X11SSL-CF Server Motherboard

Features

X11SSL-CF
  • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
  • Intel® C232 chipset
  • Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots
  • Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x4 (in x8), 1 PCI-E 3.0 x1
  • Dual GbE LAN with Intel® i210-AT
  • 6 SATA3 (6Gbps) via C232; RAID 0, 1, 5, 10
  • 8 SAS3 (12Gbps) via LSI 3008; RAID 0, 1, 10
  • I/O: 1 VGA, 2 COM, TPM header
  • 2 SuperDOM with built-in power
  • 5 USB 3.0 (2 rears, 2 via headers, 1 Type A), 6 USB 2.0 (2 rears, 4 via headers)

Specifications

Product SKUs
MBD-X11SSL-CF X11SSL-CF (Bulk Pack)
Physical Stats
Form Factor Micro-ATX
Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU
  • Intel® 6th Generation Core™ i3 series
  • Intel® Celeron®
  • Intel® Pentium®
  • Intel® Xeon® processor E3-1200 v5 series
  • Socket H4 (LGA 1151) supported; CPU TDP support 80W
System Memory
Memory Capacity 64GB Unbuffered ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes 4GB, 8GB, 16GB
Memory Voltage 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C232
SATA Intel® C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
SAS LSI3008 controller for 8 SAS3 (12Gbps) ports; RAID 0,1,10
Network Controllers Dual LAN with Intel® Ethernet Controller I210-AT
Graphics Aspeed AST2400 BMC

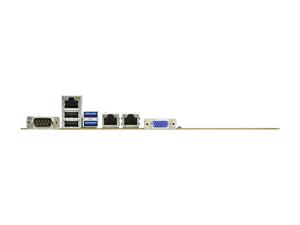

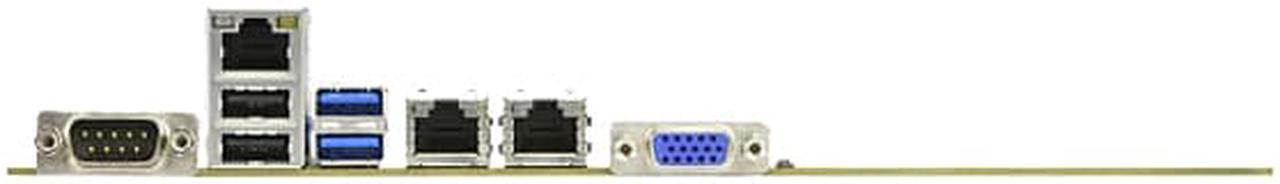

Input / Output
USB
  • 6 USB 2.0 ports (2 rear, 4 via header)
  • 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
Video Output
  • 1 VGA
  • 1 Aspeed AST2400 BMC
Serial Port / Header 2 COM Ports (1 rear, 1 header)
TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x8 (in x16 slot)
  • 1 PCI-E 3.0 x4 (in x8 slot)
  • 1 PCI-E 3.0 x1
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • APM 1.2
  • DMI 2.3
  • Hardware BIOS Virus protection
  • PCI 2.3
  • Plug and Play (PnP)
  • RTC (Real Time Clock) Wakeup
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • USB Keyboard support
Management
Software IPMI2.0, NMI, SSM, SUM, SuperDoctor® 5, Watchdog
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
Voltage +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN
  • Total of 5 fan headers supporting up to 5 fans
  • Fan speed control
  • Overheat LED indication
  • Thermal control tachometer fan connectors
Temperature
  • CPU thermal trip support
  • Monitoring for CPU and chassis environment
  • PECI
  • Thermal Monitor 2 (TM2) support
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Other Features Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, WOL

Parts List

Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SSL-CF 1 X11SSL-CF Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SSL-CF with EMI Gasket
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SSL-CF 1 X11SSL-CF Motherboard
QRG MNL-1783-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 6 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SSL-CF with EMI Gasket
Key Features1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium® 2. Intel® C232 chipset 3. Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots 4.
Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x4 (in x8), 1 PCI-E 3.0 x1 5. Dual GbE LAN with Intel® i210-AT 6. 6x SATA3 (6Gbps) via C232; RAID 0, 1, 5, 10 7. 8x SAS3 (12Gbps) via LSI 3008; RAID 0, 1, 10 8.
I/O: 1x VGA, 2x COM, 2x SuperDOM 9. 2x SuperDOM with built-in power 10. 5x USB 3.0 (2 rear + 2 via header + 1 Type A), 6x USB 2.0 (2 rear + 4 via headers) 11. Integrated IPMI 2.0 and KVM with Dedicated LAN
