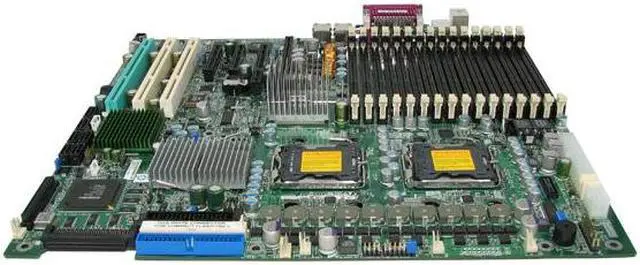

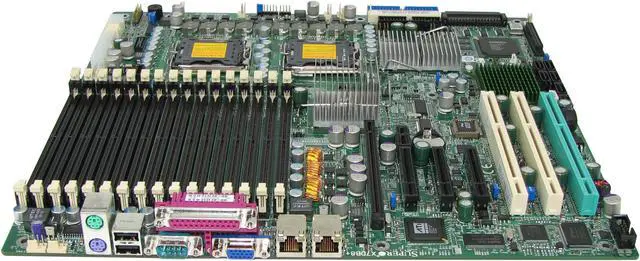

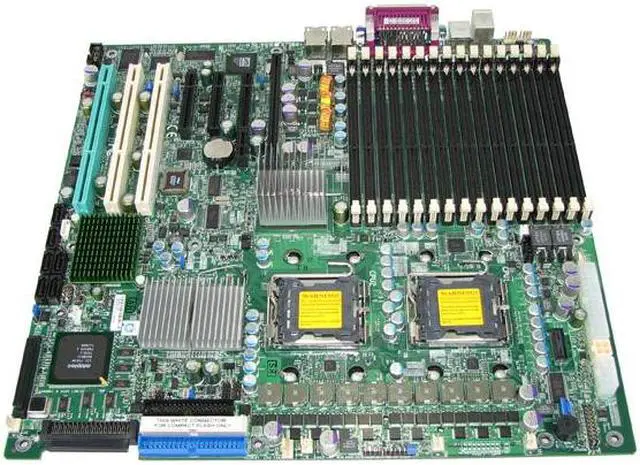

SUPERMICRO X7DB8+-O Enhanced Extended ATX Server Motherboard Dual LGA 771 Intel 5000P DDR2 667
- Dual LGA 771
- Intel 5000P
- 16 x 240Pin
Specs
Reviews (4)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro X7DB8+-O
| Brand | SUPERMICRO |
|---|---|
| Model | X7DB8+-O |
| CPU Socket Type | Dual LGA 771 |
|---|---|
| CPU Type | Dual Intel Xeon |
| System Bus | 1333/1066 MHz |
| North Bridge | Intel 5000P |
|---|---|
| South Bridge | ESB2 |
| Number of DDR2 Slots | 16 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 667 |
| Maximum Memory Supported | 64GB |
| ECC Supported | Yes |
| Registered | FBDIMM |
| PCI Express x8 | 2 x PCI Express x8 |
|---|---|
| PCI Express x4 | 1 (x4) PCI-e (using x8) slot |
| PCI-X Slots (64-bit 133MHz) | 2 |
| PCI-X Slots (64-bit 100MHz) | 1 |
| Other Slots | 1 SEPC slot for 2U active riser cards with a power extension SIMLP IPMI 2.0 |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 6 x SATA 3.0Gb/s |
| SATA RAID | RAID 0, 1, 5, 10 support (Windows Only) RAID 0, 1, 10 support (Linux) |
| SCSI | Dual-Chnl Ultra320 |
| SCSI RAID | Host RAID 0, 1, & 10 support Support for Zero-Channel RAID |
| SCSI Chipset | Adaptec AIC-7902 Controller |
| Onboard Video Chipset | ATI ES1000 |
|---|
| LAN Chipset | Intel 82563EB |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82563EB |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | 3 x USB internal headers |
|---|
| Form Factor | Enhanced Extended ATX |
|---|---|
| Dimensions (W x L) | 13.7" x 13.0" |
| Package Contents | X7DB8+-O User Manual Rear I/O Panel Shield IDE Cable FDD Cable SCSI Cable 4 x SATA Cable COM Port Bracket USB Bracket |
|---|
| First Listed on Newegg | May 22, 2006 |
|---|
