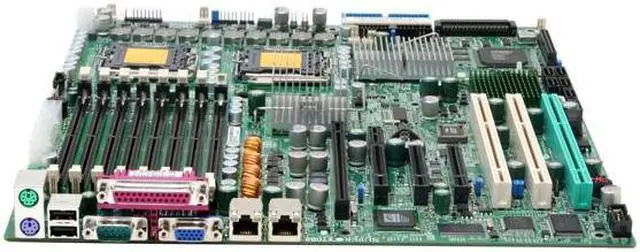

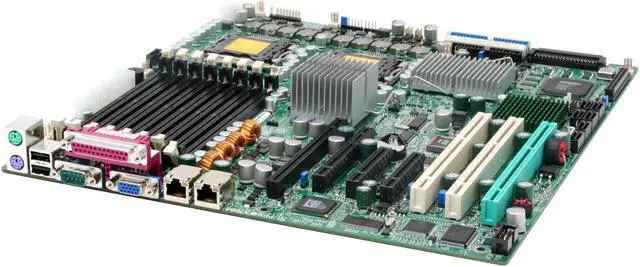

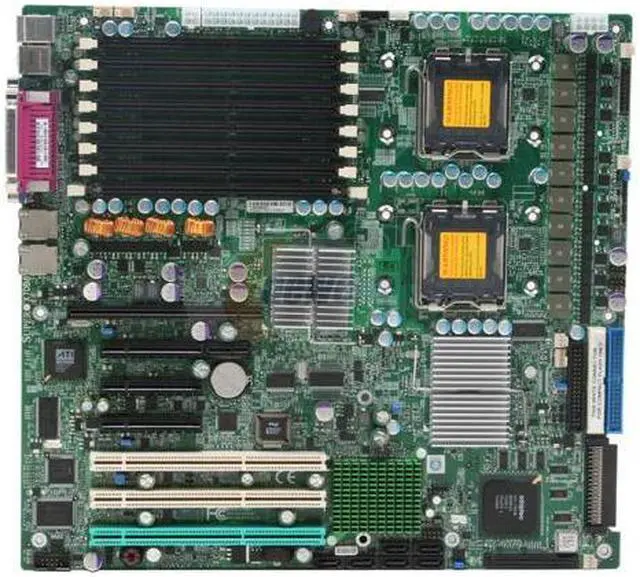

SUPERMICRO X7DB8-O Extended ATX Server Motherboard Dual LGA 771 Intel 5000P DDR2 667

OPEN BOX Product Type
  • Dual LGA 771
  • Intel 5000P
  • 8 x 240Pin
Please note that this product is non-returnable and non-refundable.
Specs
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the Supermicro X7DB8-O

Model
Brand SUPERMICRO
Model X7DB8-O
Supported CPU
CPU Socket Type Dual LGA 771
CPU Type Dual Intel Xeon
System Bus 1333/1066 MHz
Chipsets
North Bridge Intel 5000P
South Bridge Intel ESB2
Memory
Number of DDR2 Slots 8 x 240Pin
DDR2 Standard DDR2 667
Maximum Memory Supported 32GB
ECC Supported Yes
Registered FB-DIMM
Expansion Slots
PCI Express x8 2 x PCI Express x8
PCI Express x4 1 x PCI Express x4
PCI-X Slots (64-bit 133MHz) 2
PCI-X Slots (64-bit 100MHz) 1
Other Slots 1 SEPC slot for 2U active riser cards with a power extension
LP IPMI 2.0 (SIMLP) Slot
Storage Devices
PATA 1 x ATA 100 2 Dev. Max
SATA 6 x SATA 3.0Gb/s
SATA RAID 0/1/10/5
SCSI Dual-Chnl Ultra320
SCSI RAID Host RAID 0, 1, 10 (only supports 4 drives)
Zero-Channel RAID Support
SCSI Chipset Adaptec AIC-7902 Controller
Onboard Video
Onboard Video Chipset ATI ES1000
Onboard LAN
LAN Chipset Intel 82563EB
LAN Speed 10/100/1000Mbps
Second LAN Chipset Intel 82563EB
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 2
COM 1
LPT 1
Video Ports 1
USB 1.1/2.0 2 x USB 2.0
Onboard Ports
Onboard USB 3 x USB internal headers
Dimensions
Form Factor Extended ATX
Dimensions (W x L) 12.0" x 13.1"
Additional Information
First Listed on Newegg November 02, 2006
