SUPERMICRO X8DTL-6F ATX Server Motherboard Dual LGA 1366 Intel 5500 DDR3 1333/1066/800

(2) Write a Review
  • Dual LGA 1366
  • Intel 5500+ IOH-24D
  • 6 x 240pin
Overview
Specs
Reviews (2)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
X8DTL-6F

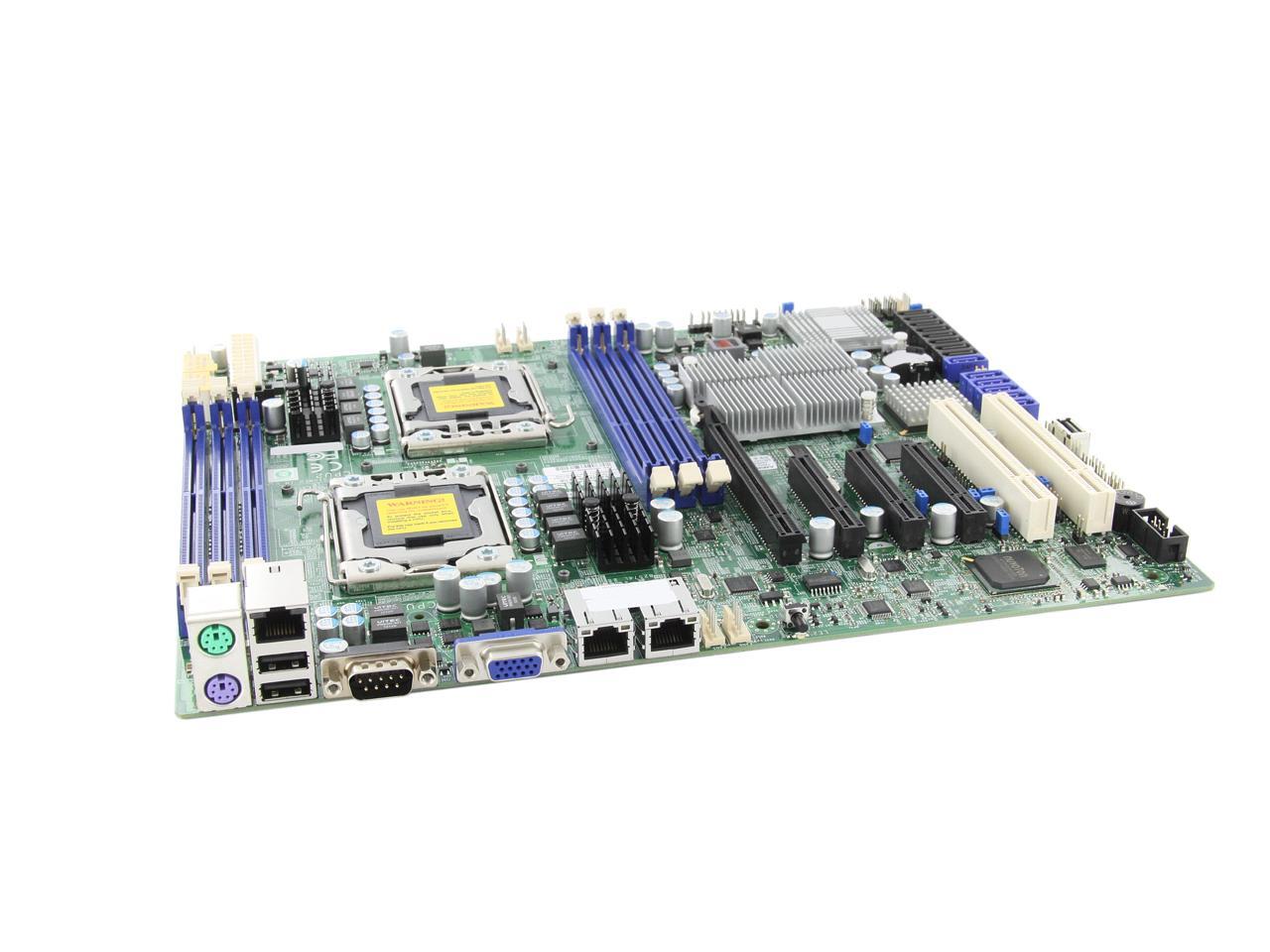

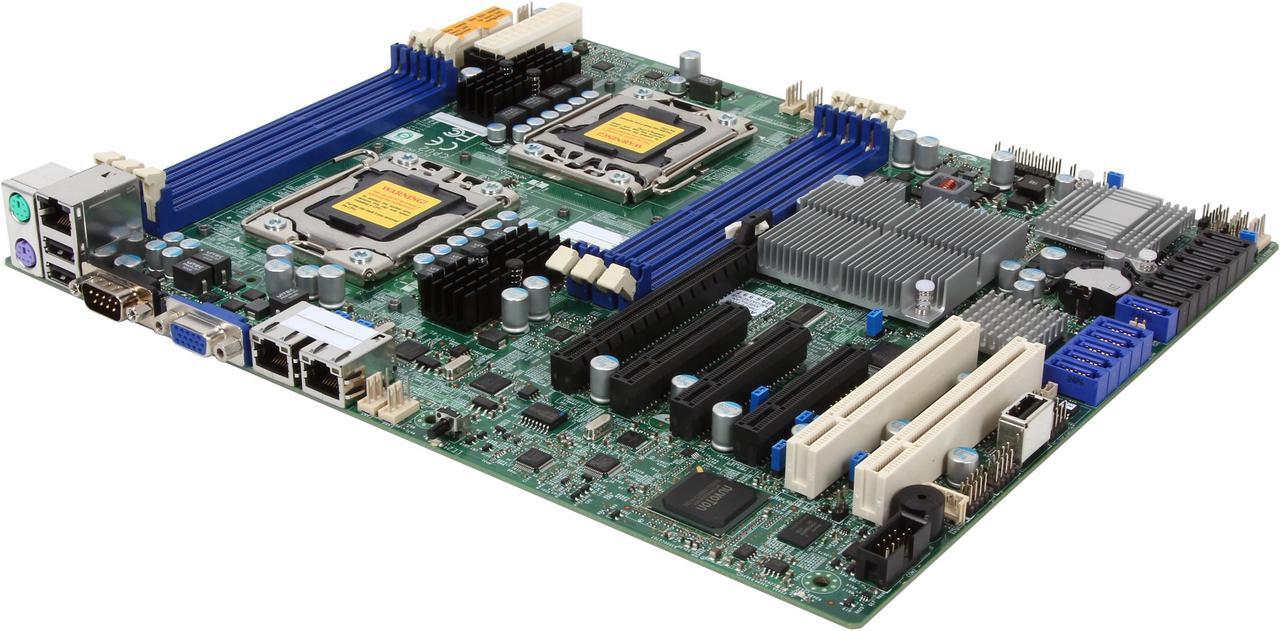

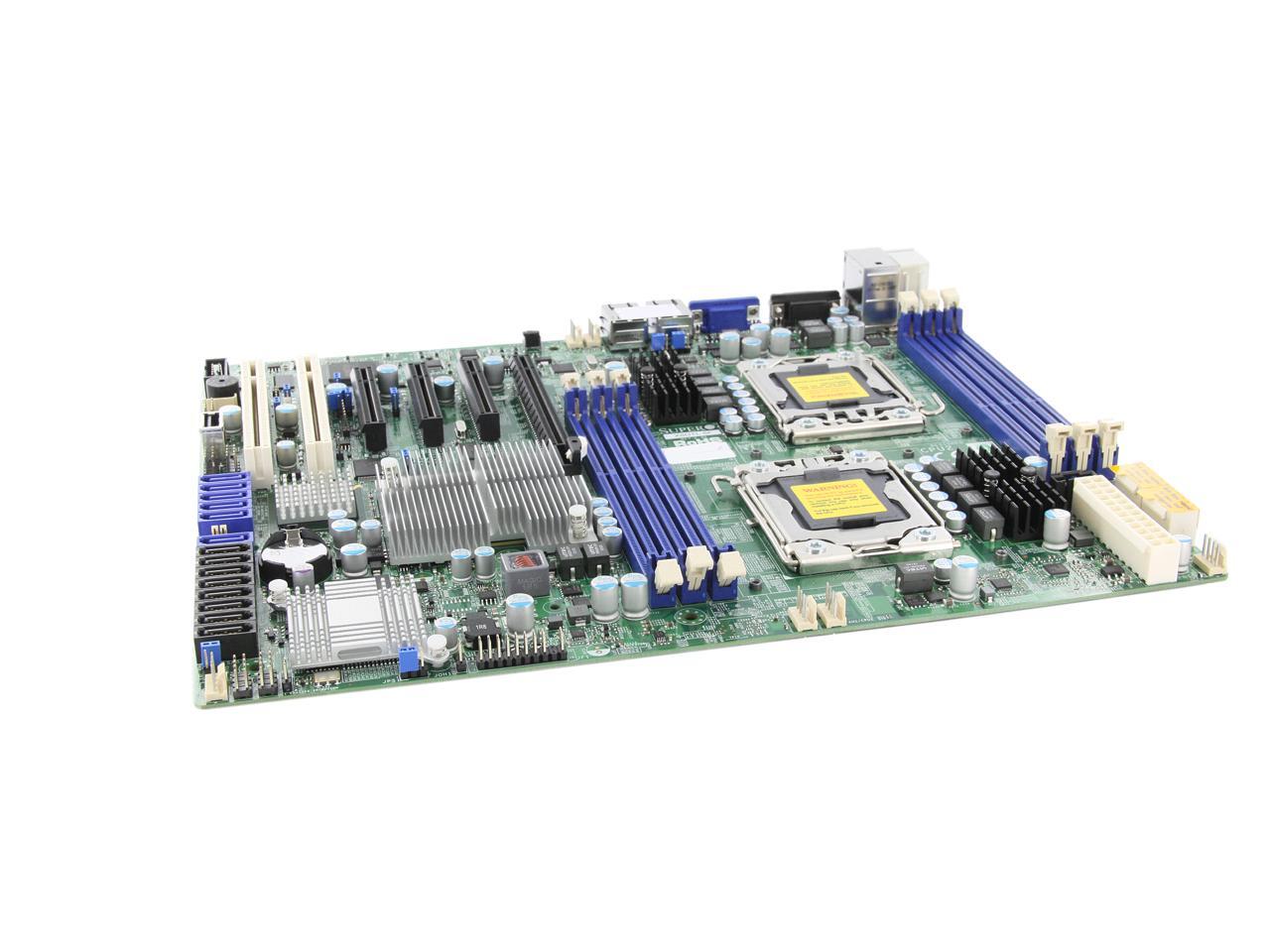

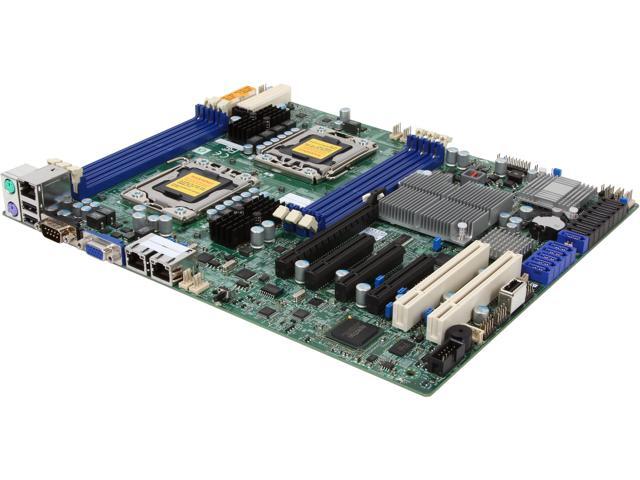

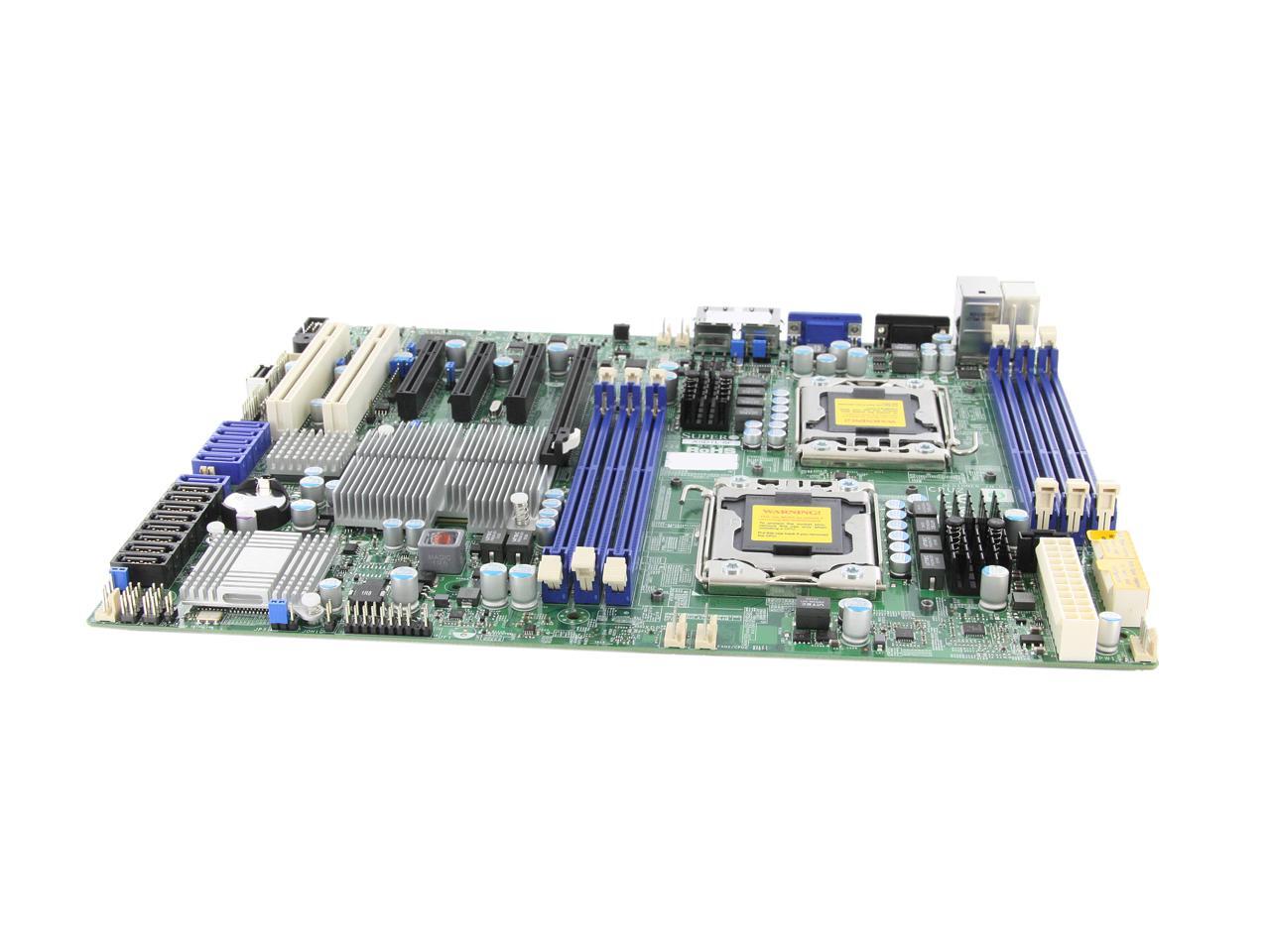

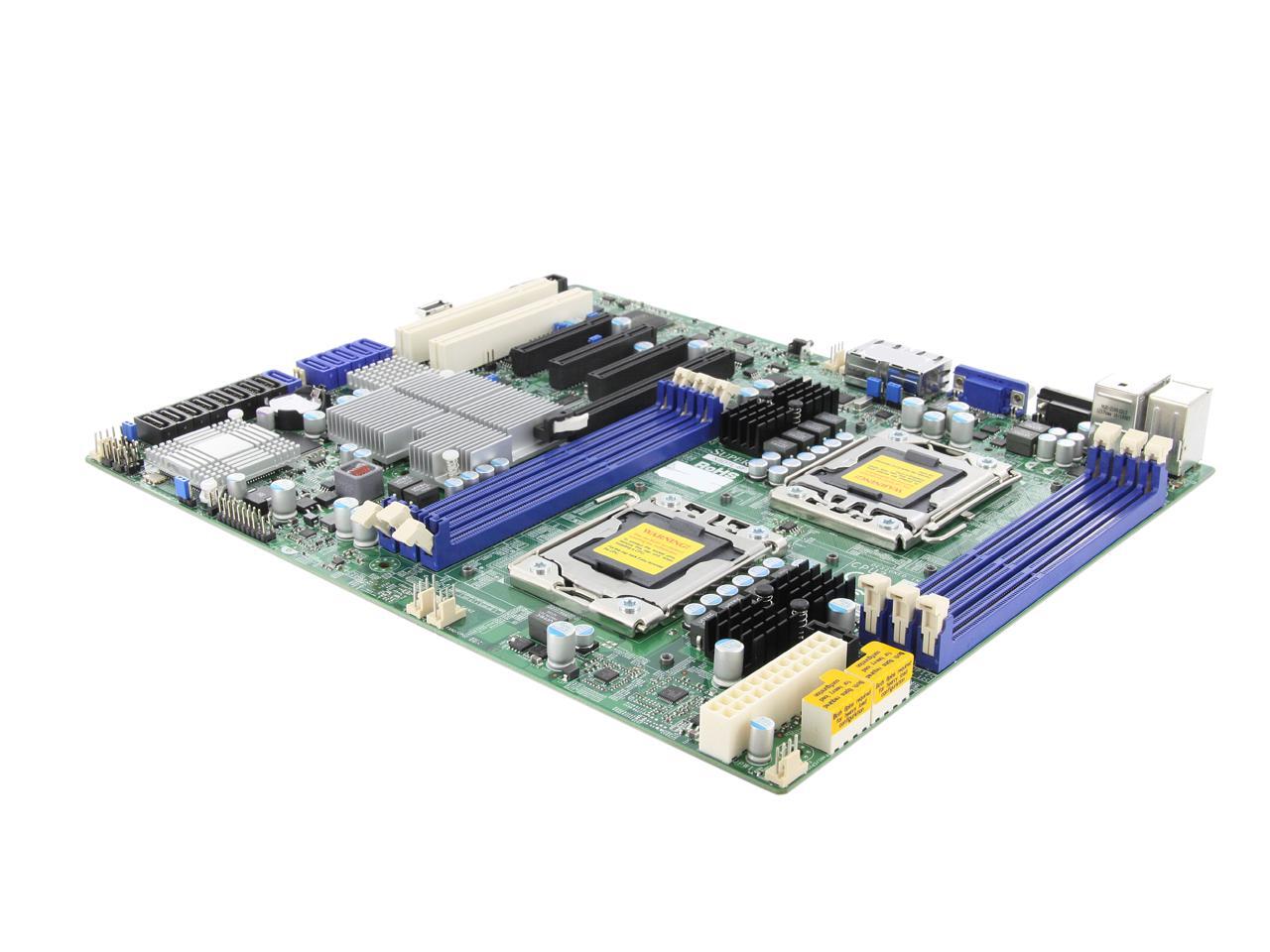

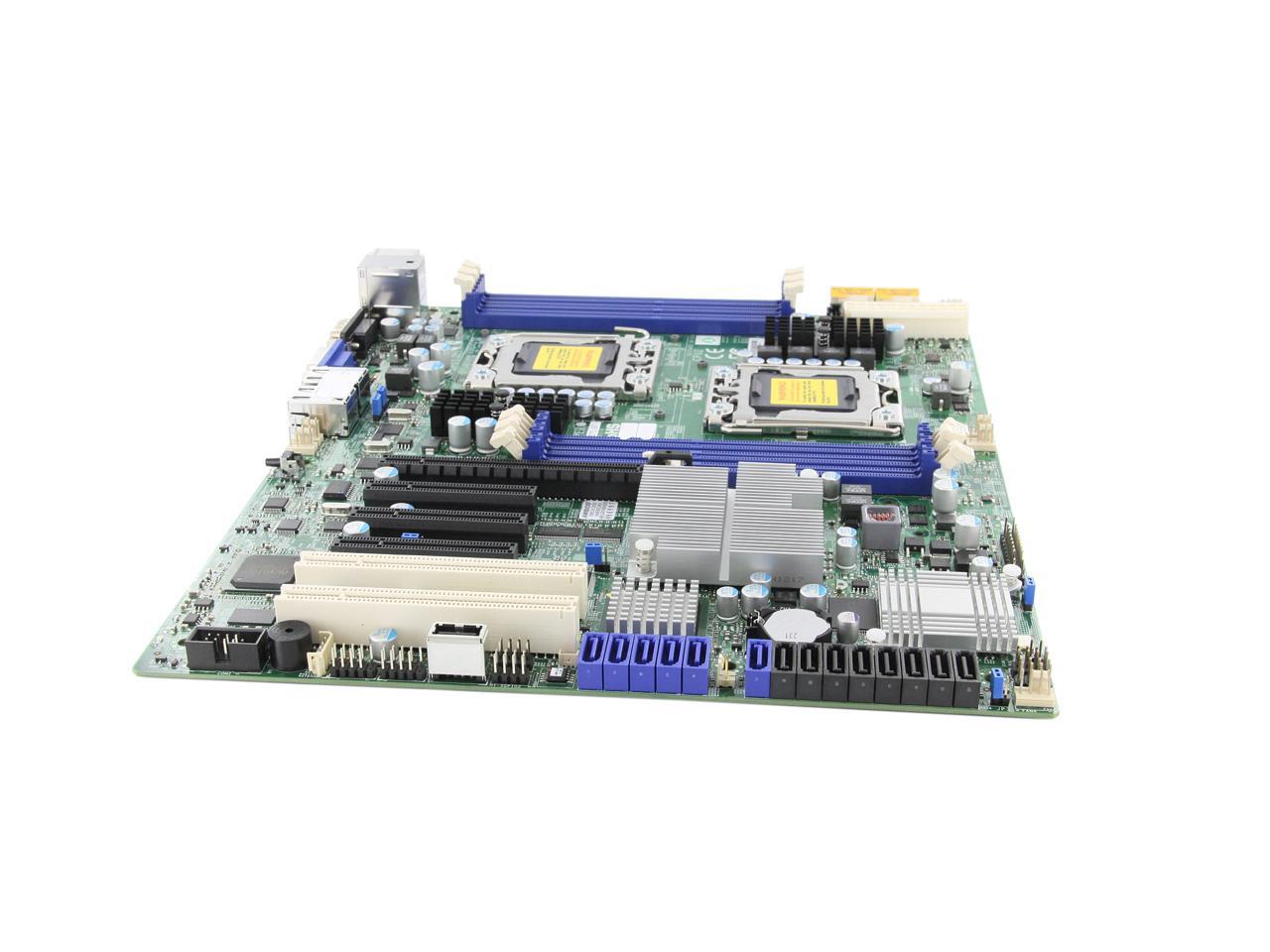

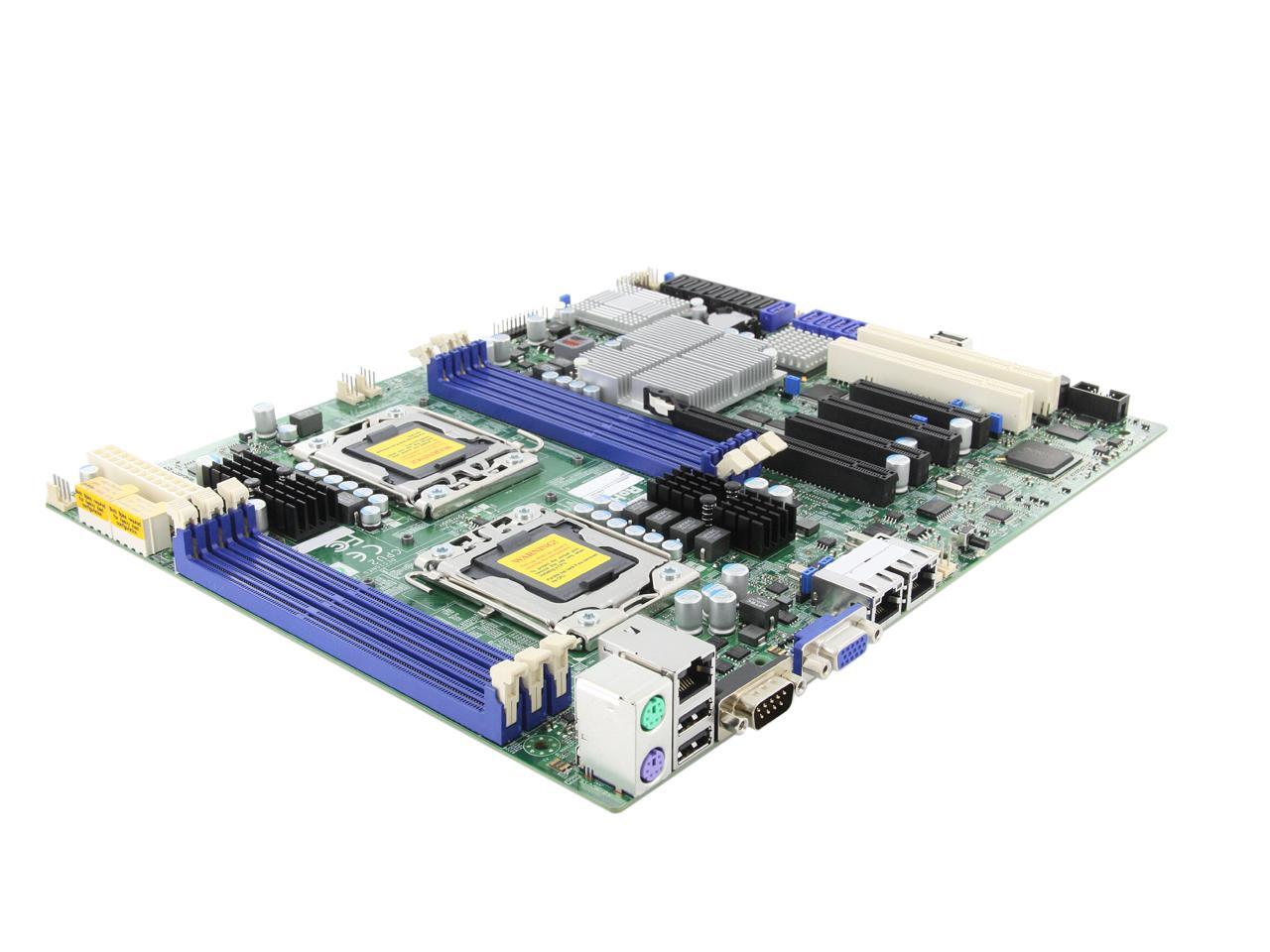

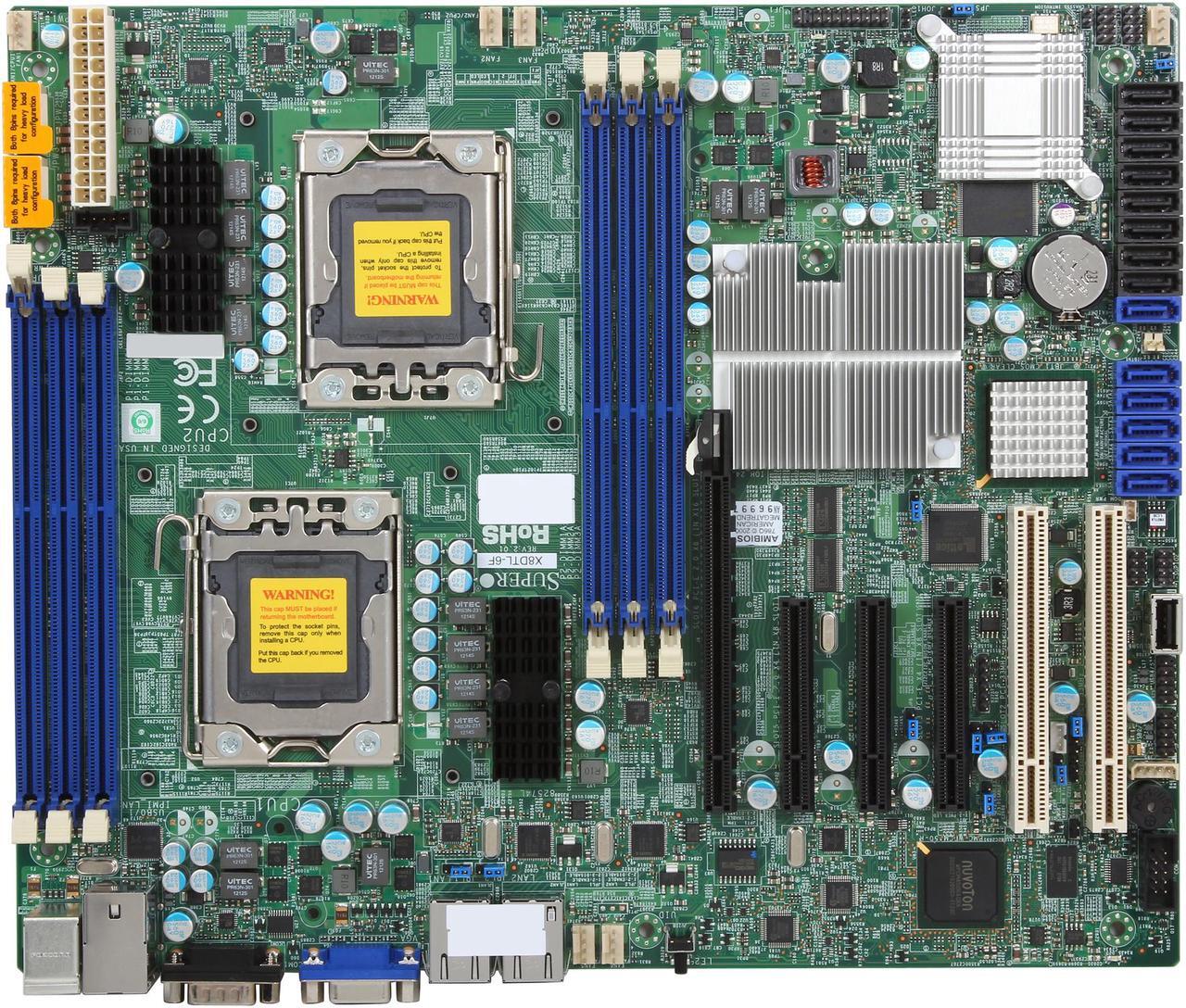

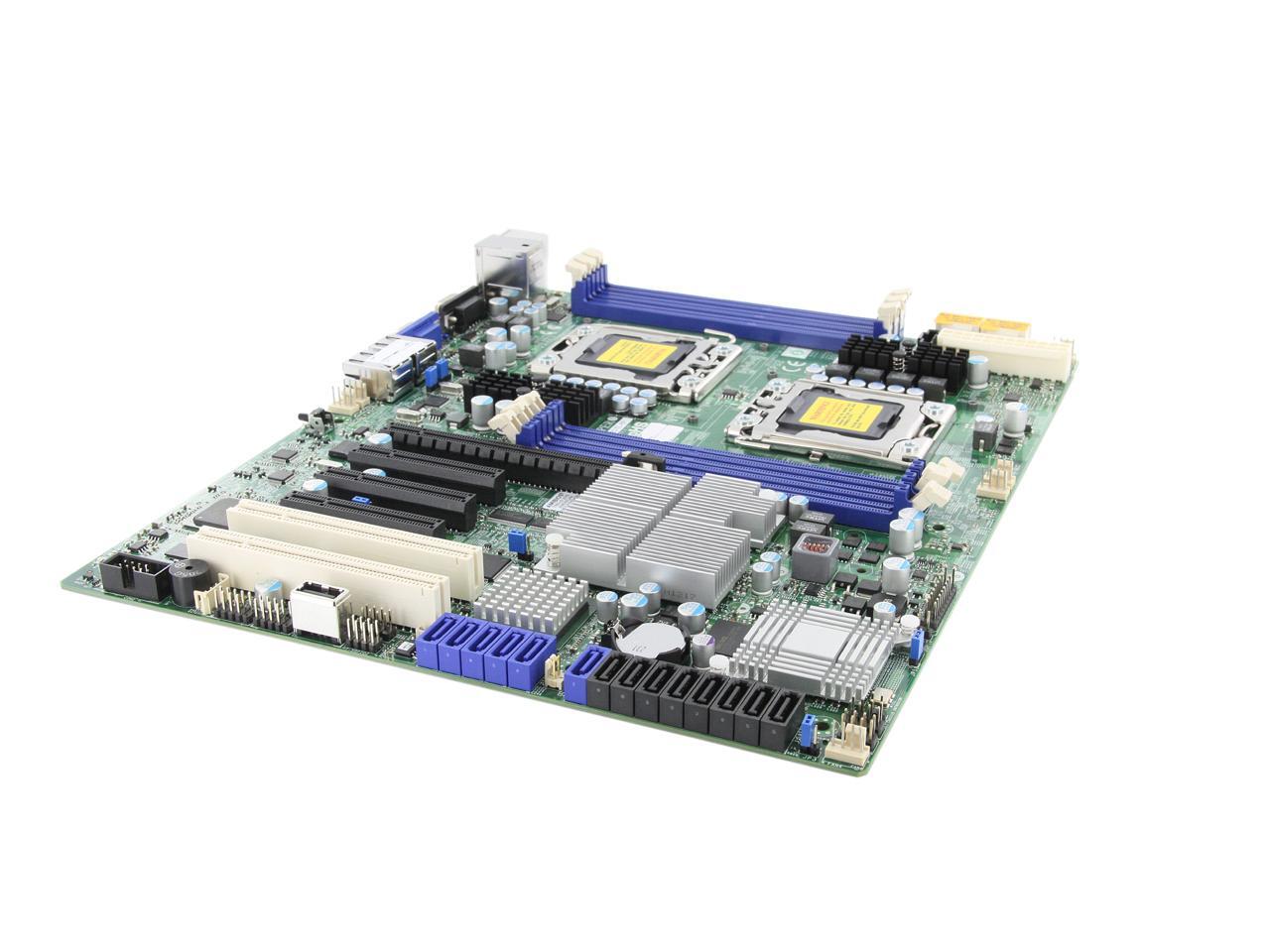

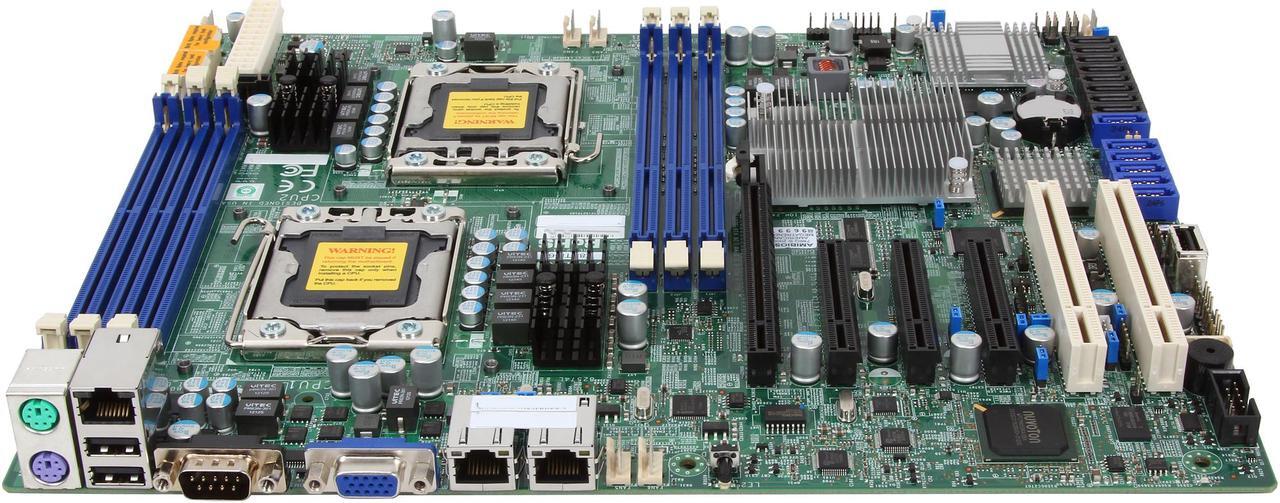

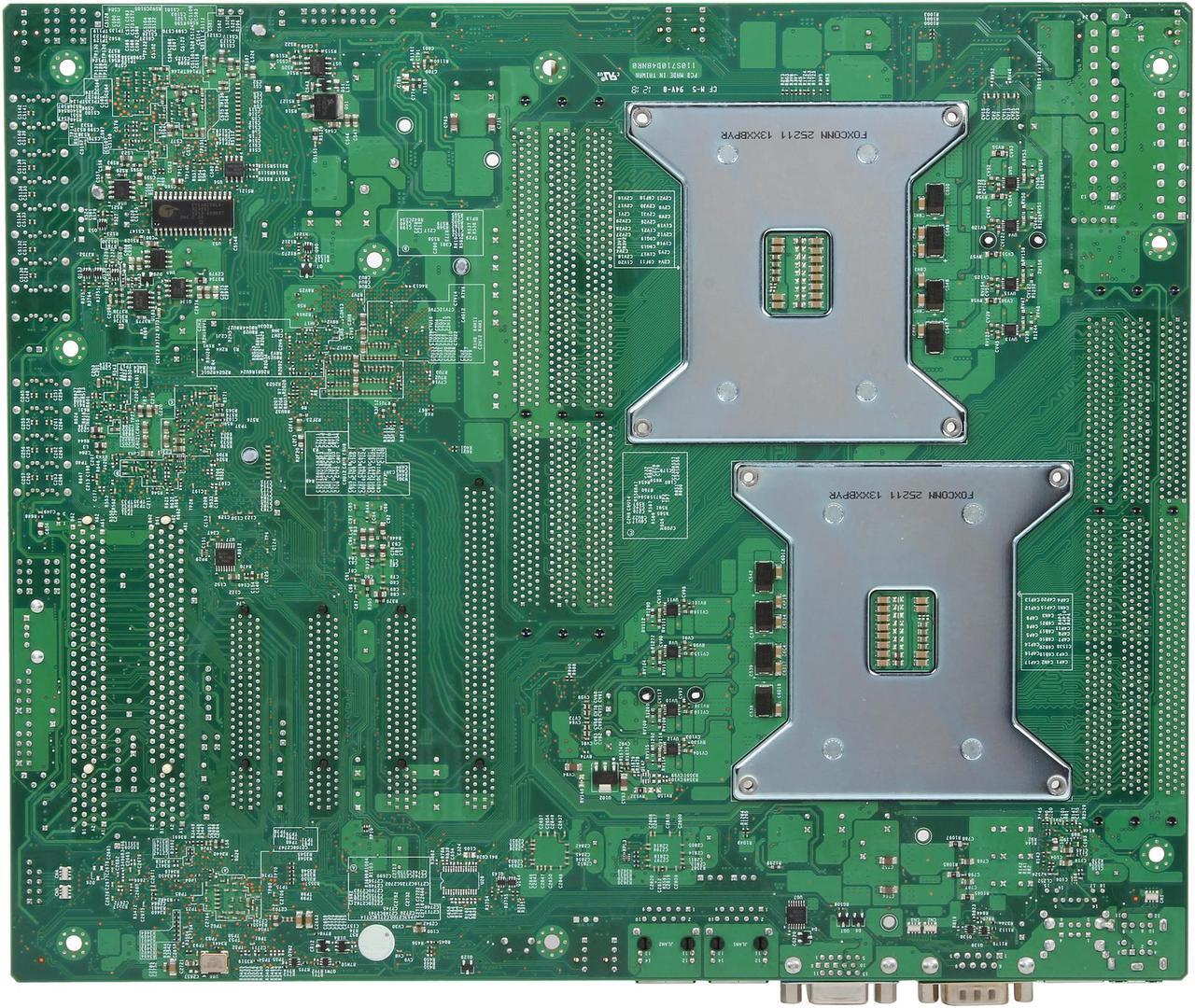

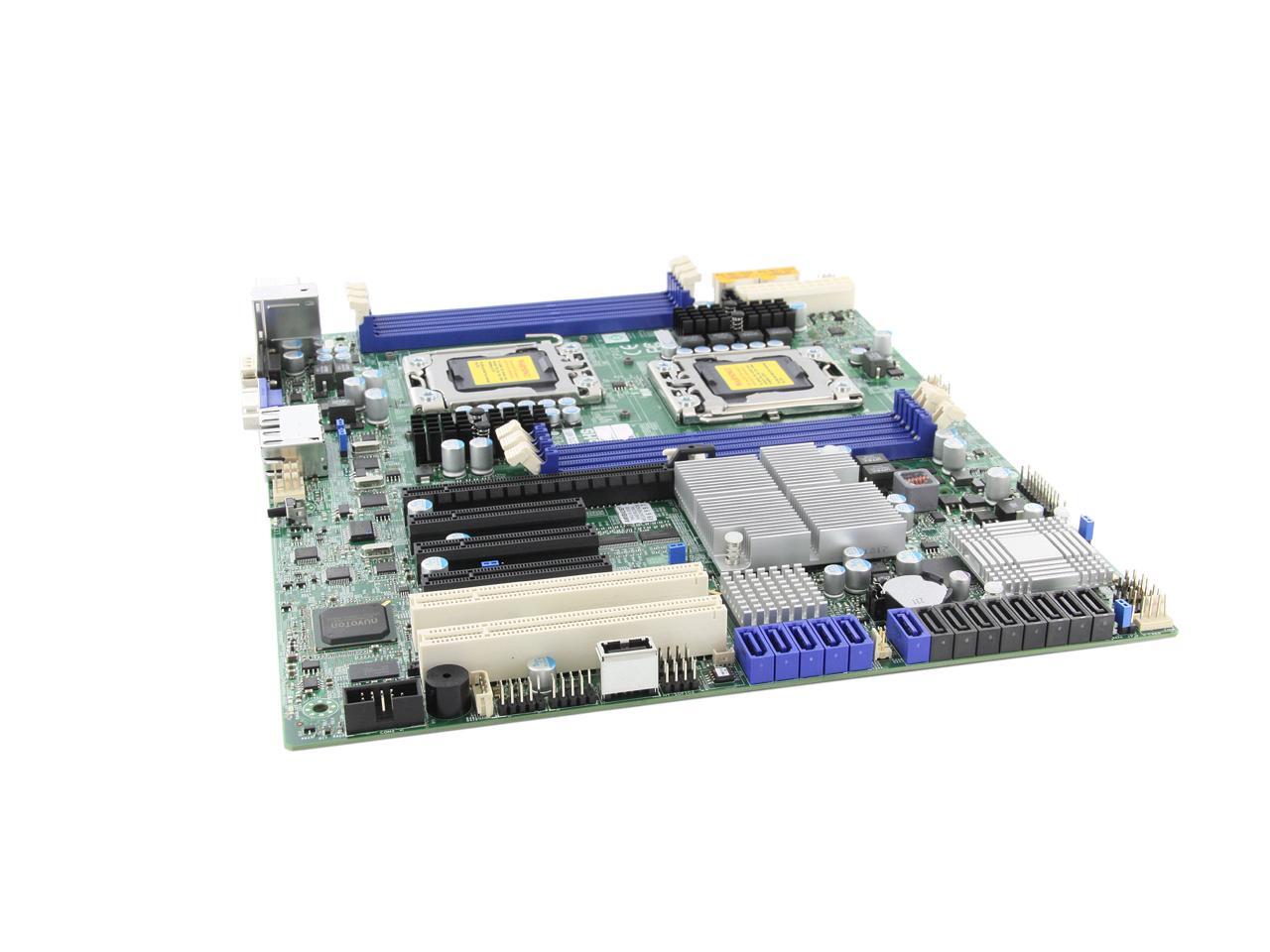

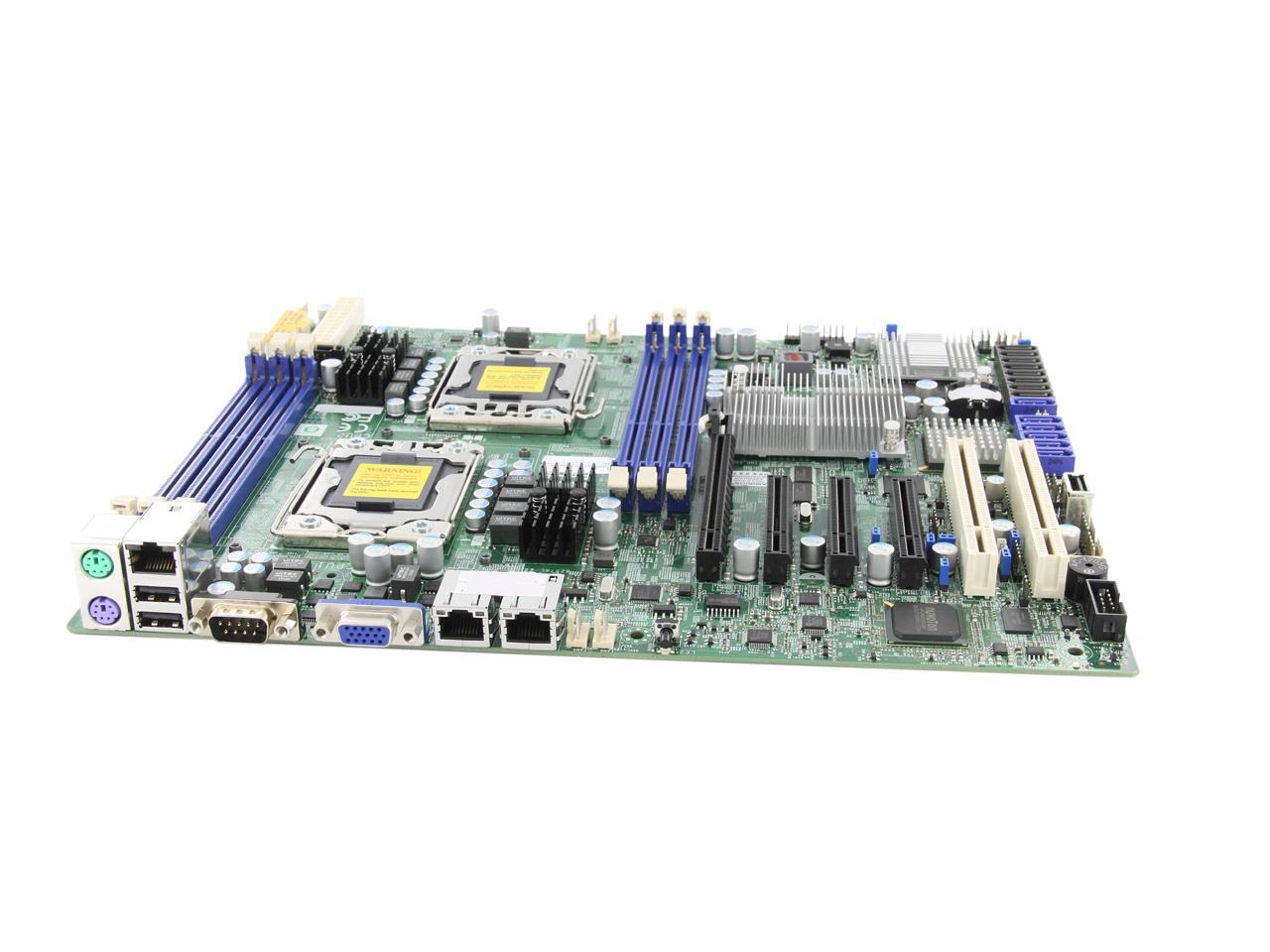

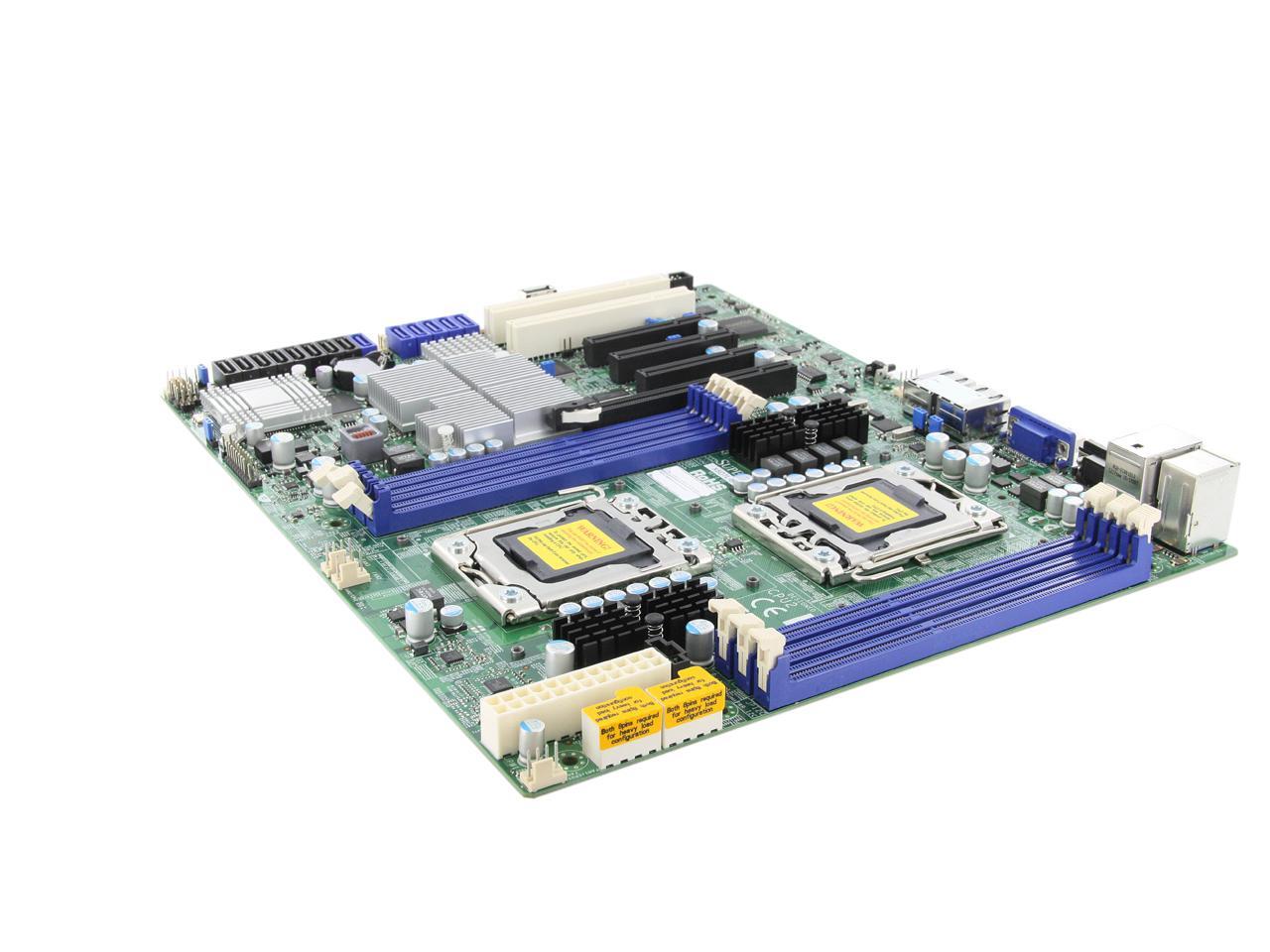

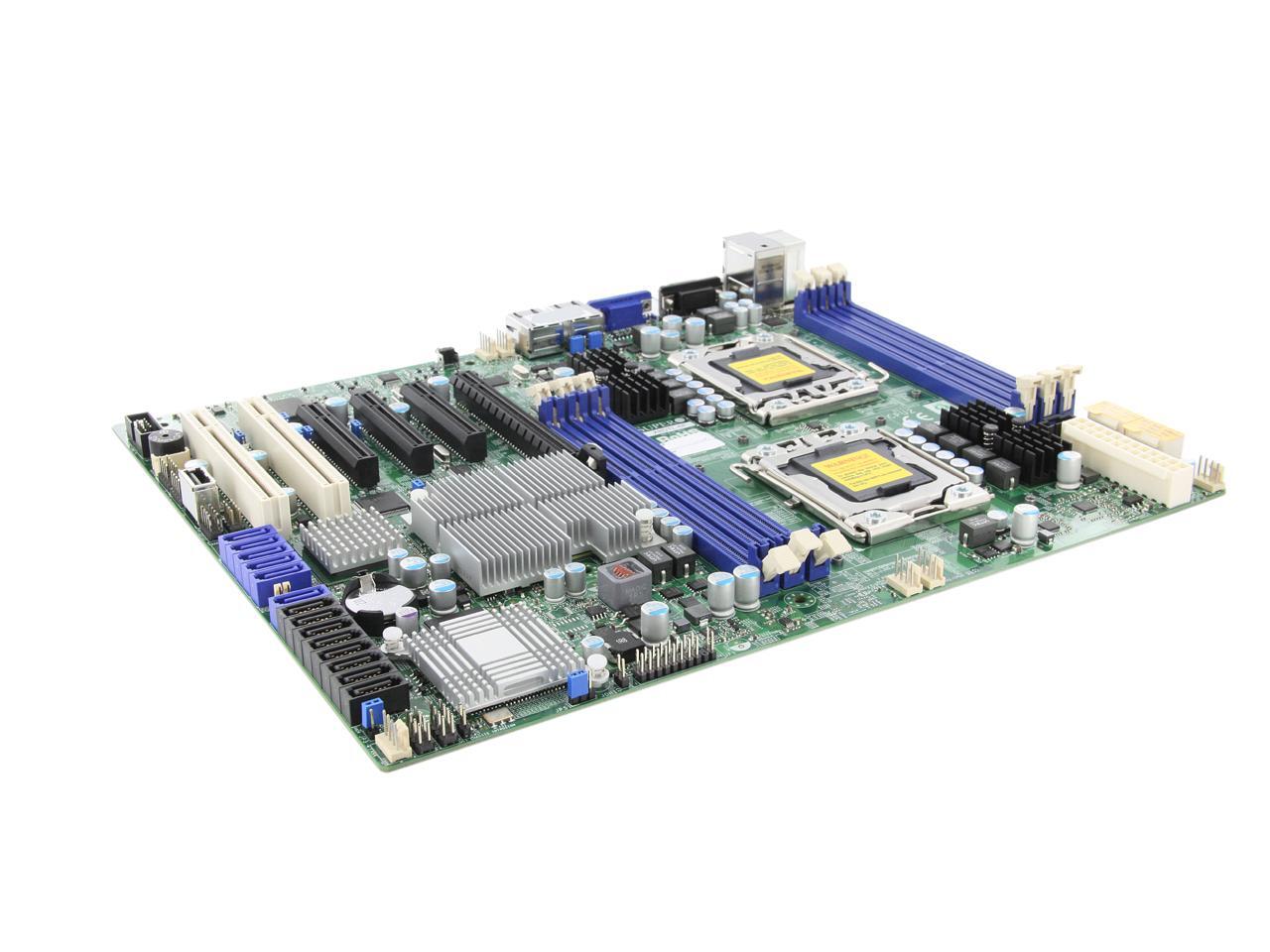

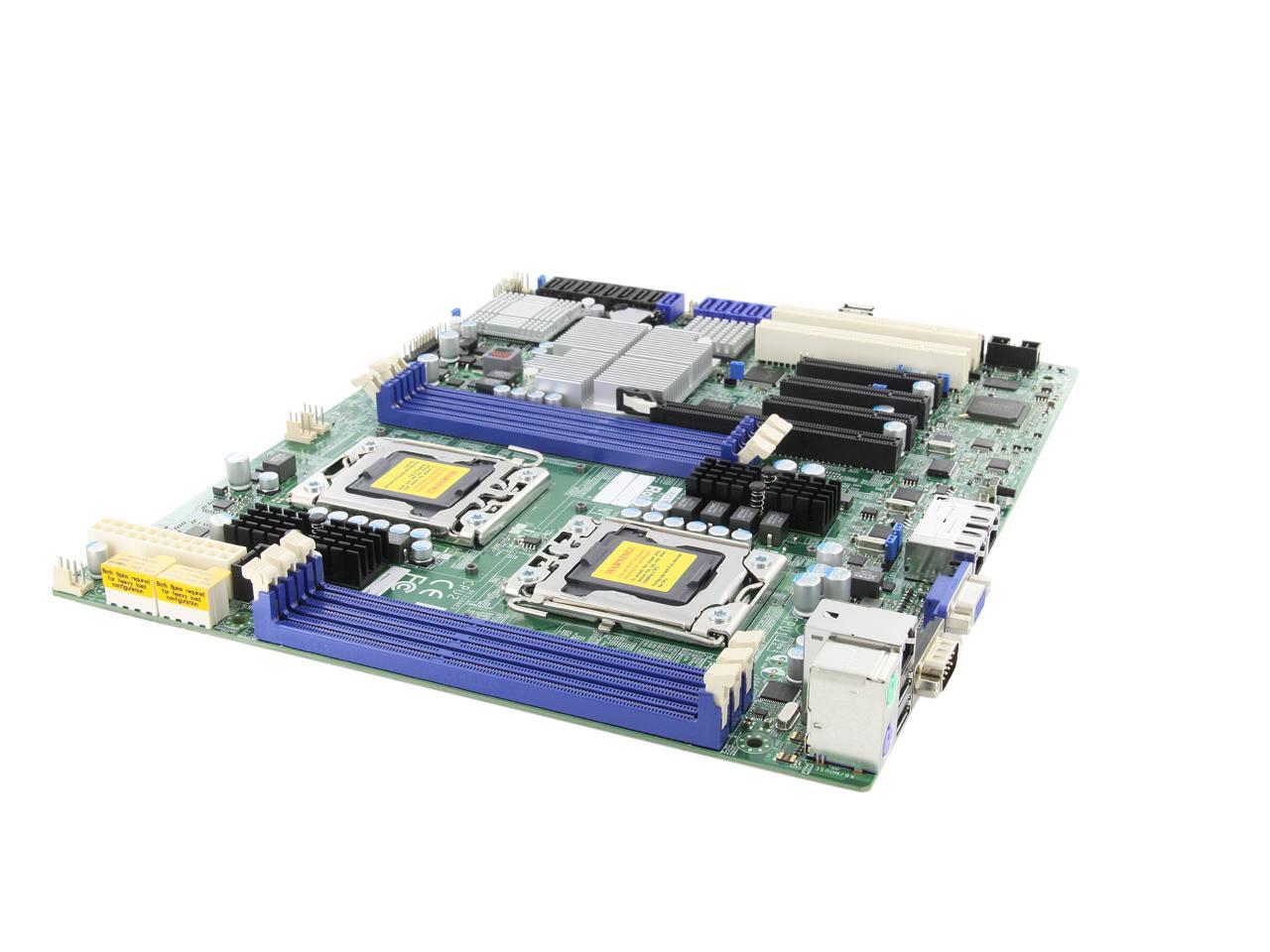

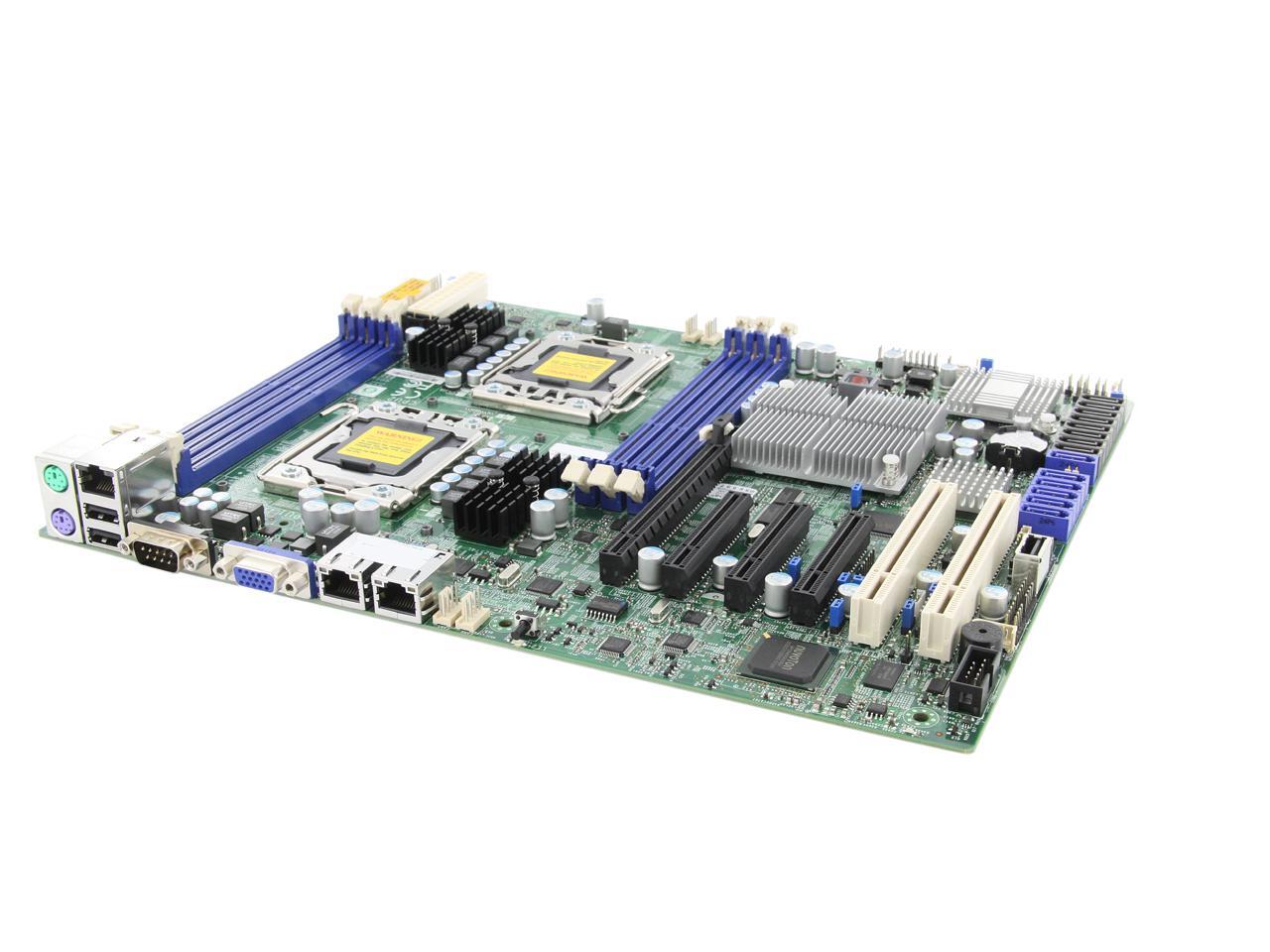

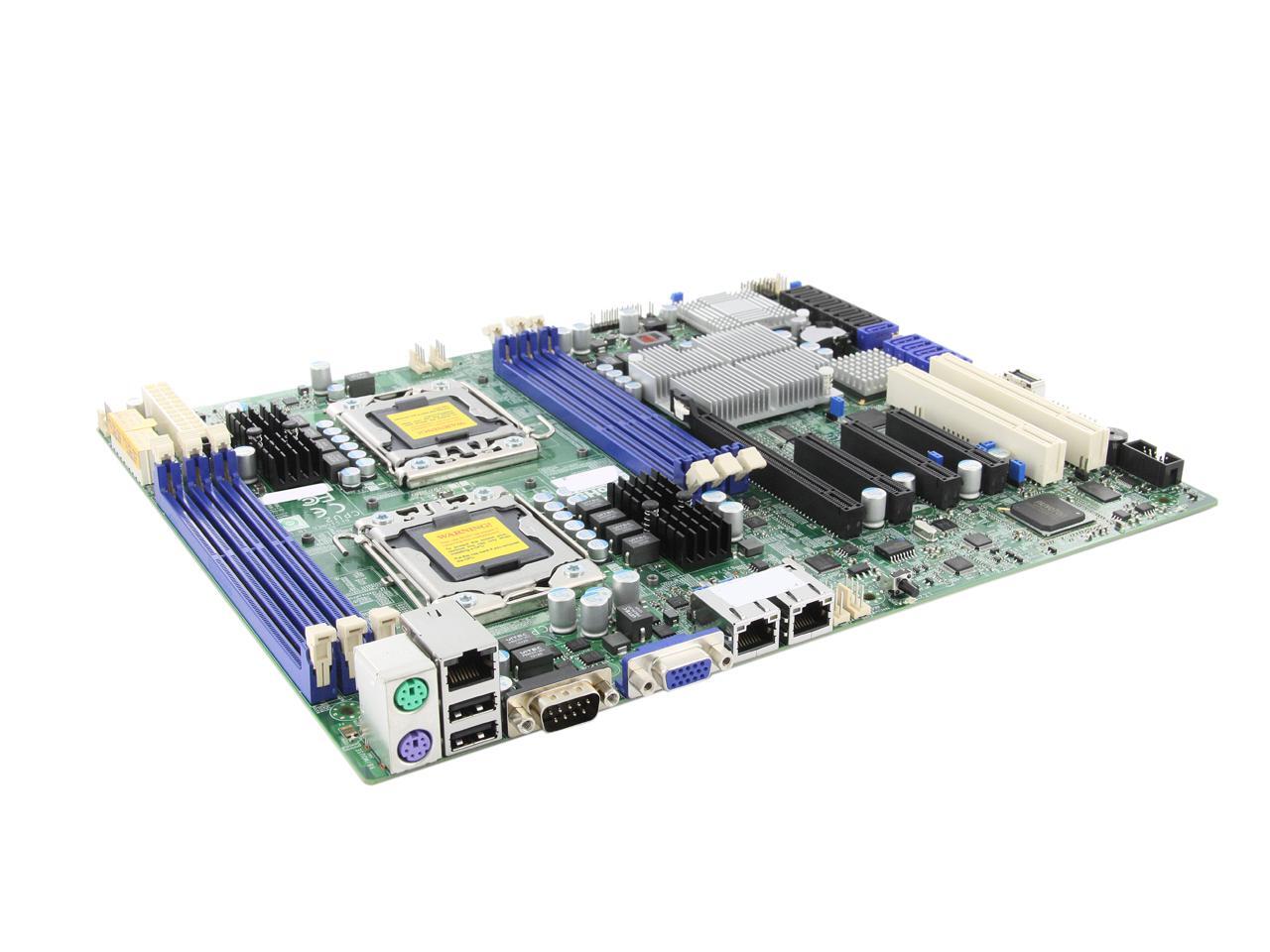

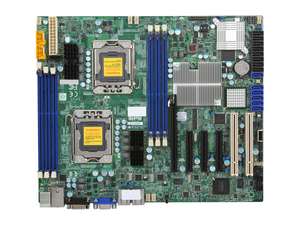

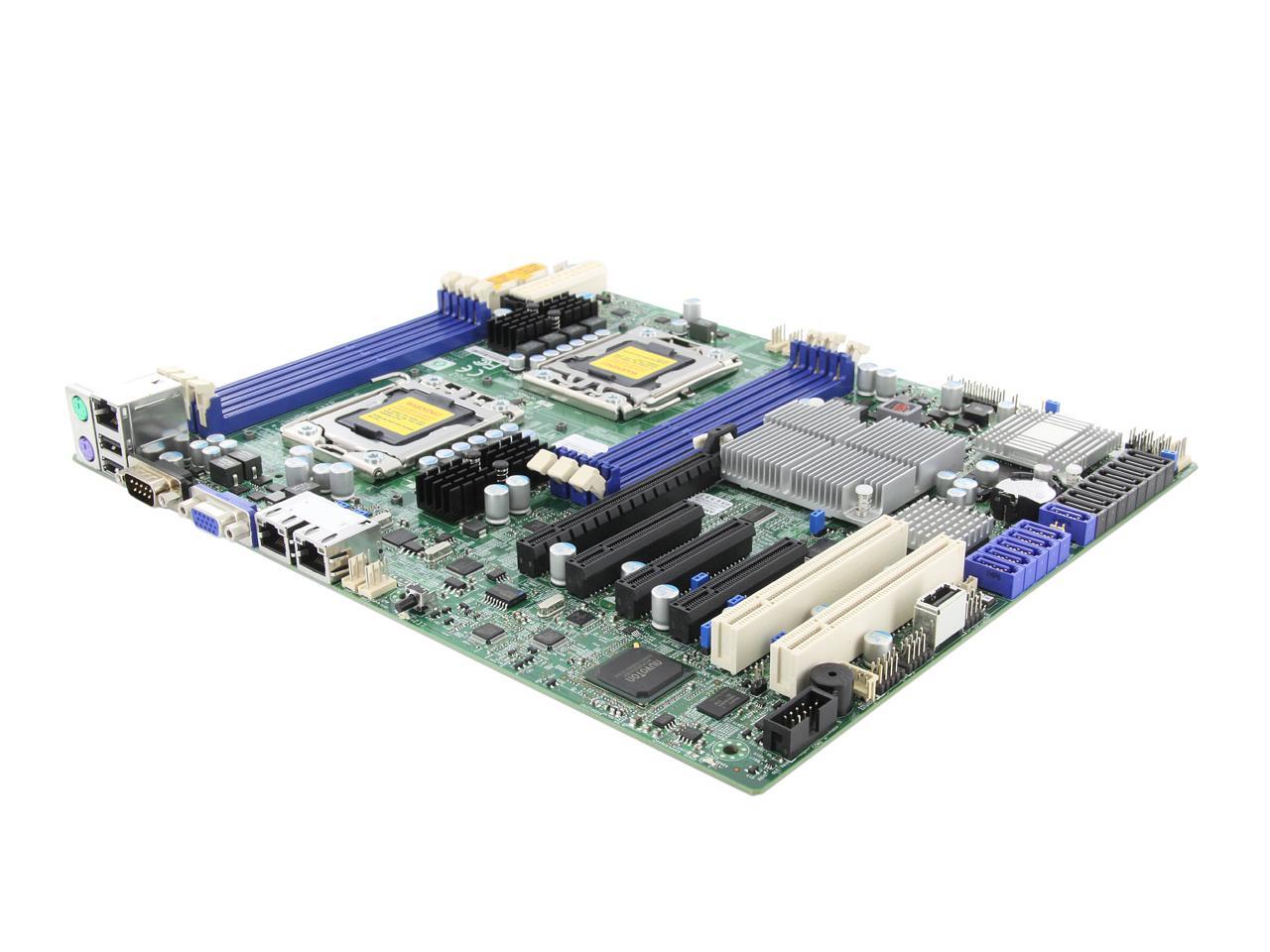

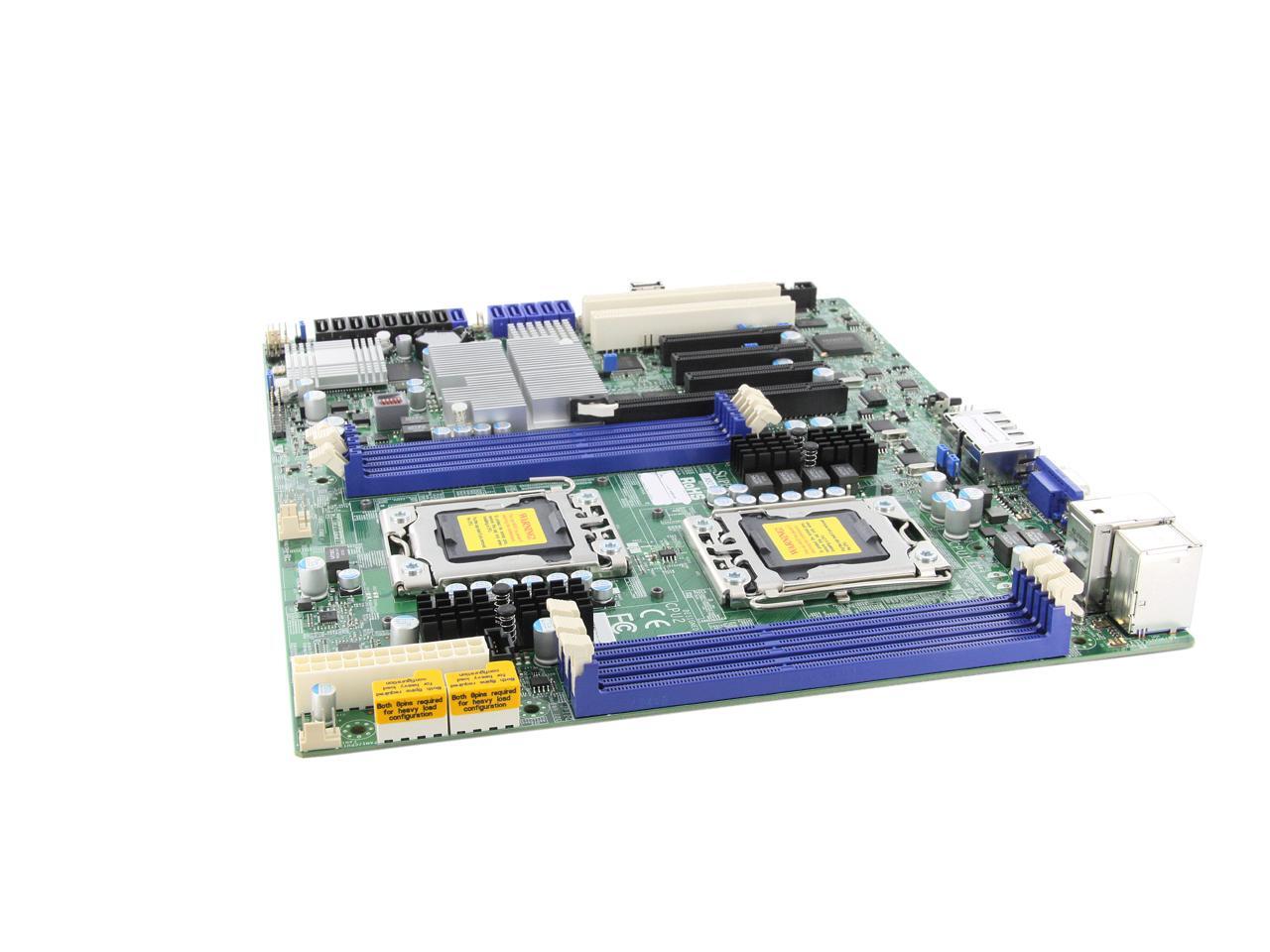

SUPERMICRO X8DTL-6F ATX Server Motherboard

Features

X8DTL-6F
  • Intel® Xeon® processor 5600/5500 series, with QPI up to 6.4 GT/s
  • Intel® 5500 (Tylersburg) Chipset
  • Up to 96GB DDR3 1333/ 1066/ 800MHz ECC Registered DIMM / 24GB Unbuffered DIMM
  • Dual Intel® 82574L Gigabit Ethernet Controller
  • 6x SATA2 (3 Gbps) Ports via ICH10R Controller
  • 1 (x8) PCI-E 2.0 ( in x16 slot), 2 (x4) PCI-E 2.0 (in x8 slot), 1 (x4) PCI-E (in x8 slot), 2x PCI 33MHz slots
  • Integrated Matrox G200eW Graphics
  • LSI 2008 8-Port 6Gb/s SAS Controller; RAID 0, 1, 10; RAID 5 optional
  • Integrated IPMI 2.0 with Dedicated LAN

Specifications

Product SKUs
MBD-X8DTL-6F -O X8DTL-6F (Standard Retail Pack)
MBD-X8DTL-6F -B X8DTL-6F (Bulk Pack)
Physical Stats
Form Factor ATX
Dimensions 12" x 10" (30.5cm x 25.4cm)
Processor/Cache
CPU
  • Dual 1366-pin LGA Sockets
  • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
  • Intel® Xeon®Processor 5600 Series (Westmere)
  • Intel® Xeon®Processor 5500 Series (Nehalem-EP)
QPI up to 6.4 GT/s
System Memory
Memory Capacity
  • 6x 240-pin DIMM slots
  • Supports up to 96 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
  • Supports up to 24 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
  • Memory Mirroring supported
Memory Type 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes 1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage 1.5 V / 1.35V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
  • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset
  • Intel® 5500 (Tylersburg) chipset
  • ICH10R + IOH-24D
SAS
  • LSI 6Gb/s SAS 2008
  • RAID 0, 1, 10 support
  • (Optional: AOC-SAS2-RAID5-KEY) RAID 5 support
SATA
  • Intel ICH10R SATA 3.0Gbps Controller
  • RAID 0, 1, 5, 10 support (Windows)
  • RAID 0, 1, 10 support (Linux)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Winbond® WPCM450 BMC
Network Controllers
  • 2x Intel® 82574L Gigabit Ethernet Controllers
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics Matrox G200eW
Super I/O Winbond® 83627DHG-P chip
Input / Output
SAS 8x 6Gb/s SAS / SATA ports
Serial ATA
  • Six Serial ATA ports
  • Six SATA hard drives supported
LAN
  • 2x RJ45 LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB rear ports
  • 1x USB on-board
  • 2x USB internal headers
  • Total 5 USB 2.0 Compliant
VGA 1x VGA Port
Keyboard / Mouse PS/2 keyboard and mouse ports
Serial Port / Header
  • 1 Fast UART 16550 serial port
  • 1 Fast UART 16550 serial header (Option)
System BIOS
BIOS Type 32Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.2
  • ACPI up to 3.0
  • USB Keyboard support

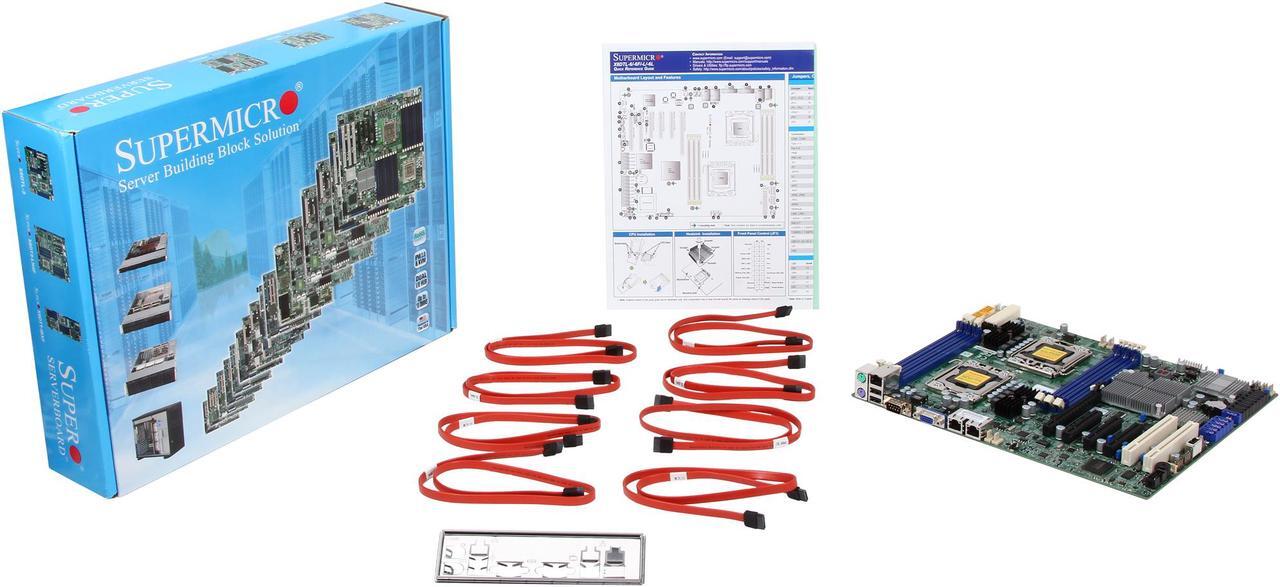

Whats in the Box

X8DTL-6F

X8DTL-6F Server Board is designed with the utmost attention to detail to provide the highest standards in quality and performance. X8DTL-6F Server Board substantially enhances system performance with increased bandwidth and unprecedented scalability optimized for high-end HCP/Cluster systems and intensive applications.
